Pigtail Wiring Harness for Tekonsha and Draw-Tite Brake Controllers - 34" Long

Pigtail Wiring Harness for Tekonsha and Draw-Tite Brake Controllers - 34" Long

Item # 7894

lowest price pledge

Retail:$21.21

Our Price: $8.25

You Save: 61%
Accessories and Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.3 lbs

Quantity:
In Stock, Ships Today
Tekonsha Wired to Brake Controller Accessories and Parts - 7894
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed


  • Brake Controller
  • Wiring Adapter
  • Plugs into Brake Controller
  • Tekonsha
  • Universal
Use this pigtail wiring harness to quickly and easily transfer your brake controller between vehicles or to replace a lost or damaged wiring harness. Works with most Tekonsha and Draw-Tite brake controllers. Call 800-298-8924 to order Tekonsha accessories and parts part number 7894 or order online at etrailer.com. Free expert support on all Tekonsha products. Guaranteed Lowest Price and Fastest Shipping for Pigtail Wiring Harness for Tekonsha and Draw-Tite Brake Controllers - 34" Long. Accessories and Parts reviews from real customers.


  • All Info
  • Reviews (76)
  • Q & A (104)
  • Videos (5)
  • Photos
  • Why etrailer?

Tekonsha Accessories and Parts - 7894

Use this pigtail wiring harness to quickly and easily transfer your brake controller between vehicles or to replace a lost or damaged wiring harness. Works with most Tekonsha and Draw-Tite brake controllers.


Features:

  • Lets you move your brake controller to another vehicle in a snap or replace a wiring harness
    • Substitute for a lost or damaged wiring harness
    • Plug one end into your brake controller and hard-wire the other end into your alternate vehicle to make your brake controller portable
  • Saves money - no need to buy multiple brake controllers for your vehicles
  • Works with a variety of Tekonsha and Draw-Tite brake controllers
  • Includes butt connectors for installation
  • Measures approximately 34" long


If you ever tow with more than one vehicle, use this extra wiring harness to switch your brake controller from one vehicle to another at a moment's notice. Just hard-wire this pigtail harness into your alternate vehicle, tuck it away, and when you want to switch tow vehicles, plug in your brake controller. Or simply use it to replace a lost or damaged wiring harness.



7894 Replacement Pigtail Wiring Harness for Tekonsha and Draw-Tite Brake Controllers






Video of Pigtail Wiring Harness for Tekonsha and Draw-Tite Brake Controllers - 34" Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Tekonsha Brake Controller 7894 Review

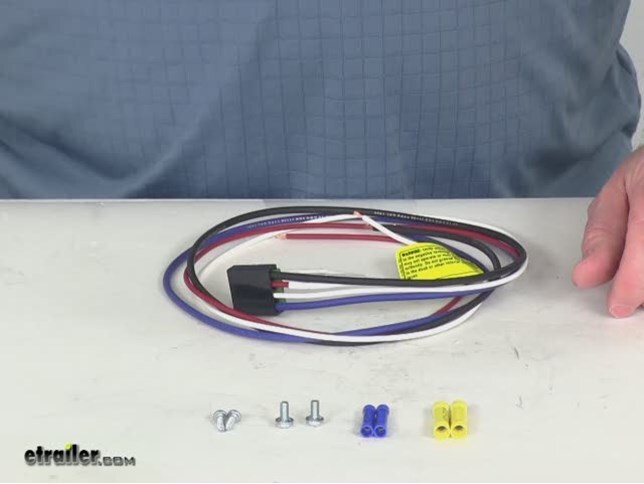

Today we're going to review part number 7894. This is the Tekonsha pigtail wiring harness for Tekonsha and Draw-Tite brake controllers. Now this part could let you move your brake controller to another vehicle or even to replace a wiring harness. You can use this to substitute for a lost or damaged wiring harness. Basically right here the black plug-in will plug into the back of your brake controller, and then the pigtail wires would hard wire into your other vehicle, makes your brake controller very portable. This will help you save money so there's no need to buy multiple brake controllers for your vehicle.

This wiring harness will work with a variety of Tekonsha and Draw-Tite brake controllers. Now this part includes everything shown here. It includes the butt connectors for connecting your wires. It also includes some screws for attaching to the mounting bracket itself. This wiring harness measures lengthwise about 34" long. Again, I'm just going to show you how this could connect.

The pigtail wires themselves, the white would be for your ground connection. The black would be for the 12-volt power. The red would be your brake light signal connection, and the blue would be the brake controller output to the brakes. Basically what you would do is using the butt connectors connect these to your vehicle, and then your black plug right here. This is a Prodigy P3 that we do sell separately on our website. If you look on the very back it will have the plug-in connection.

You just take your plug and push it in. You can see it snaps into place, locks into place. Then with this connected to your vehicle your brake control will be ready to go. When you need to remove your brake controller just pull up on the clip right there and it will remove it from the brake controller. That should do it for the review on part number 7894, the Tekonsha pigtail wiring harness for Tekonsha and Draw-Tite brake controllers.

.


Customer Reviews

Pigtail Wiring Harness for Tekonsha and Draw-Tite Brake Controllers - 34" Long - 7894

Average Customer Rating:  4.8 out of 5 stars   (76 Customer Reviews)

Use this pigtail wiring harness to quickly and easily transfer your brake controller between vehicles or to replace a lost or damaged wiring harness. Works with most Tekonsha and Draw-Tite brake controllers.

- 7894

by:


I ordered these parts to replace a controller that went bad in one of my work vans. The etrailer website was very helpful with pictures and descriptions of the various controllers that would work for my vehicle and suggested i order an optional wiring harness, which i did. The pricing was good. Also i didnt ask for it, but after i ordered online, the sales dept upgraded the shipping at no additional cost and i got an emails when it shipped and when it arrived. Overall im very pleased with etrailer. Thank you 451120


Comments

There still working

Francis - 11/12/2018

45659

- 7894

by:


We found everything about our experience with etrailer.com really good....Rose G. was so helpful, everything that we ordered come in a timely manner and Rose checked before placing the order that everything was available....thank-you so much for a pleasant experience...we will definitely use them again for our trailer needs.... 376118



- 7894

by:


etrailer was the best company I've ever dealt with online. I told Melinda E. what I wanted to do and she put together a package of the hitch, wiring harness, and brake controller for me. Everything installed perfectly and I just got back from towing a 10,000 lb trailer over 600 miles. I have already recommended etrailer to friends and I can confidently say they are the ONLY place I'll buy trailering equipment from. Thanks Melinda!! 205800



- 7894

by:


Not much to be said. It was nice to be able to get additional wiring and mounting for my brake controller. Delivery was great and the part is OEM from Prodigy. George and Cathy have been great service reps. 468897



- 7894

by:


Had it installed and has worked great and have used trailer several times a week. Never needed any adjustment or anything. great product!! 284980


Comments

No problems and the trailer gets a lot of use hauling our tractor and side by side!

J. T - 08/20/2017

27404

- 7894

by:


I received an email saying one of the items I ordered, was not in stock, I was given a choice to take an alternative item, which would have worked just fine, I chose to wait for the exact item. To my surprise it came to the house two days after being told I would have to wait. My whole order took just short of a week to get, even having to wait for a part not presently in stock. All the stuff I ordered was in perfect condition, and properly packed. Very satisfied with your service and price. Thanks, Doug P. 340220



- 7894

by:


Perfect. Instructions were clear and precise. Plenty of wire for the install on my jeep grand wagoneer. Everthing i needed was included in my order with a mini test light too!! I only went to the parts store once during the installion- I wanted heat shrink connectors for the connections on the exterior of the car. But that's just me. Otherwise there were actually a few extra connectors that I wouldn't have needed in the kit. Awesome. Customer rep was a pleasure to deal with as well!! 451481



- 7894

by:


I didn't get this to replace a bad connector but to install my Tekonsha Prodigy P3 into another truck. I have more than one truck I tow with so using this harness and the mount bracket (part # 5906) I'm able to move my brake controller to whichever truck I'm using to tow with. The bracket and harness are MUCH cheaper than buying another controller and the bracket is made to be able to quick release the controller. This ability to move the controller from truck to truck is one of the reasons I chose the Tekonsha Prodigy P3 brake controller in the first place. 168225



- 7894

by:


Great product. Everything worked the way it was supposed to. 572765



- 7894

by:


Super quick shipping and easy website to order from. This part will allow transfer of my Tekonsha in quick time. I will use these folks again for my trailering needs! 563644



- 7894

by:


Absolutely Brilliant, I am really impressed with all, especially as I am trying to beat the snow up here in Canada. Getting this out today really helps. I must say that your sites customer follow up, tracking, & included videos is way too cool. Thanks a lot for the effort & take Good Care. 561385



- 7894

by:


Arrived sooner than expected. Thanks a gain. 561010



- 7894

by:


Great support from sales, person, order arrived very quickly, no issues. 546729



- 7894

by:


I use this harness to allow removal of the controller for storage when not trailering. Install was exactly as expected. 543118



- 7894

by:


Very good product. Easy to install (on Nissan Titan), instructions were clear. Works well. 595114



- 7894

by:


etrailer had always supplied great products and service! Their videos have been very helpful for all of the products I have purchased. My go-to store for all my trailer/rv/towing needs. 592126



- 7894

by:


This harness worked perfectly. The wires were the right length with some to spare, and the harness fit into the connector with no issues. 584158



- 7894

by:


Direct fit and easy install. fast ship ping 521983



- 7894

by:


Item was exactly what i ordered and worked perfectly . 515687



- 7894

by:


Ordered the pigtail kit for our prodigy brake controller so we could use the controller in both our rv and pick up truck. Our rv rep said they couldn't get one that we needed that we needed to furnish one. etrailer was right there, easy to understand description, product arrived in 2 days. Wham bam it's installed. Thanks guys. 515558



- 7894

by:


good fit 513914



- 7894

by:


Exactly what I needed to wire up a 2nd truck. 510850



- 7894

by:


Very easy to install and worked great "out of the box". 508925



- 7894

by:


Exact Fit, Great Quality as is everything from eTrailer.com...!!! 503195



- 7894

by:


Connects perfectly to my Tekonsha P3 502802



- 7894

by:


Very knowledgeable on products, easy transaction, fast shipping. 496337



- 7894

by:


Totally simple and easy. I save a good bit of money installing the electric trailer brakes on my mini van myself. And they work! Awesome product and customer service. 491000



- 7894

by:


Professionally made and it shows it. 487498



- 7894

by:


Product exactly as shown. Did the job needed. 484411



- 7894

by:


Easy to install and works great 482357



- 7894

by:


Works great in our 2nd car! 480878



- 7894

by:


Installed on my SONOMA 2003. Works fine. Did the job. Love it. 475059


Comments

I still have my 2003 GMC Sonoma on which these parts have been installed. It only has 190000 KM. But recently I bought a new GMC Canyon with the trailering package. All items bought from ETrailer are in excellent working condition and will be transferred to another vehicle soon. Ive been very satisfied with your products.

Daniel - 02/11/2019

49395

- 7894

by:


Fantastic service and great quality brake controller. Thank you so much for helping me chose the right controller and on installation advice. 460901



- 7894

by:


This allows me to switch my brake controller between vehicles. I used this as part of several parts to install hitch and brake controller on a 2017 Jeep Cherokee latitude v6. Parts used 118605, C13171, 6927, 7894 and ETBC7. 443613



- 7894

by:


It worked Great no problem hooking up! 414833



- 7894

by:


Great product, good price easy-to-use with the help from etrailer videos. 392034



- 7894

by:


This was exactly what I wanted. The video and info I got before the part came was extremely helpful 384245



- 7894

by:


Still working great thank you very much 378579



- 7894

by:


Great brake controller. Easy install. Good costumer support. Installed in my motor home. 2017 Liesure Unity Murphy bed. Mercedes 3500 Sprinter. Mercedes dealer wanted over $800.00 to do install. I did it myself for the cost of Tekonsha voyager controller and pigtail wire harness. Plug and play as they say.. Thanks 374268



- 7894

by:


Works great! Very easy to install. 365502



- 7894

by:


Just what I need and a perfect length, installed the harness in about 30 mins and attached trailer brake module. Attached video was informative and helpful...thank you!!! 364906



- 7894

by:


Worked like a champ.. Great service, Great company to do business with. 359364



- 7894

by:


The produce works great and made installation easy. 333534



- 7894

by:


Along with your help videos they were easy to install with no problems 323893


Comments

Working perfectly

James C - 12/10/2017

31635

- 7894

by:


was a direct fit, worked and installed easily 305723



- 7894

by:


GREAT ITEM FOR PRICE 295615



- 7894

by:


Was shorted a wiring harness for a break controller from another supplier so ordered it from etrailer. Original suppier finally sent the harness so etrailer was kind enough to let me return theirs for full price less original shipping. Thank you etrailer. 289924



- 7894

by:


Wired up just fine. Not much to say about this since it is simply electrical cables, but it did the job it was advertised to do. 276674



- 7894

by:


Easy to install and works great. 246072



- 7894

by:


THIS HARNESS FIT FINE. THE ONLY PROBLEM IS THAT IT DOESN'T COME WITH ANY KIND OF WIRE DIAGRAM. WHAT GOES WHERE. I AM WIREING A SECOND VEHICLE FOR THE P2 AND DON'T HAVE THE ORIGONAL INSTRUCTIONS. DIAGRAMS ARE ONLINE, BUT WOULD BE NICE TO HAVE THEM INCLUDED. I AM WIREING UP A NISSIAN NV 3500 WITH THE FACTORY PIG TAIL...A LITTLE SCARY CONNECTING A RED WIRE TO A BLACK ONE!! 243320
