Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers - Ford, Lincoln, Mercury

Ask the Experts about this Tekonsha Accessories and Parts

• Recommended Trailer Brake Controller For Forest River FR3 30DS On A Ford Chassis F53
  The brake controller install harness for your 2018 Forest River FR3 30DS on a Ford chassis F53 is the Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers # 3035-P. This will give you the ability to plug-in and go. Just use the connection you mentioned under the steering column. This adapter works perfectly with our most quality and efficient unit, the Tekonsha Prodigy P3 Trailer Brake Controller # 90195. This proportional brake controller will activate your trailer brakes...
  view full answer...
• Where Is the Brake Controller Plug On a 2019 Ford Explorer
  The brake controller port on a 2019 Ford Explorer should be located behind the glove box on the passenger side or underneath and left of the steering column near the emergency brake pedal. That said, I say should because the location of the brake controller port is not always as exact as one would think and can vary between vehicles. Please note, they are usually taped to other wires in a harness and have some sort of foam wrapped around them. Furthermore, there can be a plug in the end...
  view full answer...
• Brake Controller Recommendation for 2013 E-350 with Clean Look on Dash
  For your 2013 Ford E-350 with factory brake controller wiring we don't offer a way to install the factory controller but we do have a similar setup that will give you a very clean look on your dash. The Redarc Tow Pro part # 331-EBRH-ACCV2 is a proportional controller that will only require mounting a small knob on the dash like what I attached a picture of. The install harness you'd need then is the part # 331-TPH-005 which plugs into the connector you found behind the coin tray.
  view full answer...
• Which Brake Controller Adapter for 2006 Ford E-450 Chassis RV
  The # 3035-P is the brake controller adapter for a Ford truck, so it's not going to be the correct adapter in this case. From what I was able to find in my research, it looks like the Ford E450 chassis RVs actually use the # 3034-P adapter to install a brake controller.
  view full answer...
• 2015 Lincoln Navigator Brake Controller Wiring Harness Connection Location
  It seems like you may have the incorrect wiring connector and the harness in the photo is not the correct fit. For your 2015 Lincoln Navigator, the correct wiring adapter is # 22292 for your Tekonsha Prodigy P3 # 90195. If you have the factory 7-way or factory 4-way, this harness will work. The connector will be located in the center of the dash on the driver's side behind a trim panel. I've attached the installation details to assist as well as some videos to help. The wiring harness...
  view full answer...
• Electric Brake Controller Recommendation for Winnebago with 7-Way Installed
  Since you have a 7-Way you will only need a few more components to complete a brake controller install on your vehicle. First let's start with a brake controller. I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to set up. Next, for a wiring kit to install the brake controller to the 7-way you would want the Wiring Kit for 2 and 4 Brake Electric Brake Controllers # 5506. This will...
  view full answer...
• Electric Brake Controller Recommendation for 2018 Thor Freedom Elite Motorhome
  Behind the coin holder of your 2018 Thor Freedom Elite on the dash is the brake controller install port which you can use the part # 3035-P to install a Prodigy brake controller like our best selling P3 part # 90195. For a brake controller I would recommend the Prodigy P3 Brake Controller part # 90195. This is our best selling brake controller because of how well it works and how easy it is to setup. This is a proportional brake controller that senses the amount of braking the tow vehicle...
  view full answer...
• Brake Controller Installation on 1996 Ford F-150
  I have added a link to a help article which details how to install a brake controller on your 1996 Ford F-150, and the exact parts you need are going to depend on if you have no factory trailer connector, the factory 4-way, or factory 7-way. For a controller such as the Tekonsha PowerTrac Brake Controller, here is what your 1996 F-150 will need, depending on what you have: No Factory Connector: - 4-Flat Trailer Connector # 118316 - Universal Installation Kit for Trailer Brake Controller...
  view full answer...
• Brake Controller and Wiring Adapter for 2015 Forest River FR3 30DS Built on Ford F-53 Chassis
  To use the Prodigy P3 Trailer Brake Controller # 90195 with your 2015 Forest River FR3 30DS, which was built on a Ford F-53 chassis, you will need the Tekonsha Plug-In Wiring Adapter # 3035-P. The other part you will need is Adapter # 37185 to give you 7-way on your motorhome.
  view full answer...
• Brake Controller Install harness that Fits 2018 Ford FR3 32DS
  The brake controller install harness part # 3035-P that you referenced is the correct harness for your 2018 motorhome built on a Ford F-53 chassis to install a brake controller like our very popular Draw Tite iCommand # 5535 which works really well and is very cost effective.
  view full answer...
• Brake Controller Wiring Adapter Recommendation on a 2001 Ford F-150 XLT
  Your 2001 Ford F-150 will use the same brake controller wiring adapter whether your truck came with a factory 7-way or a factory 4-way. The 7-way and 4-way is referring to the style of trailer connector that your truck came with (see photo). If your truck came with the factory 7-way trailer connector at the rear of your vehicle, then, to add a brake controller, all you will need is a brake controller and the wiring adapter. I recommend looking at the Tekonsha Prodigy P2 Brake Controller,...
  view full answer...
• Installing Tekonsha Prodigy P2 On 1997 Ford F-53
  To install the Tekonsha Prodigy P2 Brake Controller # 90885, if your vehicle is pre-wired, it is likely that you will want to use the Tekonsha Plug-in Wiring Adapter for Electric Brake Controllers - Ford, Lincoln, Mercury # 3035-P. You will want to look for a port that will mate with the vehicle end of the # 3035-P adapter. I have attached a picture of this plug for you. We do not have specific information on a wiring adapter for the 1997 Ford F-53 chassis. If your vehicle isn't pre-wired,...
  view full answer...
• How to Install the Tekonsha Wiring Adapter Part # 3035-P on a 2018 Ford Explorer

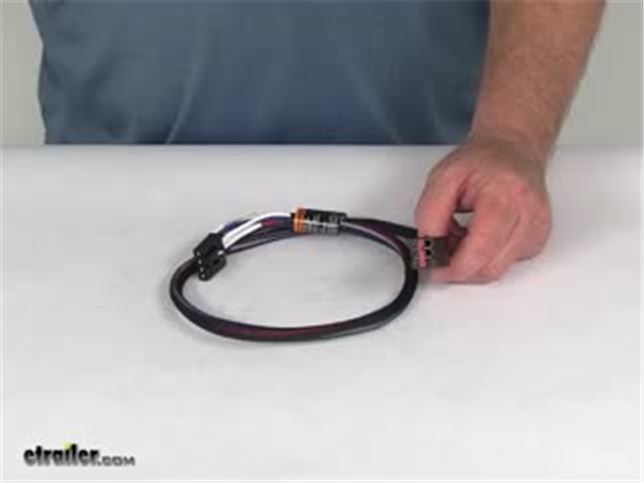

  The Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers part # 3035-P is a confirmed fit for a 2018 Ford Explorer. There are two ends on the adapter. A large square end with 6 pins that goes to the harness on the vehicle and a small rectangular end with 4 pins that goes to the controller. The brake adapter port that you will plug this into is located under the driver dash panel usually around where the emergency brake would be. If the plug-in you found does not fit the harness...
  view full answer...
• Where is the Brake Controller Port on a 2005 Ford E-350 Super Duty Diesel with Cut Away Box
  If your 2005 Ford E-350 has a factory 7-Way trailer connector, the brake controller harness, # 3035-P, is the correct harness for numerous Tekonsha and Draw-Tite brake controllers. The port will be tucked up under the dash, to the left of the steering column. If your vehicle has a factory 4-Flat, you will need to add Adapter 4 Pole to 7 Pole and 4 Pole, # 37185, at the rear of the vehicle. The blue brake wire will need to be routed from the brake controller to the 37185 harness. The...
  view full answer...
• Brake Controller Port for 2005 Ford E-450 Motorhome
  If you have a factory trailer connector, the brake controller port for your 2005 Ford E-450 will be under the steering column and to the left. If you take a look at the linked video of a brake controller install, you can see exactly where this is. You will be able to use the Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers # 3035-P with a brake controller, and I recommend the Tekonsha Prodigy P2 # 90885 - which is shown in the video - or the Tekonsha Voyager # 39510 for a...
  view full answer...
• Brake Controller Install Harness Recommendation for 2011 Four Winds Motorhome
  Your picture didn't make it through but I attached a picture that shows where the brake controller install port would be on a Ford F-53 chassis built in 2011. If this is what you have but no 7-way you can still use it to install a brake controller but you'll have to run a single 10 gauge wire back to the 7-way to carry the brake signal. The correct install harness you need though is the part # 3035-P to connect to it. The brake controller I recommend is the Prodigy P3 part # 90195 because...
  view full answer...
• Brake Controller Port Location on 2019 Coachmen Mirada with Ford F-53 Chassis
  The factory brake controller port for your 2019 Coachmen Mirada that's built on the Ford F-53 should be located on the left hand side of the steering column support, which is near the emergency brake pedal. I have attached an image that gives a clearer view of this. The Plug-In Adapter # 3035-P that you referenced is the correct harness to allow for a plug-and-play install using this port with a Tekonsha brake controller like the Prodigy P2 # 90885 (great choice) that you were looking at.
  view full answer...
• Brake Controller Wiring Harness for a 2014 Fleetwood Storm on Ford F-53 Chassis
  If your 2014 Fleetwood Storm is built on a 2013 or 2014 Ford F-53 chassis then you would need brake controller wiring harness # 3035-P according to my technical contact over at Tekonsha. I have linked a video review of this wiring harness for you.
  view full answer...
• Location of Brake Controller Port on 2005 Ford E-350 Van
  If your 2005 Ford E-350 van has a factory 7-Way trailer connector the port will be tucked up under the dash, to the left of the steering column. For a wiring harness you will want brake controller harness, # 3035-P. It is the correct harness for numerous Tekonsha and Draw-Tite brake controllers. If your vehicle has a factory 4-Flat, the wires for the power supply and stop light (black and red on the brake controller) are already run and should be tucked up under the dash. You will need...
  view full answer...
• Where is the Brake Controller Connector on a 2016 Thor Hurricane with a Ford F-53 Chassis
  The OEM connector on your 2016 Thor Hurricane should be up above the emergency brake pedal. If it is not there then you will need to look behind the steering column for a connector that the Plug-In Wiring Adapter # 3035-P connects to for your Prodigy P3 # 90195. I spoke with my contact at Tekonsha who said that back in 2011 Ford was supposed to make the connector more accessible (by the emergency pedal) because it used to be behind the steering column. You may also need to install...
  view full answer...
• Plug-In Wiring adapter for P3 Brake Controller on a 2011 Winnebago Adventurer with F-53 Chassis
  According to my research your 2011 Winnebago Adventurer motorhome is built on a 2010 Ford F-53 chassis. Since this is the case you need the Plug-In Wiring Adapter # 3035-P to install the Tekonsha Prodigy P3 # 90195 on your motorhome. The connector for your brake controller can be found up and behind the steering column as you can see in the attached picture.
  view full answer...
• Trailer Brake Controller Recommendation for a 2012 Lincoln Navigator
  I spoke with my contact at Tekonsha about the 2012 Lincoln Navigator with a factory 7-Way wiring harness. He stated that it takes the # 3035-P wiring harness for a brake controller. You will first need it and then the brake controller itself. I recommend the P2, # 90885. It is one of our best selling brake controllers of all time because it is easy to set up, easy to use, and it is reliable. You can disconnect the controller and store it when not in use. If you do this I do recommend following...
  view full answer...
• Brake Controller Harness Recommendation for 2000 F53 Ford Chassis
  On the 2000 Ford F-53 chassis the brake controller port is actually located up behind the instrument cluster. It can be difficult to get to but that is where it is located. For brake controller # 90885 you would use harness # 3035-P. Take a look at the picture I have provided from Ford document Q-206. For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to...
  view full answer...
• 2002 Ford Explorer Brake Controller Install Port Location
  Thanks for letting us know where you found the brake controller install port on your 2002 Ford Explorer. For some vehicles it can be found in a few different places so, like you said, it is nice to get feedback on where people found there harness to help other people find theirs without pulling their hair out.
  view full answer...
• Brake Controller for 2019 Thor 28Z Motorhome Built on 2018 Ford E-450 Chassis
  There are brake controllers that will work with your 2019 Thor 28Z motorhome built on a 2018 Ford E-450 chassis. To start you are going to need to add a 4-way and the only kit available for your vehicle is a universal kit, the # 119178KIT. From there you will need to add the Universal Installation Kit for Trailer Brake Controller # ETBC7; for a motorhome you will need at least one of the Extra Wire for ETBC7 for Long Vehicles - 10' Long # ETBCXW. There are no brake controllers which...
  view full answer...
• Brake Controller Recommendation for 2008 Ford Expedition with 4-Way
  For your 2008 Ford Expedition you would need a brake controller, the install harness, and a 7-way adapter to install the brake controller. For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to setup. This is a proportional brake controller that senses the amount of braking the tow vehicle is applying and applies a proportionate amount to the trailer brakes. This...
  view full answer...
• Hardwiring a Brake Controller from Scratch on a 2010 Ford Flex
  On the 2010 Ford Flex, you will have to hardwire a brake controller. There are 3 items you will need to complete installation. First is a brake controller, second is the Tow Ready Custom Fit Vehicle Wiring, # 118472, and third is the 7 and 4 Way Installation Kit, # ETBC7. You will start by installing the Tow Ready Custom Fit Vehicle Wiring, # 118472. I have included a link to the installation details below. Installation is simple. The T-one harness plugs in line with your vehicles taillight...
  view full answer...
• Installing a Brake Controller on a 2011 Ford E-350 Van
  On you 2011 Ford E-350 Van, you will need to get the brake light signal off the cold side of your brake light switch. Using a tester, like # 40376, you will find the wire on the switch that is only energized when the brake pedal is being pressed. This wire is the wire you will wire the red wired coming from the your Tekonsha Voyager Brake Controller, # 39510. If you have a factory installed 4-way or 7-way trailer connector, then there should be a wire plug located under the dash...
  view full answer...
• Brake Controller Wiring Harness for a 2016 Thor Windsport 35C Class A RV on Ford F-53 Chassis
  I believe your 2016 Thor Windsport 35C was built on the Ford F-53 chassis meaning it will using wiring harness # 3035-P for a brake controller. The factory plug should be located near the emergency brake pedal.
  view full answer...
• Where Does a Brake Controller Plug Into on a 2016 Ford Explorer
  The factory plug location to plug in a brake controller on a 2016 Ford Explorer is up above and behind the brake pedal. You will likely have to remove a panel to access it. For a brake controller I recommend the P2 # 90885 because it is easy to set up and use and it is reliable. For a wiring harness use # 3035-P.
  view full answer...
