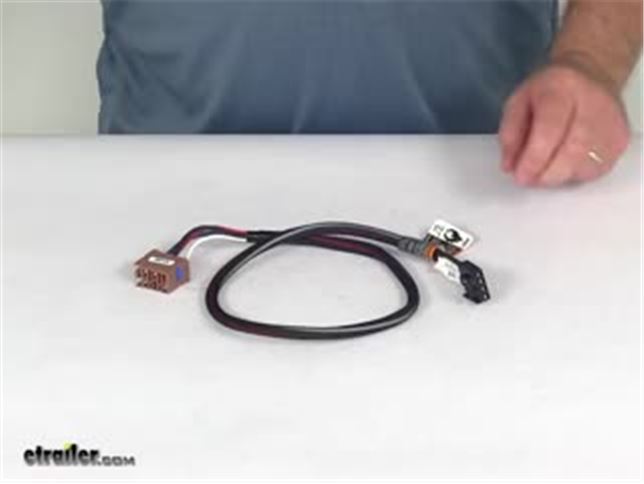

Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers - GM

Ask the Experts about this Tekonsha Accessories and Parts

• Installing an Electric Brake Controller in a 2007 Chevrolet Uplander with Tow Package
  From my research your 2007 Chevrolet Uplander does not have the wiring for a 7-way trailer connector or a brake controller already installed. So the # 3015-P will not work for you. In order to install a brake controller, like the Prodigy P2 # 90885 you'll need to hardwire it under your dash using our # ETBC7 kit. I've linked a video showing you this process on a 2006 Uplander. It's a different brake controller but the process will be the same. You'll also need a 4-way trailer connector...
  view full answer...
• Best Brake Controller Recommendation for a 2014 Chevy Silverado 1500
  For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to setup. As far as we are aware the 2014 Chevy Silverados all came with factory 7-ways at the rear of them. Which in that case all you would need to install the brake controller would be the # 3016 harness. I attached an install video for these two products to the right for you to check out as well. If you...
  view full answer...
• Brake Controller Install Harness Recommendation for 2006 Chevy Silverado 2500HD
  The correct brake controller install harness for a Tekonsha controller in a 2006 Chevy Silverado is the part # 3015-P. If you want to easily install the controller this would be all that you'd need. It simply plugs into the controller and then to the port under your dash. I attached a picture that shows how the connector wires so if you are trying to wire up something to the vehicle and need to know which pins do what on your truck it would be the guide you would need to follow.
  view full answer...
• Best Brake Controller Recommendation for a 2007 GMC Sierra 1500 Classic
  For a brake controller for your 2007 GMC Sierra Classic I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to setup. The easiest way to install this controller will be to also get the install harness # 3015-P that will plug right into the port under the dash of your truck. You can use the harness you have, but you will have to do some hardwiring between that harness and the brake controller. Check...
  view full answer...
• Prodigy P2 Brake Controller Showing N.C. When Connected to Electric Over Hydraulic Brakes
  N.C. means "no connection" which is most likely being caused by your P2 not being set into hydraulic mode. Since your trailer has electric over hydraulic brakes it needs to be put into hydraulic mode to be able to connect to the actuator. Here's how to do that. First, Enter Reverse Mode by pressing the Boost Button for 5 seconds while the brake pedal is pressed until [ .r ] displayed. While continuing to have the brake pedal pressed, momentarily release the Boost Button for less...
  view full answer...
• No Power to P3 Trailer Brake Controller on a 2006 Chevy Silverado 2500HD
  This is a common issue on Chevy trucks like your 2006 Chevy Silverado. There are some connections that need to be made under the hood to make everything fully functional. We actually have an FAQ article that explains what you will need to do to make everything work.
  view full answer...
• Wiring Locations on a 2005 Chevy Silverado
  I can help you find the wiring harness you need for the brake controller; it will be underneath your dash to the left of the steering column. If you take a look the video I've linked, it will show you where the wiring harness is and how it will allow you to use the # 3015-P adapter with a brake controller like the Prodigy P2 # 90885. As for the 40 amp fuse location, it should be right at the front of the fuse box where the arrow is pointing in the photo.
  view full answer...
• Installing a Brake Controller on a 2011 Chevy Silverado 1500
  The 2011 Chevy Silverado 1500 will have a tow package wire bundle up under the dash, left of the steering column, held together with a white tag. A brake controller can be spliced directly into these tow package wires. The 2011s do not have a port to plug in a brake controller. The tow package wiring will connect to the brake controller wiring as follows: Truck red/back to controller black for 12 volt power Truck white to controller white for ground Truck light blue/white to controller...
  view full answer...
• What Brake Controller Install Harness Is Required to Install Voyager in 2006 GMC Sierra
  Your Voyager brake controller # 39510 would install easily in your 2006 GMC Sierra as long as you have the correct install harness part # 3015-P. I attached an install video that shows this harness being used to install a similar controller in a 2006 Chevy truck just like yours.
  view full answer...
• Brake Controller and Install Harness Recommendation for a C5500 Motorhome
  The controller would need to be hardwired to your C5500 motorhome as it would not have a harness under the dash using our Brake Controller Installation Kit, part # ETBC7. Due to the fact that your motorhome is longer than the usual passenger vehicle, you'd need an extra length of wire, probably about 20 feet. The wire is sold by the foot as part # 10-2-1. I have linked you to instructions for the ETBC7 kit. I would recommend an easy to use, reliable proportional controller like...
  view full answer...
• Troubleshooting Brake Controller Install on 2004 Chevy Silverado Where Controller Has No Power
  When installing a brake controller in a 2004 Chevy Silverado 2500HD with a harness like the Tekonsha part # 3015-P there are a few connections under the hood of the truck that need to be made to activate the brake controllers wiring. I attached a help article below that covers how to make these connections as well as an install video that shows the process as well.
  view full answer...
• How to Use Brake Controller Install Harness from 2002 Chevy Silverado on 2004 Chevy Suburban
  You can still use the connector you have but you would need to move the red wire of the connector that plugs in to the vehicle to the opposite corner of the connector. Once you do that the brake controller will work just fine. I attached a picture that shows how to release the pin from the connector.
  view full answer...
• Brake Controller Recommendation for a 2003 Chevy Tahoe
  To install the P2 part # 90885 in your 2003 Chevy Tahoe will require the install harness part # 3015-P. I attached an install video and help article that will walk you through the process. There are a couple under hood connections that will also need to be made. For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to setup. This is a proportional brake controller...
  view full answer...
• Installing Draw-Tite Brake Controller On 2005 Chevrolet Silverado
  I recommend using part # 3015-P to easily install the brake controller. You just cut off the black connector on the adapter and wire it to the matching colors at the back of the brake controller. The other end of the harness plugs into the junction box located under the dash to the left of the brake. I have also attached some helpful articles that explain brake controller installation and troubleshooting you can check out.
  view full answer...
• Which Brake Controller for 2006 Chevy Silverado 3500 Series
  For your needs, the major difference between the P2, part # 90885 and the P3, part # 90195 is the display. The P2 uses a digital display that shows the voltage output and error codes digitally. The P3 also shows the voltage output, but any error codes are specifically displayed and available at a glance, eliminating the need to consult the manual to determine what the numeric codes mean. The P3 also has the added advantage of being compatible with electric over hydraulic braking systems....
  view full answer...
• Wiring Harness Needed to Install Tekonsha Voyager Brake Controller on 2004 GMC Yukon XL
  If your 2004 GMC Yukon 1500 already has a factory 7-way installed, you will just need the Tekonsha Wiring Adapter # 3015-P to install your Tekonsha Voyager Trailer Brake Controller # 39510. One end of the adapter will simply plug into the brake controller and the other end will plug directly into the junction box behind the dash of your Yukon XL. I have attached some video demonstrations of this harness for your review.
  view full answer...
• How Does Tekonsha P3 Brake Controller Connect to 2008 Chevy Avalanche
  On your 2008 Chevy Avalanche no plug is present under the dash to install the Prodigy P3 part # 90195, but the needed wires are already run. You will connect the brake controller wiring with the vehicle wiring already present under the dash. I attached an install video showing a similar Tekonsha brake controller being installed in a Chevy Avalanche that is the same generation as yours.
  view full answer...
• Wiring a 2003 Chevrolet Kodiak C-5500 for a Brake Controller with Factory Style Wiring Harness
  When wiring the red brake switch wire on the brake controller you should use a circuit tester to determine the wire that goes hot only when the brake pedal is pressed. If you find a wire that has voltage on it before the brake pedal is pressed and then gets brighter when the brake pedal is pressed that is the wrong circuit and should not be used. If your Kodiak has the prewired connector under the dash for the Tekonsha Wire Replacement for GM Vehicles, 2003 - 2006, then this should be...
  view full answer...
• Troubleshooting No Power to Blue Wire When Brake is Applied on the 2007 Chevrolet Silverado Classic
  Not to worry, this is a common issue and I will be happy to help you get the blue wire working. The blue wire is the output wire from the brake controller. It is only activated when the brakes are pressed or the manual override is activated. There has to be constant power on the black wire and on the red wire when the brake pedal is pressed for the blue wire to function properly. If you are using a proportional brake controller like # 90195 and are only testing the blue wire with...
  view full answer...
• How to Install a Brake Controller on a 2010 Chevy Silverado 1500
  The 2010 Chevy Silverado 1500 will have a tow package wire bundle held together with a white tag under the dash and to the left of the steering column. The red tow package wire goes to the brake controller black wire for 12 volt power The dark blue tow package wire goes to the brake controller blue wire for output to trailer brakes The light blue or orange tow package wire goes to brake controller red wire for brake switch input The white tow package wire goes to the brake controller...
  view full answer...
• Trailer Brake Controller Wiring Harness for a 2014 Chevy Silverado 1500
  If you are looking for a brake controller wiring harness like # 3015-P you selected then you will need # 3016 for your 2014 Chevy Silverado 1500. I have included a link to the installation instructions for you to view. If you do not already have a compatible brake controller I recommend the Tekonsha P2, # 90885. This is one of our most popular controllers because it is easy to set up, easy to use, and its reliable. If you are talking about a trailer wiring harness the only options...
  view full answer...
• Wiring a Brake Controller on a 2007 New Body Style Chevy Silverado
  On your New Body Style 2007 Siverado there is no port underneath the dash, so you won't need a wiring adapter like the 3035-P. There is a bundle of 5 wires taped up together with the following colors red, dark blue, light blue, white and brown. You can find the bundle underneath the dash above the brake pedal. The wiring harness also has a white tag taped to it, which should make it easier to located. We have a chart for how to match these wires up to the wires on the brake controller....
  view full answer...
• How to Wire a 2010 GMC Yukon XL for a Brake Controller
  Yes, you will need to connect two wires under the hood of your 2011 GMC Yukon XL to wire a brake controller to your vehicles brake controller circuitry. To attach those wires to your vehicle you will need a Zinc Plated Hex Flange Nut - M6, part # 185916, and a Zinc Plated Hex Flange Nut, part # 185917. I attached an FAQ article on how this is done below for you to check out, as well as the video that you watched of the brake controller being installed on a 2011 Chevy Silverado that you...
  view full answer...
• Brake Controller Does Not Power On After Installation on a 2004 Chevy Silverado 1500
  Chevy trucks like your 2004 Silverado 1500 are known to require some additional connections under the hood to make a brake controller fully functional. We have a help article that covers exactly this which I have linked for you. The red wire with the ring terminal on it that you found goes on the stud at the back left of the power distribution box nearest the green 30 amp fuse. This is power to the brake controller. I have included a picture that will help. It is B in the picture.
  view full answer...
• Brake Controller Recommendation for a 2005 Chevy Silverado 1500 with Factory Tow Package
  If the trailer you plan to tow has electric brakes and you want them to work, you will need a brake controller for your 2005 Chevy Silverado. The wiring harness you found is possibly for a brake controller. If it is, it will plug into a port underneath the dash. To the left of the brake pedal in the corner under the dash is an electrical junction box with a black cover. Remove the cover. There should be an empty port on the top row, second from the left. Check the harness you found to...
  view full answer...
• Installing a Brake Controller on a 2014 Chevy Suburban
  The 2014 Chevy Suburban does not have a place to plug in a brake controller but it does have a tow package wire bundle that you will use to wire up a brake controller. The wire bundle is located up under the dash to the left of the steering column. It should be held together with a white tag which also lists the wire functions. I have included a link to our help article that explains the installation. There may also be some connections that need to be made under the hood to make everything...
  view full answer...
• Installing an Electric Brake Controller on a 2005 Chevy Silverado
  2005 Silverado models that came with a factory 7-Way plug, meaning 6 blades running around the edge and a round pin receptacle in the center, would not require additional connections to be made in order for the brake controller to function. If your 2005 Chevrolet Silverado did not come from the factory with a 7-Way installed, you will need to connect the 12 volt and electric brake wires under your hood. To do this, you will remove the bracket in the corner that is closest to the...
  view full answer...
• How To Wire Prodigy Brake Controller In 2013 Chevrolet Suburban
  There is no brake controller plug-in adapter present on your 2013 Chevrolet Suburban, but there will be 4 or possibly 5 blunt cut wires under the left side of the dash to the left of the steering column. These wires will be identified with a white label and by the color of the wires. Here is how you will need to connect the harness that came with the Prodigy brake controller, either part # 90885 or part # 90195. The Red/Black wire is the battery power and connects to the Black wire...
  view full answer...
• Prodigy P3 Brake Controller Installation in 2014 Chevy Tahoe LT with Tow Package
  On your 2014 Chevrolet Tahoe with tow package there is no under-dash connection port for a brake controller but all the wires are already run. For a 2015 model year Tahoe there is a quick-connect harness, part # 3016. The P3 # 90195 includes a pigtail harness that plugs in to the back of the controller and the four wire leads from it will connect to your vehicle wiring. The linked installation video showing a 2011 model year Tahoe shows you the entire installation and wiring procedure...
  view full answer...
• Brake Controller Installation in 2011 Chevy Tahoe
  Beginning with the introduction of the 2007 model year, GM stopped using the connector that was located in the convenience center under the dash for installing a brake controller. Instead, the tow package connection consists of 4 or 5 wires bundled up under the dash that end in bare wire ends that would be wired directly to the brake controller. If you have not yet chosen a brake controller, you can't go wrong with the Tekonsha Prodigy P2, part # 90885. The P2 is extremely easy to use...
  view full answer...
