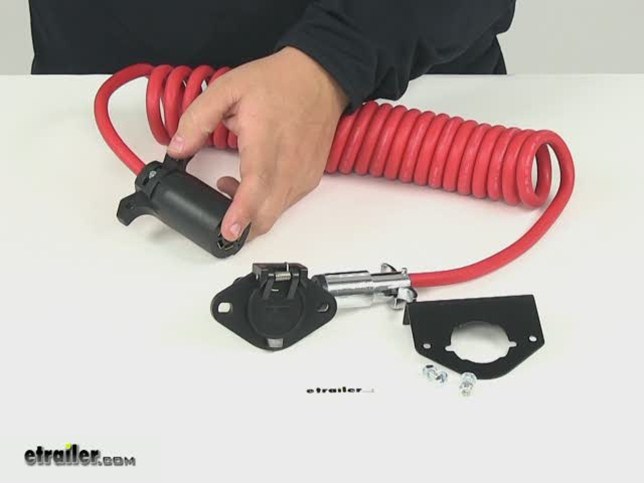

RoadMaster 7-Wire to 6-Wire Flexo-Coil Kit

Ask the Experts about this Roadmaster Accessories and Parts

• Comparison Of Roadmaster And Blue Ox 7-Wire to 6-Wire Coiled Electrical Cord

• The difference between the # RM-146-7 and # BX88206 coiled 7-wire to 6-wire cord is minor. The Roadmaster cord can be expanded to 8-ft and the Blue Ox expands to 7-ft.
  view full answer...


• How to Change Out 4-Way at Rear of Motorhome to Work with 7-Way on Trailer

• Thank you for the pictures! What you may be able to do is install the Hopkins # HM47210 on your motorhome to replace your current 4-Way round connector. I'm guessing the 2 wires for your brake controller system are for 12V power and for the brake controller signal. If this is the case then you will need to connect the following functions on your motorhome wiring with the following wires from the Hopkins connector: White - Ground Yellow - Left Stop/Turn Green - Right Stop/Turn Brown...
  view full answer...


• Recommended Flat Towing Base Plate and Wiring for a 2013 or 2014 Honda CR-V

• For a 2013 Honda CR-V we have the Blue Ox Base Plate Kit - Removable Arms # BX2258 that will work well with your Blue Ox Tow Bar. I recommend using Loctite Threadlocker # LT37420 for this installation. For your vehicle wiring, I recommend the Hopkins Custom Tail Light Wiring Kit for Towed Vehicles # HM56304 which is the easiest kit to install with no splicing required and connects directly to the Honda wiring harness behind the tail lights. You will also need the 48" Long 4-Pole Loop...
  view full answer...


• How to Keep Blue Ox Patriot II from Draining Battery in 2008 GMC Sierra 1500

• Since the Hopkins Custom Tail Light Wiring Kit # HM56101 has built-in diodes you will not get any feedback through the wiring. No additional wiring or kit is required to keep that from happening. Depending on how far you are traveling and how much braking you are doing, it could be possible that the Blue Ox Patriot II # BRK2016 would drain your battery, especially if the ignition key has to be left in the on position. To help eliminate the possibility of your battery becoming drained...
  view full answer...


• Recommendation On Using A RoadMaster 7-Wire to 6-Wire Flexo-Coil Kit on a 2016 Ford Focus Hatchback

• Yes, it is possible to use a 7-way to 6-way coil cable to connect between your RV and your 2016 Ford Focus Hatchback. You will need the Roadmaster 7-Wire to 6-Wire Flexo-Coil Kit, # RM-146-7. Once you have the Roadmaster Universal Diode Wiring Kit, # RM-154, installed, the front 4-flat plug can be cut and removed. The 4 wires are then wired into the 6 pin connector. The connector is installed on the front of the focus. The Flex-Coil cable can be installed between the 6 pin connection...
  view full answer...


• Installing LED Brake Indicator and Tow Bar Wiring for a 2004 Jeep Liberty

• You can connect the Replacement LED Monitor Light # SM99612 to the blue wire of the breakaway switch that comes with the SMI Stay-IN-Play DUO # SM99251 but since you don't have to disconnect the battery on your 2004 Jeep Liberty you can just route the wire to the cold side of the stop light switch. This is located behind a panel under your steering wheel and you will need to find what wire is related to this. When we did some testing we found this to be the white wire with the brown stripe...
  view full answer...


• How To Wire the Hopkins Flat-Tow Harness and Roadmaster InvisiBrake Toghter On a 2016 Jeep JKU

• For starters, there is no bridge between the toad and the tow vehicle for the Roadmaster Brake-Lite Relay Kit for Towed Vehicles part # RM-88400. This gets installed solely on the toad. In regards to the Hopkins Custom Tail Light Wiring Kit for Towed Vehicles part # HM56200, the Roadmaster InvisiBrake Supplemental Braking System part # RM-8700, and the RoadMaster 7-Wire to 6-Wire Flexo-Coil Kit part # RM-146-7 there are going to be components that gets bridged to the tow vehicle. The...
  view full answer...


• Easy Way to Carry 12 Volt Charge Circuit to Vehicle being Flat Towed Through Tow Bar Wiring

• What you will need to do is remove the 6-way on your tow vehicle and replace it with a 7-way socket like part # HM48480 so that you can use the umibilical wiring adapter # RM-146-7 which can carry the 12 volt circuit that can charge the battery. You'll need to remove the 4-way of the harness you have installed on your vehicle so that you can install the 6-way of this kit in it's place. The charge circuit of this can then be ran directly to your vehicle battery and when connected will...
  view full answer...


• Recommended Complete Flat Tow System for 2017 Jeep Wrangler Unlimited

• For your 2017 Jeep Wrangler Unlimited, I recommend starting with the Roadmaster Direct-Connect Base Plate Kit # RM-521450-5. This kit has removable arms to give you a very clean look when not flat towing your Jeep and also gives you a clean connection to your tow bar when towing behind your motorhome. I recommend installing this base plate using Loctite threadlocker # LT37420 to keep your hardware from vibrating loose over time. For your tow bar, I recommend the Roadmaster Falcon All...
  view full answer...


• Braking System Runs Down Battery on a 2016 Chevy Equinox

• The problem you are having isn't a battery in the Patriot itself. But this is a pretty easy fix. As you may have read in your vehicle owner's manual to avoid running the battery down while flat towing your 2016 Chevy Equinox you will need to remove fuse 32 from the instrument panel fuse block. You can use a fuse bypass, # RM76510, to make this process as easy as flipping a switch. Removing the fuse also means that the Patriot will not be getting any power if it is plugged into a vehicle...
  view full answer...


• Parts Needed to Flat Tow a 2015 F-150 Platinum 4x4

• First you will want to start with a base plate kit for your 2015 Ford F-150 Platinum 4WD. For that you would want the Roadmaster kit part # RM-524431-5 that has been confirmed as a fit for your vehicle. The arms of the kit are removable so when you aren't flat towing the vehicle you wouldn't have two large metal arms sticking out of the front of the vehicle. In addition to the base plates, you will also need a compatible tow bar, safety cables, lighting, and supplemental braking to flat...
  view full answer...


• Recommendation for Disconnecting the Battery or Running a Hot Wire When Wiring a Jeep Toad Vehicle

• You could route the power wire from the RV 7-Way trailer connector to the Jeep battery to help maintain the Jeep battery when towing. The problem is that the 12 volt circuit will most likely not be able to keep up with the amperage draw on the Jeep battery when towing, because of the distance from the RV charging system, and you would need trailer connectors to accommodate the extra wire on the tow bar jumper harness and the Jeep. I recommend installing an Auto Battery Disconnect, #...
  view full answer...


• Availability of a 7-Way to 6-Way Long Cable Trailer Connector Adapter for Flat Towing

• We do have some options for you. The wiring connectors you need are in our Tow Bar section under Tow Bar wiring, and then wiring connectors. You can use the RoadMaster Flexo-Coil Cable, # RM-146-7. It is 8 feet long and goes from a 7-Way blade to a 6-Way round. We also have the Blue Ox 7-Wire to 6-Wire, Coiled Electrical Cord, # BX88206. This cable is 7 feet when stretched. Between these two, I would go with the RoadMaster cable because the extra length may be needed. I have included...
  view full answer...


• Brake Controller Port and Connector for a 2017 Tiffin Allegro Red

• To install the a brake monitor light on your 2017 Tiffin Allegro Red you will want to use the brake controller port that will be to the left of the steering wheel under the dash. The actual part number for that connector from Freightliner is PAC 12064754. This part should work for all Freightliner Chassis from 2004 to 2017. The connector is a 6 wire connector with a cap on it. I attached a photo showing it with the cap in place and removed. There are 5 wires going into the back of the...
  view full answer...

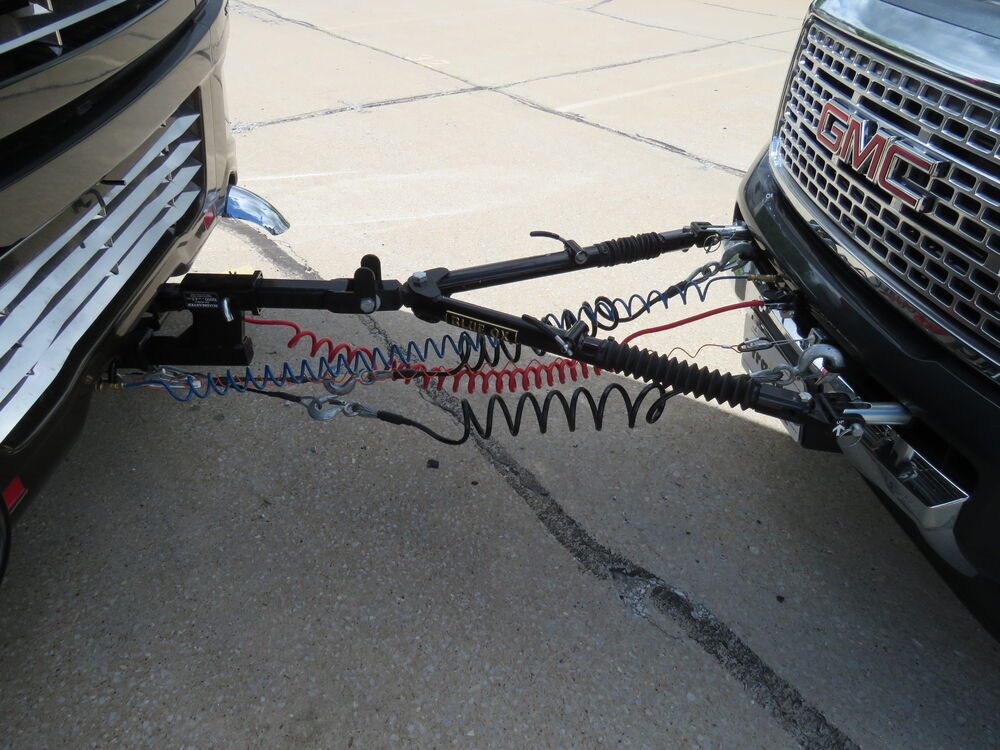

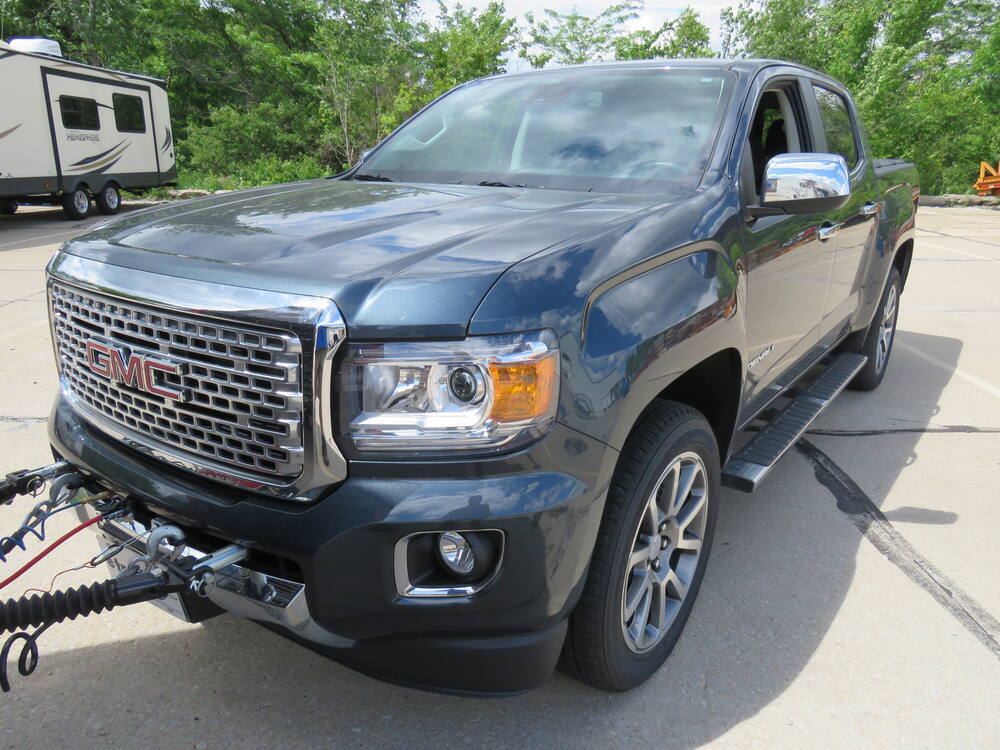

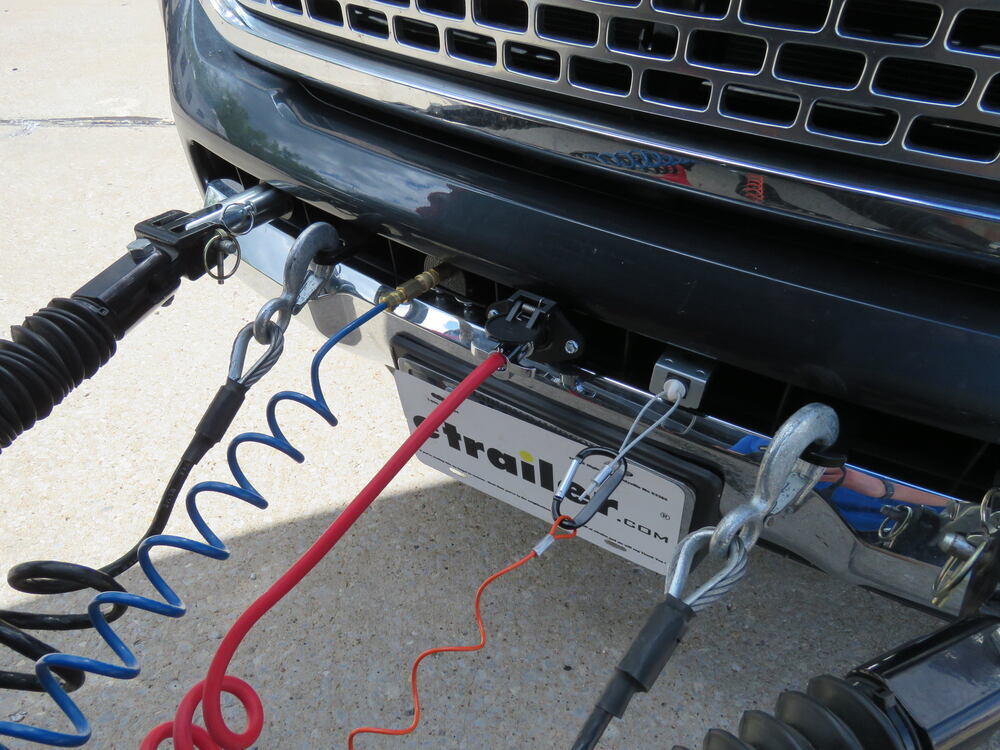

• Recommended Parts Needed to Flat Tow a 2015-2018 GMC Canyon or Chevy Colorado

• The GMC Canyon and Chevrolet Colorado are practically the same vehicle with 2 different names. When it comes to flat towing they both have the same instructions and fits. For the 2015-2018 model years you can flat tow a 4WD but you cannot flat tow a 2WD. Whichever way you decide to go, make sure it is a 4WD so you can flat tow it. A complete flat towing setup includes a base plate kit, tow bar, safety cables, vehicle tow bar wiring, a supplemental braking system, and possibly a high-low...
  view full answer...


• Flat Towing Base Plates for a 2010 Mini Cooper S Hartop

• I reached out to Blue Ox and there is not a confirmed fit for your 2010 Mini Cooper S Hardtop, but I do have a solution for you. I recommend the Roadmaster EZ Base Plate Kit - Removable Arms # 521877-1 which is confirmed to fit your Model S Hardtop. Then I recommend the Roadmaster Falcon 2 # RM-520 for your tow bar and # RM-643 for your safety cables. You can use the plugs # RM-210 when not in use if desired. For your wiring, I recommend the Roadmaster LED Bulb and Socket Kit #...
  view full answer...


• Wiring Needed to Flat Tow a 2016 Jeep Wrangler

• It sounds like you've created your own umbilical to go from the 7-way on your RV to a 7-way on your Jeep. The Hopkins connector # H20043 is 4 feet long, which isn't going to be long enough to bridge the gap of space for flat towing. You're going to need at least 6 foot umbilical. For a 6 foot 7-way molded cable use # H20044. We typically don't see 7-ways on the front of vehicles, for a great 7-way to 6-way umbilical with a 6-way (which is most common) connecter and mounting bracket I...
  view full answer...


• Parts Needed for Flat Towing a 2005 Mini Cooper 5 Speed Behind a Sprinter Class C Diesel Motorhome

• Thanks for all of the information and research on parts for flat towing your 2005 Mini Cooper behind your Siesta Sprinter diesel Class C motor home. You have most of the parts correct, but there are some specific items you will need for your Mini. First, you need to wire the dinghy so that the combined brake and turn signals on the motor home will activate both the brake and turn signals on your Mini. The brake pedal would activate the brake lights with the key in the position you describe,...
  view full answer...


• Availability of A 7- way Adapter to 6-pole Round Male Connector

• The Hopkins Heavy-Duty, Coiled Trailer Connector Adapter - 7-Way to 6-Pole Round - Center Pin Auxiliary, item # HM47083, is designed to go from the the 7-way connector on a towing vehicle to a 6-way female connector on the towed vehicle. The center pin on the 6-way end is wired for 12 volt auxiliary function. If your towed vehicle has a male connector on it, to operate the brake lights when being towed, then you will need the RoadMaster 7-Wire to 6-Wire Flexo-Coil Kit, item # RM-146-7,...
  view full answer...


• Can Wire Positions be Changed in Connectors for Hopkins Nite-Glow Tow Bar Extension Cord HM47054

• There isn't a way to access the wiring within the connectors on the Hopkins Nite-Glow Tow Bar Extension Cord # HM47054 without cutting it open. But you can access the wiring and change the positions on the Blue Ox version # BX88206 or Roadmaster version # RM-146-7.
  view full answer...


• Maintaining Battery in Vehicle Being Flat Towed Behind RV

• First, you will need to confirm that the vehicle is suitable for flat towing. From what I have read on page # 319 through 321 of the owners manual, your GC can be flat towed if the transfer case has a Neutral position. If your 7-way on your RV has a 12-volt power feed (typically the pin in the 1:00 position), you can use that circuit to maintain your battery, however it will not charge a discharged battery. We offer a Flexo Coil Umbilical kit, part # RM-146-7 that would work well...
  view full answer...


• Recommended Base Plates Compatible with 2010 Mini Cooper S Hardtop

• The Blue Ox base plate # BX1307 is not a confirmed fit from the manufacturer. My recommendation for your Mini S hardtop is the Roadmaster EZ Base Plate Kit - Removable Arms # 521877-1 which has been confirmed to fit. For your tow bar, I recommend the Roadmaster Falcon 2 Tow Bar # RM-520 and then the coiled safety cables # RM-643. For your wiring, I recommend the Roadmaster LED Bulb and Socket Kit # RM-152-LED. This will have you add LED's to your tail light housing for a clean...
  view full answer...


• Does the Battery Have to be Disconnected to Flat Tow a 2015 Chevy Suburban Behind a Motor Home

• The battery should be disconnected because your 2015 Chevy Suburban has some feature that draws power when the vehicle key is in the towing position indicated in the owner's manual. If you leave the battery connected then what will happen is the battery will drain unless you stop frequently enough to let the Suburban motor run so the alternator can charge the battery back up. But there is a way to provide a maintenance charge to the vehicle battery when flat towing it with the battery...
  view full answer...


• Parts Needed to Flat Tow a 2015 GMC Yukon XL Denali Behind a Motor Home

• To keep a maintenance charge on the battery I recommend using a harness such as # RM-146-7 with the tow bar wiring you will be using so that you can install a charge line kit, # RM-156-25, from the front of the truck to its battery. The charge line kit uses the 12 volt power pin on your motorhome's 7-way to provide a maintenance charge to the battery on your 2015 GMC Yukon XL. It won't charge a dead battery but it will keep the truck's battery from dying while you're towing it. We...
  view full answer...


• Wiring Color Code On Ford Motor Home With 7-Way Connector And Car To Be Towed Has 6-Way Connector

• The 6-wire and the 7-wire connectors will have the same color codes on six of the wires. The green wire is right turn/brake, the yellow wire is left turn/brake, the white wire is the ground, the brown wire is the taillights, the blue wire is electric brakes, and the black wire is the 12v power. The 7-way motorhome connector will have an extra auxiliary wire (purple) on the center pin that is used for reverse lights, 12v power, or reverse lockout for trailer brakes. There are two...
  view full answer...
