Chain Hangers for Reese Weight Distribution Systems - Bolt On

Item # RP58305

lowest price pledge

Retail:$119.02

Our Price: $65.20

Accessories and Parts

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

reese accessories and parts  chain hangers for weight distribution systems - bolt on
reese accessories and parts weight distribution chain hangers for systems - bolt on

In Use/Installed

accessories and parts reese chain hangers in use
accessories and parts reese weight distribution chain hangers for systems - bolt on

Customer Photos

reese accessories and parts weight distribution rp58305
reese accessories and parts weight distribution chain hangers for systems - bolt on
reese accessories and parts weight distribution rp58305
reese accessories and parts weight distribution chain hangers for systems - bolt on

Videos


  • Weight Distribution
  • Chain Hangers
  • Reese
As an alternative to traditional lift brackets, these bolt-on chain hangers provide an attachment point for your weight-distribution spring bars without interfering with trailer-frame-mounted items. Call 800-298-8924 to order Reese accessories and parts part number RP58305 or order online at etrailer.com. Free expert support on all Reese products. Guaranteed Lowest Price and Fastest Shipping for Chain Hangers for Reese Weight Distribution Systems - Bolt On. Accessories and Parts reviews from real customers.



Reese Accessories and Parts - RP58305

As an alternative to traditional lift brackets, these bolt-on chain hangers provide an attachment point for your weight-distribution spring bars without interfering with trailer-frame-mounted items.


Features:

  • Chain hangers provide attachment points for weight-distribution spring bars via chain
    • Specially designed to eliminate clearance problems by attaching to the side of trailer tongue
  • Quick, bolt-on installation
    • Drilling required
  • Black powder coated steel resists corrosion
  • 2 Hangers and all necessary hardware included


Specs:

  • Tongue weight: 1,400 lbs
  • Gross towing weight: 14,000 lbs
  • Application: trailer frames no wider than 2-1/4"
  • Hanger dimensions: 5" wide x 3-5/16" tall
  • 4 Bolts are 3-1/2" long
  • 4 Shorter bolts are 1-3/4" long
  • Distance between mounting holes: 3" center to center
  • Installation tip: distance from the center of chain hangers to the center of hitch ball should measure approximately 31"
  • Limited lifetime warranty


Note: To achieve the required amount of tension for your weight-distribution system's spring bars, you will need to jack up your trailer when hooking up the weight-distribution spring bars.



58305 Reese Bolt-On Chain Hangers for Weight Distribution Hitches



RP58305 Installation InstructionsInstallation Details RP58305 Installation instructions



Related Products



Customers compare RP58305 to these similar products







Customers Who Purchased This Accessories and Parts Also Bought...







Video of Chain Hangers for Reese Weight Distribution Systems - Bolt On


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Reese Accessories and Parts RP58305 Review

Speaker 1: Today we're taking a look at the chain hangers for Reese weight distribution systems. Now chain hangers provider the attachment points for weight distribution spring bars via a chain specially designed to eliminate clearance problems. So if you have clearance problems, these would be a great product to consider to gain more clearance and to not have any clearance issues when your weight distribution system is in use and hooked up properly.It's a quick bolt-on installation. Drilling is required. Drilling into the trailer frame. These hangers are made from a durable steel construction, and they feature a nice black, powder-coated finish, which is designed to resist rust and corrosion.

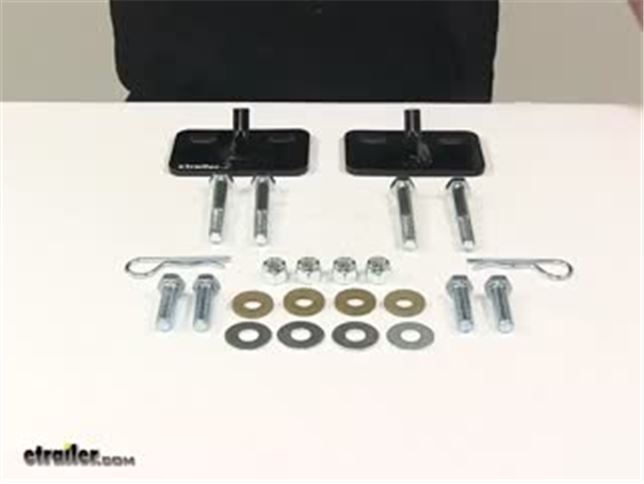

Two hangers are included as well as all the necessary installation hardware. With this system it has a tongue weight capacity of 1,400 pounds, a gross towing-weight rating of 14,000 pounds. It is designed for trailer frames no wider than two and one quarter inches, and when it comes to the actual hanger dimensions, we can take some measurements for you real quick. The overall width measurement on these measures five inches. Overall height measurement is about three and a quarter to three and 5/16ths of an inch.

Right in that area. Then the mount holes, these elongated holes are separated on center by three inches.Now you'll notice that it comes with a couple different sets of hardware. The longer bolts, these measure about three and a half inches long. These are for use on trailers with tube-style frames. Then you also have the shorter bolts, these are one and three quarter inches long, and they're for use on trailers with C-channel frames.Basically your hardware;s included, and when the chains are connected, and your weight distribution system is hooked up properly, to secure the chain in place here on the actual hanger, it comes with these clips, which will go through and secure and engage and hold everything in place.

The product's also covered with a limited lifetime warranty.That's going to do it for today's look at the chain hangers for Reese weight distribution systems.


Customer Reviews

Chain Hangers for Reese Weight Distribution Systems - Bolt On - RP58305

Average Customer Rating:  4.8 out of 5 stars   (39 Customer Reviews)

As an alternative to traditional lift brackets, these bolt-on chain hangers provide an attachment point for your weight-distribution spring bars without interfering with trailer-frame-mounted items.

- RP58305

by:


These were a great solution to my issue. My trailers's propane tank, battery box, and winch prevented me from using the mounts that came with my weight distribution hitch. Installation was straightforward and only took about a half an hour. These chain hangers are easy to use too! Very happy eTrailer customer (again!). 82123


Comments

These chain hangers are still working out great! No issues at all. I would definitely buy them again.

Todd E - 05/28/2014

4468

- RP58305

by:


This hook operates as expected. No issues installing if what you're installing it to is appropriate. Comes with long and short screws, so it works on hollow beams and C channel frame members at the front of your trailer. Can't comment on the durability of the finish, as I keep installing these on rental campers and never see them again! Well, we all know Reese and the hitch industry overall has significant corrosion issues they just seem to ignore over the decades - their process isn't up to par in my book. That said, the finish seems thick enough and the steel is so thick that rust in this case will be only an optical issue. I like the fact that they are delivered with nylock nuts. I spray the drilled holes (both sides) with aerosol grease before a bolt everything up, to prevent rust on the frame once THAT finish is broken open. Then I hit the fasteners too, to prevent rust. I'm a repeat purchaser, and from experience believe strongly in weight distribution hitches even on small travel trailers, it's just SO much more stable. 277408



- RP58305

by:


I couldn't fit my Weight Distribution Hitch on the used trailer I recently purchased because of the nice tool box that was mounted on the V Tongue of the Trailer. With the tool box I couldn't pull over the chain attach brackets. Called E-Trailer and Kathy recommended the Chain Hangers PN: RP58305. They were an easy install and were exactly what I needed. The Service and shipping from E-Trailer was Excellent. 58330



- RP58305

by:


The product was well priced and delivery was very fast (3 days) I was unable to find any other product anywhere that would work for my setup. Every trailer store I contacted had no idea where to direct me as they knew of no product on the market that would work. I have a V-Cross 32FKDS. Because of the V nose I am unable to use the traditional load level system. the V extends all the way to the trailer jack. I bought the trailer new and had it delivered to a seasonal lot in 2010 where it has remained. We are looking at moving to a different campground and delivery was $250-$350. For the price this seemed well worth a try. I am hoping once this product is installed it will keep the trailer and my 3/4 ton level for towing. 219298



- RP58305

by:


This product worked great for me. I had mounted a small generator on the front not making the regular flip chain connectors work. The best way to use this product is with a electric tongue jack. Connect the hitch raise the back of the truck to connect the chains then lower to put the tension on the bars. Easy as pie just make sure if you are buying a jack to get a higher rated one. Highly recommended 399082



- RP58305

by:


They mount easily and work as intended. With a V-nose trailer there is no way I would have been able to use the WD hitch without bolt on chain hangers. These enabled me to hang the chains further behind the V-nose on the frame. I just wish these had been included in a WD hitch package intended specifically for trailers without sufficient free space over the frame. 24589



- RP58305

by:


This is the only choice for a V-nose trailer. I must say more importantly than the product because it is Reese so it is good but etrailer is a great and easy place to do business with and I am in a crunch and need to get this on the road they get your product to you super fast. Excellent Service Thank you etrailer! 12096



- RP58305

by:


This is the first time I have ordered through etrailer.com and it will not be the last. My order came quicker then I thought and in excellent condition. The quality looks very good also. GeorgeJ@etrailer was very helpful and professional. I highly recommend etrailer.com. 372306



- RP58305

by:


This company has it all together. Excellent customer support especially when a problem arrived. Kathy in customer support ran the extra yards to solve my problem and my problem was very complicated. Everyone I visited with was top notch. Mike Slater 363883



- RP58305

by:


These are a must for V nose trailers if your using a weight distribution hitch. Over the tongue saddle types won't fit because of the nose section over hang. Kit comes with everything for mounting and easy to follow instructions. 7315



- RP58305

by:


This product will not fit up with a Curt Weight DIstribution System with Shank - Trunnion Bar (#c17345). It's hook will not accept the chain. It is too big. Fast Shipping, just wrong part suggested by etrailer expert. 378064



- RP58305

by:


These worked great. I have a rig with a funky battery tray configuration that the spring bar chains kept getting snagged on and snapping the U bolts when using traditional hangers. These solved the problem! 59199



- RP58305

by:


The chain hangers for my new trailer appear to be great quality. They solved the problem for connecting the Reese load levelers on a pointed front enclosed trailer, which has a very short tongue. 373884



- RP58305

by:


Was pleased to find the bolt on hitch brackets at etrailer. Finally a solution to the problem of adapting my equalizer hitch to two different trailers. Install looks to be straightforward. 372405



- RP58305

by:


Thanks for all the help.product arrived today.already installed on camper.easy follow directions.all hooked up and try them out this weekend.definitely will order from etrailer again. 217274



- RP58305

by:


seems to be a quick fix for my situation, I ordered weight distribution system but was not aware that my v-nosed trailer would be a issue with brackets that came with kit 82634



- RP58305

by:


Fixed my issue. The hang over type don't work with my tounge jack in the way. Also cross beam is border line in the way. These you can line the chain up perfectly. 84751



- RP58305

by:


Service was exellent. On time delivery was great ordered it Saturday ground received wednesday. Installed Wednesday looks good. Made a difference on my truck 230487



- RP58305

by:


Very easy hook-up, no problems with unit. Balances trailer weight wonderfully. Smooth, even when turning. Also dampens sway of trailer. 450516



- RP58305

by:


Product was well made and installed in a matter of minutes to allow the use of a weight distrubution hitch on a V nose travel trailer. 91432



- RP58305

by:


Solid build, should be the perfect solution for a WD hitch which the trailer has the body over the beams where the brackets would go 343358



- RP58305

by:


Product worked great. Etrailers shipped it quick and had great communication through the entire order and shipping process. 32342



- RP58305

by:


Kept up to date on when item was placed and shipped and showed up in a few days very happy and pleased. 269942



- RP58305

by:


Exactly what I needed. Quality was better than expected.Fastshipping. I will buy from etailer again. 78740



- RP58305

by:


The bolt on chain hangers work great. E-trailer was very prompt on getting the product here. 63682



- RP58305

by:


They were very helpful and efficient and eager to help. Would buy from them again. 304363



- RP58305

by:


This is the second time I have ordered from them and wow shipping was increadible 27264



- RP58305

by:


Excellent product. Great site, always a pleasure to deal with. Will buy again! 248691



- RP58305

by:


works perfectly, could not be happier with quality, service and delivery. 346908



- RP58305

by:


Product was easy to install and instructions were very easy to follow. 37338



- RP58305

by:


Excellent product and excellent sevice. I couldn't be happier!!!! 68994



- RP58305

by:


Well made and the installation instructions were complete. 40102



- RP58305

by:


Great customer service correct product delivered 343192



- RP58305

by:


The actual design is better then expect ed. 74869



- RP58305

by:


item as described, thank you 236057



- RP58305

by:


Exactly what i needed! 466372



- RP58305

by:


Very easy install 174764



- RP58305

by:


works Great 311313



- RP58305

by:


thanks 239572


41
41

Ask the Experts about this Reese Accessories and Parts
Do you have a question about this Accessories and Part?


  • Weight Distribution / Sway Control System That Will Fit A V-Nose Trailer
  • Yes, the Strait-Line Weight Distribution Hitch System can be adapted to a V-Nose style trailer. You would need to use an alternate mounting system for the chain hanger brackets. The Bolt on Chain Hanger Kit, item # RP58305, will bolt onto the side of trailer frame. Once installed the chains are attached by raising the trailer tongue and rear of vehicle with the trailer jack. Tubular frames cannot be wider than 2-1/4 inches with this hanger kit, so you will need to be sure and measure before...
    view full answer...

  • Choosing Weight Distribution System for 10,000 lb Capacity Deck Over Trailer Towed By Ford F150
  • The first step in choosing the correct weight distribution (W/D) system is to determine the actual as-towed tongue weight of your trailer. Anything stowed in the bed of the truck behind the rear axle should be included as tongue weight. For best performance, the tongue weight of the trailer should fall as close as possible to the middle of the effective range of the system you choose. The Pro Series Weight Distribution System you mention is designed to operate most effectively with tongue...
    view full answer...

  • Carrying 2 Batteries and 2 Propane Tanks on a Trailer Tongue
  • Propane tanks can't be store inside of an enclosed container like a toolbox. If they build enough pressure it has to vent out to open air. That is why the plastic propane tank covers you see on trailers are open at the bottom. I recommend a traditional dual tank cover, # CAM40523, for the propane tanks so you are nice and safe there. The batteries can go into a box. I recommend box # TLA7708R which is designed for batteries. It is 26-3/4 inches long, 8-3/16 inches wide, and 13 inches...
    view full answer...

  • Is Weight Distribution Needed to Tow 16-Foot Homesteader V-Nose Trailer with 2005 Dodge Ram 2500 4X4
  • A weight distribution system is called for under a number of conditions. If your trailer weight (GTW) is more than 50 percent of the tow vehicle weight (GVWR) then often a weight distribution/sway control system will improve handling. Other symptoms of the need for such a system are if the rear of the tow vehicle sags when hitched to the trailer, if the tow vehicle headlights point upward, if steering and stopping are impaired, or if you just want to get the maximum towing capacity from...
    view full answer...

  • Weight Distribution for a V-Nose Trailer with 850 Pounds Tongue Weight
  • You can use weight distribution on a V-nose trailer but you may need alternate hangers if there isn't enough space available on the frame for the regular hangers. But first, when determining tongue weight, also factor in the weight of anything loaded in the towing vehicle behind the rear axle. You will want a system that has a tongue weight capacity range that encompasses the tongue weight plus the weight of cargo behind the rear axle. A Pro Series Trunnion system, # 49587, has a wide...
    view full answer...

  • Recommended Hitch and Weight Distribution for 2007 Toyota Tacoma Towing 3500 lb Pop-Up Camper
  • I did some research on the Coleman Evolution, and it appears that a typical weight distribution system would work just fine with the layout of the tongue. If you have propane bottles on your pop-up, they might interfere with the chain hangers that fit around the top of the trailer frame. You could use a bolt-on hanger, part # RP58305 if this is the case. Due to the additional leverage that a weight distribution hitch places on the receiver, a bumper mounted receiver like # E-3S is NOT...
    view full answer...

  • Troubleshooting Weight Distribution Hanger Bracket Installation on a V-Nose Trailer
  • The angle of the chains will present a problem, with the chains angled forward to such a degree it will put forward pressure on the spring bars and the weight distribution head. There is a solution though. You can use the Bolt On Weight Distribution Chain Hanger Kit, item # RP58305, in place of the Tip up chain hanger brackets. Once installed the chains are attached by raising the trailer tongue and rear of vehicle with the trailer jack. Tubular frames cannot be wider than 2-1/4 inches...
    view full answer...

  • Can Weight Distribution Systems be Used with a V-Nose Trailer
  • In a sense, both sides of the fence were right. You cannot use the standard weight distribution systems, but a simple bracket switch, and you can use a weight distribution system. Traditional brackets go over the top of the frame, but V-Nose trailer cabin sits on the top of the frame where the brackets need to go. So, the solution is to use side-mount brackets, like part # RP58305, instead of the included snap-up brackets that come standard in a WD kit. Since you no longer have the snap-up...
    view full answer...

  • Weight Distribution System Needed for a Haulmark Car Trailer Towed by a Chevrolet Suburban
  • The difference between the Reese Weight Distribution Systems, # RP66074 and # RP66084, is that the RP66084 system includes the adjustable shank and the # RP66074 system does not. If you choose to go with RP66074, then you will also want to get the Reese Weight Distribution Shank, # RP54970, and both systems will require a hitch ball, # 19286. It is very important to verify the gross trailer weight and the tongue weight of your trailer before purchasing a weight distribution system. The...
    view full answer...

  • Which Weight Distribution System has the Shortest Spring Bar Arms
  • If you need to have short spring bars because the brackets that fit on the trailer frame would interfere with something, then there is another solution. Typical spring bars, round or trunnion style, are going to be around 30 inches long, give or take an inch. The exception is the Curt system, # C17332, which has bars that measure about 28-5/8 inches long. What you could do is use a weight distribution system like # 49569, and replace the snap up brackets with chain hangers, # RP58305....
    view full answer...

  • Spring Bar Length in the Pro Series Weight Distribution Kit for Installation on a Pop-Up Camper
  • Yes, we have solutions for attaching the chain hanger brackets to a trailer frame that has LP bottles and battery box trays mounted on the frame. First, if the space you have is at least 5-3/4 inches wide at 29 inches on center on your trailer frame, you would be able to use the tip up brackets that are included in the Pro Series Trunnion Style Weight Distribution Kit, # 49586. I added dimensions to a photo showing the measurements of the spring bar and tip up bracket for you, the center...
    view full answer...

  • Installing Weight Distribution System on a Continental Cargo V-Nose Trailer
  • A weight distribution system with sway control is a good idea for towing your trailer with a 1/2 ton pickup. With the V-Nose configuration, and only 21 inches of room, you will not be able to use the High Performance Reese SC Weight Distribution System. You could use the Strait-Line Weight Distribution Hitch System 1,200 lbs TW / 12,000 lbs GTW, item # 66074, with the Weight Distribution Chain Hanger Kit - Bolt On, item # RP58305, to bolt to your trailer frame at the point that you need...
    view full answer...

  • Weight Distribution Hitch Recommendation for a 2001 Coleman Cheyenne Popup Camper Trailer
  • I recommend a system rated for 200 to 600 pounds tongue weight like # 49568. But, if the Coleman camper has items mounted on the front of the frame, you may need to use chain hangers, # RP58305, that bolt through the frame, rather than the brackets that fit on top of the frame. I have linked some instructions for you. If you go with the Pro series kit, you would just need to use a properly sized ball like # A-90 for a 2 inch or # 19286 for a 2-5/16 inch. I have linked our FAQ article...
    view full answer...

  • Weight Distribution System for a Fleetwood Evolution E1 Pop-Up Camper With A 2 X 8 Frame
  • I looked up your Fleetwood Evolution E1 pop up camper on the internet and it looks like you have a secondary lower frame located below the camper frame which gives you the 8 inch tall measurement. The Reese Weight Distribution, # 66557, is designed for light trailers with A-frame trailer frames that measure up to 6 inches tall. Most trailer frames will measure 2 to 3 inches wide and 3 to 5 inches tall. This system will not work on your Fleetwood camper with the 8 inch tall frame. I...
    view full answer...

  • Parts to Prepare 2011 Honda Pilot to Tow Travel Trailer Through Rocky Mountains
  • Your 2011 Honda Pilot that will be towing your new camper trailer through mountainous terrain in the Rockies will certainly benefit from some performance enhancements. A simple friction anti-sway bar like # 83660 can help with crosswinds and air blasts from passing trucks. These are inexpensive and simple to install; their tension is also adjustable. You just need to use a 2-inch bracket # RP26003 on your ball mount to provide a mounting point for the included ball. Note that this type...
    view full answer...

  • Heavy Duty Weight Distribution System for a 14K Trailer with an I-Beam Frame
  • I spoke with my contact at Reese and he said that you will need to use a standard weight distribution kit like the Heavy Duty Trunnion Weight Distribution System # RP66131 that you have referenced, for your I-beam trailer. To use the Heavy Duty Trunnion Weight Distribution System, # RP66131, you will need to have a steel plate 5 or 6 inches wide welded, by an experienced welder, at 30 inches on center from the center of the hitch ball. Before modifying the trailer frame you will need...
    view full answer...

  • Weight Distribution & Sway Control System for V-Nose Trailer with Limited Frame Access for Brackets
  • A trailer with accessories like propane tanks up front or with V-nose construction like yours can make it more challenging to install a weight distribution (WD) system. WD spring bar brackets typically need to mount 25 - 30-inches behind the hitch ball. For example, the system you referenced, Pro Series # PS49902 requires placement of its brackets 30-inches from the center of the hitch ball. This problem is not too uncommon and fortunately a solution exists. Reese offers their bolt-on...
    view full answer...

  • Weight Distribution System for Rockwood 2317G Pop-Up Towed by 2010 Suzuki Grand Vitara
  • As a first step, you will want to confirm that your Grand Vitara can handle towing the pop-up when it is fully loaded. I did some online research, and found that most sources list the towing capacity of that vehicle at 3,000 lbs. Though the hitch might have a 4000 GTW/ 400 TW capacity, you will still need to abide by the towing capacity of the vehicle. I would recommend checking your owners manual or with Suzuki to make sure. The dry weight of the Rockwood 2317G is about 2450 lbs, so you...
    view full answer...

  • Compatibility of Weight Distribution Systems and V-Cross Trailers
  • When picking out a weight distribution system the most important thing to consider is the loaded tongue weight of the setup when it is loaded and ready to tow. Once you know that you can pick out the properly rated system. The Strait-Line Weight Distribution System # RP66084 that you referenced is an excellent system that if it was the correct rated system for your trailer would work great. There is an option for trailers like yours that have a v-nose style that would seem to make installing...
    view full answer...

  • Can Weight Distribution Be Used on an Aluminum Frame V-Nose Trailer
  • In order to see how the brackets install on a CURT weight distribution system, I have included a link to part # 17302. The bracket installation will be the same on the # C17332 system that you have referenced. As far as clearance, I spoke with my contact at CURT and he stated that on the C17332 you will need 28 inches from the center of the ball down each frame rail to allow the brackets that hold the chains to fit. If you find that your trailer does not have enough open space, there...
    view full answer...

  • Minimum Trailer Tongue Length to Install a Weight Distribution System
  • In order to install a Weight Distribution System, the distance from the center of the ball to the end of the bracket requires a minimum of 33". In some cases, tongue modification or relocation of items such as LP tanks or Batteries, etc. may need to be done to install the system. If you are not able to move any of the accessories on the tongue of your trailer to install the chain hangers, then you could use the bolt on chain hangers, # RP58305.
    view full answer...

  • Installing a Weight Distribution Hitch to an Enclosed Frame Trailer
  • If you are talking about a pole tongue trailer then there are adapters available, item # RP3280 and item # RP58393, that you can use to connect to the frame and then attach the brackets. The RP3280 will not work with the Reese SC Weight Distribution Systems, while the RP58393 will work with all Reese systems, with the exception of those equipped with the Dual-Cam Sway Control. If you have an A-Frame trailer that is enclosed in the center then you can use the bolt on chain hanger kit,...
    view full answer...

  • Weight Distribution and Sway Control Recommendation for a Mobile Scout 30ft Travel Trailer
  • I checked some photos online to get a look at the frame on your Mobile Scout 30ft Travel Trailer and, with the weights you listed, the Strait-Line weight distribution system, item # RP66075, would be a good choice for this trailer, if your 2011 GMC 2500 Diesel has a 2-1/2 inch receiver hitch. If your truck has a 2 inch receiver hitch, the highest rated system we have is the Strait-Line system # RP66130, which is capable of 1500lbs tongue weight and 15000lbs gross trailer weight. You...
    view full answer...

  • Can a 2011 Ford Escape Tow a 2014 Jayco Jay Feather X17Z Using Weight Distribution
  • I looked at a copy of the owners manual for the 2011 Ford Escape and it states that gross trailer weight capacity of the vehicle, with a 2.5 liter motor, is 1500 pounds, and for the 3.0 liter 3500 pounds. This would make the tongue weight capacity 150 pounds or 350 pounds (10 percent of the gross trailer weight) depending on which motor you have. It sounds like they may have sold you more trailer than what the vehicle is capable of. The 342 pound tongue weight as the dry tongue weight...
    view full answer...

  • Determining Tongue Weight of a Trailer to Choose a Weight Distribution System
  • The bottom line is that you have to go by the weight of the trailer when loaded and ready to tow and that includes stuff loaded behind the rear axle of the tow vehicle. So if the tongue weight is 293 pounds and 50 pounds of stuff is at the very back of the tow vehicle then yes, the total tongue weight would be 343 pounds. A 550 pound system is going to be rated for 200 to 550 pounds tongue weight at at 343 pounds that is exactly where you want to be. The less expensive and more versatile...
    view full answer...

  • Weight Distribution System Recommendation for a Fleetwood Evolution E1 Pop-up Camper Trailer
  • The unique frame on the Fleetwood Evolution E1 camper trailer is going to require a special set up for weight distribution. You will need to do is use a system that hangs the spring bars from chains and then use special brackets that attach to the side of the frame rather than clamp onto the top. For a system rated for 400 to 800 pounds tongue weight, you could use # 49586, and then use chain hangers, # RP58305. The chain hangers will fit on frames no wider than 2-1/4 inches unless longer...
    view full answer...

  • Recommended Weight Distribution and Brake Controller for 2014 Grand Cherokee Towing 4300 lb Trailer
  • The first step in choosing a weight distribution system is to find the total tongue weight (TTW) of your set up. This includes the fully loaded trailer tongue weight plus the weight of anything stowed in the cargo area of the GC behind the rear axle. The Pro Series system you mentioned, part # PS49902 is good for a TTW up to 750 lbs. If the ready to tow tongue weight of the trailer is 540 lbs and the gear stowed behind the rear axle is less than 210 lbs, then this system would be a...
    view full answer...

  • Installation of Reese Strait-Line Weight Distribution System # RP66082 on a Cotner Horse Trailer
  • The chain hangar brackets on the Reese Strait-Line Weight Distribution System, part # RP66082 will attach to the frame at approximately 30 inches from the center of the trailer coupler to the center of the brackets. These brackets do install over the top of the frame. I am including a link to the installation instructions on the Reese WD system and a link to a video of a Reese WD system being installed. It will show how to measure to install the chain hangars. To attach the Reese WD...
    view full answer...

  • Weight Distribution and Sway Control Recommendations for 2012 R-Pod and 2007 Nissan Titan
  • For your 2007 Nissan Titan and 2012 R-Pod, I have a couple recommendations for weight distribution systems with sway control. To address your issue with your LP tank mounts potentially blocking your chain holder, I recommend the Reese Chain Hangers # RP58305. They are an alternative for traditional lift brackets that will not interfere with your trailer frame-mounted items. You will have to drill to install, but once that is taken care of, they are easily bolted on. I have provided the...
    view full answer...

  • Can Weight Distribution Chains Hang at an Angle or Do They Have to be Straight Up and Down
  • Ideally, you would want the chains to be straight up and down. A slight angle is permissible. What I recommend is to change the chain hanger type being used. There are 2 options. First we have a type that bolts to the side of the trailer frame, # RP58305. The other type is a skinny bracket that fits around the frame (up to 6-1/2 inches tall and 2-3/4 inches wide), # RP58306. With either set up you would need to use the trailer jack to jack up the trail and vehicle to achieve the required...
    view full answer...


Do you have a question about this Accessories and Part?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality accessories and parts for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate accessories and part information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
Brandon M
Expert Research:
Adam R
Updated by:
Laura H
Installed by:
Cole B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
