Front Mount Trailer Hitch Receiver Winch Mounting Plate

Front Mount Trailer Hitch Receiver Winch Mounting Plate

Item # 6495

lowest price pledge

Retail:$207.48

Our Price: $106.95

You Save: $100.53
Accessories and Parts

This item qualifies for Free Shipping

Shipping Weight: 26 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
Draw-Tite Accessories and Parts - 6495
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Videos

Call 800-298-8924 to order Draw-Tite accessories and parts part number 6495 or order online at etrailer.com. Free expert support on all Draw-Tite products. Guaranteed Lowest Price and Fastest Shipping for Front Mount Trailer Hitch Receiver Winch Mounting Plate. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (11)
  • Q & A (52)
  • Videos (1)
  • Photos
  • Why etrailer?

Draw-Tite Accessories and Parts - 6495

  • Electric Winch
  • Mounting and Installation
  • Draw-Tite
  • Mounting Plate
  • Without Handle


Draw-Tite Trailer Hitch Electric Winch Mount
  • 2" Solid shank
  • Receiver mount is all welded
  • 1/4" Thick plate
  • 2 Sets of four (eight) mounting holes
    • Centered on the cable opening
    • 10" by 4-1/2" on center and 6-1/2" by 4-1/2" on center
  • Has durable, black powder coat finish that resists corrosion
  • Roller fairlead mounting points
  • Optional handle/guard kit (6980) makes installation easy while protecting valuable winch
  • Universal design support most major winch models including:

  • Specs:

    • Width of oval bolt holes on front lip of plate: 1"
    • Overall plate dimensions: 12-15/16" L x 7-3/4" W
    • Shank measurement, from rear edge of plate to end: 7-3/8"

    Ramsey
    • ProPlus 5000, 6000, 8000, 9000
    • Pro 5000, 6000, 8000, 9000
    • Rep 5000, 6000, 8000, 9000
    • RW4000
    Warn
    • XD9000i, XD8000i, M8000, M5000
    SuperWinch
    • S9000, S6000, X9, X6CD, EP9.0, EP6.0, EPi9.0 and EPi6.0
    And Numerous Others
6495
6495
6495
6495
6495
6495
Winch plate shown with winch and optional handle kit (# 6980).


6495 Front Mount Trailer Hitch Receiver Winch Mounting Plate






California residents: click here


Video of Front Mount Trailer Hitch Receiver Winch Mounting Plate


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

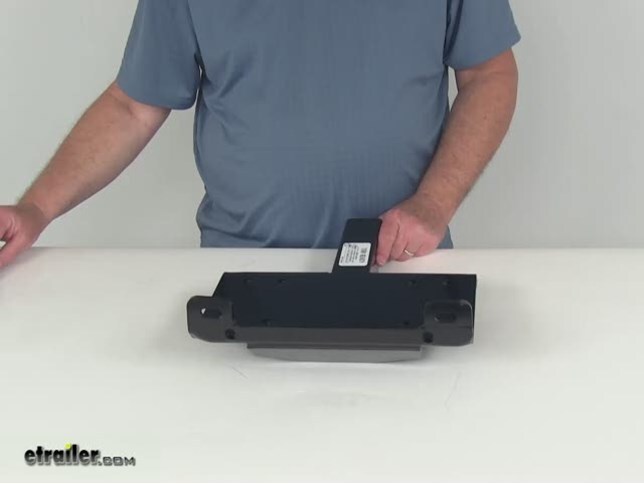

Video Transcript for Draw-Tite Electric Winch 6495 Review

Today we're going to review part number 6495. This is the Draw Tite Front Mount Trailer Hitch Receiver Winch Mounting Plate. Now this part is designed to install into your front receiver hitch and it allows you a spot to where you could mount your winch to and also easily remove it out of the hitch receiver if necessary. Does have a 2 inch solid shank right here to install into a 2 inch receiver opening. The receiver mount right up here itself is all wielded, made of a 1/4 inch thick plate, very heavy and if you'll notice on the plate itself it does come with 2 sets of 4 mounting holes and they are drilled at the 2 industry standard measurements for winches. Basically the inner set of holes if we measure center to center we're going to be right at 6 1/2 inches by 4 1/2 inches for the inner holes. The outer holes will be the industry standard 10 inches by also 4 1/2 inches.

They've got 2 different sets that you can use for the majority of the winches out there. Has a nice durable black powdered coat finish helps resist corrosion. Right up here you can see this are your fairly mounting points, you can mount your fairly to this. Once your winch is on here, your cable or rope would come out this way through the fairly. We also offer a optional handle guard kit. It's part number 698O that we sell separately.

It is listed on this product page as related product and what it is nice about that they are 2 handles, big, large metal handles and they would bolt underneath onto the plate and then with those handles it will make it easier to pick up and install into the vehicle, makes installation a lot easier and because the handles are right on the side here and they are very heavy duty. They also protect the winch from getting hit, it protects it. Now this is a universal design and because of the dual mounting patterns, it will support most major winch models out there. Would include the Ramsey models, some of the Warn models, some of the super winch models and numerous other brands that haze those bolt patterns. Now a few measurements on this, I want to give you the overall length and width of this. If we put a ruler on, it's going to be 13 inches and if we measure, and if you lift this up, from here to here that's going to be right at 7 3/4 inches and then the shank measurement from the edge of the plate to the end of the shank is going to be right at 7 3/8 inches long.

But again what you would end up doing is mounting your winch to one of those bolt patterns and then what you'd be able to do is slide this right into your front hitch, put your pin and clip in, and you'd be already to go. That should do it for the review on part number 6495, the Draw Tite Front Mount Trailer Hitch Receiver Winch Mounting Plate. .


Customer Reviews

Front Mount Trailer Hitch Receiver Winch Mounting Plate - 6495

Average Customer Rating:  5.0 out of 5 stars   (11 Customer Reviews)


- 6495
by:

Shipped quickly and when UPS lost the order, I was able to reach a live representative to open up a ticket to find the lost shipment. 727089



- 6495
by:

Received the Superwinch. Sent in the mfg pkg but survived the trip. The mounting plate is HEAVY and broke through the box, but appears intact. I have a Superwinch on my Polaris Ranger, works great. This is for a tilt bed trailer mount. 663432



- 6495
by:

Shipping time way sooner than expected. Very good quality on the winch mount. 604407



- 6495
by:

I received both orders in record time, I have not put them on the Jeep so I will have to follow up after I do that 481046



- 6495
by:

Works fantastic our winch mounted on it with no issues. 421396



- 6495
by:

Will purchase again 277095



- 6495
by:

Arrived quicker than I expected. Also very well made. It's heavy for its size. 261329



- 6495
by:

Haven't used yet but this is winch cradle is very well constructed. 177170



- 6495
by:

just perfect. 112308



- 6495
by:

Fit perfectly. 11957



- 6495
by:

Great products and service. Got it in 2 days without paying extra. Had items mounted same day. Great selection of items and prompt, courteous service and reasonable prices. 7392


11
11

Ask the Experts about this Draw-Tite Accessories and Parts

Do you have a question about this Accessories and Part?


  • Hitch-Mounted Winch Mounting Plate for Badlands Winch
  • We offer several hitch-type winch mounts that fit a 2-inch hitch. These include the Curt # C31009 with handles, Curt # C31010 without handles, the Draw-Tite # 6495 and Bulldog # BDW20011 among others. All are shown on the linked page. Most winches will bolt right up to these mounts since they use industry-standard mounting hole spacing but it is possible that a certain winch might req
    view full answer...

  • Measurement of Curt Front Hitch 31026 for Ford F-150 to Determine Winch Mount Compatibility
  • Curt front-mount hitch # 31026 is a confirmed fit on your 1992 Ford F-150 and to help you confirm the right clearance for your application with a winch mount I went to our warehouse and measured one key dimension that will help you determine this. Please refer to the linked photo. I measured from the front mounting holes on the hitch mounting brackets to the hitch pin hole in the receiver tube and found that the hole center to hole center distance was 4-1/4-inches. So if you check...
    view full answer...

  • Where to Mount Winch To Pull Vehicles Up Onto Car Hauler
  • Since hitch adapters like what you mentioned end up cutting the capacity of the hitch they are installed in by half the best solution is to mount the winch to the trailer so that you can avoid all of that. You could purchase a Hitch Receiver tube and have it welded to the the trailer frame like part # E-9. With a piece like this welded to the frame, you could use the Winch Plate # 6495 mount to attach your winch. Then you could use the winch part # 1220210 to pull things up onto your...
    view full answer...

  • Mounting Plate for Warn Winch 8274 and Front Hitch for 1993 Ford F-350
  • There is a winch mounting plate that is confirmed to fit your Warn winch M8274, though it is not from Bulldog. Instead, you'd want the Draw-Tite Front Mount Trailer Hitch Receiver Winch Mounting Plate # 6495. To use it with your 1993 Ford F-350 the front mounted hitch I recommend is the Curt # 31311, which is a confirmed fit for two wheel drive versions of your truck and is a bolt-in installation. I've added a link to a video review of the winch mounting plate for you to take a look at.
    view full answer...

  • Front Hitch and Winch Plate that Fits 2018 Jeep Wrangler JL Unlimited
  • I wish we did, but at this time we do not have a winch mount for the factory front or rear bumper of your 2018 Jeep Wrangler JL Unlimited. Only solution we'd have is a front hitch like the part # 65079 with a hitch mounted winch plate like the part # 6495.
    view full answer...

  • How To Use A Front Mount Winch On A 2017 Jeep Wrangler Unlimited
  • For a front mounted hitch compatible with your 2017 Jeep Wrangler Unlimited, I recommend using the Draw-Tite Front Mount Trailer Hitch Receiver part # 65069 as the pull strength rating for this hitch is 9,000 lbs. I have included an installation video of this hitch on a 2017 Jeep Wrangler Unlimited for you. Depending on the winch in which you will be using, I recommend using a front mount trailer hitch winch plate such as the Front Mount Trailer Hitch Receiver Winch Mounting Plate part...
    view full answer...

  • Are Tow Loops Lost When Installing a Front Mount Hitch on a 2009 Ford F-150 Super Crew XLT
  • The Draw-Tite Front Hitch, # 65061, does not require removal of the tow loops for installation. I have provided a link to installation instructions for you to review. Although Removal of the Tow Loops is required for installation of the CURT Front Mount Hitch, # C31068, they are only removed so that the front hitch can be sandwiched between the frame and the tow loops, so they are not lost, but reinstalled with the front mount hitch. A link to installation instructions for this hitch...
    view full answer...

  • Is Fascia Trimming Required to Install a Front Mount Receiver on a 2005 Ford F-150 4x4
  • The Curt Front Mount Receiver, item # 31352, has a 9,000 Lbs. Max. Line Pull, and lower fascia trimming may be required on some models. The part that may need to be trimmed is the plastic fascia that is attached to the bottom of the chrome bumper on some models. If this plastic piece is not installed on your vehicle you will not have to trim with the Curt receiver. The Draw-Tite Front Receiver, item # 65043, for your 2005 F-150, has a 9,000 Lbs. Max. Line Pull rating also, so it is...
    view full answer...

  • What is Weight Capacity of Draw-Tite Front Mount Hitch Receiver Winch Mounting Plate # 6495
  • I checked with my contact at Draw-Tite and they said that the Draw-Tite Front Mount Hitch Receiver Winch Mounting Plate, part # 6495, is designed for use with winches up to a 9,000-lb line pull rating. The reason for the 9,000-lb maximum is because he said most all of the front mount receiver hitches are only designed for winches with a maximum line pull rating of 9,000 lbs, so the front hitch on the vehicle will be the limiting weight capacity.
    view full answer...

  • Recommended Trailer Hitch Receiver for 1964 Chevy C/K 20 4x4 and 2001 Ford F-350 Front Hitch
  • Although the Draw-Tite # 40050 is only for 1964 Chevy C/K 8 foot bed 2WD as you stated, there are other options available for your 4x4 truck. I recommend the Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" # 75034 which is a fit for your truck if you have a standard bumper. If you have a deep drop bumper, then I recommend the # 41504. All of these hitch receivers are compatible with the Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches...
    view full answer...

  • Can the Westin Sportman Grille Guard Support a Winch on a 2005 Dodge Dakota
  • I spoke with my contact at Westin about the Sportsman Grille Guard, # 40-1665, for your 2005 Dodge Dakota. he stated that while the grille guard can support aftermarket lights, like # 09-0305, it is not designed to support a winch or for winching applications. What you could do to mount a winch at the front of your Dakota is to install a front mount hitch # 31228, and then a hitch mounted winch plate like # 6495. I have included a link to the winch plates we carry below as well as a...
    view full answer...

  • Front Mount Trailer Hitch and Winch Mount for a 2005 Ford Excursion
  • There are front mount hitches available for your 2005 Ford Excursion but TorkLift hitch # TLF1006 will not fit. The available front hitches that do fit are Draw-Tite hitch # 65022 and Curt hitch # 31114. Both are rated for 9,000 pounds line pull and 500 pounds vertical load. For a winch mount that fits in a 2 inch receiver we have: # C31010 # 6495 # BDW20011 # SW2050 # C31009 # SW2055 # BDW20155 # CU881084
    view full answer...

  • Winch Mount Plate Comparison for Front Mount Receiver Mounting Plate
  • The plate on the part # C31010 winch mount plate is 1/4 inch thick. This mount has 2 sets of four (eight) mounting holes centered on the cable opening which are 10 by 4-1/2 inches on center and 6-1/2 by 4-1/2 inches on center. This mount is all welded and ready to use right out of the box. The plate on the part # 6495 is 1/4 inch thick and has the same mounting hole pattern as the C31010. This receiver mount is all welded and has a solid steel drawbar as opposed to the others that...
    view full answer...

  • Front Mount Trailer Hitch Receiver Plate and Wiring for a Warn VR8 Winch
  • I checked with Warn and the mounting hole spacing for the VR8 winch is 10 inches side to side and 4-1/2 inches front to back with the overall length of the winch at 20.7 inches and 6.3 inches front to back. Based on that you can use Curt mount # C31009 or # C31010, Draw-Tite # 6495, or Superwinch mount # SW2050. At most your winch can draw up to 457 amps and a 650 cold cranking amp minimum battery is recommended. Based on these figures I would go with wiring and quick disconnect kit...
    view full answer...

  • Solution for Mounting Winch in Enclosed Trailer for Pulling Vehicle In
  • You can mount a winch to a trailer to allow it to pull things up onto the trailer. This is pretty common for car haulers. You could purchase a Hitch Receiver tube and have it welded to the the trailer frame or crossmember near the front like part # E-9. With a piece like this welded to the frame, you could use the Winch Plate # 6495 mount to attach your winch. You'll need to pull up a portion of the floor to access where you'll attach it. Maybe locate the anchor point from underneath...
    view full answer...

  • Is there a Hitch-Mounted Winch Mounting Plate for a Warn 8274 Winch
  • Draw-Tite winch mounting plate # 6495 will work with most major winch brands. The same goes for Curt mounting plate # C31010. I have included pictures showing the mounting hole patterns for each so you can compare them to your Warn winch to determine if either will work. Even if a winch is not listed on the page that doesn't mean it won't fit which is why the hole spacing measurements are important.
    view full answer...

  • How to Mount Winch to Utility Trailer
  • Yes you can mount a winch to a trailer to allow it to pull things up onto the trailer. You could purchase a Hitch Receiver tube and have it welded to the the trailer frame like part # E-9. With a piece like this welded to the frame, you could use the Winch Plate # 6495 mount to attach your winch. Then you could use the winch part # 1220210 to pull things up onto your trailer.
    view full answer...

  • Bulldog 8K Recovery Winch BDW10041 Compatibility w/ Front Trailer Hitch Receiver Mounting Plate
  • It sure will! The Bulldog 8K Recovery Winch item # BDW10041, will fit on the Front Mount Trailer Hitch Receiver Winch Mounting Plate, item # 6495. The winch has a 10 inch by 4-1/2 inch bolt pattern, which is compatible with the mount holes on the hitch plate. You may want to consider the Trailer and Vehicle Electric Winch Wiring Kit, for up to 16.5K Winches, item # SW2008, to have the correct wiring and quick disconnects to run to the rear of your vehicle.
    view full answer...

  • Winch Recommendation to Pull a 2010 Ford F-250 Super Duty Out of Mud
  • I strongly recommend getting the highest capacity winch possible to pull your 2010 Ford F-250 Super Duty out of mud. I would not rely on a 1,500 or 3,000 lb winch to pull your truck out of mud. Keep in mind that when your truck is stuck and you want to use a winch to pull it out, you are pulling the weight of the truck plus the weight of the mud and any additional force against the truck that is created by the mud. All of the front mounted hitches that we carry for your truck have a...
    view full answer...

  • Front Hitch and Winch Plate Recommendation for a 2004 Chevy Silverado 1500 LD
  • For a front mount hitch for your 2004 Chevy Silverado 1500 light duty you would want the Draw Tite hitch part # 65023 which has been confirmed as a fit. For a winch mounting plate the part # 6495 would then be a great option as well. I attached a review video for this plate as well.
    view full answer...

  • Utility Trailer Winch Mounting Options
  • You would not be able to mount a winch to a wood bed if you are going to put any kind of load on it. You would need to get the winch mounted to the steel frame somehow. To do this you can use U bolts to attach through the wood bed to the trailer frame, if there is steel frame below the bed. Otherwise you will want to fabricate a mounting location for your trailer. Since you were looking at the Front Mount Trailer Hitch Winch Plate, part # 6495, you could purchase a Hitch Receiver tube...
    view full answer...

  • Recommendation for a Mounting Plate for a Badlands Winch
  • You will need to check the bolt hole mounting pattern of your Badlands Winch, but we do offer several hitch mounted winch mounting plates that may work. First we have the Curt Mounting Plate, # C31010. On it, the first set of mounting holes are 10 by 4-1/2 inches, and the second set of mounting holes measure 6-1/2 by 4-1/2 inches center to center. I have included a picture showing the various dimensions of the Curt mounting plate. Next we have the very basic Superwinch Portable...
    view full answer...

  • Is Angle Or clearance An Issue When Installing Winch On Front Of 2012 Nissan Frontier
  • The receiver opening for the Draw-Tite Front Mount Trailer Hitch # 65075 does sit below the front bumper. We haven't heard from any customers regarding the angle when they are using the hitch, but have had favorable reviews from customers. If you use a winch mounting plate like part # C31010, the winch will sit a little higher than the receiver opening and may not be an issue at all. we also have a winch mounting plate # 6495. The winches these are designed to work with are listed on...
    view full answer...

  • Front Hitch and Winch Mount Recommendation for a 1998 Ford F-150 4x4
  • For a front mount hitch for your 1998 Ford F-150 the Draw Tite Hitch part # 65025 would be the correct part number and would work well for you. The Draw Tite Front Hitch Winch Mount part # 6495 would also be a great choice.
    view full answer...

  • Winch Mounting Recommendation for a 2016 Chevy Colorado
  • If you wanted to mount your winch in front of your 2016 Chevy Colorado we have a front hitch that would work well for that. The Draw Tite part # 65071 would be a great solution. And then for a winch mounting bracket for the hitch we have the part # 6495. Or if you wanted to mount the winch at the rear of the vehicle you could use a rear mounted trailer hitch with the # 6495. If you don't have a hitch the Draw Tite part # 76004 would be a great option as well.
    view full answer...

  • Idea for Mounting Superwinch to Trailer Frame
  • You could purchase a hitch tube and have it welded to the the trailer frame like part # E-9. With a piece like this welded to the frame, you could use the Winch Plate # 6495 mount to attach your winch. This would give you an easily removable winch mount setup.
    view full answer...

  • Recommended Winch Mount Compatible With Westin Sportsman Grille Guard
  • The Westin Sportsman Grille Guard - 1 Piece - Black Powder Coated Steel # 40-0245 does not have the ability to add a winch mount. To add a winch to your vehicle, I recommend the Draw-Tite Front Mount Trailer Hitch Receiver - Custom Fit - 2" # 65025. Then you can use the Front Mount Trailer Hitch Receiver Winch Mounting Plate # 6495. This combination can be used with the Grille Guard.
    view full answer...

  • How to Use a Winch on the Front of a 2018 GMC Yukon XL
  • According to Draw-Tite, the Draw-Tite Front Mount Trailer Hitch Receiver part # 65064 is a confirmed fit for a 2018 GMC Yukon XL. The hitch will provide you with a 2" receiver tube opening on the front of the vehicle which can be used for a winch tray or to move a trailer around. If you also need a winch tray to use with this hitch then I recommend part # 6495. The plate measures to be 12-15/16" long x 7-3/4" wide. There are 8 mounting holes which accept a variety of different bolt...
    view full answer...

  • Recommendation for an Electric Trailer Winch Hitch Mounted Winch Plate for a Superwinch
  • You will need to check the bolt hole mounting pattern of your Superwinch LP8500 but we do offer several hitch mounted winch mounting plates that may work. First, we have the Draw-Tite Mounting Plate, # 6495. The mounting hole dimensions for it can be found on the product page, below the description. Next we have the Curt Mounting Plate, # C31010. On it, the first set of mounting holes are 10 by 4-1/2 inches, and the second set of mounting holes measure 6-1/2 by 4-1/2 inches center to...
    view full answer...
