Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks
(46 reviews)
Price: $65.99
In Stock
Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks
Item # BD500217
Retail:$83.06
Our Price: $65.99
You Save: 21%
Orders above $99 qualify for Free Shipping
In Stock
- All Info
- Reviews (46)
- Q & A (38)
- Videos (1)
- Photos
- Why etrailer?
Bulldog Accessories and Parts - BD500217
- Trailer Jack
- Camper Jacks
- Hardware
- Bulldog
- Screws and Nuts
Features:
- Fits Bulldog jacks with 12,000-lb capacity
- Designed for use with Bulldog series 182 jacks from 2003 to current
- Threaded portion measures 1-1/4 diameter
500217 Bulldog Screw and Nut Kit for 12,000-lb Jacks
Video of Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

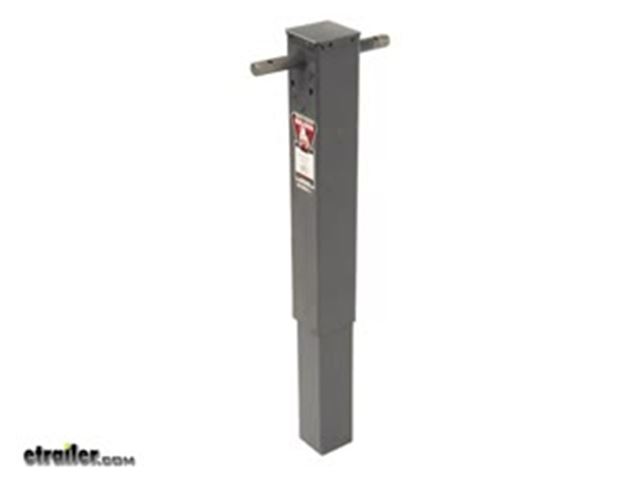

Video Transcript for Rebuilding a Bulldog 12000-lb Capacity Jack
Today we're going to be taking a look at the rebuild process of the bulldog square 10,000 pound lift, 12,000 pound static capacity jacks. Now these you'll most often see on the front of very large utility trailers and even some fifth wheel campers. There are several kits available to help you along with your rebuild process. Here we'll have our internal screw, thrust washer, bearing, and pens. This is part number BD500217. Just the bearing itself is part number BD001015.
And we're also gonna have our gear, bushing, and spring replacement kit. Now that gear kit is part number BD500212. There are also two types of handles available, one being the vertical, which you see here. This part number is BD015181. We also have a horizontal option available, I'll explain to you the difference in those in just a minute. That part number is BD800090. The first thing we need to do is remove the cap located here on top.
That's gonna be a five sixteenths inch socket or bit driver. So it's just gonna come out, and we'll have one of those on each side. Once we pull that off, you'll see inside we're gonna have a lot of grease and hidden in there will be a few gears. At this point we need to get in here and just get this grease out. We're gonna be replacing it.
You just need basically a universal grease, it doesn't have to be anything high-temp or anything like that. Just get as much of it out as we can. It's gonna give us a good look inside. What we'll need to do is slide the spring over just like that, and you see how that pin slides out That's the pin that holds the shaft in place side to side. So we'll remove that and set it aside. It's gonna allow us to pull the shaft out and we'll just kind of compress our spring a little bit, be able to pull that out.
With that out of the way, you see that gear's gonna come out. Set it aside, inside out each outside tube there you're gonna have the bushes. Pull those out. Then the main gear on the bottom, we should just be able to lift straight up on that and we can remove it. You also see the pin for that right below it. And here we'll see washer, we can take out. Now that's gonna be all the components that're in the gear and spring kit, so if that's all you need to replace, you just put those back in at this point and your job's gonna be done. If you need to go further that, if you need to get to the bearing or if you need to get to the screw, now we need to separate the outer tube from the inner tube of our jack. So lift up on that, it's gonna give us access here. Here you see the bearing, again that's the part that is available individually or as the entire screw kit, so we'll set that aside. Here's our thrust bearing, now our pins. These are just gonna slide out by hand. All of this comes apart really without too many tools. And at that point, we're able to lift that screw mechanism right up and out. Now we would bring in a replacement, as you would see put a little bit of grease on it, our replacement would drop right down in. Then we'll need to place our pins back in. Then you can take your replacement thrust bush and put that down on there, our bearing's gonna sit on top. Now it's important to position the bearing so that this opening is facing downward. That's gonna help protect it from any moisture and help any rain that might get in there run off. Once we've got this in place, it's time to put our outer tube right back on. And as we do it, we'll see the screw come through the top. Now your washer that you took off the bottom of the other thrust bearing, that goes on. Now the larger of the pins that're included in the gear and spring kit needs to slide through the whole that we've got in the top of the screw. You just kind of want to center that on your screw and then you'll be positioning your large gear right down on top of that. You want that pin to sit in those two slots. Now we'll be bringing the handle bushings through each side just like that. Now our gear for this side is gonna sit down in there, gonna make sure those teeth line up. And then we need to slide in the crossbar where the main handle is. And you just want to make sure the hole, see that smaller hole It's gonna be offset to one side. Make sure that's on the same side as your gear. Now before this fully passes through, we want to get our spring in place, so you bring your new spring in. And we need to kind of get that compressed so it'll slide over the end of that gear and then line up with our handle bushing on the other side. Then we just push this clear through. Now if we compress our spring, we just want to line up that hole with the hole in our gear, place our pin in, and then you see how that spring kind of goes along that bottom side All we'll have to do is push this down until the top side clicks in. Just like that. And you can see at that point, we're back fully operational, it's just time to fill this up with some grease. Now you can do that now since you have access, or you also have the two grease circs on the side, definitely recommend doing it beforehand though. Now we'll just take again a little bit of all-purpose grease, this is a high-temp grease, it doesn't have to be. Want to make sure we get plenty in our gears there. The good news is, you're not gonna be able to over grease it so get plenty in there and that should keep everything lubricated. At this point, we can put our cap back on. Now depending on your situation, you may have a pair of these with a bar running between. You'll want to put your bar on going over to the slave jack. We do have two different handle replacements available. This one's a vertical handle replacement, which means the connection point here is gonna be vertical. It's gonna be up and down. So to replace the handle, that's gonna be placed on there. So we've got a bolt with a flat washer, we want to slide that through. Flat washer on the other side, and then this lock nut, you just want to get it down so it makes contact with the outside. So that's gonna allow us to rotate our jack up and down, and then to store it, since what happens is you're gonna pull out and then allow that to rotate down. Now a vertical handle position is going to allow us to bring the handle over to the front side of our jack, and we can use a handle keeper part number BD500312. You can weld it on. Now if you want this to be on the side of the jack rather than in front, we need to switch over to the horizontal handle. Instead of these begin up and down, they're gonna be side to side which would then allow us to tuck our handle alongside of the jack. And that'll complete our rebuild of the bulldog 10,000 pound lift capacity jack. We hope this'll show you that with just a few parts and a few tools, you can rebuild your bulldog jack rather than having to do a complete replacement.
Customer Reviews
Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks - BD500217
Average Customer Rating: 4.9 out of 5 stars (46 Customer Reviews)
- BD500217
by: Zak09/16/2020
881641
- BD500217
by: Danny07/24/2020
Appreciate fast service great parts fit perfect on jack thanks 850523
- BD500217
by: Wesley06/01/2020
New parts fit perfectly. Glad to have good instructions and helpful videos. 806152
- BD500217
by: Neil05/13/2020
Gave it 4 stars. The website is good at being able to determine what parts you need. everything fit perfect. And it now works the smoothest I've owned the trailer. Just wished shipping wasn't so much. 797098
- BD500217
by: Scott04/17/2020
Perfect match for the damaged parts and look to be well made. 781910
- BD500217
by: Timothy04/17/2020
excellent customer service, excellent products and fast shipping!!! 781868
- BD500217
by: Ian03/12/2020
Build quality is outstanding, customer service top notch. My only issue was that the replacement threaded rod diameter was significantly larger than the ones being removed. etrailer has an outstanding measurement page, I just did not do my due diligence. I just turned the shaft diameter down a bit and now I have heavier duty rod and nut in my landing gear of my gooseneck. I am very happy with that. 765364
- BD500217
by: Troy03/10/2020
Excellent description. What I was needi ng. 764997
- BD500217
by: Michael01/22/2020
Second one I've purchased different jacks. Works great easy to assemble. Much easier than cutting off old jack and welding on new one 739932
- BD500217
by: Roger09/22/2019
This was easy to put in & was perfect match. I think I broke the other one by unloading the machines on the trailer without being hooked up to the truck. The trailer goes up in the front when you do this . Once the machine is off , trailer slams down on the jack stand hard. Live & learn! 706472
- BD500217
by: Jason09/03/2019
Went to drop my gooseneck horse trailer after use and no-go! Apparently the screw jack became stripped over the years and needed to be replaced. The hardest thing about this project was removing the entire unit from beneath as shown in the pictures. For clearance I had to not only drive the rear wheels onto small ramps but also dig beneath the jack to drop everything out. Everything fit perfectly. The video was great at explaining things. Brendan gave me a few shipping options and items arrived promptly without breaking the bank. 697292
- BD500217
by: David c08/07/2019
Had a great experience 681931
- BD500217
by: Billy T.08/06/2019
I have ordered several parts from your company, good Quality, fast shipping, I have NO complaints , thank you for caring. 681397
- BD500217
by: Billy06/26/2019
Good product, I have no complaints, will order from you again 663251
- BD500217
by: Robert12/07/2018
Perfect fit. Very pleased with the service and fast delivery. The trailer we needed repaired is ready to haul again.Thanks, I've found a new supplier fir trailer parts. Will also be recommending you to all my friends and the local business that couldn't locate the parts we needed. thanks again.?? 589192
- BD500217
by: Glyn H.03/08/2018
These parts were a great time and money saver. The tongue jack on this trailer was welded to the trailer cross member by the trailer manufacture, so removing the old jack and welding on a new one was going to be expensive and time consuming; plus the trailer would be out of service for a couple of weeks. With the parts to rebuild the jack, we did the repair in less than two hours. As a bonus, the parts actually arrived two days sooner than promised. Thank you etrailer.com for the great service. 482744
- BD500217
by: Robert02/20/2018
Hello I buy things online all the time this was my first time buying from you and the experience was great . The break in shipping was excellent cuz I didn’t like the 5-7 business days to start and the automatic upgrade was nice 477356
- BD500217
by: Ronnie01/25/2018
Excellent customer service. Hally spent time on the phone with me to answer questions the web page didn't. She even went to one of her techs to get me the info. She could have easily put me off but didn't. She was pleasant and was genuinely interested in helping me. I haven't installed the screw and nut yet but after inspection all dimensions are exact and I have no doubt the parts will fit my trailer. I will do business with etrailer.com again! Ron D. Irving Tx 469380
- BD500217
by: Zack12/05/2017
If you have a pro series 12k jack. Buy the bulldog insides and drill the top hole to 3/4 inch in the top of the tube. All bulldog parts will work and can buy unlike the pro series Part numbers-> BD500217 BD500212 457427
- BD500217
by: Zack12/05/2017
If you have a pro series 12k jack. Buy the bulldog insides and drill the top hole to 3/4 inch in the top of the tube. All bulldog parts will work and can buy unlike the pro series 457425
- BD500217
by: G. C.09/05/2017
Perfect. I greased the heck out of it with white lithium grease. Smooth and durable. 429161
- BD500217
by: Rick R08/29/2017
Unbelievable delivery time to Canada !! Awesome service and the part was the exact replacement !! Love that the measurements were on the item description as well , made it easy to order the part ! Definitely be ordering from etrailer again !! Thanks you 426464
- BD500217
by: Travis S08/27/2017
I used this bulldog jack screw kit to repair a similar design stallion trailer jack which is no longer produced and parts are unavailable. It worked great and seems to be of good quality. This was around a year ago, it gets used regularly and it still is working great. 425767
- BD500217
by: Gary H06/09/2017
I was glad to find this product installed with ease and didn't have to replace both Jack's 391140
- BD500217
by: Mike02/15/2017
Easy repair parts fit perfectly ! 342096
28
49
Show More Reviews
Ask the Experts about this Bulldog Accessories and Parts
- Replacement Gears for 12,000 lb Leg from Unknown BrandThe Replacement Gear Kit for Bulldog Sidewind Jacks w/ 12,000-lb Capacity # BD500212 are not a confirmed fit for all 12K legs. I've attached a photo with measurements to help you determine if this gear kit will work for your application. The Replacement Sidewind Gear Kit for etrailer and Ram Square, Direct Weld Jacks # TJD-12000-GR is another option. On this kit the taller gear has an inner diameter of 1-3/4 inches and an outside diameter of 2-1/2 inches. The shorter/wider gear has...
view full answer...![]()
![]()
- Does Bulldog Replacement Screw and Nut Kit BD500217 Fit Jack Model 182304Yes, the Bulldog Replacement Screw and Nut Kit # BD500217 will fit Bulldog 12K 182-Series jack 182304 if it is an older unit made in 2003 or later. The current production of this jack model is part # BD182304 and it uses a different screw, part # BD500250.
view full answer... - Availability of Nut and Screw for Bulldog JackWe do sell replacement screw and nut assemblies for Bulldog Jacks. Item # BD500250 fits Bulldog Jacks rated at 10,000-lb lift, 12,000-lb support. It has a rod diameter of 1-1/4 inches. We also offer Item # BD500217, which is designed for use with Bulldog series 182 jacks from 2003 to current with 12,000-lb capacities. It also has a diameter of 1-1/4 inches. I have included a video on rebuilding a Bulldog 12000-lb capacity jack for you to check out. I've also attached two images...
view full answer...![]()
![]()
- Fulton Equivalent for Replacement Screw and Nut Kit # BD500217We may be able to help you find the replacement parts you need for your 12K-rated Fulton jack but a part number for the jack and a photo would help. I did check all 12K-rated jacks and landing gear that we carry and none is the Fulton brand. I did link for you a photo of the part you referenced to show its dimensions.
view full answer...![]()
- Replacement Screw and Nut Kit Recommendation for 12k Bulldog Trailer JackThe correct replacement screw and nut kit for a 12k Bulldog jack is the part # BD500217. This also comes with the thrust bearing you are looking for and pins as well. I attached a link to a video that shows a 12k Bulldog jack like yours being rebuilt as well.
view full answer... - Length and Width of the Bulldog Replacement Screw and Nut Kit # BD500217I attached a picture that has about every dimension you could want for the part # BD500217. The overall length is 17 inches and the diameter of the screw is 1-1/4 inches.
view full answer...![]()
- Replacement Parts For 12,000 lb JackWe don't have any Trailer Tough brand jacks, however, the Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks, # BD500217 may work. If you trade out the gears # BD500212 and bearing # BD001015, you will basically have a new jack on the inside. You could also just replace the entire jack with the Bulldog Side Wind Jack Assembly - 12,500 lbs # BD182700. If you want the hand crank you will need # BD015181.
view full answer... - Screw and Nut Kit Recommendation for a 12k Bulldog Landing Gear JackThe Replacement Screw and Nut Kit # BD500217 should work well for you as it is designed to work as a replacement for 12k Bulldog jacks that were made from 2003 to current.
view full answer...![]()
- Photo And Dimensions Of Bulldog Screw And Nut Kit For 12000 LB JacksI have attached a photo that has been expanded so you can see what the part # BD500217 jack screw and nut look like. I have also included a photo with the kit that has the dimensions noted you can check out.
view full answer...![]()
![]()
- Recommended Landing Gear for Hillsboro 300 Gooseneck TrailerOn your 1998 24K Hillsboro 300 gooseneck trailer, the Stallion Landing gear is not a brand I'm familiar with. The Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks # BD500217 is not welded in and has a 2 inch by 2-3/4 inch nut on a threaded 1.25 inch diameter screw. Because you say the nut may be welded, I recommend changing out the jacks completely with the Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs # BD182800. I've attached...
view full answer...![]()
- Dimensions of the Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog JacksA specific dimensional drawing of the replacement screw and nut # BD500217 is not available for proprietary reasons. I can tell you that the diameter of the threaded parts is 1-1/4 inches. It was specifically designed for 12K Bulldog jacks, series 182, from 2003 to the current generation. I did include a picture that contains measurements we took here that might help you.
view full answer...![]()
- Troubleshooting Bulldog 12,000 lb Jack for Replacement Parts NeededSince your gears on top seem to be functioning correctly, you most likely have a screw or nut that has stripped. I recommend the Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks # BD500217. I've attached a video of the rebuilding of this jack so you can see how to disassemble and reassemble it.
view full answer... - Is the Nut On the Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks Cast or ForgedThe nut on the Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks part # BD500217 is either forged or billet but it would not be cast. It is unfortunately not offered separately from the threaded rod.
view full answer... - Replacement Screw and Nut Needed for a 12K Bulldog 180 Series JackWe do have the replacement screw and nut, like part # BD500293 that you referenced, for a 12K Bulldog 180 Series jack. This is found on our site listed as part # BD500217. The threaded portion of the screw measures 1-1/4" in diameter. I have linked a jack rebuild video for you to check out.
view full answer... - Do Replacement Rod, Screw and Nuts for Square Jacks Only Fit Certain JacksThe Replacement Rod and Nut for etrailer and Ram Square, Direct Weld Jacks # TJD-12000-RODNUT, along with the Replacement Screw and Nut Kit for 12000-lb Capacity Bulldog Jacks # BD500217 and Replacement Screw and Nut Assembly for Bulldog Square Jacks - 10K TW # BD500250 only fit specific jacks and are not universal parts. So unfortunately you will need to know the exact brand and model of jack you have in order to try a replacement part that fits. If that is not something you can find,...
view full answer...![]()
![]()
- Replacement Screw And Gear Kit Needed For 12K Bulldog 180 Series JackWe do have the replacement screw and gear kit for your 12K Bulldog 180 Series Jack. You will need Gear Kit # BD500212 and Screw and Nut Kit # BD500217. You will also need grease for the new gears, so if you don't have any use # L11316. I included a video of a 12K Bulldog 180 Series Jack being rebuilt for you to take a look at.
view full answer... - Bolt-On Side Mount Caster Wheel Tongue Jack to Replace Fulton 1000-lb Jack We do sell replacement jack parts including the main screw like the one shown in your photo. Examples of these replacement jack screws are # TJD-12000-RODNUT, # BD500250 and # BD500217 which are shown on the linked page. Unless you can positively identify the model of Fulton jack you have I strongly recommend replacing the whole jack instead of trying to rebuild the old one. You may even save money by getting a new jack; you'll also get a new warranty and have the confidence of knowing...
view full answer...![]()
- How to Access the Internal Components of Bulldog Square JacksTo access the gears inside of the heavy-duty Bulldog jacks, like part # BD182415 you simply remove the screws that are holding on the plate covering the top of the jack. Once that plate is removed, the gears, pins and handle should be exposed. We also offer the Replacement Screw and Nut Kit, # BD500217, for the heavy-duty 12,000 lb capacity Bulldog jacks. I have attached two photos that show the inner workings of the heavy-duty Bulldog jacks for you to check out. Hopefully the jack...
view full answer...![]()
![]()
- Replacement Screw and Nut for Bulldog 10K / 12K Square Trailer JackThe screw and nut assembly, # BD500250, fits Bulldog jacks rated at 10,000 lb lift and 12,000 lb support. We also have kit, # BD500217, which is designed to fit Bulldog series 182 jacks from 2003 to present with a 12,000 lb capacity. I have included a picture to give you the dimensions of each product.
view full answer...![]()
- Replacement Screw for Trailer Jack with 1-1/4 Inch DiameterThe Ram Trailer Jacks generally use a 1" diameter threaded rod whereas the Bulldog Trailer Jacks generally use a 1-1/4" threaded rod. Therefore, it would appear as if you have a Bulldog Trailer Jack and in which case the Replacement Screw and Nut Kit part # BD500217 at 17" long x 1-1/4" diameter most closely resembles the Replacement Rod and Nut Kit part # TJD-12000-RODNUT that you were looking at so it may be what you need. However, I would not be able to confirm unless I have the model...
view full answer... - Bulldog Jack Gear Compatibility With Stallion Brand Jack And Electric Conversion KitThe Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity # BD1824200100 will allow a single speed jack with 12K capacity to become a powered drive jack. The Replacement Gear Kit for Bulldog Sidewind Jacks w/ 12,000-lb Capacity # BD500212 may work with your Stallion brand spring loaded drop leg jack, but I can't confirm it will work without replacing the screw and nut kit # BD500217. I know customers have changed this screw and nut assembly on a stallion jack without...
view full answer... - Replacement Nut and Screw for an Older Bulldog 180 Series JackI spoke to my contact at Bulldog and he informed me that the Replacement Screw and Nut Kit # BD500217 would work for your 180 Series Bulldog 12k Jack.
view full answer... - Replacement Parts for Bulldog Square JackThe replacement parts we have for the Bulldog Square Jack # BD182500 are a Replacement Gear Kit # BD500212 and a Replacement Screw and Nut Kit # BD500217. These are the two most likely aspects of the jack to be causing your problem. I have attached the only two diagrams we have related to this trailer jack. The inner tube is held to the outer tube by the screw and nut assembly.
view full answer...![]()
![]()
- Troubleshooting Bulldog Electric Landing Gear that Turns But Does Not Raise or Lower JackIt sounds like you broke a bevel gear in your # BD1824200100 by over extending it and that is why everything seems to be moving but the jack does not go up or down. When you bought this jack set it came with an extra bevel gear so as long as you still have that you can try inspecting the current one and replacing as necessary. To access the gears inside of the heavy-duty Bulldog jacks you simply remove the screws that are holding on the plate covering the top of the jack. Once that...
view full answer...![]()
