Replacement LED Module for Bargman LED Tail Light - 84, 85, 86 Series - Red

Replacement LED Module for Bargman LED Tail Light - 84, 85, 86 Series - Red

Item # 47-84-420
lowest price pledge
Retail:$53.99
Our Price: $45.64
You Save: 15%
Accessories and Parts
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.56 lbs
Quantity:
In Stock
Bargman Accessories and Parts - 47-84-420
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Replacement module works with Bargman 84, 85 and 86 Series, LED, single; double; triple; and triple, long tail lights. Red light functions as brake, tail and turn light. Power and ground wires included. Call 800-298-8924 to order Bargman accessories and parts part number 47-84-420 or order online at etrailer.com. Free expert support on all Bargman products. Guaranteed Lowest Price and Fastest Shipping for Replacement LED Module for Bargman LED Tail Light - 84, 85, 86 Series - Red. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (37)
  • Q & A (13)
  • Videos (1)
  • Photos
  • Why etrailer?

Bargman Accessories and Parts - 47-84-420

  • Trailer Lights
  • Light Modules
  • Bargman
  • Red

Replacement module works with Bargman 84, 85 and 86 Series, LED, single; double; triple; and triple, long tail lights. Red light functions as brake, tail and turn light. Power and ground wires included.


Features:

  • Module replaces LED light on Bargman 84, 85 and 86 Series, LED tail lights
    • Fits single; double; triple and triple, long models
  • Red light functions as combination brake, tail and turn signal light for your trailer or RV
  • LEDs last longer and burn brighter than incandescent lights
  • Compatible with a 12V system
  • 16-Gauge power and ground wires included


47-84-420 Bargman LED Stop/Tail/Turn Light Module with Wires - Red - 84, 85, 86 Series




California residents: click here

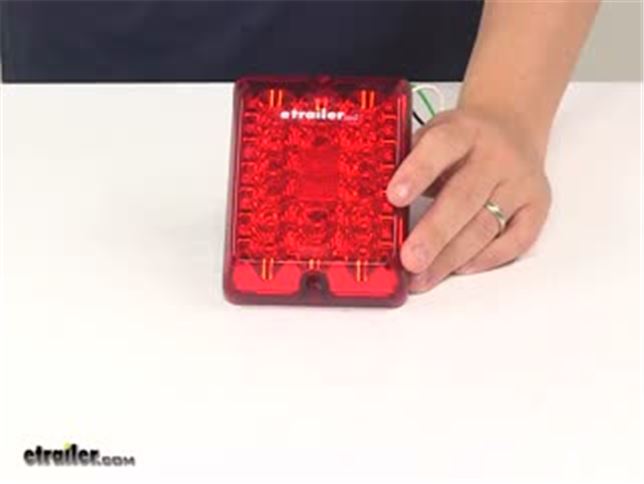

Video of Replacement LED Module for Bargman LED Tail Light - 84, 85, 86 Series - Red

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Trailer Lights 47-84-420 Review

Today we're going to be taking a look at the replacement LED module for the Bargman LED Taillight. This module replaces the LED light on the Bargman 84, 85, and 86 series LED Taillights. It's going to fit the single, double, triple, and triple long models. This red light functions as a combination brake tail and turn signal light for your trailer or RV. It's a full LED system. LEDs last longer.

They burn brighter and they're much more efficient when compared to incandescent bulbs or lights. You don't have to worry about replacing bulbs and you don't have to worry about replacing bulbs and you don't have to worry about inaudible 00:00:29 filaments. This light's going to contain a total of 18 LEDs or 18 diodes. You can see the wiring here on the back. It's already preinstalled. Each wire is labeled with its function.

Black wire is stop and turn. Green is tail. White wire's your ground. This is SAE and Department of Transportation compliant. New mounting hardware is not included so you will have to use your old hardware or provide yourself with some new hardware.

Basically, when it comes to the installation and replacement, it's pretty simple. It's got these tabs here on the back that will line up perfectly with the mounting points in the Bargman taillight. Then it secures in place with two screws with the predrilled mount holes located at the top and bottom of the light. A few measurements, real quick. The actual light, measuring edge to edge this direction, that's going to give us a measurement of 5 and 5/8 of an inch. Going this direction, it's going to measure 4 and 1/4 inches.

Then the mount holes on the unit are separated on center by 5 inches. I'm going to go ahead and hook it up to some power. That way you can see what it looks like with power running to it. Then we'll also be able to turn off our overhead light so you can see it in a low light setting. It's a nice bright light. We'll cycle through with the lights on. This is the taillight function. That's the brake light. This is the turn signal. Do that with the lights off. Tail light, brake, and turn signal. That's going to do it for today's look at the replacement LED Module for the Bargman LED Taillights.


Customer Reviews

Replacement LED Module for Bargman LED Tail Light - 84, 85, 86 Series - Red - 47-84-420

Average Customer Rating:  4.9 out of 5 stars   (37 Customer Reviews)

Replacement module works with Bargman 84, 85 and 86 Series, LED, single; double; triple; and triple, long tail lights. Red light functions as brake, tail and turn light. Power and ground wires included.

- 47-84-420
by:

I cannot say enough about how happy I am with the customer service person when purchasing my replacement tail light. I would highly recommend etrailer Thank you 766274



- 47-84-420
by:

The R/H tail light failed on our RV , the replacement arrived promptly and we were able to get back on the road sooner rather than later. Thank you 764126



- 47-84-420
by:

great service from etrailer, as to product: it is an identical match to the light that failed. 696302



- 47-84-420
by:

As always the right price great service and the product arrives on time at the delivery location. I live in FL am on the road and had my purchase shipped to New York % the RV park, as usual it arrived exactly on time. Great service great people. 693605



- 47-84-420
by:

Just what we needed and very fast deliv ery!! 679216



- 47-84-420
by:

The brake light was faulty on my camper and I couldn't find the same number replacement. Your website advised what the new replacement number was, so I ordered one. It arrived in a reasonable time, and fits and works perfectly. The whole process was easy. Thanks. 654213



- 47-84-420
by:

Awesome customer service. Very quick delivery. Buy from these folks—you will be glad you did! 634443



- 47-84-420
by:

Helpful people. Good product. Delivered as promised. I recommend highly. 629590



- 47-84-420
by:

This is my third one of these since I replaced the original one on my 2010 Artic Fox TT. They work good, just not very long. Bargman needs to make these WATERPROOF" as that has been the problem with these products not working more than a year or so. This newest one is a spare, always keep a spare, and I siliconed where the black plastic frame and the red lens meet. Perhaps this will help, we'll see. Love ETrailer for everything RV! 583940



- 47-84-420
by:

As advertised 574271



- 47-84-420
by:

Light was exactly as promised delivery was faster than expected and service before the sale and was great. I was kept notified as far as when unit shipped and when I received it. 572262



- 47-84-420
by:

Was very happy to find this site. etrailer could interpret what I was looking for and had it on hand. I ordered, installed and it is a perfect fit. Would recommend u buy here. 529870



- 47-84-420
by:

I ordered lights for replacement and had them shipped over night. They arrived early the next morning and I was able install them before using the Truck Camper with a non working tail light. 523930



- 47-84-420
by:

Excellent item! Easy to install! Saved me $200+. 510913



- 47-84-420
by:

First time I ordered from this company. I ordered a replacement LED tail light about 10:30 on a Saturday morning and by late afternoon I received an email that the part had shipped. It arrived on Thursday, two days earlier than expected. I am pleased with the service and the part. Will use them again. 508182



- 47-84-420
by:

Great product. Perfect fit and much brighter than conventional bulbs and less current draw. 465467



- 47-84-420
by:

Exact replacement, exactly what I ordered. Arrived promptly. No issues with it. Installed it and it works perfectly. Very happy with my purchase. 451656



- 47-84-420
by:

The product seems great, it was part of a dual unit on a truck camper, I couldn’t find the whole unit with the LED backup light. They were glued into the main housing and difficult to cut free. The old one was half full of water but I couldn’t see where it got in. Working like new now. 444094



- 47-84-420
by:

I bought 4 red led taillights and 2 clear led lights for my old motorhome. The old lights were faded and dim. I made a custom aluminium diamond plate bracket . I put the clear backup light in the center and one red taillight on each side. I hooked up the wiring and everything works perfectly. They are so much brighter I can't believe the difference , even in the daytime. Thanks for a great product. 427050



- 47-84-420
by:

I ordered this tail light as a spare for our Northstar pickup camper, since the back of camper covers the truck tail lights. It is a correct replacement for the existing tail light. George from etrailer was great in letting me know when product was shipped along with follow up information. 415338



- 47-84-420
by:

Good experience- exact replacement. 412399



- 47-84-420
by:

Arrived well packaged, installed in less than 5 minutes, fit perfectly, and allows me to stop worrying that I'm going to get pulled over for an inoperable tail light. Yeah. On the road again. 383637



- 47-84-420
by:

This is the replacement for the older model, 47-84-020, tail, stop, and turn signal light. I had to replace the older model because over half of the LEDs had failed in the course of 5 years since the unit was manufactured. The part is a direct replacement, and no modifications were required. Just clip the wires for the original, strip the ends, and connect color to color with butt splice connectors, then screw in place. The new units lit right up, and behaved as a tail/stop/turn light should, nice and bright! Hopefully, the new model will not lose LEDs like the old one did, but only time will tell. Overall a great replacement so far. 379661



- 47-84-420
by:

a perfect replacement for the burned out led tail/brake light 370451



- 47-84-420
by:

Brake lights on my Casita camper trailer were working at 20% of capacity. Researched part number but couldn't find an exact match. Etrailer website explained that the manufacturer had changed the part number and provided the new part for an exact match. Ordered, arrived, installed. Could not be happier. We now travel safely and highly visible. 352696


25
37
Show More Reviews

Ask the Experts about this Bargman Accessories and Parts

  • Difference Between Bargman LED Upgrade # 47-84-410 and Replacement LED # 47-84-420
    The difference between the Bargman LED Upgrade Kit # 47-84-410 and the Replacement LED Module # 47-84-420 has to do with their application. The LED Upgrade Kit # 47-84-410 is designed to replace a light on a Bargman 84, 85, or 86 Series Incandescent Assembly like # 30-84-008 with an LED light. It's harness allows you to make this conversion without replacing the entire assembly. The Replacement LED Module # 47-84-420 on the other hand is just a direct replacement for an already LED...
    view full answer...
  • Will Bargman LED Module 47-84-420 Fit in Place of 47-84-020
    Yes, you can use replacement LED module # 47-84-420. It is designed to fit Bargman 84-86 series single, double, and triple tail lights like yours.
    view full answer...
  • Does Upgrading Trailer Lights from Incandescent to LED Require Resistors
    When replacing incandescent trailer taillights with LEDs you do not need to use resistors. The only time that's needed is when the bulb being replaced is on a vehicle and it's a blinker circuit.
    view full answer...
  • Dimensions Of Bargman 47-84-420 Replacement LED Module
    I pulled a Replacement LED Module, part # 47-84-420, from our warehouse and took some dimensions for you. The light itself measures 5-5/8 inches by 4-1/4 inches by 1-1/4 inches. The dimension between the mounting holes is 5 inches. I have attached a photo with the dimensions of this LED module.
    view full answer...
  • Troubleshooting or Replacement Tail Light Assembly on 2006 Sunnybrook Fifth Wheel
    If you are attempting to troubleshoot your light problems, the common cause for a function to stop working when turning on your head lights is an insufficient ground connection. You'll want to make sure your grounds are securely connected to a bare metal surface free of any paint, dirt, or corrosion. Also check your connectors to make sure they do not have any type of corrosion which may be interfering with the functions. Should you want to replace your lights you could do so by using...
    view full answer...
  • Troubleshooting Why Left Brake Tail Light Is Not Working
    Since you have turn signal and running lights, it sounds like you have a wiring or fuse problem. I would start troubleshooting the Bargman LED Tail Light, Item # 47-84-420, by checking all your connectors to make sure everything has a good connection and make sure to remove any type of corrosion or debris that could prevent brake wire from working. Next, I would check your ground wires and make sure you have a secure connection on a bare metal surface free of any paint, dirt, or corrosion....
    view full answer...
  • How to Stop LED Lamps on Trailer From Hyperflashing
    Typically what causes the flashing is a bulb-out warning sensor on the vehicle which is designed to hyperflash the directional signals to warn the driver of a burned out bulb. Since LED lamps like the # 47-84-420 you had looked at draws so much less power than incandescent lamps, the sensor thinks the bulb is burned out when its not. The best solution for this is to install a load resistor kit like # P230004A-2 on the turn signal circuits on the trailer. Two resistors are included, install...
    view full answer...
  • Single Tail Light Containing 2 LED Fixtures for One Side of Trailer
    The Bargman LED, Recessed, Double Tail Light # 47-84-527 is for one single unit. You will need a second for the opposite side of your trailer. Each of these single units has two lights within it. Those replacement lights are the # 47-84-420.
    view full answer...
  • Replacement LED Module for a Bargman 84 Series Tail Light
    Bargman tail light # 30-86-101 is an 86 series so it is not exactly the same as an 84 series. The correct replacement for a Bargman 84 series LED is module # 47-84-420.
    view full answer...
  • Troubleshooting Camper Lights When Running Lights Work But Turn/Brake Lights Do Not
    You can troubleshoot your truck and trailer by disconnecting the harness and test each one separately. On the truck side I recommend using a circuit tester like part # 40376. Since you said the vehicle side of the wiring is working properly you will want to test the camper wiring. You should look for signs of dirt, discoloration or corrosion. You can try cleaning the connectors with a spray-on contact cleaner if they show any such signs of corrosion and then use dielectric grease...
    view full answer...
  • Replacment LED Module Recommendation for an 84 Series Bargman Trailer Light
    For a replacement LED module for the # 47-84-009 you would want the part # 47-84-420.
    view full answer...
  • What Screws Are Needed to Attach a Light to an Aluminum Frame
    In order to attach the Bargman LED Double Trailer Tail Light part # 47-85-611 to an aluminum surface you will want to use either a stainless steel, aluminum, or zinc plated screw like part # FA1131822. This is going to ensure that you do not have any corrosion problems at the point of contact between the two metals. As aluminum is a rather soft metal, you should not have any issues using self-tapping screws. I also highly recommend you use our heat shrink butt connectors, part # DW05744-5...
    view full answer...
  • Can Bargman Triple Trailer Tail Light be Exposed to Water
    Good questions, and the answer is the Long LED Triple Trailer Tail Light # 47-84-104 are a recessed mount and the back should not be exposed. I checked with Bargman, the manufacturer, who has not deemed them "weatherproof" so they are not lights you are going to want to expose to the elements in any way, and there really isn't a reliable way to make them water resistant with the rear of the light exposed. You can use Liquid Electrical Tape # SWC50122 as a sealant on the electrical connections,...
    view full answer...
