Rubber Grommet for 6-1/2" Oval Trailer Tail Lights

Rating: rating rating rating rating rating
55 reviews

Code: A70GB

Retail:$2.95

Price:$0.95

Shipping Weight: 0.5 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Oval Amber Directional LED Warning Lights Review - Video

Optronics Accessories and Parts - A70GB

Rubber Grommet for 6-1/2" Oval Trailer Tail Lights

An oval, black PVC grommet needed for flush mounting 6" oval lights. The grommet measures 7-5/8" long x 3-3/8" wide x 1-1/8" deep. This rubber grommet gives shock mount protection that extends the life of the lamp. Along with the sealed light, a three-wire pigtail is required to complete the installation.

Rubber grommet for flush mounting 6" oval lights
Shock protection extends lamp life
Open back gives easy access for wiring
Requires a three-wire plug (A45PB or A47PB) along with the light to complete installation
Dimensions: 7-5/8" L x 3-3/8" W x 1-1/8" D

Manufacturer Cross Reference
Grommet will work as an exact replacement for:
Wesbar # 226088
Truck Lite # 60700
Grote # 92420
Peterson # 421-18
Bargman # 40-06-020

Manufacturer Specifications

Black PVC grommet allows oval lights to be flush mounted. Provides shock mount to lengthen bulb life.

A-70GB Rubber Grommet for 6-1/2" Oval Lights by Optronics, Inc.

Video of Rubber Grommet for 6-1/2" Oval Trailer Tail Lights

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

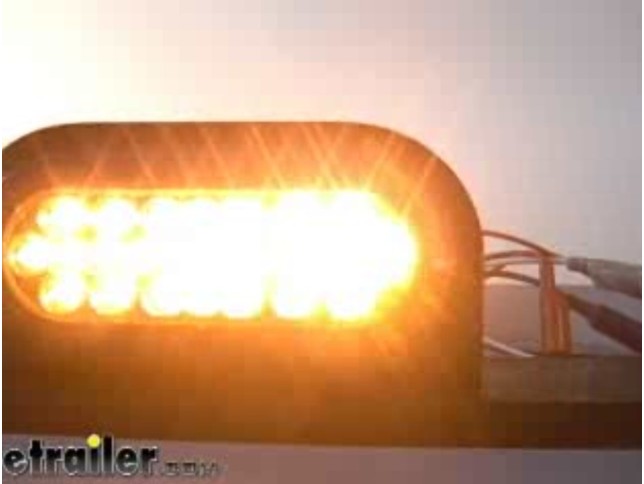

Video Review Optronics amber LED warning light

Oval Amber Directional LED Warning Lights Review

Video Transcript for Oval Amber Directional LED Warning Lights Review

Today we are going to show you the amber flashing hazard lights from Optronics, part number SLL72AB1 and part number SLL72AB2. The flashing hazard lights are designed to be used on emergency, road-side assistance, construction sites and off-road vehicles, along with the rubber grommets, part number A70GB and the straight 3-wire pigtails, part number A45PB. They fit the standardized 6-1/2 inch oval shaped trailer light mounting holes, using the rubber grommets. There are 24 amber LEDs covered by a lifetime warranty. The lights are designed to fit inside the grommets that will hold them snug inside your mounting points. The rubber grommets simply stretch over the lights. On the reverse side of the light there is a port for the pigtail harness. The pigtail harness just fits into the posts and pushes in snug. The wiring for your light is already done at this point. All you have to do is connect the loose ends to the vehicle. 1:03

Once we have our light assemblies put together, we can go ahead and mount them inside our light brackets. Thanks to the grommet mounting design, all you have to do is push the light into place. With our lights in position, we can go ahead and begin the wiring process. The black wires are our synch wires. They allow the circuitry inside the two lights to communicate with each other so that we can get our flashing synchronized or alternating, depending on the lights we are using. We are using two type one lights, indicated by the 001 markings on the back of the light. Since these are both type one, they should flash together when we wire them up. The white wires are our ground wires. All you need to do is use an existing ground point on your vehicle and attach the eye terminals from the ground wires. The red wires are our powder wires. You can wire them to a 12 volt accessory circuit so that they are on whenever the vehicle is on or you can wire them to a switch power source so that you can manually control when the lights come on. We have a 12 volt DC power supply with us and we are going to take our two ground wires and connect them to the ground wire lead on our power source. Now, our black wires are already connected 2:27.

We are going to take our two power wires and twist them together. Once we attach them to our 12 volt power source, the lights should begin flashing in synch with each other. Thanks to the 24 LEDs in each light, they are plenty bright so that everybody will notice when these lights are flashing. Now we are going to switch out one of the lights. We will have a type one over here and a type two over here. When you mix and match the two types, the result will be an alternating strobe. We are going to take our two power wires and connect them to our 12 volt power lead off of our power supply. These lights should not be used on a cargo carrier or trailer that is used on normal roads. And there you have it for the Optronics flashing hazard lights, part number SLL72AB1 and part number SLL72AB2.

Customers compare A70GB to these similar products

Right Angle 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights $1.15

Straight 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights $0.95

Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat $3.25

Straight 2-Wire Pigtail for Trailer Back Up Lights $1.25

Plug - Two Wire Pigtail for Sealed Trailer Clearance, Side Marker Lights - 6" Long $0.99

Customers who look at this part also view

Miro-Flex, Sealed, 6-1/2" Oval, LED Trailer Stop/Turn/Tail Light, 3-Function, 12 Diode $19.95

Sealed, 6-1/2" Oval Trailer Stop, Turn and Tail Light, 3-Function $5.25

Sealed, 6-1/2" Oval LED Trailer Stop, Turn and Tail Light, 48 Diode $24.95

Sealed, 6-1/2" Oval LED Trailer Stop, Turn and Tail Light, 10 Super Diode $17.95

Sealed, 6-1/2" Oval LED Trailer Stop, Turn and Tail Light, Flange Mount, 10 Super Diode $17.95

Customers Who Purchased This Accessories and Parts Also Bought...

Bonded 4 Wire - per foot $0.57

Right Angle 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights $1.15

Sealed, 6-1/2" Oval Trailer Stop, Turn and Tail Light, 3-Function $5.25

Straight 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights $0.95

Plug - Two Wire Pigtail for Sealed Trailer Clearance, Side Marker Lights - 6" Long $0.99

Ask the Experts about this Optronics Accessories and Parts
Expert Answers about Rubber Grommet for 6-1/2" Oval Trailer Tail Lights - A70GB Do you have a question about this Accessories and Parts?

What are the Hole Dimensions for the #A70GB, Rubber Grommet for 6-1/2 Inch Oval Trailer Light
I went out into our warehouse and measured one of our Rubber Grommet for 6-1/2 inch Oval Trailer Light, # A70GB, that we have in stock. From the measurements I took, you will have to cut a hole that is 6-11/16 inches long and 2-5/8 inches tall.
view full answer...

How to Remove Flush Mount Taillights and Grommets in a Square Tube Snowmobile Trailer Frame
It sounds like your trailer has the 6-1/2 inch Oval stop turn and tail lamps and some side marker lamps that use a rubber grommet like the 6-1/2 inch oval tail lights grommet, # A70GB. Since the area where your lights are mounted is not accessible from the back side, you will need to pry the light out of the front of the grommet with a small screwdriver or other similar tool. If you could find a plastic pry tool that might work better and keep you from damaging the rubber grommet. Another tri
view full answer...

How to Cut a Grommet Hole for Installation of the Oval Trailer Tail Lights # STL22RB
The easiest way to cut the oval hole for the Rubber Grommet, # a70gb, in my opinion, would be to use a Light Mounting Bracket for 6-1/2 inch Oval Trailer Lights, BK70BB, as a template and then use a hole saw the correct size to cut a hole on each end of the mounting location. Then, use a angle grinder with cut off wheel or a reciprocating saw with metal cutting blade to cut the straight top and bottom sides of the hole. The correct width for the grommet is 2-5/8 inches, but I have found that
view full answer...

Could the Rubber Grommet # A70GB be Installed in 5/16 in Thick Material
The Rubber Grommet # A70GB should have no problem being used in a material that is 5/16 of an inch in thickness as long as the hole is cut the proper shape. To see the dimensions that the hole will need to be check out the picture I attached.
view full answer...
