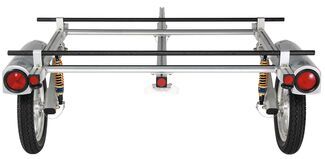

Yakima Trailers - Y08106
This premium, lightweight sport trailer is the perfect way to haul your boats or bikes, using integrated, adjustable, 66" crossbars as anchor points. The pull-behind roof rack hauls 250 lbs and conveniently stores in your garage.
Features:
- High-performance roof rack on wheels with 66" Yakima crossbars included
- Provides versatility - add the racks you need
- Bike racks, watersport racks, cargo baskets or cargo boxes for covered storage
- Has lower loading height - no more lifting gear over your head
- Adjustable crossbar towers on tracks
- Fully independent, adjustable suspension with shock absorbers
- 4" of Vertical movement to cushion and protect your gear
- Lightweight aluminum frame is easy to store
- Sits upright or hangs on wall
- Includes integrated rollers on rear of frame for easy lateral movement
- Standard, 4-way flat, black rubber light connector
- Locking lever with 1 Same Key System lock to help prevent theft
- System locks tongue to trailer frame
- SKS cores can be changed out to make all your Yakima locks keyed alike
- Carrying handle turns trailer into handcart
- Makes it easy to hook onto ball
- Premium trailer - automotive-grade finish and custom-cast alloy wheels
Specs:
- Weight capacity: 250 lbs
- If you are hauling more than 200 lbs, Yakima recommends HD Shocks (Y08110)
- Length capacity: (1) 17' boat or (2) 16' boats
- Can be increased to (1) 22' or (2) 21' boats with Tongue Extension Kit (Y08109) - sold separately
- Width capacity:
- Up to 6 bikes
- Yakima SkyBox Pro cargo box and 1 canoe
- Yakima LoadWarrior cargo basket and 1 kayak on Yakima BowDown
- SkyBox Pro cargo box and 1 kayak on Yakima BowDown
- 1 Bike, 1 kayak and Yakima SkyBox Pro 21 cargo box
- Crossbar spread: Adjustable from 48" maximum to 4" minimum
- Requirement: Needs 1-7/8" ball
- Ball should be installed 22" above the ground for optimum performance
- Dimensions: 5-1/2' wide x 11' long x 22" tall
- Trailer is 6' long with tongue removed
- Trailer weight: 150 lbs
- Can be towed at posted speed limit with proper loading and favorable road conditions
- 1-Year warranty
If you are looking for an easy way to haul your expensive gear, slap this premium Yakima sport trailer on your hitch and you're ready to Rack and Roll.
This high-performance, lightweight Rack and Roll trailer comes with a pair of adjustable, 66" Yakima crossbars for mounting boats, bikes and cargo boxes for covered storage - whatever you need. The round crossbars slide along tracks to adjust to your load, and they accept all Yakima roof-rack accessories - it's like having a tow-behind roof rack with all the capability and versatility of a standard Yakima rack. The difference here is that, with the trailer's conveniently low loading height, you don't have to lift your gear over your head to store it.
Rack and Roll holds up to 250 lbs and coddles your gear with fully independent, adjustable shock absorbers. The suspension has 4 inches of wheel travel for exceptional highway performance, cushioning your gear and keeping the trailer from going "airborne" over rough terrain.
The versatile trailer is easy to store when not in use, with a variety of options for keeping it tucked away in your garage. The tongue and wheels remove easily with stainless steel pins to make the trailer more compact. The trailer can be stored upright or hung on the garage wall by the crossbars. The rear section of the frame features two integrated rollers to make moving the trailer laterally effortless.
A standard, 4-way flat, black rubber connector is included for connecting your lights to the towing vehicle. The trailer connector has three male pins and one female pin. The vehicle's flat-4 connector should have one male pin (exposed ground) and three female connections (live circuits for stop, turn and running lights).
The trailer frame includes a locking lever with a Same Key System Core that locks your hitch tongue to the trailer frame. SKS Cores can be swapped out to make all your Yakima locks keyed alike.
An integrated carrying handle is mounted near the coupler to make it easier to place the trailer on the hitch ball. The handle also turns your trailer into a handcart that is easy to maneuver while it's unhitched from your vehicle.
The trailer can carry one boat up to 17' long or two 16'-long boats. Add the Rack and Roll Tongue Extension Kit (Y08109) - sold separately - to increase the capacity to one 22'-long boat or two 21'-long boats.
You can also store the trailer without removing the tongue and wheels by adding the Rack and Roll Kickstand (Y08115) - sold separately.
The trailer is constructed from anodized aluminum and features custom-cast, polished aluminum alloy wheels.
The trailer works with Class I, II and III hitches with a 1-7/8" ball installed. The ball should be mounted 22" from the ground for optimum performance. To ensure the best fit, use a ball mount with the proper drop or rise to modify the height of your receiver.
Most states require that you register your Rack and Roll trailer. All paperwork necessary for registering your trailer is included. Take the documents to your Department of Motor Vehicles and you will be issued a license plate.
8008106 Yakima Rack and Roll Trailer - 66"
Ask the Experts about this Yakima Trailers
Do you have a question about this Trailers?
- Maximum Speed When Using a 66 Inch Yakima Rack and Roll Trailer # Y08106
- The Rack and Roll trailers, like the 66 inch long model # Y08106, are rated to tow at normal highway speeds. As always, exceeding posted speed limits is not recommended, especially when towing.
You may want to consider a spare tire # Y08121 for the trailer, which includes a mounting kit to attach it to the frame. We also offer a kickstand, part # Y08115, for easier storage of the trailer. It may be a good idea to change out the factory shocks with a set of the Yakima replacement heavy
view full answer...
- How To Register The Yakima Rack and Roll Trailer, # Y08106, With Department Of Motor Vehicles
- Most states require the Yakima Rack and Roll Trailer, # Y08106, to be registered, but it registers just like a regular trailer. We provide you with a Manufacturing Certificate of Origin and a VIN number. Take the paperwork provided to your Department of Motor Vehicle (DMV) and you will be issued a license plate.
I am also sending a link to the owners manual of the Rack and Roll trailer. It will also give information on registering the trailer.
view full answer...
- Recommendation for Carrying Two Motorcycles with a 2010 Ford Mustang
- In order to carry the 2 motorcycles with a 2010 Ford Mustang, the best option would be to use a trailer. The Yakima Rack and Roll Trailer, # Y08106, and the Magenta Sports Trailer, # RRT80, are roof racks on wheels and would not work for your application. First, if you do not already have a trailer hitch for the Mustang, I recommend the Hidden Hitch, # 60257. It will fit all models, including the GT, but not a GT/CS, Shelby GT, or GT500.
This hitch comes with the recommended ball mount which
view full answer...
- Maximum Recommended Towing Speed for the Yakima Rack and Roll Trailer
- I spoke with my contact at Yakima and found that the tires on the Rack and Roll trailer, # Y08106, are DOT rated.
Trailer tires are tested to 65 miles per hour to meet DOT standards, so we cannot recommend towing the Rack and Roll trailer faster than 65 Mph or the posted speed limit whichever is lower.
I have posted a review of the trailer which may help with your decision.
view full answer...
- Yakima Rack and Roll Trailer Tire and Rim Size
- The tire size on the Yakima Rack and Roll trailer is 3.25-16. The rims are 5 spoke and measure 2.15x16.
view full answer...
- How Much Does the Yakima Rack and Roll Trailer Weigh
- The Yakima Rack and Roll Trailer, # Y08106, weighs 150 pounds. With 2 people lifting, that is 80 pounds each. Two people could handle it, but it would be much easier to use some ramps like # 11200, if you wanted to put it in a truck bed.
Please note the dimensions of the trailer as well. It is 5-1/2 feet wide by 11 feet long.
Another option is the Buffalo Tools Mini Trailer, # BTTRMB12. It weighs about 100 pounds and is 40 inches wide by 48 inches long.
I have included links to assembly
view full answer...
- Yakima Spare Tire and Wheel Recommendation for a Rack and Roll Trailer
- For a replacement wheel and tire assembly for the Yakima Rack and Roll Trailer # Y08106 you would want a Spare Tire with 5 Spoke Rim for Yakima Rack and Roll Trailer # Y08121.
I attached a review video for this product also.
view full answer...
- Dimensions of the Yakima Rack and Roll Trailer, HD Shock Upgrades, and Tongue Extensions
- From the ground to the top of the crossbars when the the Yakima Rack and Roll Trailer, # Y08106, is level, it measures 22 inches. The Heavy Duty Shocks, # Y08110, is using the terms shocks as an all encompassing term that covers the shock itself and the springs for greater capacity.
If you were to use the 6 foot extension, # Y08109, it comes with a wiring harness routed through the extension. One end of it connects to the existing wiring on the trailer and the other end would then connect to
view full answer...
- How to Strap a Kayak with a Yakima BowDown Down when Used on a Yakima Rack and Roll trailer
- I spoke to my contact at Yakima and she informed me that since your kayaks will be behind your vehicle and not on top it is not as important to have the kayaks strapped down when used on the Yakima Rack and Roll Trailer # Y08106. She did recommend that at least one strap get used around the kayak to the frame of the trailer.
I attached a review video and assembly video for this product for you to check out also.
view full answer...
- Will a MegaWarrior Cargo Basket and SUP Brah Surfboard Carrier Fit a Yakima Rack n Roll Trailer
- The Yakima Rack n Roll Trailer, # Y08106, has an adjustable crossbar spread of 44 inches to 4 inches so the MegaWarrior with Extension, # Y07080-82, will fit. It requires a crossbar spread of, at most 41 inches, so the trailer will accommodate it.
The S.U.P. Brah system, # Y04060, uses straps and buckles to hold the board and attach to the mounting location you choose on the trailer, so I do not see a problem there either. It should all work together. I have included video links for the trai
view full answer...
