Ball Mounts > Fixed Ball Mount > Standard Ball Mount > Rise - 3/4 Inch, Drop - 2 Inch > Class IV, 10000 lbs GTW > Fits 2 Inch Hitch > Cushioned Shank > Long > Steel > Tow Ready


Tow Ready Cushioned Ball Mount - 3/4" Rise or 2" Drop

Tow Ready Ball Mounts

Code:   TR80420

Retail:$95.49

Price:$69.95


Shipping Special

Shipping Weight: 8.52 pounds

Quantity:






Tow Ready Ball Mounts - TR80420

Class IV Cushioned Ball Mount from Tow Ready

  • Features 2 heavy-duty, polyurethane cushions in ball Mount shank
    • Allows the pin hole to "float"
    • Reduces slams and bangs associated with starting, stopping and rough roads
    • Provides protection for the towing vehicle's driveline, hitch assembly and trailer contents
  • Fits 2" x 2" trailer hitches
  • Gives a 3/4" rise or 2" drop from top of your hitch's receiver tube opening
  • Measures 9-3/8" from center of ball hole to center of hitch pin hole
  • Capacity: 10,000 lbs GTW | 1,000 lbs TW
  • Ball hole: 1" diameter

80420 Tow Ready Cushioned Ball Mount by Draw-tite, Hidden Hitch and Reese





Video of Tow Ready Cushioned Ball Mount - 3/4" Rise or 2" Drop


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

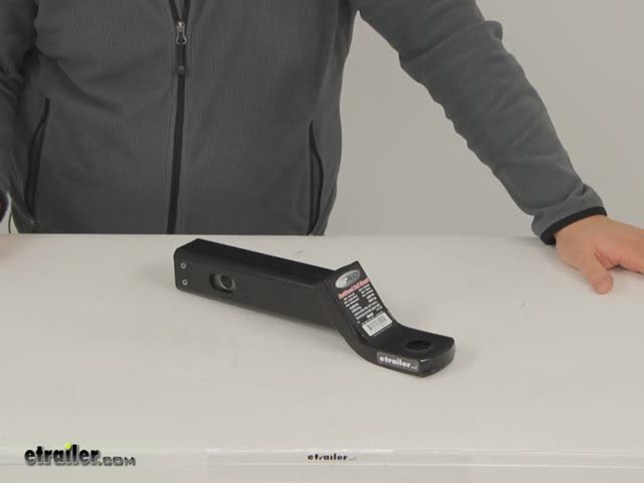

Video Demo Tow Ready Ball Mounts TR80420
Tow Ready Ball Mounts TR80420 Review

Video Transcript for Tow Ready Ball Mounts TR80420 Review

Today we'll be reviewing part number TR80420. This is the Tow Ready Cushioned Ball Mount. The three quarter inch riser, a two inch drop. It's going to give us a gross trailer weight capacity of 10,000 pounds with a maximum towing weight capacity of 1,000 pounds. It features two heavy-duty polyurethane cushions in the ball mount shank. This allows the pin hole to float and it's also going to help reduce slams and bangs associated with starting, stopping and when towing on rough roads.

It's also going to help provide protection for the tow vehicle's drive line, hitch assembly, and whatever it is that you're hauling in your trailer. It is designed to fit a two inch by two inch trailer hitch receiver. It's a really simple install. You can also see that it has a really nice powder coat finish on it, so it's going to stand up well against rust and corrosion. Simply just take it and slide it into the receiver tube of your hitch and you can line up your pin holes and install a hitch pin and clip or a hitch pin and lock. These items are sold separately, you can refer to the ball mount's product page under Related Items to view those products or go to our website and type in product number PC3, it's going to refer you to this five eighths inch pin that comes with a clip. Now with the ball mount installed in the drop position, it's going to allow us to have a drop of two inches, measuring from the inside top edge of the receiver tube to the top of our ball platform.

If we measure from the center of the hitch pin hole to the center of the ball hole, it's going to give us a measurement of right at nine and three eighths of an inch. The distance from the center of the hitch pin hole to the back of the shank is going to give us a measurement of right around three inches. Now we can also flip this around and use it in the rise position. Simply remove it, flip it over inside of our hitch, reinsert it, and line up our pin holes. Installed in this position it's going to give us a rise of three quarters of an inch. When choosing a hitch ball you want to make sure that the shank of the hitch ball does not exceed the ball hole diameter, which, for this mount, it's going to give us a ball hole diameter of right at one inch. The draw bar is going to measure about seven eighths of an inch tall by two and half inches in width.

Overall, from tip to tip, this mount is going to measure about thirteen and three quarters of inch. That's going to complete today's review of part number TR80420. This is the Tow Ready Cushioned Ball mount rated at 10,000 pounds. .



0
0


Ask the Experts about this Tow Ready Ball Mounts
Expert Answers about Tow Ready Cushioned Ball Mount - 3/4" Rise or 2" Drop - TR80420Do you have a question about this Ball Mounts?


  • Looking for Cushioned Ball Mount and 2-5/16 Inch Ball with 10,000 lb Capacity
  • For a cushioned ball mount and a 2-5/16 inch trailer ball that has a 10,000 lb weight capacity, I would recommend using the Tow Ready # TR80420 along with the Curt # C40007. If you wanted to use the # AMSC2HD ball mount you referenced, it could be used with the # 19286 trailer ball. You did not mention the rise or drop you were looking for, if you would care to respond with the rise or drop you were needing, I would be happy to make a specific recommendation.
    view full answer...


Expert Answers about Tow Ready Cushioned Ball Mount - 3/4" Rise or 2" Drop - TR80420Do you have a question about this Ball Mounts?



Info for this part was:


Installed by:
Cole B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
