Standard Trailer Light Kit with 25' Wire Harness

Rating: rating rating rating rating rating
46 reviews

Code: TL29BK

Price:$19.95

Shipping Weight: 5 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Trailer Wiring Harness Kit Installation - Video
Optronics Standard Trailer Light Kit Review - Video

Optronics Trailer Lights - TL29BK

Trailer kit with 2 stud mount tail lights; 2 stud mount amber clearance lights; license plate bracket; wire harness w/4-pole connector

Standard Trailer Light Kit with 25' Wire Harness

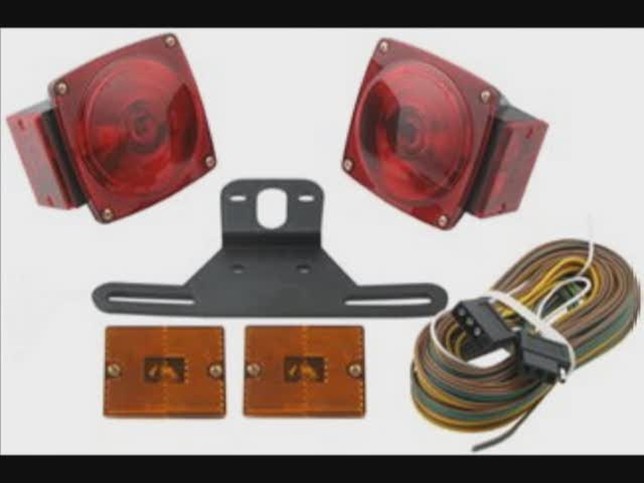

This is a stud-mounted trailer light kit. The kit contains two stud-mount tail lights, two stud-mount, amber clearance marker lights, a corrosion-proof license plate bracket, and a 25' wire harness with a 4-pole trailer connector. Tail lights are parts ST8RB and ST9RB. The amber marker lights are part MC36AB. The license bracket is part LP10S. Mounting hardware is needed and can be purchased separately (ATLPK)

Trailer light kit containing stud-mounted lights, license bracket and wiring harness
- Two red, stud-mount tail lights (ST8RB and ST9RB)
- Two amber, stud-mount marker lights (MC36AB)
- A corrosion-proof license plate bracket for use with stud-mount license light (sold separately) (LP10S)
- A 25' wiring harness with 4-pole connector
Required mounting hardware is sold separately (ATLPK)

Manufacturer Cross Reference

Light will work as an exact replacement for:

Peterson # M545

NOTE: Please check amperage rating on wiring harness, if rated for 2.1amps or less for stop/turn circuits then lighting kit will overload the harness.

Manufacturer Specifications

Kit includes two universal stud-mount tail lights, a corrosion-proof license plate bracket and two amber stud-mount marker clearance lights. Contents: (1) ST-8RB, (1) ST-9RB, (1) LP-10SB and (2) MC-36AB. Kit is equipped with a 25' wire harness.

LP-29BK Trailer Light Kit, 25' Wire Harness by Optronics, Inc.

Video of Standard Trailer Light Kit with 25' Wire Harness

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Trailer Wiring Harness Kit Installation

Optronics Standard Trailer Light Kit Review

Video Transcript for Trailer Wiring Harness Kit Installation

Today we are going to be installing the trailer wiring kit part number TL-29BK. Okay the first thing we are going to do before we get started is to go ahead and figure out a way that we want to route our 4-pole wiring harness back to our tail lights. On this particular trailer, we have got a nice long center tube here that is hollow so we are going to route our wires through there. Then we will T it off back towards the back to feed both of our tail lights and our side markers. You will notice that the harness itself is a wishbone type harness which means that it has got a single ground and you have got your running wire and right turn combined and then your running wire and left turn combined. So that you can T them off and split it down each side of the trailer.

Here at the rear of the trailer we have got brackets to mount our tail lights to. And then for our side markers we are going to go a little bit more forward on the trailer. We are just going to put them pretty much equally between the axle and the front of the trailer. Now that we have determined how we want to route our wires and where we are going to mount our lights at, go ahead and start feeding our harness through. I am going to take a steel fish tape, feed it through my center tube here. And with the tape pulled through, we can just take our two ends and tape it to it. And pull through just enough to where we have an even amount with the ground wire. And next we can go ahead and ground our ground wire.

We are just going to go ahead and ground it to the front of the tongue here to a nice, clean, metal surface. If there is some rust or even paint on the trailer, it might be a good idea to go ahead and scrape that down a little bit before we mount our ground wire. I am just going to take a self tapping screw and use that as my grounding point. And since the ring terminal that comes on our ground wire is a little bit too large for that self tapping screw, I am going to go ahead and cut that off and replace it with a smaller one. And then to insure that the wires stay the same length equal with my ground wire, I am just going to pull them tight and just put a little piece of tape there to hold them together. Okay, here with the center of the tube, we can start T-ing off our wires. Again we want the yellow and the brown to go over here on the driver side. Green and brown over to the passenger side. You need to find a way to get the brown wire back up to the front where we are going to mount our side marker light. You can either take an extra piece of brown wire and slice it in to your brown leads and feed it up to here or giving that this is a small trailer and we have plenty of wire, I can actually take and bring it up to here where we are going to mount our light and then we can just kind of continue it back to our tail light. So what I am going to do is take my side marker and basically mount it to the hole that I have here. Again, if you do not have a preexisting hole in the trailer, you can go ahead and drill those out. Go ahead and take and pull the loose end of the wire out.

And the stud that you secure the side marker with is actually the grounding stud as well so it kind of has a dual purpose there. I am going to go ahead and take my lead and kind of secure it to this cross bar here. And then what I will do is open up a section in the wire combination here. We will take a quick splice, the two wires, crimp that down, and our connection is made. From there we can again continue on and feed our wires back to the tail light itself. The installation kit provides these frame clips that we can use on angle iron pieces like this one here to help hold the wire in place. Take the barbed end, that over the metal. I think what I will do is go ahead and run a few clips, bring the wire back to the center, and then continue it back to the tail light there. And then we just want to repeat that procedure for the passenger side side marker as well. Okay, and now that I have got both sets of wires routed back to the middle here, we can continue them back through the rear cross member which is equal with what our tail light brackets are. So at that point we can split them and run them through there respective lights. And then we just want to repeat that procedure for the passenger side. Okay, now we are over here to the rear tail light. You will notice in the back of the tail light here, that there are no wires coming out, but there are four holes at the back. Those holes are what we are going to be using as our connection point to the tail light itself.

Actually there is an existing hole here in the bracket that I am going to feed the wires through. And that is going to allow me to get to the back of tail light assembly. From there we can see we have an extra length of wire, so we can go ahead and cut it down. We are going to take and separate the two wires and we will strip a little of the jacketing back. And you will note on the back of the tail light itself that it is labeled on which side you want to put the wires in. There is two holes available for each wire. So you have the availability to plug two wires in for each function. Over here to the left side you can see we have got the stop and turn which is going to be our yellow wire. Then over here we have got the tail light wire which is brown. With the wiring stripped back we just want to go ahead and it into the back of the tail light into the coinciding color that it was specified. We can take the stripped off end and just push it directly into the hole and there is a little clip inside of there that grabs the wire. You see I cannot pull it back out. There is a little recession here that we can place the wires inside and that will keep them from getting pinched when we it into the bracket itself. We need to make sure that these brackets are mounted directly to the frame work of the trailer other wise you will not get a substantial ground coming through them. And we can just tighten those down. And we just want to do the same thing over here on the passenger side. This will conclude the installation of trailer wiring kit part number TL-29BK.

Customers compare TL29BK to these similar products

Submersible, Under 80" Trailer Light Kit with 25' Wiring Harness $24.95

Peterson Trailer Tail Light Kit, 25' Harness with Hardware $29.95

Submersible, Under 80" LED Trailer Light Kit with 25' Wiring Harness $54.95

Trailer Stop, Turn and Tail Light, 6-Function, Right Hand $5.50

Waterproof, Over 80" Aero Pro LED Trailer Light Kit w 25' Wiring Harness $64.95

Customers Who Purchased This Trailer Lights Also Bought...

Bonded 4 Wire - per foot $0.57

Jacketed 2 Wire, 10 Gauge, Brake Wire - per Foot $1.21

Wire Frame Clip $0.17

2-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.17

1-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.18

Ask the Experts about this Optronics Trailer Lights
Expert Answers about Standard Trailer Light Kit with 25' Wire Harness - TL29BK Do you have a question about this Trailer Lights?

Trailer Light Kit wiring attachment, TL29BK
You plug the corresponding wires on the TL29BK kit into the upper (larger) holes on the back of the taillights. There are two holes for tail/brake lights and running lights. These holes are labeled. The wires should be stripped prior to insertion. The lower (smaller) set of holes are there to allow removal of the wires if need be. You would stick a small round object into the lower hole and press, releasing the wire. After inserting the wires they should be routed along the indention in th
view full answer...

Malfunctioning Tail Lights on a Re-Wired Trailer with Tail Light Kit TL29BK
The first step we take is isolating the problem to either the vehicle or the trailer. The best way to do this is with a circuit tester like, part # 3808. The first thing to do is check the vehicle trailer connector. I assume it is a 4-Way. You would take a the circuit tester, and clip it to the exposed pin on your vehicle connector. This exposed pin should be the ground wire, usually white. With the probe end of the tester, check the other 3 pins. The brown wire should come on when you turn o
view full answer...

Which Trailer Light Kit is Best for a Jet Ski Trailer
Trailer light kit # TL29BK does not include submersible lights, so water would be able to enter the light housings. A better choice for your jet ski trailer would be a submersible light kit # TL5RK, as the lights will be sealed against water. I would recommend, however, that you unplug the trailer connector and let the bulbs cool down a bit before backing into the water, so that the cold water will not crack the bulbs. This is good practice, also, because it lets your wheel bearings cool
view full answer...

What Size Bulbs Are Used In The Optronics Trailer Light Kit, # TL29BK
On the Optronics Trailer Light Kit, # TL29BK, the red taillights (ST8RB and ST9RB) use the clear bulb #1157 for the taillights and the clear bulb #168 for the side marker light. Our taillight bulb part number is, # A1157B. The side marker light part # 168 bulb is available in any auto parts store, we do not have that bulb available right now. The two marker lights (MC36AB) use the clear bulb # 194. Which is our part # A194B. The bulbs are included with the lights.
view full answer...

Availability of an LED Trailer Tail Light Kit that Will Fit a Snowmobile Trailer
In terms of a pre-assembled kit with everything included, the closest we have to something with tail lights that are 2-1/2 inches tall would be the Trailer Light Kit with 25 Foot Wiring Harness, # TLL16RK. The included tail lights in this kit are 2-7/8 inches tall. Another option would be to get a couple of # STL76RB lights, and a 4-Way, trailer side wishbone wiring harness, # A35W42B. I have included a link to a video showing the installation of this wiring harness for reference.
view full answer...

Troubleshooting Trailer Lights Going Out When the Brakes are Applied After Trailer Light Kit Install
It sounds like you have a ground issue. When trailer lighting does not have a sufficient ground many different scenarios can show up, but the most prevalent is when the most amperage is applied, like tail lights on and brake pedal pressed, the lights go out. All lights must be properly grounded for proper function. When installing the standard trailer light kit, # TL29BK, the lights are grounded through the mounting studs. You need to make sure that the mounting studs are contacting the trail
view full answer...

Difficulty of Installing Optronics Trailer Light Kit # TL29BK On Small Trailer
A light kit like the Optronics Trailer Light Kit, part # TL29BK, for your trailer is a fairly simple installation if you have average mechanical abilities. You will also need the Trailer Light Hardware Kit, part # ATLPK. This hardware kit will include all of the hardware you will need to install the # TL29BK light kit on your trailer. I am including a link to a video of the light kit being installed on a trailer and another video of a review on the light kit. These videos will help you wi
view full answer...

Right Turn Signal Only Works when Brakes Applied on Trailer Towed by 2010 Hyundai Tucson
This sounds like a ground issue since it is just the turn signal on the right side.. What you will want to do is make sure that the main trailer connector ground and the light grounds are all attached to clean and corrosion free bare metal surfaces. Also make sure the trailer and vehicle side connectors are clean and that the trailer wiring converter on the vehicle, unless it was a factory harness, is properly grounded to bare metal.
view full answer...
