Hitch Bike Racks > Platform Rack > 2 Bikes > Fits 1-1/4 Inch Hitch, Fits 2 Inch Hitch, Fits 1-1/4 and 2 Inch Hitch > Wheel and Frame Mount > Class 1, Class 2, Class 3 > Non-Tilting Rack > Locks Not Included > Swagman

S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670Hitch Bike Racks,RV and Motorhome Bike Racks S64670

2 Bike Carrier for 1-1/4" and 2" Trailer Hitches - Wheel Mount - Swagman XTC-2

Swagman Hitch Bike Racks,RV and Motorhome Bike Racks

Rating: ratingratingratingratingrating
78 reviews


Code:   S64670

Retail:$230.00

Price:$189.00

Shipping Weight: 34 pounds

Shipping Special
Quantity:




Swagman Hitch Bike Racks,RV and Motorhome Bike Racks - S64670

Towing your bikes has never been so easy! This wheel-mount design has all the added comfort to ensure you will no longer dread lifting your bike up into the frame cradles. Simply rest the bike's wheels in the well, ratchet down the frame hooks, and you're ready to ride!

XTC2 Extreme Cruiser 2-Bike Cross Country Rack for 2" and 1-1/4" Trailer Hitch Receivers

Features:
  • Carries up to 2 bikes
  • Secures bikes at 3 different points
    • Wheel hoops provide a stable platform to carry the bikes - wheels secured with rubber straps
    • Bike hooks securely grasp frame to keep bike in place
  • Wheel mount design works with most bikes regardless of frame size
    • Works great with children's bikes
  • Hooks are constructed with soft coating to protect frame
    • Slide smoothly up and down by using easily-adjustable push button ratcheting system
    • Offset to accommodate bikes of the same size
  • Wheel hoops are adjustable in and out to fit the length of the bikes
    • Eliminate the hassle of removing wheels
    • Accommodate wheels up to 2-1/2" wide
  • Shank offers rise for better ground clearance
  • Upright arm with bike hooks folds down for easy storage
  • Powder-coated finish for corrosion resistance
  • Can be used on the back of campers, RVs and trailers

Specs:
  • Fits 1-1/4" x 1-1/4" (Class I and II) and 2" x 2" trailer hitches
  • Distance from the center of the hitch pin hole to the closest edge of the first wheel hoop measures 9" long
  • Shank rise: 3"
  • Maximum bike wheel base is 66" long (center of wheel loop to center of wheel loop)
  • Maximum bike limit is 35 lbs/bike
  • Includes threaded pin and clip with anti-rattle to secure the rack into the trailer hitch
    • Can be locked with Swagman's anti-rattle lock # 64029
Built-in adapter with threaded, anti-rattle hitch pin and clip

A built-in adapter allows this bike rack to fit inside a 2" and 1-1/4" hitch receiver. The threaded hitch pin uses anti-rattle technology to secure the rack inside the hitch.


Wheel hoops with adjustable knobs and straps to secure wheels

The wheel hoops accommodate wheels up to 2-1/2" wide, and turning knobs are used to adjust the distance between hoops to fit bikes of varying lengths. Rubber straps secure the bike wheels to the wheel hoops.


Ratcheting system with bike hooks and push buttons

Bike hooks slide easily down the ratcheting system and click securely in place. The push buttons allow the hooks to slide up the ratcheting system to allow for bike removal.



Also works with some Tandem bikes



This cross country model offers convenience and reliability for your traveling needs. With a two-bike capacity, it accommodates most frame sizes using wheel hoops and bike hooks. Constructed with soft-frame coating to protect the bike's finish, the bike hooks securely hold the bike in the wheel hoop cradles. The hooks smoothly slide up and down by using an easily-adjustable push button ratcheting system. The hassle of removing wheels is eliminated with wheel hoops that accommodate wheels up to 2-1/2" wide and adjust to fit different frame lengths. To decrease in size, the upright bar with bike hooks folds down when not in use. A powder-coated finish protects it from corrosion from the elements. This rack fits 2" x 2" and 1-1/4" x 1-1/4" trailer hitches.

64670 Swagman XTC2 Cross Country 2-Bike Rack





Video of 2 Bike Carrier for 1-1/4" and 2" Trailer Hitches - Wheel Mount - Swagman XTC-2


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

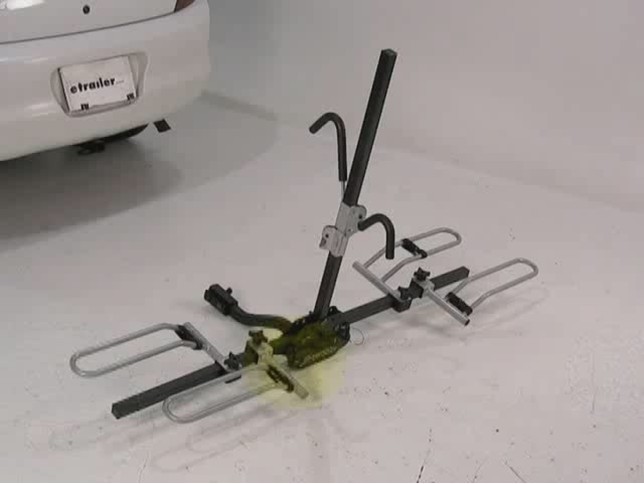

Video review of swagman 2 bike wheel mount class I s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review
Video Vendor Information Swagman
Swagman Vendor Information
Video install swagman xtc2 2010 chevrolet equinox s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2010 Chevrolet Equinox
Video install swagman xtc 2012 chrysler town and country s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2012 Chrysler Town and Country
Video install swagman xtc2 2010 dodge grand caravan s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2010 Dodge Grand Caravan
Video install swagman xtc2 2011 ford flex s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2011 Ford Flex
Video install swagman xtc2 2011 ford focus s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2011 Ford Focus
Video install swagman xtc2 2010 gmc terrain s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2010 GMC Terrain
Video install swagman xtc2 2010 honda fit s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2010 Honda Fit
Video install swagman xtc2 2008 hyundai santa fe s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2008 Hyundai Santa Fe
Video install swagman xtc2 2008 subaru outback s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2008 Subaru Outback
Video install swagman xtc2 2009 toyota yaris s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2009 Toyota Yaris
Video install swagman xtc 2011 volkswagen jetta s64670
Swagman XTC2 Wheel Mount Hitch Bike Rack Review - 2011 Volkswagen Jetta

Video Transcript for Swagman XTC2 Wheel Mount Hitch Bike Rack Review

Today we are going to show you part number S64670 from Swagman. What we have here is their 2 bike bicycle rack, the wheel mount style. This rack has the capacity of carrying two bikes and also has the capacity to carry a wide variety of bike frames, regardless if the top tube is going level, straight, or going at a severe angle. The push button ratchet arm easily adjusts to carry your bike and virtually and frame. The bike hooks have a soft padding coating on them to ensure you will not do any unnecessary scratches to your bike. The wheel mounts themselves adjust very easily for different bicycle widths. And, the rack is powder coated to protect the rack itself from the elements. We will cover some of the features of this bicycle rack.

One of the best part about this rack is it can actually fit 2 inch receivers or 1-1/4 receivers. AS you can see on the end of the shank there, it has the bushing that actually bolts onto the side of the 1-1/4 shank which allows it to work in 2 inch receiver hitches. For our demonstration here we will go ahead and take off the bushing and install it in a regular class I receiver hitch. These parts can be stored for later use. Now we will go ahead and install it in our class I receiver hitch and show you how it works. Once you have the hitch pin hole lined up, we will go ahead and install our bolt. What it does is it actually threads into the bicycle rack itself and doubles as an anti sway device. And then, a hitch pin clip goes in on the other side just for an added bit of safety.

Next we will show you actually how the rack unfolds. We will show you how little space it takes up for storage. It is easy to do. Basically you just pull out the pins here, fold it up, and reinstall the pins in the pin holes right here. And as you can see, it folds up pretty thin. It does not take up too much space in storage. Lets go ahead and load up some bikes. It is pretty easy. Basically, the main thing that you want to do is go ahead and get this post out of the way. And also, it depends on what size bikes you have, it might be easier to go ahead and take off the hooks and then put the hooks back on when you are ready to put the bikes back on. Next what you want to do is go ahead and take the straps off, or just loosen them really.

And when you install your bikes you want to make sure that your bike wheels fit in the wells pretty easily. They are really adjustable, all you have to do is loosen the knob right here and slide them whichever way you need to. And go ahead and put the center post back up, put your pin in, and go ahead and install one of the hooks. You can see that it just ratchets it down and you just go ahead and just push it until it contacts, maybe just one or two clicks more if you can, and your bike is already secured. Once your bikes are in place we can go ahead and put our straps back on. And we will just go ahead and repeat for the second bike. There you have it, two bikes ready to go down the road. And there you have it for part number S64670 from Swagman, the two bike bicycle rack with the wheel mount style.






Customers Who Purchased This Hitch Bike Racks,RV and Motorhome Bike Racks Also Bought...



Replacement parts available for this product






Customer Reviews  -  Write a review about this product

2 Bike Carrier for 1-1/4 - S64670

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (78 Customer Reviews)




2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Russ R.02/21/2011

Is this review helpful?


Excellent product. Use it on my Honda Fit for transporting my recumbent. 7600



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Michael U.01/24/2011

Is this review helpful?


Great product! Easy to assemble and easy to install. A good solid fit on both my Prius with the 1.25" hitch and on my 4runner with the 2" hitch. The bikes ride up nice and high so you don't have to worry about dragging the tires on dips or drive way curbs. My wife and I are in our sixties and we both ride Trek hybrids (old fart bikes). The cross bars drop at a fairly steep angle which makes it a pain to mount them on a traditional bike carrier. This bike rack eliminates that problem and there is no need for additional bungee cords to keep the bikes from swinging around and rubbing against each other. My wife or I can mount the carrier and load the bikes in less than 10 minutes. The bikes ride like they are part of the car!6007



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Keith B08/22/2008

Is this review helpful?


Love the rack so far. I’m going to try a do three different ratings here, so bare with me. BIKERACK (5 stars): the bike rack has some issues, that seem to be standard with these “import” models (Swagman/SportRack); however, that being said: the bikes are very well secured and very well protected. The ratcheting arm clamps go down tightly and stay there. No friction knobs to keep checking. Once you push them down, they stay there, and there is a place to put a pad lock on each for anti-theft security. The hooks are also padded and did not mark up the bikes even in the slightest. Due to the flexibility of the rack I was able to get a large men’s bike and small woman’s bike loaded and was able to arrange them so everything made good positive contact; hooks, wheel straps, etc.. Overall, I’m not the least bit worried the bikes will come loose during transit. Excellent design and so very easy to use. CONSTRUCTION (3.5 stars): this is where all these import models seem to fail; but it’s due to their flexibility of use. The entire rack is made from 1-1/4” steel tube. This was done so you could use the rack on a 1-1/4” receiver hitch. With this light steel there is some inherent “flex” that allows the rack to wiggle. It would have been much better to use bigger steel that fit a standard 2” receiver, then have an adapter to go down to the 1-1/4” receiver. I’m going to use the rack a few more times as is, but I may make some modifications to it to help sturdy things up a lot more. The anti-wobble bolt, while a great idea probably works well on the 1-1/4” receiver, but with the supplied “adapter” it doesn’t do a good enough job on the 2” receiver. In review of both Swagman & Sport Rack, they’re made exactly the same, except for the following: Swagman has ratcheting locking support hooks which are excellent; the Sportrack uses a friction lock, don’t like that. Both racks use metric hardware, so if you think you’re going to replace a bolt with standard hardware, no dice, the threads are different, etc. The Swagman can also be used on Class I hitches and above, whereas the Sportrack is for Class II and above. Packaging of this Swagman rack, finish, easy of assembly and use were nice. ETRAILER.COM (5 stars): I will do business with them again. Fair prices, they honored the Price Pledge guarantee, when you call you can actually get a live person who actually knows some stuff about the products they carry, fast shipping, nice web-site, etc…. I hope they keep all the above; especially the talking to a live, knowledgeable person … I had a great experience with them and will recommend them. 1206



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Bruce10/10/2011

Is this review helpful?


First off E trailer is the best sight going to buy your racks, the prices are as good and better than other sights. The customer help I received from this sight was second to none, they know in some case what you need better than you do. I also had to return the first order as my bikes didn't work well on a hanging rack and the Cristy gave me customer service that was second to none. She is top notch at what she does for etrailer and I would recommend you ask for her! I would absolutely buy from this web sight again. The vehicle that this rack is used is a 2006 Toyota Corolla. I would like to thank E trailer for the help in getting my first bike rack and helping to make a ten year old little girl very happy on weekends ! 25340



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Mary M.05/24/2011

Is this review helpful?


Works great on the back of our 5th wheel as well as on the back of the truck. Had to move the spare tire on the 5th wheel off center to keep the bike closest from touching it. Great value for the money.15304



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Vinny05/14/2011

Is this review helpful?


I'm delighted with my Swagman XTC2. The ratcheting action of the vertical supports accepts locks. Great protection. The vertical post lays flat so I can open my hatch. Very sturdy! Recommend!14035



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Cdb03/25/2011

Is this review helpful?


I bought this product to be used on my Honda Fit in order to carry my Electra Townie bike. The Honda Fit has very low ground clearance so the curve in the bike hitch keeps it from bottoming out. The Townie is a non- standard length so the adjustable wheel supports work perfect. Quality of bike rack is excellent. 10411



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Gay R.03/18/2011

Is this review helpful?


I just installed the product and it will fit my Tour Easy recumbent, which is mainly what I bought it for. It is very is to install and use. It appears to be well manufactured and the paint/metal coating appears to be of a nature that should hold up well. I am happy with the product at this point. 9727



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Ron R.06/14/2011

Is this review helpful?


The quality seems excellent! The only thing I would change is to extend it out a few inches further to clear spare tire. As it stands now I have to remove spare and store in cargo hold.16973



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Stu K.06/09/2011

Is this review helpful?


Fantastic price, shipping and service! Several emails received updating me with the shipping status over 5 days (I ordered on a Saturday, got the bike carrier on Wednesday) That was great not wondering the status of my order. The rack installed in about 20 minutes and was easy enough I didn't have to read the instructions... 3 bolts and 2 screws to complete install. I'm very happy with the rack as I needed it! (switched from a strap on rack to hitch). Now loading is a snap and my wife and I can go go go!! Riding that is with minimal hassle. Thanks eTrailer.com!16568



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Dave F.06/05/2011

Is this review helpful?


Very eazy to setup and it is very solid. Very satisfied16150



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Wayne M05/30/2011

Is this review helpful?


We have been using this bike rack and we really like it. It is easy to load and unload. The bikes ride very well and we have had no problems at all with it. We would definetly recommend it to anyone else.15675



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Bob L Nebraska05/24/2011

Is this review helpful?


Love it had a hard time with old rack after switching to Sun recumbent bike, fits like a glove 2 recumbents. The latches on the center post if over tightened can be a little tricky to release. I would recommend it to anyone.15293



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Cari N05/24/2011

Is this review helpful?


Love my new bike rack! It attaches to the hitch of my Jeep Compass VERY easily with a wrench. And putting 1 man's and1 woman's bike is very easy. Not like the racks that you have to lift the woman's bike and work it over the poles. I would diffinately recommend this bike rack for 2 bikes of any size.15284



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: N. Warren05/14/2011

Is this review helpful?


Used it twice now. Very easy to attach to vehicle and adjust for bikes. Easy loading and securing bikes. Rack sways very little as vehicles rolls over uneven ground. Rack folds up very easily into a small configuration when not in use. Highly recommended.14000



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Bryan E04/18/2011

Is this review helpful?


AWESOME - holds bikes tight and easy to load. Well packaged and shipped quick.11962



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Daryl M.04/15/2011

Is this review helpful?


I love this rack. I bought one so I could carry a custom bike I built (a chopper-style bike with a curved top tube. Since my bike is a little heavier than most aluminum bikes, this platform rack makes it easy to carry since I only have to lift the bike up high enough to fit the wheels in the hoops. The rack also fit perfectly on my 1.25" receiver and I can still open the trunk on my 2009 Mazda 3 easily. 11813



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Charlie B.04/09/2011

Is this review helpful?


Looks great I need to more time to test it out. 11418



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Al S03/30/2011

Is this review helpful?


Very solid unit and easy to assemble. Fits bikes well and holds them in place. It arrived much quicker than expected and etrailer kept me advised of status of mailing. Will deffinately buy from them again.10761



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Janet H03/30/2011

Is this review helpful?


This is the second unit we bought. The first was a 4 bike rack for my son we love the easy operation. Etrailer was excellent company. They kept us up to date on the order and got it here in 4 days. We will be doing more with them. Thanks Etrailer10737



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Jeff H.03/17/2011

Is this review helpful?


What I like most about this bike rack is the hitch size 11/4 for my Malibu car. This allows the bike rack to lock into the hitch as close to my back of the car as possible. I have a high dollar carbon time trial bike for triathlons, and I can trust this bike rack to haul my bike any where I want to go. It is very secure with the locking hitch bolt and three points of your bike to be secured. To be safe, use a rag, or soft material between your top bike tube and the top locking part. Etrailer staff and shipping was great, 2 days I had it at my front door and shipping was FREE!!!9642



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: SP303/15/2011

Is this review helpful?


After looking around on other sites I ended up buying the rack here at etrailer. They had WAY more information(pics/video) about the rack than any other site I went to. The information was important b/c I have a Giant MTB with an XL frame. I wanted to be sure this rack would work for me before I bought it. I read on other sites that the rack arrived banged up (scrapes and holes in the box). I was hoping this wasn't the case from etrailer. Etrailer double boxed the rack and it arrived in perfect shape. Shipping was quick and best of all the price was below the other sites. I'm very happy with my purchase. Thanks again!9426



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Mark03/15/2011

Is this review helpful?


Arrived in time, works as advertised. I'm pleased with both the product and service from etrailer.com9392



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Mobil03/07/2011

Is this review helpful?


After looking at several bike racks to use with our fifth wheel and personal vehicles, this rack really fits the bill perfectly. And etrailer made the purchase easy with very quick delivery. And they have the best packaging I've seen to protect your purchase!8667



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Smartacus02/28/2011

Is this review helpful?


Carrier arrived intact although a third middle nylon strap around box might help, as the outer box seam had split during shipment. Carrier was easy to assemble and seems sturdy and well designed. Mounted easily on my Subaru Forester. After tightening hitch bolt, rack seemed secure and stable. Have not traveled yet with bikes but it looks like we will be very happy together.8049



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Dave M.02/21/2011

Is this review helpful?


Very well made and just what I wanted. This is a quality rack and is well worth the extra bucks. Trailer.com is the best. Their web site is just great and full of information. Shipping was superb. Ordered on Sunday night and received Friday afternoon and I live in Arizona. Thanks Guys7556



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Bob D.02/10/2011

Is this review helpful?


Just unpacked my new Swagman XTC-2 bke carrier and impressed with the quality. Good service from E_Trailer.com6938



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Jerry Davis02/03/2011

Is this review helpful?


Looks great on my truck. Holds bikes great. Had a few problems getting adjustments set. Very happy with this bike rack6577



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Sergey Frolov01/03/2011

Is this review helpful?


Quick Overview I bought the hitch recently and very satisfied with what I got. I bought it to carry a bike rack and it works just fine. The hitch looks solid and reliable. I'm sure there are no any issues with pulling a small trailer too. I just don't think Hyundai Accent is a right car for pulling :) I ordered both - the hitch and the bike rack. Both came in time, packed well. No issues with the delivery. The installation procedure is very easy too - 4 screws and that's it. I did it by myself, no assistance. I had to use my kid's small stool for supporting one side while I was working on the other side. Of course, it could be easier if there is another pair of hands holding a hitch while you are working with the screws. Sorry for my English, but I think the idea is clear. Regards, Sergey. 34952



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Neigel C.07/19/2010

Is this review helpful?


Beefy, Solid, Straight forward Those are the words the came to mind as I unpacked this rack. The material it's made of is thick and beefy. The threaded hitch receiver pin, once screwed in, makes this rack seem like one with your vehicle. It took all of ten minutes to install. It's seriously easy to setup this rack. Add a pad lock or two for simple lock down, at the racheting arms for quick trips to the local track. Or for long distance road trips, add a wire rope and bigger pad lock to fully anchor your bikes and the rack to your vehicle's trailer hitch.... and you're done. Like others have said, this rack feel like a more expensive rack, while staying afforable. Two thumbs up! 3252



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: brian07/08/2010

Is this review helpful?


very happy with this purchase i just purchased and installed a drawtite hitch and this swagman carrier on my Patriot, and i couldn't be happier. very solid construction and the free shipping from etrailer was super fast and damage free. Great product at a great price, thanks etrailer. 3212



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Steve05/24/2010

Is this review helpful?


Great Rack with one problem This is a great rack for the money. easy to assemble, easy to install, easy to load. very secure and bikes ride great. One problem and it's not really swagman's fault. Some new trucks including mine have a 2 1/2" receiver. I thought I would just buy a longer bolt. No hardware store had a longer bolt with this thread. Swagman makes a very nice threaded bolt and lock that will fit the 2 1/2". I highly recommend you buy one when you buy this rack if you have the larger receiver.3062



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Big Mac03/23/2010

Is this review helpful?


I puchase this for my Scion XB After reading the reviews on Mountain Bike Reviews(MTBR),I chose the Swagman.Very simple design,yet very effective!I have recommended this rack to friends & family.The only "glitch" I've come across,is the "ratcheting hold-downs".One has to actually push-down on the "hold-downs" in order to dis-engage the "ratcheting mechanism." By doing this one can "release one's bike", no biggie,just get use to it.I added a bike(s) locking device,w/chain,& it looks like part of the "Swagman package!2844



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Butch03/18/2010

Is this review helpful?


Excellent Choice It arrived super fast,,Great Bike rack. Very easy to set up. Very stable rack when bikes are loaded. This bike rack sets up quickly. I would definitely recommend this bike rack to anyone. 2819



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Swil08/08/2009

Is this review helpful?


Great product!!!!! Easy to assemble. Holds bike very securley and it is a sinch to set up. Holds bike very securley. No cons at all. Love it. A must have.2220



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: David04/21/2009

Is this review helpful?


Sturdy - Fits and Works Right We bought this carrier along with two different Hidden Hitch class I hitches to be able to carry our bikes on two different cars. The carrier fits right and works well on either car. This carrier is strong and carries our bikes very well. I can lock-down the ratchet arms over the bike frames with padlocks, and lock the carrier to the hitch with the #S64029 locking pin, to create a very theft-resistant package. (Don't ever leave an expesive bike out in the open for very long, even if you lock it down like this!) GREAT item for carrying one or two bikes! 1775



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Victor D.05/20/2011

Is this review helpful?


I love my rack! 14884



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Butch03/21/2010

Is this review helpful?


BUY this one This is an awesome rack. Bikes are loaded in less than 1 minute! I could not be happier.2834



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Larry A.02/01/2012

Is this review helpful?


Extremely fast shipping ordered the carrier on a Sunday afternoon and had product delivered by the following Wed. Assembly was less than 5 min. Excellent product!30820



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Len A01/31/2012

Is this review helpful?


Very well made product, sturdy,with good features,such as a vertical post which folds flat for easy access to the trunk.30729



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Wayne A.01/30/2012

Is this review helpful?


Great product every thing looks as though it is built well easy assy,have not used yet but will with a trip to Florida in a week. You people said the rack would ship in 24-48 hours I had the items in my hands in less than 48 hours thankyou for the good service. Wayne A.30597



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Mark S.01/28/2012

Is this review helpful?


Product was everything in the description. Only minor concern was either the powder coat was a little thick or the rust on the receiver caused a very tight fit! Great for Carbon frames.30500



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: JAG01/24/2012

Is this review helpful?


Easy to install! Holds both bikes very secure. I would recommend it to anyone that wants to trailer tehir bikes!30270



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Lauren01/24/2012

Is this review helpful?


This rack is very user friendly!!! Delivery was exceptionally quick!!30232



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Harry S.01/21/2012

Is this review helpful?


Very easy assembly. Bikes fit nice and snug, have not had a chance to try them out yet as they will be on the back of my motorhome when I leave Texas in April for the Journey back to Minnesota. Rack looks impressive with the 2 Schwinn Cruiser bikes mounted on the bike rack!!!!!!30075



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Robert01/19/2012

Is this review helpful?


Excellent product. Etrailer shipped fast and communication was great.29892



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Butch B.01/19/2012

Is this review helpful?


I searched for a long time for a bike rack that was RV compatible and would fit my particular trailer, with its 1 1/4" receiver, curved back end, and ladder. Based on the product description and positive reviews, I decided to try the Swagman XTC 2. The rack shipped on the day I ordered it and was here within a couple of days! Fast shipping! The rack is very solid and well constructed. The finish looks very nice, though only time will tell, of course. Installation was simple, though the directions included seemed to be an older version than Swagman has on their website. There were also 2 extra screws and 2 extra lock washers that were not mentioned anywhere in the directions. That always concerns me a bit. An e-mail to customer support at E-trailer gave me an answer within minutes. Great customer support! I secured the rack to my hitch with a 2.5" Brinks lock, rather than the bolt provided. The lock fits just right, so there was no excess movement. The best part is that the rack dimensions were spot on and with the adjustable wire wheel trays, I was able to position both bikes and not make contact with my RV or the ladder. Mounting the bikes was easy and between the ratcheting hook and the rubber straps holding the tires in place, the bike was completely secure. Also, there was very little movement of the rack, even with vigorous shaking, so I did not feel a need to tether the rack as the directions mentioned might be required. After a 2 hour tow to the lake on some pretty bumpy interstates, I was relieved to find my bike still firmly in place, with no scratches on the tube, and no contact made with my camper. Another big plus is I was able to take the included 2" adapter and use the rack on my 2" truck receiver and take the bike with me to different areas to ride. Very versatile. When I got home, it took about 2 minutes to remove the bike, fold up the rack and take it off my RV. This is the second product I have purchased from E-trailer, and it will not be my last. The other purchase was a Curt 5th wheel hitch. Between the great selection, high quality products, and fast shipping with great customer support, I will be back.29891



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Sim M01/13/2012

Is this review helpful?


I looks like a good unit, haven't used it yet. Not to much assy, quite easy to put together...Made in China like everything else now days.29630



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: John C01/05/2012

Is this review helpful?


A little heavy, but a great hitch rack! Easy to assemble. Folds up nice and compact in the garage. Super easy to load the bikes and install the rack on the car. Just because it doesn't say Thule or Yakima or 1up doesn't make this a bad rack. Basic, sturdy rack without the high price of a flashy name. When the anti-rattle bolt is tightened down, i can shake the whole back end of the car with the rack and it doesn't make a sound :) 29127



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Greg12/29/2011

Is this review helpful?


Put it on the car and drove from Denver to Moab. Easy to hook up and the bikes carried well. Had to tighten some bolts after the trip but otherwise worked great. 28880



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Frank Z.12/22/2011

Is this review helpful?


As always, Etrailer shipping was on time as promised. The rack went together in 10 minutes. Adjusting for the bike sizes was fast and easy. This Bike Rack is top quality and holds the bikes securely. Don't waste your time looking any further.28592



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Tom A11/07/2011

Is this review helpful?


Easy to assemble. This carrier will be used on a 2012 Nissan Sentra using the Draw Tite 24794 hitch. After the installation on that hitch, there is about 2 inches clearance between the rearmost projection of the rear bumper to the frontmost portion of the wheel carrier of the rack. It is easy to put the bikes into the rack. The trunk lid cannot be opened with the bikes mounted on the rack. The rack seems to be stable and doesn't wobble or bounce much.26666



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Don Fulkerson10/28/2011

Is this review helpful?


great bike rack. Very quick shipment. T HANKS!26250



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Brian G10/25/2011

Is this review helpful?


This has been the best purchasing experience I have had in a very long time! Within an hour I was notified the product was being prepped and that they had for free changed my shipping from 5-7 to 3-5 days. I got it 2 days later. Documentation was very good and assembly a snap. Thanks to all involved with my order. I also bought the Draw-Tite Sportframe hitch which was equally awesome.26078



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: john10/17/2011

Is this review helpful?


nice quality, easy to load bikes, nice and secure25693



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Natalie M10/14/2011

Is this review helpful?


The product arrived on time. Even though there was a small ding on the outside of the box, the bike rack was unharmed. I was able to install it quickly. It's so easy to load my bike onto this rack. 25575



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: CC10/10/2011

Is this review helpful?


Everything was just like the pic very i mpressed.25369



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Marci V10/03/2011

Is this review helpful?


I really like this bike rack. Super easy to use!25013



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Ken10/03/2011

Is this review helpful?


Good, secure, easy to use. The only concern is 6 main components that are easy to remove without tools. I am concerned about theft when parked and coming back to find that they were taken.24980



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Doug09/26/2011

Is this review helpful?


Bike carrier arrived 2 days after ordering.....ass was easy and quick. I have used it twice already and found loading the bikes was simple and quick. So far I'm completely satisfied with the product!24663



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Jim B09/19/2011

Is this review helpful?


Works great!! If you have multiple bikes, be sure to mark on the slider bars which position the holders should be in.24207



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Bernard I.09/16/2011

Is this review helpful?


This is a very good, quality made, sturdy bike rack that I bought along with my Curt #13147 Hitch and S64029 Locking Anti-Rattle Hitch Pin. I am very satisfied with all. Easy assembly of the rack. My mens bike has a Small size frame and the center bar is almost as low as a Ladies bike and its very easy to mount the bike to this rack. The only thing I added is a cable lock to deter theft. 24032



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Mark W09/06/2011

Is this review helpful?


Quick service, well packed, easy to assemble, quality-made product. I only needed to carry one bike, so I assembled with one set of the wheel holders and one top hook...Works awesome!!! 20 seconds to load and unload my bicycle... I love the anti-rattle hitch pin... This is a "very nice" bicycle rack, I would recomend purcasing the " Locking Hitch Pin" so "YOU" can continue to enjoy it!!! Thank You E-Trailer!!!23600



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Megan Davis08/30/2011

Is this review helpful?


I LOVE my new hitch and bike rack!! The person who installed the hitch for me said it was pretty simple and the bike rack is so easy to use! It came in like 2 days too, and the shipping was free!!! My parents and my boss liked the bike rack so much, they both ordered one too!23165



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Richard U.08/27/2011

Is this review helpful?


Very sturdy and quick to set up bikes. Excellent product, well worth the cost.22927



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: john w.08/24/2011

Is this review helpful?


Came in 2 days easy to put together haven't tried it out yet but should work ok. seems easy to work with. 22688



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Pete M.08/22/2011

Is this review helpful?


Very well made and functional. Easy to install. Easy to mount bikes to, but I may need to buy a rack bar for use with the girls bike. Haven't used yet, but this seems much superior to the trunk mount rack I had tried. Only negative is the high cost.22459



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Dave J.08/21/2011

Is this review helpful?


Great Bike Carrier,It is really easy on my old back.. My wife and I used for the first time this weekend and we loved the ease of set up . Etrailer had it delivered to us in three days and emailed me when it was shipped and when it arrived . Great service, Thanks , Dave J.22421



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Gary08/12/2011

Is this review helpful?


I bought the bike carrier and trailer hitch for my bike which is a heavy beach cruiser bike. The bike carrier and trailer hitch are excellent! Easy installation and now I am using the combo. Yes, I would recommend this combo to anyone needing a sturdy bike carrier. 21665



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Karen G08/11/2011

Is this review helpful?


Just travel over a 1000 miles with our bikes. The rack held them securely, and we didn't scratch the new car or the new bikes! Directions were easy to follow and delivery was right on time. The rack does sway some, which made me nervous at first, but it wasn't a problem. We did tighten everything as directed about every 250 miles. It's the best rack we've ever had, and we've had a few over the years. I really like that it folds up and we can get into the trunk of the car too. 21585



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Duane & Donna08/08/2011

Is this review helpful?


Wow, we loved the whole experience! The ordering was a breeze, delivery was 48 hours, installation was complete in minutes, and the bike rack is amazing!! My husband loves the idea that it's so light weight that I can even put it on the car and attach the bikes myself! We would highly recommend etrailer and this bike rack! Many thanks!21414



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Leon P.08/02/2011

Is this review helpful?


Easy to put together. Lightweight, perfect for on the go riders.20887



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: William S07/27/2011

Is this review helpful?


Was surprised how heavy it was and put it on my car and used it the very next day for two cruiser bikes. Very impressed at the ease of use and the delivery was right on time. I love great experience, thank you.20328



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Harry07/18/2011

Is this review helpful?


Great quality, easy to use. Confident bike is safe 19624



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Skooter07/17/2011

Is this review helpful?


Very pleased with the quality of the Swagman and it's features. Shipped lightning fast. Thanks etrailer. 19588



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Ed K07/04/2011

Is this review helpful?


The carrier is solidly built and was very easy to assemble. You should spend some time, however, to see which bike should go first, which wheel well should be inserted first on the carrier, how the bikes should be balanced, which ratchet should be front or rear, and how the bikes should be balanced. You only have to do this once. You would have to do this with any rack anyway, since all bikes are different. You will like this rack if you have a bike that would otherwise need a frame adapter, which most womens bikes would need. Etrailer delivered very promptly and with excellent communications. Ordered on Thursday and the rack was delivered on Tuesday. First class company and service. Free shipping is a plus. Would do business with them anytime.18493



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Cheri F.06/30/2011

Is this review helpful?


Love this bike rack! It is so light and easy to handle. 18298



2 Bike Carrier for 1-1/4 - S64670

ratingratingratingratingrating by: Robert P06/28/2011

Is this review helpful?


Well built and easy to use. 18113




Ask the Experts about this Swagman Hitch Bike Racks,RV and Motorhome Bike Racks


  • Can the Swagman XTC-2 Bike Rack # S64670 be Used Behind a Camper Trailer
  • The issue with 4 bike platform rack is how far out from the tow vehicle the carrier extends. On a 4 bike platform rack, that distance is much greater than a 2 bike rack, and the 4 bike rack will bounce around more as it has more weight further away from the hitch. Either the Swagman XTC-2, # S64670, that you reference, or the Swagman # S64650, are designed for this use so the manufacturer warranty will remain valid. If the 4 bike model were used, the warranty would be void as they are not des
    view full answer...

  • Comparing and Contrasting the Swagman XTC-2, 2 Bike Carrier and SportRack 2 Bike Racks
  • All three of these platform bike racks are very similar when compared to one another. There are some differences though that I will outline to give you a better idea of what each has to offer and what might work best on your 2007 Honda Civic. To start with, all carriers can carry two bikes, but they all have a different overall capacity in terms of weight. The Swagman XTC-2, # S64670, has a capacity of 35 pounds per bike, or 70 pounds total. The Swagman 2 Bike Carrier, # S64650, has a capaci
    view full answer...

  • Will Anti-Ratlle Deviced Included with Swagman XTC2 Bike Rack S64670 Work With 1-1/4 and 2 Inch
  • If you are referring to the question asked about the Anti-Rattle device, the answer is yes. It will work on both Class I and Class II 1-1/4 inch receivers as well as Class III and IV 2 inch receivers. The anti-rattle lock referenced in that question, part # S64029, will work with all the previously mentioned hitches as well.
    view full answer...

  • Best Hitch-Mounted 2 Bike Rack Style for a 2006 Mini Convertible with a Class 1 Trailer Hitch
  • I have 3 recommendations for you. The first and least expensive, is the Swagman Trailhead, item # S63360, 2-bike rack. This rack has a shank that rises up from the hitch to help provide clearance for the bikes when entering driveways with a steep angle or negotiating rough roads. This bike rack has a dual-arm style that the bike frame would sit on. Because of this, you may need an adapter like part # 64005 to carry womens bikes or bikes with alternative frames. The second which offers a bit
    view full answer...

  • Swagman Bike Rack S64670 and Anti-Rattle Lock, Part # S64029
  • The Locking Anti-Rattle Threaded Hitch Pin, part # S64029 will thread in and lock the Swagman XTC-2 Bike Rack, part # S64670 to your Class I hitch. The Deadbolt Style Coupler Lock, part # 7690 will slide into the hole on the topmost ratcheting hook and prevent movement of the hook, securing the bike to the rack. A separate cable such as part # 61DAT, and lock is not really necessary if you use the deadbolt lock.
    view full answer...

  • Bike Rack for a Recumbent Bicycle with a 60 Inch Wheel Base
  • The S64670 bike rack has wheel base adjustment of up to 55 inches and would not work for your recumbent bike. We carry two models of bike racks that will accommodate a recumbent bike and they are the XTC-2 wheel mount bike carrier S64670 and the Thule roof mount TH558P Tandem Carrier that requires a roof rack. The XTC-2 has a maximum wheel base of 66 inches and the Tandem Carrier has a 75 inch long wheel tray. If you select the XTC-2 carrier, the maximum bike weight limit is 35 pounds per bike.
    view full answer...

  • How Many Hooks Does the The Swagman XTC-2 Wheel Mount Bike Rack Use to Secure the Bicycles?
  • The Swagman XTC-2 Wheel Mount Bike Rack part number S64670 has two hooks, one for each bicycle.
    view full answer...

  • Can I Use Swagman XTC2 Platform Bike Rack on the Back of a Tear Drop Camper
  • The Swagman XTC2, part S64670, can be used on the back of your camper. As long as the bike is under 35 pounds and the hook can clamp on to the frame of the bike, you should have no trouble with the bike on the rack. If the bike has a step-through frame, which I imagine it does, you may need to add an adapter to give the hook a place to grab. Check out the Swagman Adapter, part # S64004. As far as assembly, the rack ships mostly assembled. You will still have to slide on the hooks and wheel ho
    view full answer...

  • What is the Weight Limit for Swagman XTC 2 Wheel Mount Bike Rack
  • The limit is 35 pounds per bike for a total weight limit of 70 pounds. Bikes can not weigh more than 35 pounds each.
    view full answer...

  • Will The Swagman XTC-2 # S64670 Fit on a Toyota Rav4 With Rear Mounted Spare Tire
  • The Swagman XTC-2 Two Bike Carrier for 1-1/4 inch and 2 inch Trailer Hitches, item # S64670, will most likely work on your Rav4. You will need to measure to confirm that it will fit though. It is especially important to check the measurement if you have a tire larger than the original spare on the rear of the vehicle. Measure from the center of the hitch pin hole in the trailer hitch to the farthest back part of the spare tire. If this measurement is less than 9 inches, the Swagman XTC-2 bike
    view full answer...

  • What are the Differences Between Swagman XTC-2 S64670 and Swagman XC-2 S64650
  • The Swagman XTC-2, part # S64670, offers a few things that have been improved over the Swagman XC-2, part # S64650. The most noticeable is the two-tone color scheme. Beyond the aesthetics, the XTC-2 offers re-designed and improved wheel cradles that are stronger and position the bikes higher up to provide more ground clearance. The wheels hoops on the XTC-2 also have stronger, more durable clamps for adjusting the wheel hoops. Finally, the wheel straps are a better, heavier design. They ar
    view full answer...

  • Capacities and Dimensions of the Curt and Valley Dual Receiver, Multi-Purpose Drawbars
  • We have two dual hitch receiver draw bars. First, is the Curt Multipurpose Ball Mount with 2 inch Receiver for Bike Racks and Cargo Carriers, # D210. This draw bar has a 12-1/2 inch length from the center of the hitch pin hole to the center of the ball hole. It measures 7-1/2 inches from the center of the hitch pin hole to the center of the top receivers hitch pin hole. The ball mount portion has a 2-1/4 inch drop. The receiver has a 6 inch rise. The entire unit rated for 7500 pounds gross trail
    view full answer...

  • How To Mount The Swagman XC RV Mount 2 Bike Rack With 2 Reveiver Hitch or Draw Bar Mount
  • I checked the manufacturer website and viewed the instructions for the 64664 XC RV 2 Bike Rack Towing Mount. This particular bike rack is designed to fit over a draw bar, so that you can still tow something behind your RV, it is not designed to fit into a 2 inch receiver hitch. I am not sure if the retailer misrepresented the product or not. For this bike rack to work you have 2 options, you can buy a draw bar for your RV or you can buy the model that is designed to fit into a 2 inch re
    view full answer...

  • Will The Swagman XTC-2 Bike Rack, # S64670, Fit A 1-1/4 Inch Hitch On A 2002 Toyota Avalon
  • Yes, the Swagman XTC-2 Bike Rack, # S64670, will fit your 1-1/4 inch trailer hitch on your 2002 Toyota Avalon. This bike rack will install into a 1-1/4 inch Class I or Class II hitch and it comes with an adapter that will allow it to install in a 2 inch hitch also. The bike rack has a maximum weight capacity of 35 lbs. per bike and uses ratcheting arms that will slide down over the frame of the bike to hold it in place. It includes a threaded pin and clip with anti-rattle to secure the bike
    view full answer...

  • Trailer Hitch Mount Bike Rack that Will Not Interfere With the Rear Door of a 2010 Toyota FJ Cruiser
  • The best solution for your 2010 Toyota FJ Cruiser is to use a rack like the Yakima SwingDaddy 4 Bike Hitch Mounted Swing Away Rack, # Y02422. This rack will swing completely out of the way of the rear door, giving you access to the cargo area of the vehicle. I have included a link to the installation details and a video review below. For this or any rack, there is an important measure you can take to determine if the rack will clear the spare tire. Measure from the center of the hitch pin hol
    view full answer...

  • Will Swagman 2 Bike Wheel-Mounted Bike Carrier # S64670 Fit a 2006 Honda Civic SI
  • I would recommend Draw-Tite trailer hitch # 24763 for your 2006 Honda Civic. This hitch is custom-fit for your vehicle, and requires no drilling to install. The Swagman 2-bike rack, # S64670, will work well with this hitch, but I would recommend that you check the weight of the bikes to make sure they are less than 35lbs each. As long as the bikes are 35lbs or less each, the Swagman rack would be a good choice for your application. To lock the bike rack to the trailer hitch, you would
    view full answer...

  • Does Swagman 2 Bike Carrier for 1-1/4 and 2 Inch Trailer Hitches Fit a 2009 Toyota Rav4
  • The clearance for the Swagman 2-bike rack # S64670 is going to be 9 inches from the center of the hitch pin hole to the back of the upright bar on the bike rack. To determine if this rack would have enough clearance to fit on your 2009 or 2010 Toyota Rav4, I recommend measuring from your hitch pin hole to a point past your spare and any other items that might interfere with the bike rack installation. If this measurement is less than 9 inches, the Swagman bike rack would work well for your a
    view full answer...

  • Bike Rack Recommendation for Use Behind an RV While Towing a Cargo Trailer
  • In order to carry a bike rack behind your RV and tow a trailer at the same time, you can use a dual purpose ball mount like # D210. In the top part you would use a hitch mounted bike rack (2 inch receiver), and in the ball mount you would attach the trailer. This receiver/ball mount combination has a total capacity of 7,500 pounds and 750 pounds tongue weight capacity, and the receiver portion of the ball mount is limited to 350 lbs. The weight of the bikes, rack, and trailer tongue weight count
    view full answer...

  • Threaded Hitch Pin on Swagman XTC-2 Bike Rack # S64670 Does Not Go All the Way Through Receiver
  • I spoke with my contact at Swagman and she stated that the threaded hitch pin does not need to be clipped on the other side to be secure. All you will need to do is to tighten it as much as you can with the included tool and it will be fine. If you would prefer to have it so that it is secure on both sides, my contact stated that you will need to use the locking hitch pin, # S64029, and that should fit.
    view full answer...

  • Trailer Hitch Mount Platform 2 Bike Rack Recommendation
  • The best idea would be to go with a bike rack that has a higher capacity rather than to exceed the weigh limit of a rack or half to start removing parts from the bikes in order to stay under the weight limit. A similar bike rack with a 90 pound capacity is the SportRack, # A30901. You are correct about loading and unloading the bikes. A platform style rack is easier. I have included a link to a video review of this rack for you to view.
    view full answer...






Subscribe to email newsletter

Email

privacy - we don't send unsolicited email




etrailer.com reviews etrailer.com reviews

All images, layout and content copyright etrailer.com
