Roadmaster Tow Bars - RM-520
Towing doesn't get much easier than this. The Falcon 2 tow bar features stainless steel inner arm construction, the convenient Autowlok locking mechanism and quick disconnects for effortless, one-person mounting and removal.
Features:
- Tow bar allows you to safely and effectively tow your vehicle behind your RV
- Quick-disconnect system lets you quickly and easily mount and remove tow bar on your own
- Telescoping arms hook up with ease and automatically center and lock as you drive ahead to prevent sway and make hooking up quick and easy
- Release tool (# RM-066; sold separately) aids in unlocking binded arms when disconnecting
- Full-length steel crossbar provides increased strength and support
- Storage Latch allows the tow bar to automatically lock in place when folded toward your motor home, providing effortless and secure storage
- Stainless steel inner arm construction allows for smooth operation and corrosion resistance
- High-tech powder coat finish provides additional durability
- Made in the USA
Specs:
- Capacity: 6,000 lbs
- Compatibility: works with all Roadmaster vehicle-specific base plates - EZ, MS, MX, XL and Standard
- 1-Year limited warranty
Autowlok
The Autowlok system features stainless steel, telescopic inner tow arms that adjust independently for easy connection. When the towing vehicle pulls on the arms, they automatically center and lock in place. The arms also act as shock absorbers, reducing wear and tear on your tow bar.

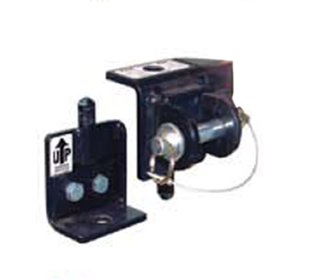

Quick Disconnects
Standard on most RoadMaster models, quick disconnects make it a snap to attach your tow bar. Their unique design lets you connect the tow bar to the bracket quickly and easily all by yourself and disconnect it the same way. These convenient brackets also make it simple to mount any number of RoadMaster accessories, from basic safety cables to the Guardian rock shield.
Storage Latch
A feature typically unique to Roadmaster's All Terrain models, the patented Storage Latch is now available for the Falcon 2 as well. This feature makes it easy to stow your tow bar quickly and securely. Just fold the Falcon toward your motor home, and it automatically locks in place.
520 RoadMaster Falcon 2 Tow Bar
Video of RoadMaster Falcon 2 Tow Bar - 6,000 lbs
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Video Transcript for Roadmaster Tow Bar Installation - 2012 Honda Fit
Today on our 2012 Honda Fit, well be doing a test fit with our Roadmaster Falcon 2 tow bar, which is rated at 6000 pounds, part #RM-520. To start our test fit, you will need to install the tow bar into the receiver of your tow vehicle. To attach the tow bar to the towed vehicle, you will need to remove the pin on either side of the base plate. You will extend the arms of the tow bar out, lining it up on the bracket of the towed vehicle. Then you will reinstall the pin and the clevis pin that goes through it. You will repeat this for both sides.
You will notice that there are two buttons on the top of the tow bar that, once you begin to two, will lock the extended part of the arms in place. This particular tow bar, when not in use, can be folded into the upright position. You can then fold it either to the drivers or the passengers side. You will notice, as you disconnect the tow bar from the towed vehicle and raise it into the upright position, it will automatically lock in place with the locking tab. The tow bar is also powder coated to give you added durability.
This tow bar also has a 6000 pound tow capacity, as well as being compatible with all Roadmaster vehicle specific base plates. That will do it for our test fit of the Roadmaster Falcon 2 tow bar, rated for 6000 pounds, part #RM-520, on our 2012 Honda Fit.
Customers compare RM-520 to these similar products
Customers Who Purchased This Tow Bars Also Bought...
Replacement parts available for this product
Ask the Experts about this Roadmaster Tow Bars
- Height Dimensions for the Roadmaster Falcon 2 RM-520
- The specifications for the Roadmaster Falcon 2, part # RM-520 have not changed. You can be either 3 inches high or 4 inches low.
We do offer hitch adapters to make up for the height difference between your RV and towed vehicle, see link. There are several different heights to choose from.
view full answer...
- Roadmaster Falcon-2 Tow Bar for a Motorhome Mount
- The RM-520, Roadmaster Falcon 2 would be a great choice. You will also need the 'invisible' base plates for your Malibu, part number 194-1, which you can see by clicking the link I've included below.
view full answer...
- Base Plates, Tow Bar, Wiring, Safety Cables, Braking System to Flat Tow a 2010 GMC Terrain
- Yes, you can tow the 2010 GMC Terrain behind an RV. You will need to check with the manufacturer for instructions on the proper procedure for towing the vehicle. Some vehicles must be equipped with a transmission lube pump, an axle disconnect, drive line disconnect or free-wheeling hubs before they can be towed.
First, you will need the EZ base plate kit, # 523163-1, to tow your vehicle. With the base plates installed, you would then need a tow bar compatible with EZ style base plates. The Ro
view full answer...
- Tow Bar Base Plates for 1998 Jeep Wrangler
- I believe you are referring to the base plates. The base plates are vehicle-specific, and provide the mounting point on the vehicle for the tow bar. For the 1998 Jeep Wrangler, you would need part # 1424-1 if you have the Rubicon, Unlimited, or Double Tube bumper. If your Wrangler has the U-Channel bumper, you would use part # 1417-1.
view full answer...
- What is Needed to Flat Tow a 2007 Pontiac Vibe Behind an RV
- To tow your 2007 Pontiac Vibe behind your RV, you will first need to install a base plate kit. For your vehicle, you will need the Roadmaster XL Base Plate Kit, # 3130-1. Base plate kits are vehicle specific and this one is made to fit your Vibe. I have included a video that shows a base plate kit being installed to give you a general idea of what it entails.
Next you will attach a tow bar. The RoadMaster Tracker, # RM-020, is designed to be compatible with the XL series of base plates. I ha
view full answer...
- What is Needed to Flat Tow a 2005 Toyota Echo with Standard Transmission Behind a Motorhome
- For your 2005 Toyota Echo we have two options depending on if your Echo is a hatchback or not.
For a hatchback:
Use base plate kit, # 1174-1
Use tow bar, # RM-520 (instructions included below)
Use Magnetic Towing Light Kit, # C-ATL20A
Use RoadMaster 68 inch Single Hook, Coiled Safety Cables, # RM643
For all other models (not hatchback):
Use base plate kit, # 1167-1
Use tow bar, # RM-520 (instructions included below)
Use Magnetic Towing Light Kit, # C-ATL20A
Use RoadMaster 68 inch S
view full answer...
- What is Needed to Tow a 2009 Saturn Vue with Tow Bar RM-520
- The Roadmaster Falcon 2 tow bar # RM-520 would be a good choice to tow your 2009 Saturn Vue, but you will need to install base plates on the vehicle in order for the tow bar to connect to it. The base plates for your vehicle would be XL kit # 3151-1A.
I would recommend Roadmaster Universal Hy-Power Diode Wiring Kit # RM-154 to wire your RV and vehicle for towing. The # RM-154 page shows some great wiring diagrams that should be helpful for your installation.
If your Saturn Vue has separa
view full answer...
- Base Plate Kits and Tow Bar Recommendations for a 1998 Jeep Wrangler
- The 1998 Jeep Wrangler will require a base plate kit in order for it to be used with a tow bar. If your Jeep has a Double Tube bumper, you will need base plate kit # 1424-1. If you have a U-channel bumper, you could use base plate kit 1424-1 or # 1417-1.
All of these base plates kits will work with the RM-520 tow bar. Specifically, it can be used with all Roadmaster vehicle-specific base plates - EZ, MX, XL, and Standard. I have included a video review and installation instructions for this t
view full answer...
- Will RoadMaster Falcon 2 Tow Bar # RM-525 or # RM-520 Fit on 2010 Jeep Wrangler
- Yes, we have a version of the RoadMaster Falcon 2 Tow Bar, # RM-520, that will work with your Currie Tow Bar Mounting Plate, as long as it will accept Blue Ox base plate brackets.
The RoadMaster Falcon 2 Tow Bar for Blue Ox Base Plates, # RM-525, is designed to work with base plates that accept the Blue Ox hookup brackets and should work with your mounting plate.
view full answer...
- Will the Roadmaster Base Plate Kit # 3121-1 Fit the Falcon All Terrain Tow Bar on a 2004 Saturn Vue
- Both base plate kits for the 2004 Saturn Vue are the XL style. The RoadMaster Falcon All Terrain Tow Bar, # RM-522, works with all Roadmaster vehicle-specific base plates - EZ, MX, XL, and Standard.
This would include the Roadmaster XL Base Plate Kit, # 3121-1, for the 6 cylinder 2004 Saturn Vue without a brushguard, non-Redline models. To be certain, I spoke with my contact at RoadMaster and she verified that the tow bar and base plate kit will work, no problem.
The reason it will fit i
view full answer...
- Base Plate Kit Needed to Tow a 2001 Jeep Cherokee Sport with a Falcon 2 Towbar
- The base plate kit needed for your 2001 Jeep Cherokee Sport is the Roadmaster XL Base Plate Kit, item # 1418-1, or the Roadmaster Standard Base Plate Kit, item # 1418-3. One of these base plate kits will be needed to tow your 2001 cherokee Sport with your Falcon 2 Towbar, item # RM-520.
The base plate kits available for the 1991 Ford Explorer are the Roadmaster XL Base Plate Kit, item # 449-2 or the Roadmaster Standard Base Plate Kit, item # 409-1, and are not compatible with the 2001 Jeep Ch
view full answer...
- Base Plate Kit, Tow Bar, Safety Cable, Wiring to Tow 2005 Jeep Liberty with 2002 Holiday Rambler
- To tow the 2005 Jeep Liberty with your 2002 Holiday Rambler, you will first need a base plate kit for the Liberty. I recommend the Roadmaster XL Base Plate Kit, # 1422-1. If your Liberty has a brush guard, you will not be able to attach any base plates. I have included a link to a video installation of a base plate kit on a Jeep Liberty to give you a better idea of how they install. This is not the same kit but the installation will be similar.
With the base plates installed you will then ne
view full answer...
- How To Connect The RoadMaster Falcon 2 Tow Bar, # RM-520, To A 1990 VW Vanagon
- To connect the RoadMaster Falcon 2 Tow Bar, # RM-520, to a 1990 VW Vanagon you will need the Roadmaster Standard Base Plate Kit, # 1208-1.
The base plate kit will require you to drill holes into the frame rails and bolt the brackets to the frame rails on the VW Vanagon. Then you will attach the cross bar, that comes with the tow bar, to these base plate brackets.
I will send you the base plate kit installation instruction in a separate email.
For the tow bar wiring kit you can use the
view full answer...
- What do I need to Flat Tow A 2001 Ford Explorer in the Least Expensive Manner
- I am not sure if you will have to disconnect the drive shaft. This varies from vehicle to vehicle and drive line packages within that vehicle. Consult the Explorer Owner Manual to see what will be involved in flat towing your Explorer.
The least expensive flat tow route I would recommend is using the Roadmaster Tracker Tow bar, part # RM-020. You will also need base plates that attach to the frame of the Explorer and provide a mounting location for the tow bar. Roadmaster XL Base Plates, part
view full answer...
- What Base Plates Are Needed For Towing A 2000 Chevy Tracker 4-Door 4WD
- The base plates that you will need for the 2000 Chevy Tracker 4-Door 4WD are the Roadmaster XL Base Plate Kit, # 1012-1. These base plates will not work on models that have a brushguard.
These XL series brackets are compatible with the RoadMaster Falcon 2 Tow Bar, # RM-520.
You will also need the RoadMaster 68 Inch Single Hook, Coiled Safety Cables, # RM-643, these safety cables will keep the vehicle attached to the tow vehicle in case the coupler becomes detached from the hitch ball.
I
view full answer...
- Base Plates, Safety Cables, and Wiring to Flat Tow a 2010 Jeep Wrangler Sport
- The first item you will need to flat tow your 2010 Jeep Wrangler Sport are base plates. There are several base plates available for your vehicle depending on what model and options you have. I have included a link to them below.
For example, we have the XL Base Plates, # 1432-1 for models without aftermarket bumpers, winch, or guards. These base plates are compatible with the RoadMaster Falcon 2 Tow Bar, # RM-520. I have included a link to a video review of this tow bar below.
You will als
view full answer...
- What Is Needed For Flat Towing A 2005 Ford Explorer With A Roadmaster Explorer Tow Bar
- Since you have the Roadmaster Explorer tow bar the remaining items you will need are the base plate kit for the 2005 Ford Explorer, the safety cables and the wiring for the lights.
The base plate kit you will need for your 2005 Ford Explorer is the Roadmaster XL Base Plate Kit, # 480-1. This base plate kit is the only kit that will work with your Roadmaster Explorer tow bar. It has brackets that will attach to the Ford Explorer and the visible portions of the bracket can be removed when not b
view full answer...
- Base Plates, Tow Bar, Wiring, Safety Cables, and Braking System to Flat Tow a 2000 Chevy S-10
- The first thing you will need are base plates on the 2000 Chevy S-10 LS. There are several options available depending on if the truck has 2 wheel drive or 4 wheel drive. For 2 wheel drive, I recommend Roadmaster Base Plates, # 161-1. For 4 wheel drive, use Roadmaster base Plates, # 179-2. These are XL style base plates which means the visible part can be removed when not towing.
Next, you will need a tow bar compatible with XL style base plates. I recommend the RoadMaster Tracker Tow Bar, #
view full answer...
- Base Plates, Wiring, Safety Cables, Braking System to Flat Tow a 1994 Chevy 1500
- We do have several options of base plates available as long as your 1994 Chevy pickup is not a 1 ton or diesel. A 1500 means that it is a half ton so as long as it is not a diesel, there are base plates available.
There is another important measurement to take to determine the correct base plates. Under the front of the truck, on the outside of the frame rail look for holes on the side of frame, and an elongated hole underneath. Measure the distance from the lowest threaded hole on the side o
view full answer...
- What Will I Need to Economically Flat Tow My 2006 Chevy HHR
- A tow bar you could use to pull your 2006 Chevy HHR is the RoadMaster Tracker Tow Bar, part # RM-020. You may also be interested in purchasing a Roadmaster Tow Bar Quick Disconnect Kit, part # RM-201, if you would like to be able to easily remove the tow bars from your HHR.
You will also need a set of Roadmaster Tow Bars for the 2006 Chevrolet HHR, part # 3141-1, in order to connect your HHR to your tow bars.
The most economical system to use for turn signals and brake lights for your towe
view full answer...
