Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range E

Kenda Tires and Wheels - AM3H480

Bias tire has a ply rating of 10 and a 1,650-lb maximum load at 90 psi. The 10" diameter x 6" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

• Kenda Loadstar trailer tire offers excellent handling
  • Bias cut provides superior stability
  • Modern tread design reduces rolling resistance for a smooth ride
• Steel wheel by Americana resists rust and corrosion
  • White powder coat finish over e-coat primer
• Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

• Rim dimensions: 10" diameter x 6" wide
• Bolt pattern: 5 on 4-1/2"
• Wheel capacity: 1,200 lbs
• Wheel bolt size: 1/2"-20
• Pilot diameter: 2.8"
• Tire size: 205/65-10
  • Section width: 8.4"
  • Outer diameter: 20.4"
• Tire capacity:
  • Load range: E
  • Ply rating: 10
  • Maximum load: 1,650 lbs at 90 psi
• Limited 2-year warranty on tire
• Limited 1-year warranty on wheel

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
• If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
• If D = 3", then the bolt pattern is 5 on 5"
• If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

3H480 Americana Solid 10" White Wheel and Kenda Loadstar K399 Bias Tire - LR E

A good alternative to 20.5 x 8-10 tires

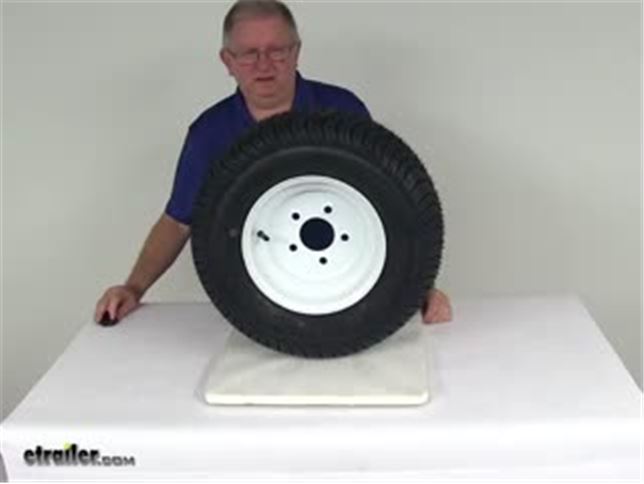

Video of Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range E

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Kenda Tires and Wheels AM3H480 Review

Customers compare AM3H480 to these similar products

Kenda 205/65-10 Bias Trailer Tire with 10" Galvanized Wheel - 5 on 4-1/2 - Load Range E$111.95

Loadstar K399 Bias Trailer Tire - 205/65-10 - Load Range E$77.95

Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range D$95.95

Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range C$83.95

Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 4 on 4 - Load Range E$106.95

Customers Who Purchased This Tires and Wheels Also Bought...

Chrome Trailer Wheel Lug Nut - 1/2" (Each) $0.99

1-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.18

Loadstar K399 Bias Trailer Tire - 205/65-10 - Load Range E $77.95

CE Smith Trailer Wheel Lug Nut - Zinc-Plated Steel - 1/2" - Qty 1 $0.45

Dexter Trailer Hub Assembly - 3,500-lb Axles - 5 on 4-1/2 $28.95

Replacement parts available for this product

Americana Rubber, Snap-In Valve Stem - 1-1/4" Long - Up to 65 psi $0.55

Loadstar K399 Bias Trailer Tire - 205/65-10 - Load Range E $77.95

Americana Steel Trailer Wheel - 10" x 6" Rim - 5 on 4-1/2 - White $24.95

Ask the Experts about this Kenda Tires and Wheels
Do you have a question about this Tires and Wheels?

• What is the Difference Between a 10 X 8 Inch Wheel and a 10 X 6 Inch Wheel

• A wheel that is 10 x 8 means the wheel will accept a 10 inch tire and the width of the wheel is 8 inches wide. The 10 x 6 wheel is for a 10 inch tire and it is 6 inches wide. I do not have a 10 x 8 inch wide wheel. The 10 x 6 wheel like the Dexstar 10 X 6 White Trailer Wheel, part # AM20046, is the wheel size that is used for either the older 20.5 x 8 x 10 tire size or the newer 205/65-10 tire size. I am including a link to a page of the 10 x 6 inch size wheels that we have available.
  view full answer...


• Will a 205/65-10 Tire Size Replace a 20.5x8-10 Tire on an Old Popup Camper

• The tire size 205/65-10 is a suitable replacement for the old tire size 20.5x8-10. I have not heard of a 20.5x8-10 tire mounted on an 8 inch wide rim. Your actual rim width should be 6 inches and the tire itself should be 8 inches wide. A 205/65-10 tire will only mount on a 6 inch wide wheel. There are a few things that you will need to consider before replacing the tires and wheels on your old camper. First, we need to determine the weight capacity of your axle or the gross trailer weight o
  view full answer...
