Kenda 205/65-10 Bias Trailer Tire with 10" Galvanized Wheel - 5 on 4-1/2 - Load Range C

Kenda Tires and Wheels - AM3H400

Bias tire has a ply rating of 6 and a 1,100-lb maximum load at 50 psi. The 10" diameter x 6" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant galvanized finish.

Features:

• Kenda Loadstar trailer tire offers excellent handling
  • Bias cut provides superior stability
  • Modern tread design reduces rolling resistance for a smooth ride
• Steel wheel by Americana is galvanized for superior corrosion resistance
• Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

• Rim dimensions: 10" diameter x 6" wide
• Bolt pattern: 5 on 4-1/2"
• Wheel capacity: 1,650 lbs
• Wheel bolt size: 1/2"-20
• Pilot diameter: 2.8"
• Tire size: 205/65-10
  • Section width: 8.3"
  • Outer diameter: 20.5"
• Tire capacity:
  • Load range: C
  • Ply rating: 6
  • Maximum load: 1,100 lbs at 50 psi
• Limited 2-year warranty on tire
• Limited 1-year warranty on wheel

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
• If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
• If D = 3", then the bolt pattern is 5 on 5"
• If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

3H400 Americana Solid 10" Galvanized Wheel and Kenda Loadstar K399 Bias Tire - LR C

A good alternative to 20.5 x 8-10 tires

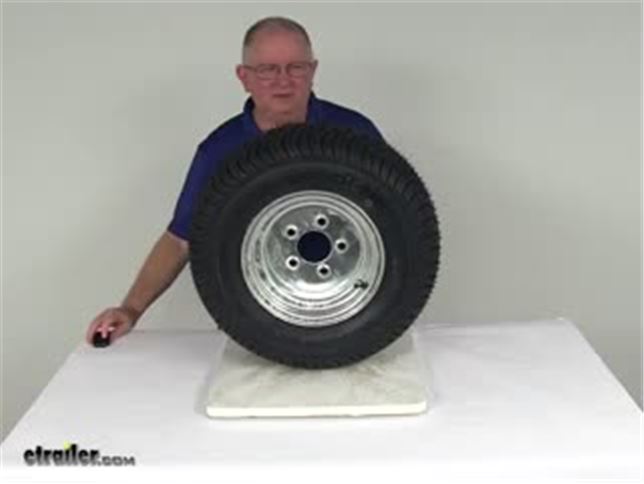

Video of Kenda 205/65-10 Bias Trailer Tire with 10" Galvanized Wheel - 5 on 4-1/2 - Load Range C

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Kenda Tires and Wheels AM3H400 Review

Customers compare AM3H400 to these similar products

Kenda 205/65-10 Bias Trailer Tire with 10" Galvanized Wheel - 5 on 4-1/2 - Load Range E$111.95

Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range C$83.95

Kenda 215/60-8 Bias Trailer Tire with 8" Galvanized Wheel - 5 on 4-1/2 - Load Range D$72.95

Kenda 205/65-10 Bias Trailer Tire with 10" Galvanized Wheel - 5 on 4-1/2 - Load Range D$100.95

Loadstar K399 Bias Trailer Tire - 205/65-10 - Load Range E$77.95

Customers Who Purchased This Tires and Wheels Also Bought...

Trailer Wheel Lug Nut - 1/2"(Each) $0.58

Chrome Trailer Wheel Lug Nut - 1/2" (Each) $0.99

Americana Trailer Wheel Lug Nut - 13/16" Diameter - Stainless Steel - 1/2" - 20 $1.49

Wire Frame Clip $0.17

1-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.18

Replacement parts available for this product

Americana Rubber, Snap-In Valve Stem - 1-1/4" Long - Up to 65 psi $0.55

Loadstar K399 Bias Trailer Tire - 205/65-10 - Load Range C $63.95

Americana Steel Trailer Wheel - 10" x 6" Rim - 5 on 4-1/2 - Galvanized Finish $29.95

Ask the Experts about this Kenda Tires and Wheels

• Spare Tire Recommendation for a Dual Jet Ski Trailer with 205 x 65 x 10 Load Range E Tires

• My recommendation is to stay with the load range that your trailers axle is rated for and that matches the tires on your trailer. In this case a load range E trailer tire, like item # AM3H490, is rated for 1,650 lbs, which would be good for a single axle trailer with a 3,000 to 3,300 lb axle. If the Axle on your trailer is rated lower, 2,200 pounds or less then going with a load range C tire for a spare would be just fine, but having a load range E tire on the opposite side could cause uneve
  view full answer...


• Replacement Boat Trailer Tire Recommendation for a Tire Size 205/65-10

• The Kenda 205/65-10 Bias Trailer Tire with 10 inch Galvanized Wheel # AM3H400 that you referenced has a tire size of 205/65-10 that is the same as the 205x8-10 that you currently have. If you want just the tire, I would recommend you get a Loadstar K399 Bias Trailer Tire # AM1HP56. This is just the tire and would work well for your application. I attached an FAQ page on trailer tires for you to check out also.
  view full answer...
