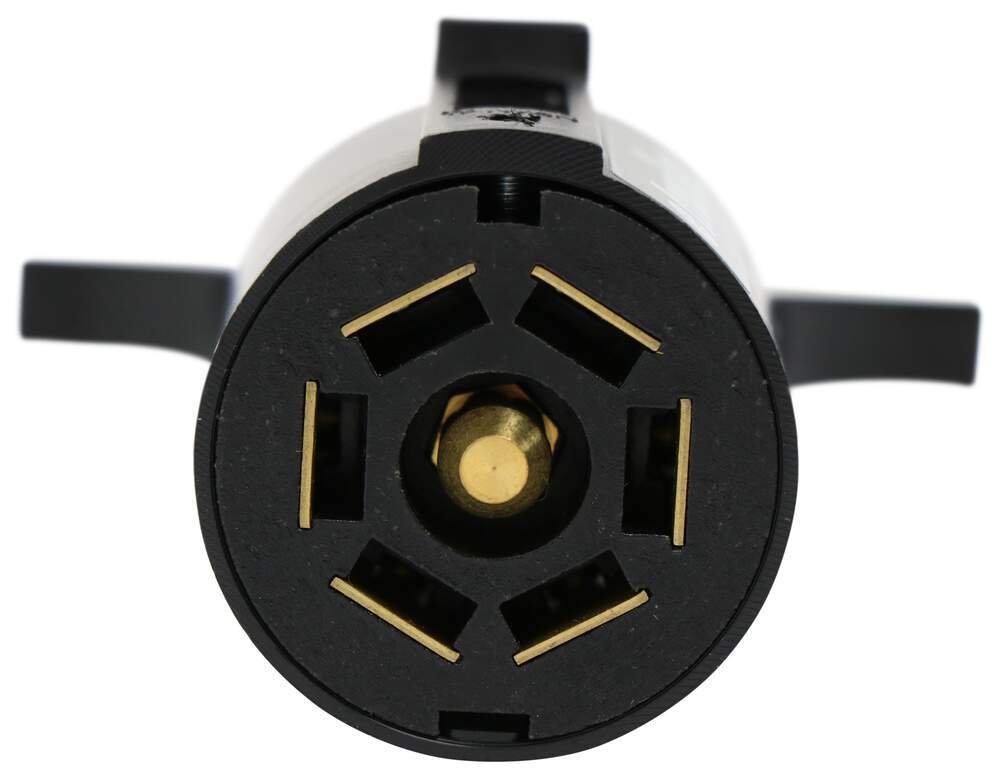

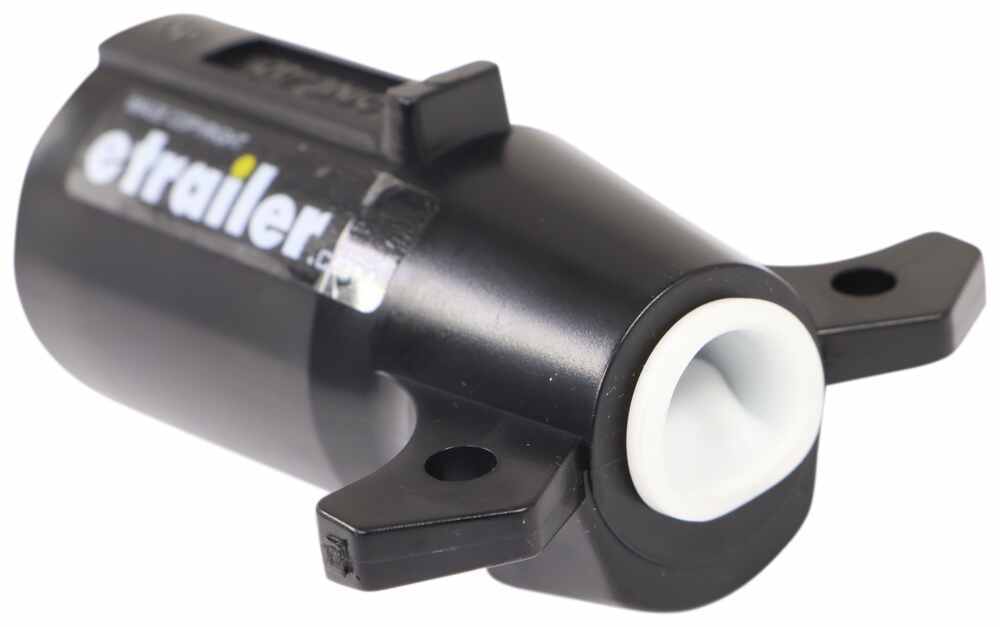

This is a round power plug that connects with the 7-way round blade connector of the tow vehicle.
Video of 7-Way Round RV Style Trailer Connector - Trailer Side
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

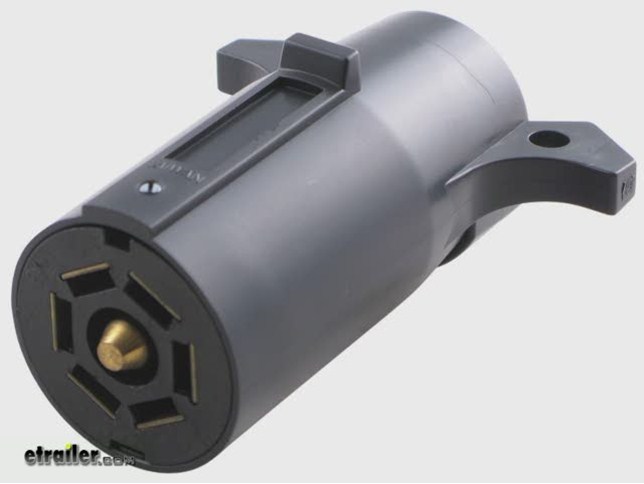

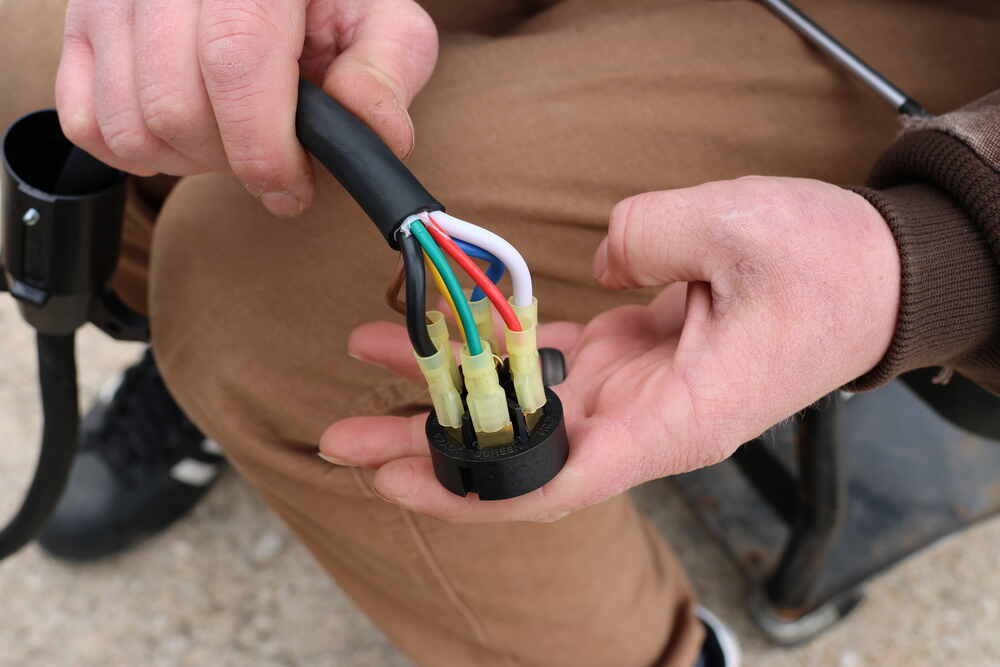

Today on our trailer, we're going to be installing the 7-Way Round RV Style Trailer Connector, part number A7WCB. Now to begin our installation, we'll go ahead and remove the set screw here on our 7-way connector to remove the inside. We'll then go ahead and remove the white sleeve that will be used to hold the connector in place on our 7-way wire. We'll now take our 7-way wire connector cover, slide it over our black 7-way round sheathing. We'll now go ahead and cut the sheathing off of our 7-way wire to expose the seven wires within it. We'll then strip away the insulation from each of the seven wires and connect them color for color as indicated on the 7-way plug.

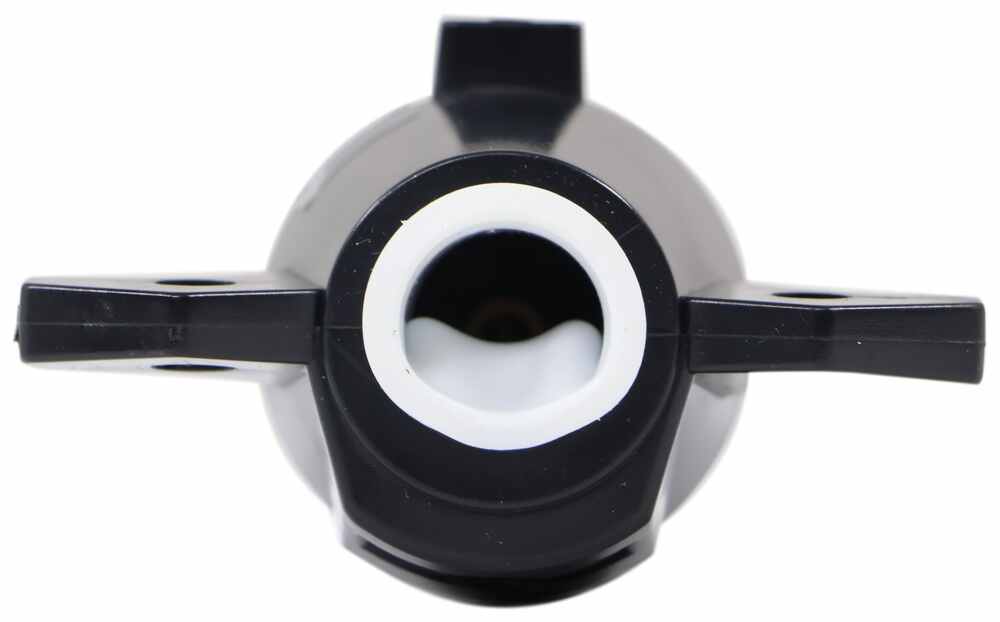

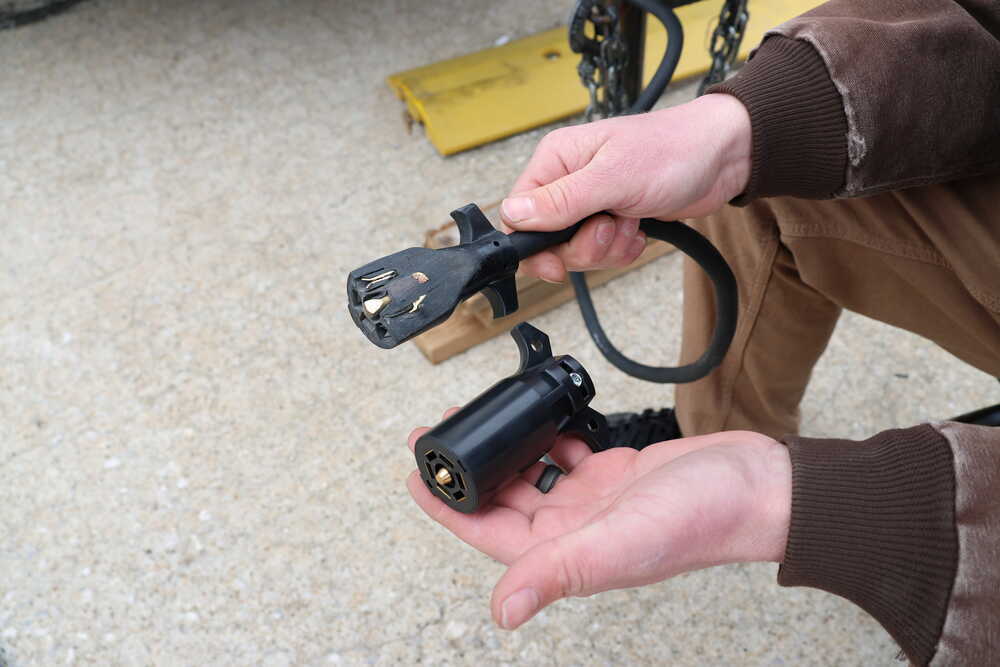

Now here before we connect the last two wires on the round, we'll need to connect the yellow wire into our center post. We'll do this before we do the last two wires, just to give us a little more space to get the yellow wire in place. Now with all our wires secured into the connector, we can bring the cover back over and screw down the set screw. We'll then move to the white clamp here on the connector, and reinstall it. With that tight, our connector's on, and we're ready to hook up to our tow vehicle.
And that completes our installation of the 7-Way Round RV Style Trailer Connector, part number A7WCB.
Customers compare A7WCB to these similar products
Customers Who Purchased This Wiring Also Bought...
Average Customer Rating:
4.3 out of 5 stars (3 Customer Reviews)
by: Tony03/12/2013
Is this review helpful?
Product is good quality, not just some cheap junk!70180
by: Jim H10/16/2012
Is this review helpful?
I should have bought a better one. This will work though. The wiring colors molded into the back of the connector do NOT match the standard 7 pin wiring listed on etrailer.com's site, nor did it match my truck. I used etrailer's wiring guide and all is well.57351
by: rcc09/11/2012
Is this review helpful?
Well made, very easy to install. 54219
