Code: 8-91-05UC1
Retail:$40.82
Price:$25.95
Shipping Weight: 5 pounds
Shipping SpecialTrailer hub assembly includes lug nuts, inner bearing (L44649) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits 2,000-lb axles.
Note: Some axles rated at 2,000 lbs require a different seal and bearings. Be sure that the bearings in the hub being replaced have L44649 stamped on them. If the bearings have L44643 stamped on them, use 34822BX trailer hub.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
Video of Trailer Hub Assembly - 2,000-lb Axles - 4 on 4 - L44649 Bearings
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

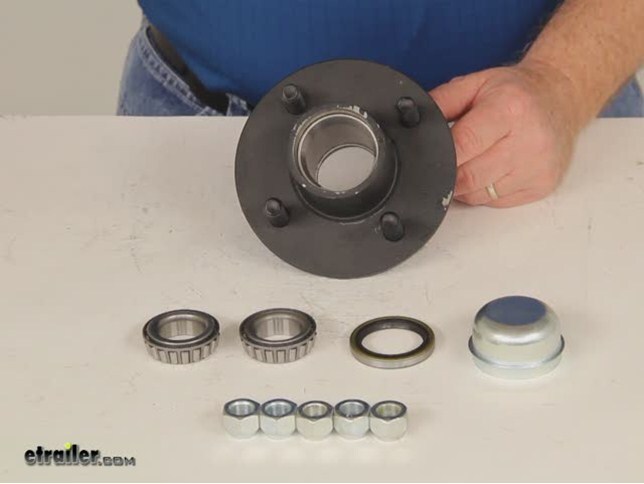

Today we're going to take a quick look at the Dexter Axle Trailer Hub Assembly part number 8-91-05uc1. This idler hub is designed to fit 2,000 pound axles. It's got a 4 on 4 bolt pattern. If we're able to measure from the center of one lug, or one bolt, to the center of the other we get a measurement of 4 inches. Now included with the idler hub are the races, which are already pressed in inside the hub where they need to be. You'll also find the inner and outer bearings, in this case they're both number L44649; a grease seal, in this case it's 10-9; a grease cap that will go on the outside; and you'll also find the four conical lug nuts to go with our studs.
Now each of these idler hubs has a capacity itself of 1,250 pounds. When you pair it with the other you get a total of 2,500 which puts us at the range for a 2,000 pound axle. And that's it for a quick look at the Dexter Axle Trailer Hub Assembly part number 8-91-05uc1.
