Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
6 reviews
Code: 75338
Retail:$212.13
Price:$144.95
Shipping Weight: 25 pounds
Shipping SpecialFully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

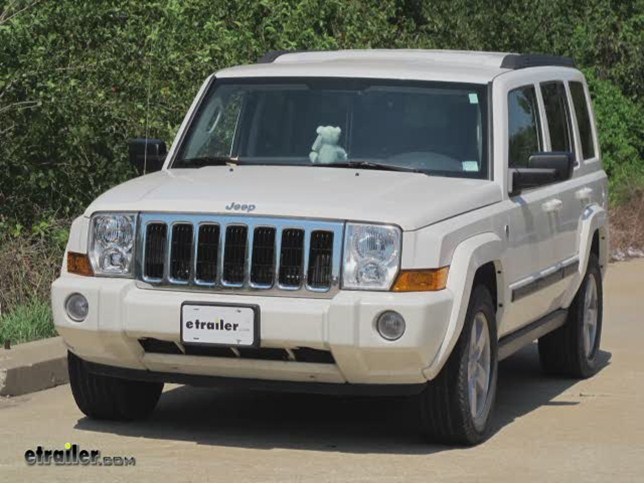

Today on our 2008 Jeep Commander well be installing the Draw Tite hitch, part number 75338. This is what our hitch will look like once its installed. Next well go ahead and give you a couple of measurements to assist you with selecting accessories for your new hitch. From the center of the hitch pin hole to the outer most edge of the bumper is four inches. From the top of the receiver tube to the ground is 17 and one-quarter inch. This will assist you with selecting accessories such as a draw bar, a bike rack, or a cargo carrier.
Now lets go ahead with installation. Note weve already gone ahead and lowered and removed the spare tire for easier installation and access. Note we have a total of four attachment points in the bumper beam pre-drilled by the manufacturer. In order to get our hitch in place well need to remove two of the plastic push pin fasteners located on the bottom side of the bumper beam. Using our flat bladed screwdriver well pry the center of the plastic fastener out and then remove the fasteners.
Now you can see that we can go ahead and push the bumper fascia away from the bumper beam. This will allow us to slide the hitch into position. Well be using the hardware provided with our install kit, half inch bolts, and conical tooth washers with the teeth of the washer facing the hitch. As the bolt will go through the hitch, through the bumper beam, back into the weld nut of the hitch to be secured. Note some applications will need the large flat spacer washers put between the hitch and the bumper beam.
Now lets go ahead and put our hitch in place. Well install one of the half inch bolts to hold the hitch while we attempt to install two flat washers into one position. Well start with the center two fasteners first and then the outside two fasteners. For this application there is not enough space so well just install one flat washer between the hitch and the bumper beam. Well do this for all of our fasteners one per bolt.
Now with all our fasteners installed finger tight were ready to go ahead and tighten them down. Next well go ahead and torque to specifications as indicated in the instructions. Were ready to reinstall the bumper fascia fasteners. Thatll complete the install of our Draw Tite hitch, part number 75338, on our 2008 Jeep Commander.
2006 - 2010 Jeep Commander
2005 - 2005 Jeep Grand Cherokee All Models
2006 - 2010 Jeep Grand Cherokee All Models, except SRT-8
Customers Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 5.0 out of 5 stars (6 Customer Reviews)
by: Rod R.08/01/2009
Is this review helpful?
Great Fit 2009 Grand Cherokee Etrailer.com had this item instock, Shipped it very fast, Product fit my Jeep perfect. Excellent Communication, Their instruction videos helped alot. A+++ Sellers. Thanks!2200
by: Michael04/20/2013
Is this review helpful?
Very simple and easy to install! I was a little skeptical to add it on that it wold sit to low on my 08 Grand Cherokee, and not look clean. I was very happy to be wrong and think it looks great. I was also very pleased with the t-harness for the trailer wiring. All said and done it was well in the affordable category and about 45min total for the install of both parts. Great work to everyone in the etrailer.com family! 77041
by: Jon L06/13/2012
Is this review helpful?
high quality, easy to install after lowerign spare tire in 2006 Grand Cherokee43963
by: Gustav Schumacher03/20/2012
Is this review helpful?
Received trailer hitch, etc. but have not yet installed. But everything looks in order. Impressed with short delivery time plus excellent packaging. One of the best order logistics received so far ever. Thank you34499
by: Becky01/20/2012
Is this review helpful?
Great product that was easy to install.. 29992
by: BP05/24/2008
Is this review helpful?
Excellent, affordable hitch I have a 2006 Grand Cherokee. I installed this myself in about 30 minutes with very little experience. It's a tight fit to get it placed, but once you do, it looks great and hangs about 2 millimeters below the bumper. I've towed a fully loaded 6x12 U-haul from Florida to Chicago with it and it worked like a charm. Since then, I've only used it for bike racks and cargo carriers, but it hasn't let me down yet. I love it.902
Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?
Info for this part was:
At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
Installation Details
