Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
14 reviews
Code: 36493
Retail:$255.47
Price:$159.95
Shipping Weight: 39 pounds
Shipping SpecialThis fully welded, corrosion-resistant vehicle trailer hitch is perfect for your light-duty towing and hitch rack needs. Tested Tough guarantee ensures that this hitch exceeds industry strength standards. Drawbar, pin and clip sold separately.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

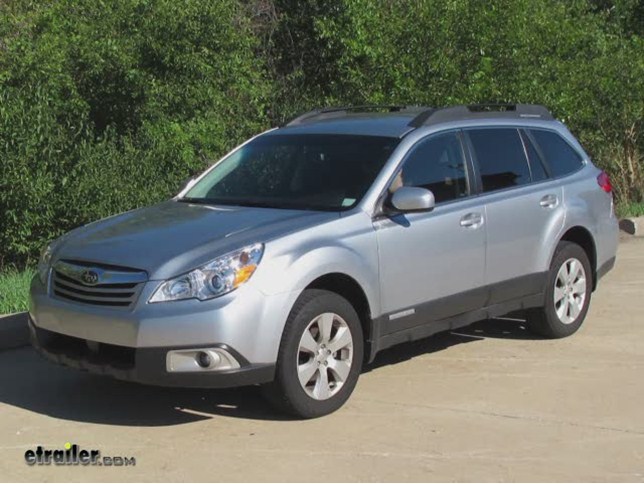

Today on this 2012 Subaru Outback Wagon were going to install part number 36493, from Draw Tite. Now well go ahead and give you some measurements to help you out in selecting some accessories such as a bicycle rack or a cargo carrier. From top of receiver opening down to the ground will be 14 inches. From the center of the hitch pin hole to the edge of the bumper will be four and a half inches. Now Ill go ahead and show you how the hitch is installed. Our first step is to go ahead and remove the muffler.
Theres a couple ways you can do this you can spray down the rubber hangers and remove it and leave it attached. How were going to remove the muffler itself theres two bolts on the tailpipe that we caneasily get to and to make things a little easier to see well go ahead and remove the muffler. Next well go ahead and remove the heat shield for the muffler. Next well have to drill a one-eighth inch access hole to the bottom of frame to get our hardware into place. When we drill our access hole itll be approximately two inches from the forward heat shield attachment.
Its one of the bolts thats bolted to the bottom of the frame. Well drill our power hole first then use a one-eighth inch hole saw to make the cut. Well also remove the rubber plugs at the bottom of the frame. Now I can go ahead and install hardware into the frame. Well use our bolt leader to install the one by two block through the access hole and thread on the bolt and pull them into position down to the hole thats closest to the bumper.
Then well install our one by three block through the access hole through the fourth hole in the bumper. Now well leave our bolt leaders attached to the bolts to help hold the bolts in place while we install out hitch later on. With all our hardware installed well go ahead and spray some undercoating material around the hole that we just drilled out. At this point we can go ahead and lift the hitch up into position. Well go around the exhaust hanger making sure that the rubber hangers are out of the way as well.
Its a good idea to get an extra set of hands to help do this. Well put the hitch up. Well run the bolt leaders through the bolt holes and then push the hitch up into place. Then well install our hardware. We need to install our conical tooth washer. Well make sure our teeth in the washer are facing towards the hitch and then the nut. Before we tighten down the hitch for good well make sure that the holes for our exhaust heat shield will line up with the holes in the hitch. With our hitch loosely installed we can go ahead and tighten down the bolts and then well torque them down as specified in the instructions. Next well go ahead and trim the heat shield for the exhaust. Well use some tin snips to make the cut. Then we can go ahead and reinstall the heat shield. Now we can go ahead and reinstall the muffler. With that, thatll finish it for part number 36493 from Draw Tite on our 2012 Subaru Outback Wagon. .
2010 - 2013 Subaru Legacy All Models
2010 - 2013 Subaru Outback Wagon except Sport
Customers Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.9 out of 5 stars (14 Customer Reviews)
by: Lance01/26/2013
Is this review helpful?
The install was easy and took about an hour myself. The video was very helpful. 64202
by: Mike Binder09/12/2012
Is this review helpful?
Part arrived quickly and with free shipping! It fit well and was only moderately difficult to attach. But that was not due to the part...it was due to the vehicle construction limitations. I'll try to take and send a picture in the near future. Thanks, Mike B.54485
by: Dan M08/28/2012
Is this review helpful?
What a deal! Ordered my hitch & wiring and two days later it arrived! The instructions/videos on this site and with the hitch made it a breeze to install. I'm 70 yrs. old and had NO problems. Just make sure you have a proper and sharp METAL hole saw and your tools laid out. My Outback is new, so, I just removed the muffler, then drilling and fishing the bolts were easy! It took about half an hr. for the actual install. My wife even helped. I highly recommend E-TRAILER for everyone and will be back for anything else I need.53296
by: mark russo05/06/2012
Is this review helpful?
Excellent video on how to install. Went just as described. Would definitely purchase here again.39591
by: Paul H04/28/2012
Is this review helpful?
This is the second hitch I have ordered and installed from etrailer. The online tutorials are excellent and extremely helpful. If you can turn a wrench, you can install a hitch and wiring from etrailer!38685
by: Page04/07/2012
Is this review helpful?
Excellent product and the instructions were great. I decided to gain entry from the top and after pulling the panels off from the wagon area I was able to enlarge the existing holes and feed the retainer and bolt down from the top. This meant that I did not need to drill into the frame.36499
by: Jerryflah03/16/2012
Is this review helpful?
beautiful fit. solid construction great price34100
by: Curt P.02/03/2012
Is this review helpful?
I just finished installing the hitch. It was delivered last night, as was promised. I bought a new Outback recently and I needed a way to transport bikes w/o having to get the bikes on the roof - it's pretty high. So a hitch mounted bike carrier is the way I wanted to solve that problem. I bought the hitch and a Thule carrier from etrailer. Both the hitch and the carrier are much sturdier than I imagined. the hitch install went exactly as described in the excellent instructions/video; fit perfectly. It took longer to install than 1 hour though. Working by myself it was a challenge to support the hitch while I secured that first bolt but the wire guides helped a lot. It's a good system especially for this novice. I also hope use the hitch to do some light duty towing occasionally - moving applicances, trips to the waste transfer station, maybe even tow a small tent trailer. I have not used the hitch yet but I plan to in the near future.30976
by: Charlie09/16/2011
Is this review helpful?
The web site made shopping, ordering, viewing instructions and product information very efficient, and user friendly.I got a very good deal on the products I ordered, and had my delivery even quicker than predicted.Installation was painless, and exactly as stated.Product quality and satisfaction are excellent.Nice job guys24098
by: Eddie06/13/2011
Is this review helpful?
my wife's 2011 subaru outback. very fast shipping, and the parts are as described. installed it on the floor with the car jacked up on the driver side in 1 hour. very easy install after watching video on etrailers site. the coolest thing on the install was having my wife under the car with me to put it in place at least for 5 min. she might be sophisticated, but i got that extra set of hands to line it up. lol.16892
by: Eddie06/13/2011
Is this review helpful?
my wife's 2011 subaru outback. very fast shipping, and the parts are as described. installed it on the floor with the car jacked up on the driver side in 1 hour. very easy install after watching video on etrailers site. the coolest thing on the install was having my wife under the car with me to put it in place at least for 5 min. she might be sophisticated, but i got that extra set of hands to line it up. lol.16891
by: Mark C.04/26/2011
Is this review helpful?
Delivery was quick. The installation on my 2011 Subaru Outback was as advertised and relatively painless for a novice. The instructions and wiring video were very helpful. I would definitely recommend etrailer for anyone else that is installing a hitch. 12421
by: John T.04/24/2011
Is this review helpful?
The box arrived pretty beat up, but the hitch was fine. I watched the installation video, which was excellent, then read the printed instructions as I did the job. I did the job with the tires still on the ground, and only lifted it a few inches with a jack under the differential just to give myself more working room. Everything went exactly as shown on the video, but it took me 2-1/2 hours to complete the job. I'm sure it would go faster doing it a second time, but how many customers will be doing that on the same car? The wire fish was really slick, and the metal plates and bolts pulled into the bolt holes perfectly. Hard to believe who well they worked. I used my jack to help lift the hitch up so that I could get the first two nuts on, since I was working alone. Having some way to temporarily grip the bolts, perhaps a spring clip, would help assure they don't get pushed back up into the mounting rail. This would be a nice addition to the installation package. But working carefully I got the first two nuts on. The other two went on easily at that point. I left all bolts loose and threaded in the two heat shield bolts that go through the hitch, since the clearance holes were pretty small, then tightened all four bolts on the hitch. Then I removed the two heat shield bolts, trimmed the heatshield and put it back on. All in all, the job went very smoothly, just took a lot longer than the video suggested. 12288
by: Joe E.10/07/2011
Is this review helpful?
Ordering was easy.Delivery arrived on time. Instructions made the job easy.It took me about 90 minutes to install, working with the car on the ground. Everything fit together very well. The wiring harness was a cinch to install .I saved about 400 dollars vs factory hitch. I WOULD NOT HESITATE TO RECOMMEND YOUR PRODUCT . GREAT JOB. 25251
