Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
55 reviews
Code: 36408
Retail:$244.65
Price:$149.95
Shipping Weight: 32 pounds
Shipping Special
This fully welded, corrosion-resistant vehicle trailer hitch is perfect for your light-duty towing and hitch rack needs. Tested Tough guarantee ensures that this hitch exceeds industry strength standards. Drawbar, pin and clip sold separately.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

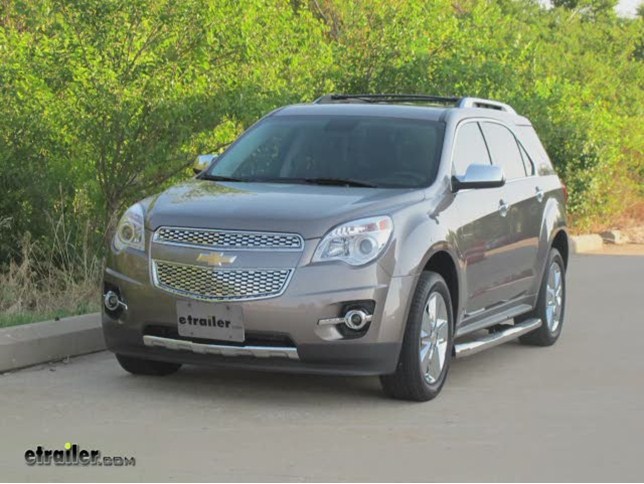

Today on our 2012 Chevy Equinox, we'll be installing the Draw-Tite Hitch, part number 36408. This is what our hitch will look like once it's installed. Next, we'll go ahead and give you a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch pin hole to the outermost edge of the bumper is 4-1/2 inches. From the top of the receiver tube to the ground is 14 inches. This will assist you in selecting accessories such as a drawbar, a bike rack, or a cargo carrier.
Now, let's go ahead with the installation. First, let's go ahead and point out the attachment points. Starting on the driver's side and the side of the frame, there are two weld nuts and one weld nut in the center of the bumper beam. This will be identical for the passenger's side also. Keep in mind.
Each process we do here on the driver's side will get repeated identically on the passenger's side. Let's go ahead and remove the rear fascia door. Using a pair of needle nose pliers, I can press the two tabs together and then pop the rear fascia door free. We'll go ahead and set that aside. With this application, we will not be able to reinstall it.
Next, we need to clean out the weld nuts. First, we'll spray them down with some spray lubricant. We'll use a 1/2-inch nylon tube brush, part number 814092. Thoroughly clean the weld nuts out and then I'll go ahead and take one of the new bolts and thread it into the weld nut to make sure they go nice and smoothly. Now, we're ready to go ahead and install the hitch.
It's a good idea to get an extra set of hands to help you hold the hitch while you install your fasteners. For our weld nuts, we'll be using the new 12-mm bolt and conical toothed washer with the teeth of the washer facing the hitch. Now with all our fasteners in place, we can go ahead and tighten them down. Next, we'll go ahead and torque to specification as indicated in the instructions. Now with all our hardware torqued to specifications, that will complete the install of our Draw-Tite Hitch, part number 36408 on our 2012 Chevy Equinox.
2005 - 2013 Chevrolet Equinox
2010 - 2013 GMC Terrain
2006 - 2009 Pontiac Torrent
2002 - 2003 Saturn Vue
2004 - 2007 Saturn Vue except Red Line
Customers Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.8 out of 5 stars (55 Customer Reviews)
by: glen e06/15/2011
Is this review helpful?
Very easy installation. fit perfect Product was not secure in packaging, one end went through the cardboard package. No damage to hitch, though. 17023
by: Joshua03/26/2013
Is this review helpful?
Every thing worked and attached custom to my 2007 Chevy Equinox. Very good email communication allowing me to track my packages.72501
by: Joshua03/26/2013
Is this review helpful?
Every thing worked and attached custom to my 2007 Chevy Equinox. Very good email communication allowing me to track my packages.72500
by: Steven03/18/2013
Is this review helpful?
Easy install, bolts right on, looks good !71308
by: John03/12/2013
Is this review helpful?
Paint is peeling, so rust is imminent. 70273
by: James01/16/2013
Is this review helpful?
Hitch was everything it was said to be, plus some. Thanks!63259
by: Joe H.01/15/2013
Is this review helpful?
Extremely fast delivery and excellent communication from Etrailer folks. Directions need minor correction. We have a 2013 chevy equinox and we needed to use the pull wire tool to attach center bolts as the equinox bumper did not have threaded holes ,need to attach as if bumper was from a Saturn. Maybe when GM dumped the Saturn line, they are using some old bumpers on their Chevys and not telling anyone??? But other than that ( and threading the bolts through the bumper can be alittle tricky, i used thicker wire than provided and was alot easier to do), the hitch is farely easy to install and is quality . Joe H. Pittsburgh, PA.63141
by: Tod D.12/17/2012
Is this review helpful?
Product arrived quickly. Everything need to install was included.61705
by: Guy Smyth10/06/2012
Is this review helpful?
I WAS SUPRISED HOW EASY IT installed, time was about 40 to 45 minutes a friend stopped by and now he is going to purchase one for his escape fron etrailer Thanks again Guy56533
by: Peter08/31/2012
Is this review helpful?
easiest hitch install I have ever done, hardest part was getting the tail lights off without breaking them fish wires could be a bit longer, put some anti-sieze on the bolts if you ever plan to take the hitch off53705
by: Bill R.08/05/2012
Is this review helpful?
Like the hitch real well, only had one problem with installation, my 2012 Chevy Equinox does not come with welded in nuts for the bracket directly above the hitch, the mounting hardware comes with the bolts and washers for this and a wire to feed it down the tube to put it in place but the wire is not long enough so I had to add more wire to get it in place. 50583
by: Jose M.07/12/2012
Is this review helpful?
The product was shipped so quickly, arrived on time, the box was broken but no damage was found, it was very easy to assemble, it took me about 30 minutes to install it, I did alone, I recommed to have somebody else to help, would be easier. The quality of the componentes is very good, I am very satisfied with this purchase. 47620
by: Scott B05/17/2012
Is this review helpful?
The product, installation instructions, hardware, wiring and customer support gets no better than this did. A+40843
by: Nathan E.05/16/2012
Is this review helpful?
Good price and fast delivery. Easy installation 40701
by: Ron M04/18/2012
Is this review helpful?
The draw-tite hitch I purchased for my 2009 Equinox is very well build and was easy to install. The wiring harnes could not have been easier to install also. Fast shippment, Thanks 37646
by: RonA.04/15/2012
Is this review helpful?
Installed my new hitch and wiring harness today. Now I'm really glad that I didn't pay someone else to do it. It was so easy.37271
by: Bill M04/08/2012
Is this review helpful?
Easy to install. The video said that you need to lower the exhaust on a 2011 Chevy Equinox. You don't. That made it a lot easier36555
by: Brett W.03/19/2012
Is this review helpful?
Very fast delivery and the quality much better than I imagine. So easy to attach it to your vehicle. I would recommend this to anyone34409
by: Rick H.03/14/2012
Is this review helpful?
Ordered on a Saturday, was notified of shipment (with upgraded status) on Sunday, arrived on Tuesday. Awesome shipping department! Took three hours to clean rust and corrosion from the weld nuts on the vehicle frame (NOT etrailer's fault). The hitch bolted up in about 20 mins, with no additional hands. Once again, great shipping, and equally awesome product. Thank you!33832
by: Ben03/12/2012
Is this review helpful?
great product. Fast delivery, fast easy installation. couldn't be happier. 33627
by: Billn03/10/2012
Is this review helpful?
Real nice hitch. Fits like a glove on my 2012 Equinox AWD.33518
by: Dale R.Great product info02/21/2012
Is this review helpful?
Great product info from sales dept.and web site. Order placed 3:00PM, order shipped same day. Easy install of both receiver and wiring with website videos. Great pricing, too. Outstanding!!32030
by: Clarence Boesenberg01/26/2012
Is this review helpful?
Received hitch for 2012 Equanox in just a few days. I am 85 years old. I used 4 by4s to block hitch up until it was about in place.then used shims until outside holes lined up. I put 1 bolt on each side then put bolts in bumper,put in rest of bolts tightend them and had job done in about an hour. Good product.Good service30411
by: Tim M01/19/2012
Is this review helpful?
Installation went well according to the instructions, However the fishing wire provided was about eight inches too short.29943
by: Jerre R.01/05/2012
Is this review helpful?
This product arrived fast and was simple to install29105
by: Sherman N11/23/2011
Is this review helpful?
It ls what was expected. Fast shipping. will use e-trailer.com again27342
by: Tony G.10/12/2011
Is this review helpful?
Installed hitch & wiring in just over an hour!! Very easy installation & video was great help with wiring install. Shipping was very fast also! Ordered on a Friday & hitch was here on Monday morning!! I am very pleased with the service from etrailer.com. This is second hitch I have purchased from them; & delivery & installation on both were definitely more than to my satisfaction!!25485
by: Jim S.10/07/2011
Is this review helpful?
Free upgraded shipping , installation videos and brand names. I will shop here again.25225
by: Darrell M.09/30/2011
Is this review helpful?
The hitch arrived on time. Instillation was a little more difficult than I expected. Probably because I was working on the ground and not from a lift and I'm old. It just took a little longer. Electrical connections required more body panel removal than I'm use to, but other than that all went well. It looks good on the car and my boat is very happy. I'll recommend you to all of my friends......both of them.24928
by: Jonathan W09/27/2011
Is this review helpful?
Holy Cow these guys are fast. I couldn't believe the hitch got here so fast. It was exactly as ordered, it did take a little longer to put on because of the rust in the frame. Next time I need a hitch or anyone I know, I will recommend these guys24695
by: Mark D.09/12/2011
Is this review helpful?
Went together very well. The only thing that I can say is that the wire screw holder was about 6" too short. I had to attach rope to the end to get the screw and brackets thru the back of the Vue. Other than that it went great. Acutally fun to put together!!!23751
by: Anna H.09/06/2011
Is this review helpful?
Extremely quick service. Ordered on Tuesday and it was delivered on Thursday. A friend just put it on my vehicle today and said it took him only about 30 minutes from start to finish, so now I'm good to go on mounting a bike rack to transport my bike to the south for the winter. Great company to deal with and would definitely purchase from them again.23630
by: John V.08/29/2011
Is this review helpful?
I first ordered a drawtite trailer hitch for my 2004 Saturn Vue, so that I could install a hitch mounted bike carrier. I received the hitch the next day by UPS! It fits perfect using the existing holes in the vehicle frame. The only problem I encountered were the corroded threaded holes on my frame. I had to use a 12mm thread tap to clean out 7 years of rust. After that it bolted up perfectly!23031
by: Chad H.08/11/2011
Is this review helpful?
Service was fast, and all questions were answered in a fast and professional manner. I received the part I ordered very fast, although there were no instructions. 21616
by: Reggie D.08/05/2011
Is this review helpful?
I've always had my hitches installed on my vehicles by professionals. But this time I installed my own hitch and it was very easy. It did not take but 30 minutes to install with the easy to follow instructions. My hitch will be used to carry our two bike carrier.21231
by: Brent B.07/28/2011
Is this review helpful?
Installed draw-tite 1 1/4# receiver on 2007 Saturn view. 1. the "piano wire gizmo" for threading bolts through bumber was cut way too short. It would not even fit from bolt hole to end of bumper. Should have been about 1 foot longer just to be workable. I extended with extra piano wire and everything pulled through fine. 2. Middle bolts were almost impossible without tiny hands. Luckily my wife is good at many things, and her smaller hands were able to fit in to attach nuts to bolts. Thought it might be easier if bolts were slightly longer (1/4 inch). Just a little too close fitting both washer and nut. 3. Youtube video is a must. Watched 2 of them for about 7 minutes total. Really did a good job letting you know what had to be done. 7 minutes saved a lot of time on the install. Overall: Very pleased with etrailer and hitch. A longer threading gizmo would have made for an excellent rating instead of a very good. I would definitely use them again and would recommend them to a friend.20501
by: Berny D.07/14/2011
Is this review helpful?
installed this Hitch (#36408) on my 2011 GMC Terrain the next day (7/6/11) and all went very well except that I had to bend the passenger-side upright support about one inch outward, in order to fit in place and bolt in. The hitch may have been dropped on that side during shipping and was sticking out from the carton, but I was able to straighten it out to fit...all is perfect! 19410
by: Berny D.07/08/2011
Is this review helpful?
I searched the internet and found a great place (etrailer.com) to order a vehicle hitch, with respect to Service, Delivery and Value. All of the staff at etrailer far exceeded my highest expectations in all respects. On Thursday afternoon (June 30, 2011) I placed my order, with a 3 day holiday in between (July 4th/Independence Day) and received the Hitch & Wiring Kit on Tuesday July 5, 2011...5days!... How can you beat that!...Pictures may follow! Etrailer.com has a video (on line) to assist you with the installation of every hitch and wiring kit...this company has their act together! The follow up after the sale is also great! Thanks!...etrailer... A happy customer!...Berny D.18935
by: Suzanne H.07/04/2011
Is this review helpful?
Trailer hitch fit perfectly. Arrived promptly and in good condition. Bolts were wrong for my 05 Vue, though. Hitch came with 1/2" bolts, welded nuts on car were 7/16". Instruction illustrations were accurate, written directions could have pointed out a key step -- to make sure washer and carriage bolt were fished through the bumper separately -- the washer wouldn't go through if the bolt was already inside. Clearly shown in the pic, but not described in written directions. Otherwise, smooth sailing.18483
by: Mike C. , Norman Ok.06/13/2011
Is this review helpful?
Ordered the Draw-Tite hitch receiver for my wife's 2006 Equinox on 6/8/11.It got here today 6/13/11 ,and I installed it in about an hour.Great job! We are impressed with your service, and the hitch receiver.Thank you etrailer!16910
by: Brian Trettin06/08/2011
Is this review helpful?
Going to be great for pulling wood and pulling the family fishing boat!16495
by: Dominick04/27/2011
Is this review helpful?
Great order procesing and very fast shipping . They keep me informed from the very start to the end. I really liked that they had a video of the instalation of my hitch. It was so easy to install you would have to be helpless to install this hitch. I HIGHLY RECOMEND THIS PRODUCT AND etrailer.12491
by: Harold M.04/27/2011
Is this review helpful?
Fast delivery and easy installation...Perfect fit with all the necessary hardware. Very easy to do business with....Thank you...H.12468
by: Brian W.04/24/2011
Is this review helpful?
eTrailer shipped the Draw-Tite hitch right away and I received it within the week. The installation video was great and accurate...it only took about 15-20 minutes for me to install the hitch on my Chevy Equinox. Everything went "without a hitch" and I am no longer without a hitch! 12291
by: Gerry W.04/02/2011
Is this review helpful?
I shopped 4 sites for the best value on this hitch and the wiring kit for my 2011 Equinox. eTrailer had the best price and free shipping, and I learned soon after ordering that they provide EXCELLENT service. The hitch arrived so fast I hadn't gotten motivated enough yet to get down under the vehicle to install it, but when I did, the installation (hitch and wiring kit) was easy and quick thanks to the very clear instructions provided. I'm very happy to have done business with eTrailer.10954
by: Robb Schweininger04/02/2011
Is this review helpful?
The hitch arrived on time and packaged well. I have installed 5 hitches in the last 8 years and this one was the easiest and quickest to install. Installation took about 10 minutes. I will definately recommend etrailer to my friends!10946
by: Les Smith04/01/2011
Is this review helpful?
Excellent service-Arrived on time World class communication! -Installed easily on our Equinox-No need for a lift-Saved the need to pay for installation-This is my second hitch from E Trailer and will use it primarily to tow my boat.I also I also purchased the wiring harness and had no problem installing it, 10918
by: Dave L03/29/2011
Is this review helpful?
The hitch was great but the package did not hold up so well. The hitch was out of the package on the end and loose in the box. There was no damage to the hitch. I will order from you again!!!10593
by: Dennis O03/23/2011
Is this review helpful?
I have not installed the item as of yet, but out of the box it appears to be of good quality and comes with all of the hardware necessary for a proper installation.10168
by: Charlie T of Iowa03/17/2011
Is this review helpful?
Talk about an easy install. Both the hitch and the wiring to about 20 minutes and most of that time was gathering up the few tools I needed. It was a 1 person job for sure and it couldn't be simpler. If you can't install one of these hitches and wiring, you probably shouldn't check your own tire pressure either.9563
by: Norm C.02/02/2011
Is this review helpful?
Trailer hitch was divivered yesterday and I installed it yesterday.It looks great. Thanks.6540
by: Andy01/13/2011
Is this review helpful?
Great Deal I ordered this receiver on the 9th and it was here on the 12th. Free shipping(and fast). Didn't get home from work until 8:30pm and had the hitch installed by 9:15. Looks great and of course a good name in hitches. Super easy to install by yourself. Came with the pin. Have yet to install the wiring harness, but I primarily purchased this for transporting bicycles and using other receiver type accessories. Having large metric tools will help with the install, but not absolutely necessary, a 3/4" socket with a 1/2" drive will work well. I only wish I had this option for my last car years ago. Thanks!!!!5424
by: Steve S.12/19/2010
Is this review helpful?
Trailer hitch & Cargo carrier The oder process was easy, the updates on the product availability, then shipping, all the way to my door step. I particularly like the installation videos. That helps a ton.4353
by: Satisfied Torrent Owner06/22/2010
Is this review helpful?
perfect fit for me This is the best value I found on a quality product ... simple to install (about 1/2 hour), perfect fit and looks great from what you can see of it (hidden nicely).3157
by: John Henry05/29/2009
Is this review helpful?
Awesome Fit Fit my 2008 Equinox perfectly, and installed quickly and easily. The hitch is barely visible from behind the vehicle, but can be seen if you are really looking. Seems very stout. Couldn't ask for a better fit!1909
