Sportframe Drawbar 4" Rise 2000# Kit

Draw-Tite Ball Mounts - 3594

Draw-Tite Class I trailer hitch drawbar

• Fits 1-1/4" x 1-1/4" Class I Sportframe receiver-style hitches
• Uses ball with 3/4" shank diameter
• Measures 10" long from center of pin hole to center of ball hole
• Provides 4" rise from the top of your hitch's receiver tube
• Rated for up to 2000 lbs gross trailer weight and up to 200 lbs tongue weight
• Includes pin and clip

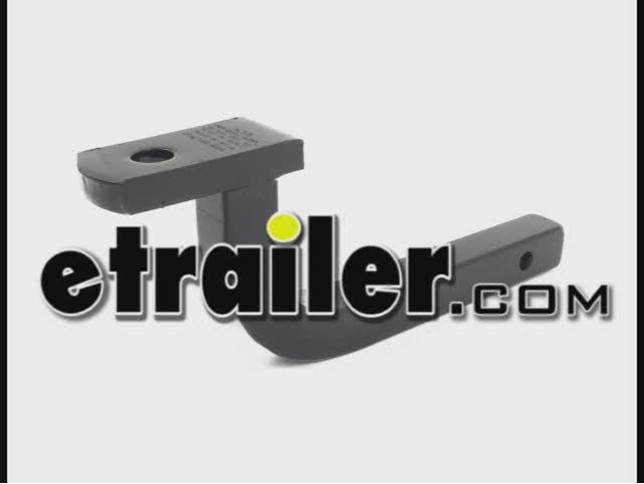

Video of Sportframe Drawbar 4" Rise 2000# Kit

Customers Who Purchased This Ball Mounts Also Bought...

Ask the Experts about this Draw-Tite Ball Mounts

• Lock Pin Hole Measurement for Class I Hitch

• The distance from the center of the hitch pin hole to the end of the drawbar is 1-9/16 inches. This is a Class I drawbar. Class II drawbars will not fit in the Class I hitch and have a distance of approximately 2 inches from the center of the hitch pin hole to the end of the drawbar.
  view full answer...


• Ball Mount For 1-1/4 Inch Hidden Hitch On a 2002 VW Beetle with 4 Inch Rise

• The Hidden Hitch Class I 1-1/4 Inch Hitch, part # 60902, is the hitch that fits the 2002 Volkswagen New Beetle. It uses the Draw-Tite Ball Mount, part # 3594, that has a 4 inch rise. This ball mount comes with a pin and clip. On Class I hitches you have to use the ball mount that is recommended for that particular hitch. The # 3594 ball mount uses a hitch ball with a 3/4 shank diameter. Depending on the coupler size on your trailer you will need either the Tow Ready 1-7/8 Inch Hitch Ball,
  view full answer...


• What is the Proper Rise/Drop Ball Mount for a 2006 Honda Civic

• The recommended drawbar for a 2006 Honda Civic with Class I hitch is part # 3593. The hitch manufacturers recommend draw bars based on the weight capacity of the hitch and vehicle and the trailer coupler height of trailers that fall in that weight capacity. Part # 3593 is the proper amount of rise for most trailers that fall under 2,000 pounds. The rise on part # 3593 is 2-1/8 inch so if this rise will not keep the trailer level, chances are that trailer should not be towed with your vehicle.
  view full answer...


• Which Ball Mount and Hitch Ball Should I use with My Draw-Tite 24797 on my 2009 Kia Rondo

• The proper draw bar for your Draw-Tite hitch, part # 24797 is in fact the draw bar you were looking at, part # 3594. This draw bar uses a 3/4 inch shank diameter ball, so if you need a 2 inch ball you should use part # 19258. As for the second part of your question, this is actually something I just helped my grandfather-in-law with. He went with a mounting bracket, part # 18144. If you do not want to drill your hitch, I would not unless you have experience with precisely drilling metal, you
  view full answer...


• How To Determine What Size Ball Mount Will Fit On 2006 Chevy HHR

• Your 2006 Chevy HHR has a Class I 1-1/4 inches hitch receiver, so you would use the recommended ball mount that will fit your Class I 1-1/4 inches receiver. The Draw-Tite Ball Mount, # 3594, is the recommended ball mount that will safely work on your Class I hitch. You will also need the hitch ball for the ball mount. The hitch ball size will depend on the coupler size on the trailer. It would be either 1-7/8 hitch ball like the Tow Ready Ball, # 19256, or a 2 inch hitch ball like the Tow
  view full answer...


• How to Measure Ball Mount Rise for Draw-Tite Sportframe Ball Mount # 3594 on a 2002 Buick Regal

• Ball mount rise, or drop, is determined by inserting the ball mount into the hitch on your vehicle and measuring from the top of the hitch opening to the top of the ball mount platform. I added a photo showing how the rise and length would be measured on the Draw-Tite Ball Mount # 3594. We also have an informational article that explains how to choose the correct ball mount for your application. All Class I and Class II trailer hitches are tested and rated with the specific ball mount for tha
  view full answer...


• Why do Some Ball Mounts Have a Drop and Rise and Others Only have a Rise

• Some ball mounts, generally Class I and Class II ball mounts, are designed by the manufacturer for use in the rise position only. These ball mount designs are intended for use with vehicles that require a rise only and would be too low to the ground to ever need a lower ball mount. Ball mounts listed with a rise only should not be used in the lowered position because the manufacturer has not tested them for use in that position. Some Class I and Class II ball mounts, like item # 3592, are des
  view full answer...


• Which is Correct Ball Mount for 1997 Chevrolet Lumina w/ Draw-Tite Trailer Hitch # 24628

• The recommended ball mount to use on a 1997 Chevrolet Lumina with the Draw-Tite Trailer Hitch, part # 24628 is the Draw-Tite Ball Mount, part # 3592. The ball mount that you referenced, part # 3594 has too much of a rise and is not recommended by Draw-Tite to be used on the Chevrolet Lumina. With Class I and II hitches, the ball mount recommended by the hitch manufacturer must be used, not doing so will void the hitch warranty. I have linked an FAQ on hitch ball mounts.
  view full answer...
