Custom Fit Trailer Hitch


24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756Trailer Hitch 24756

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"

Draw-Tite Trailer Hitch

Rating: ratingratingratingratingrating
26 reviews


Code:   24756

Retail:$263.95

Price:$145.95

Shipping Weight: 39 pounds

Shipping Special
Quantity:




Draw-Tite Trailer Hitch - 24756

This fully welded, corrosion-resistant vehicle trailer hitch is perfect for your light-duty towing and hitch rack needs. Tested Tough guarantee ensures that this hitch exceeds industry strength standards. Drawbar, pin and clip sold separately.

Features:

  • Custom fit is designed specifically for your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar, pin and clip are sold separately
  • Made in USA


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Requires a bolt leader (not included) for installation
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.



etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.




24756 Draw-Tite Class 1 Trailer Hitch Receiver - Sportframe



Video of Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

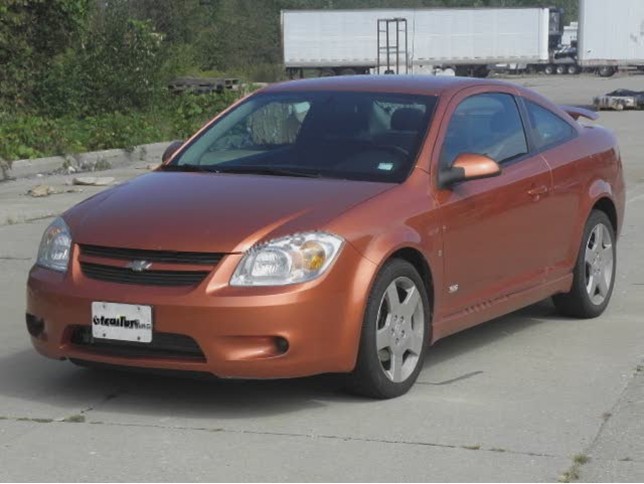

Video Hitch Install 2006 Chevrolet Cobalt
Trailer Hitch Installation - 2006 Chevrolet Cobalt SS
Video install trailer hitch 2011 chevrolet hhr 24756
Trailer Hitch Installation - 2011 Chevrolet HHR
Video Hitch Install 2010 Chevy HHR
Trailer Hitch Installation - 2010 Chevrolet HHR
Video hitch install 2009 chevrolet hhr
Trailer Hitch Installation - 2009 Chevrolet HHR
Video installation trailer hitch 2008 chevy hhr
Trailer Hitch Installation - 2008 Chevy HHR
Video Hitch Install 2007 Chevy HHR
Trailer Hitch Installation - 2007 Chevy HHR
Video hitch install chevy hhr 2006
Trailer Hitch Installation - 2006 Chevy HHR

Video Transcript for Trailer Hitch Installation - 2006 Chevrolet Cobalt SS

Today on this 2006 Chevrolet Cobalt SS we are going to install part number 24756 from Draw-Tite. This will also apply to Hidden Hitch part number 60185. The first thing we need to do is lower our exhaust. There are three rubber hangers that we need to remove, two at the bumper and one going towards the front of the vehicle. We will spray them down with some lubricant, and then pull them off. Sometimes you can pry them off, or sometimes it is easier to do by hand. :35

We are done with the driver side, now lets go to the passenger side. Now we will show you the attaching points, we have this exiting oval in the frame, which will be one and will double as our access hole. And then, going towards the bumper there is an oval hole that is covered up, you can see where the bumper bracket wraps over the frame. We will go ahead and drill that out. We will start with a 1/4 inch bit and then work our way up to a 1/2 inch bit. You may want to go up to 9-/16ths to make it easier to pull the bolt through if you run into some problems. 1:12

Now we can install our hardware. We are going to use this bolt and block and install this into the frame. To do that we are going to use a bolt leader, or wire pull. First we will run the bolt leader through the hole we drilled and out the access hole. Then thread on the block and push it through the frame. Next, thread the bolt onto the wire pull and pull it all the way through, out the other side. Sometimes it helps to shake it around a little bit and then pull it through. We have our passenger side done, lets go to our drivers side and do that once more. Now we are going to deal with the hardware that goes into the access hole. We will do everything on the outside, like we did before, push everything into the frame and pull it back through. At this point we can go ahead and install the hitch. We can lay one half on the muffler and push the passenger side up onto the bolts. Make sure you do not push them back into the frame of course. Then attach them with a nut and a conical tooth washer. Passenger side is done, lets go do the driver side. 2:25

When you do the driver side of the hitch, make sure you when you put it up that you push it forward a little bit and back over the hanger right here. Before we tighten it down, you ca see the hitch has a little movement here. Go ahead and center it up, and then snug down the bolts. Then we will torque them down as specified in the instructions. Our hitch is torqued down, lets go ahead and reinstall the exhaust. Now that we have the vehicle off the lift, we can give you some measurements that will help you in ing some hitch accessories such as a ball mount, bike rack, or cargo carrier. From the top of the receiver opening down to the ground is 10-3/8ths inches. From the center of the hitch pin hole, out to the outside edge of the bumper is going to be 7 inches. There you have it for part number 24756 on this 2006 Chevrolet Cobalt SS.


This Product Fits The Following Vehicles

2006 - 2011 Chevrolet HHR

2007 - 2009 Pontiac G5 GT Coupe

2007 - 2007 Pontiac G5 Pursuit GT Coupe

2005 - 2006 Pontiac Pursuit GT Coupe

2007 - 2007 Pontiac G5 Pursuit GT Sedan

2005 - 2006 Pontiac Pursuit GT Sedan

2006 - 2007 Saturn Ion Ion 3 Models with 2.4 Liter Engine

2004 - 2006 Saturn Ion Red Line

2008 - 2008 Chevrolet Cobalt Sport and SS Coupe

2008 - 2008 Chevrolet Cobalt Sport Sedan

2009 - 2010 Chevrolet Cobalt SS Coupe

2005 - 2007 Chevrolet Cobalt SS Coupe, including Supercharged

2005 - 2010 Chevrolet Cobalt SS Sedan




Customers Who Purchased This Trailer Hitch Also Bought...






Customer Reviews  -  Write a review about this product

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (26 Customer Reviews)




Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: lynne02/07/2012

Is this review helpful?


This product fit perfect and was easy to install31305



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Stephen P.02/03/2012

Is this review helpful?


The directions were a bit lacking. The product was good.30978



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Stephen S.01/03/2012

Is this review helpful?


This hitch seems well built and fit with no problems. Just needed to raise the drivers side of the HHR to get a good angle to slip the hitch in above the muffler (muffler supports removed as instructed). Note that I installed it with no help. A lift and a friend would have made the install a breeze.29039



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Ted A12/19/2011

Is this review helpful?


Great product and easy install. Took about an hour to install hitch and wiring. I highly recommend this product and this company. Very helpful videos. Thanks for the great service.28289



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Corinne Martel12/09/2011

Is this review helpful?


This product is awesome. My husband was able to install it in just about 40 minutes as suggested in the video. The stringer tool included made the job MUCH easier. 27907



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Nicole F11/22/2011

Is this review helpful?


Installed on 2007 Chevy HHR. Easy enough, took about 30-40 minutes. We used a jack to bring the car up a couple inches to make it easier. 27295



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: al s.09/24/2011

Is this review helpful?


super service - installation was just as the video showed - thanks 24488



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Dave A., Newark, Ohio09/13/2011

Is this review helpful?


Received a very good quality product in a very timely fashion at the best price I could find via the internet. Delivered to my front door in just a few short days. 23871



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Bruce A.08/26/2011

Is this review helpful?


The review I read were correct....... Very easy to install22860



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Ed M.06/30/2011

Is this review helpful?


Just got around to install my hitch on 2010 HHR. Went just as the video shown. Great company, great shipping, great information what else can I say. Thanks I will be doing more business with you in the future.18285



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Kevin W06/16/2011

Is this review helpful?


Went on with out a lift using jack stands in about 45 minutes. Fairly easy install. Well constructed and should serve light trailer duties and bike rack usage very well. Note: If you are ordering this it comes with a 1/2" wire feeder so don't order one! etrailer, great job of communicating and very fast shipping!!! Thanks!17102



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Mike D.06/14/2011

Is this review helpful?


Just as advertised. Great packaging, fast shipping, fantastic communication, super easy install!! What a great company.16931



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Michael M05/20/2011

Is this review helpful?


Excellent product, Very easy to install - everything I needed was included and tools recommended were exactly what was required. Instructions and video were very helpful. I would STRONGLY recommend this product for installation in HHR. s Thanks for a well engineered product.14890



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Rick D.05/16/2011

Is this review helpful?


I am very impresses by the fast delivery, quality of the hitch materials, and how easy the installation was. You made the installation of the hitch on my HHR a pleasure. Thank you so much, Rick D.14393



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Bob M.05/07/2011

Is this review helpful?


installed in less than an hour, half the price of any competitor in our area (wi). I did this alone no assistance from wife or kids. Only suggestion that is not listed in the instruction is to remove all the exhaust hangers not just the 3 and ream out both back holes, not just the one. GREAT PRODUCT!13039



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Darrell J04/21/2011

Is this review helpful?


This is a well constructed hitch. Because of the 40 plus lbs weight of the hitch it is best installed by two people. The installation couldn't be any easier. The only way is to have a hitch professionally installed at over twice the price. installation time was under a half hour. I couldn't be happier. 12174



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Louie D.04/21/2011

Is this review helpful?


This product is great! Installed it with in an hour. The video was a great feature, eazy to follow. Can't wait to use it hauling my tent trailer to the beach. I also puchased the wire harness. Now that was a snap to install, took about 15 mintues.12100



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Robert M.04/14/2011

Is this review helpful?


Excellent service as usual. Product arrived on time in good shape.11768



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Robert R.04/12/2011

Is this review helpful?


Great exactly as discribed 11551



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Wayne L.03/14/2011

Is this review helpful?


This is one great product. It arrived quickly, looks great ,was built strong and was a snap to install. It took my buddy and I about an hour to do the installation. I wouldn't hesitate to recommend E Trailers to anyone. 9240



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Barry09/12/2010

Is this review helpful?


As advertised. I just installed the Draw Tite hitch on my Chevy HHR by myself while it sat on the garage floor. Took two hours, and that includes gathering tools and trips to the basement to get stuff. Installation of the hitch and wire harness went, well, without a hitch. Appreciate the installation videos too. Highly recommend etrailer.3445



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Mark S.07/10/2010

Is this review helpful?


Great product Fantastic shipping time to SC. Two Days. Everything I ordered came in one box in perfect condition. Watched video and read instructions. Did install exactly to the letter of the instructions, and install went perfect. Install time was about 35 minutes. Wiring harness took about maybe 40 minutes. Works perfect, again no problems. Strongly recommend products.3223



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: --06/14/2009

Is this review helpful?


like the looks just put it on my cobalt ss and was impressed by how hidden it is and how far back you actually have to be to see it 1983



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Miss Kitty08/11/2008

Is this review helpful?


Easy to install but not hidden This product is easy to install and requires minimal time and tools. Did need to buy a 1/2 inch drill bit to finish drilling out holes but installation took less than 1 hour. Non factory threaded pin worked well with no noisy rattling and a snug fit. 1161



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: Chuck R.07/10/2008

Is this review helpful?


Excellent product and service. Ordered the product from etrailer on Monday afternoon, and reciieved it about 52 hours later. Installed it just as their video shows. I didn't have a lift, like in the video, but the install went well, even with the car on the ground. Thanks etrailer!1044



Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4 - 24756

ratingratingratingratingrating by: John P07/07/2008

Is this review helpful?


Great Buy This is one of the easiest installs I have done. It was great working with etrailer1035
