Hayes / AL-KO 12" x 2" Right Hand Electric Brake Assembly
Features:
Video of Hayes/AL-KO 12" x 2" Electric Brake Assembly RH
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

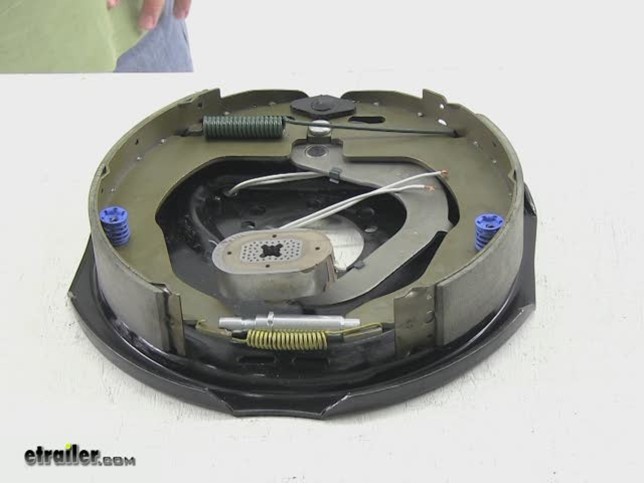

Show you the Hayes/AL-KO 12" x 2" Electric Brake Assemblies for the right-hand side, part number 185150. This is a 12" x 2" assembly. So measure the diameter across the shoe and there is our 12". And then we'll measure the width of the shoe and there is our 2" mark. When paired up with the assembly for the left-hand side, these brakes are good for axles rated up to 7,000 pounds. There are two mounting patterns that you can use with this assembly.
The smaller holes are for standard 5 bolt pattern. And the larger 4 holes with the two tight ones at the bottom are for the AL-KO or Hayes for bolt pattern. Also included with this assembly are a pair of flyer leads that were into the magnet that you use for your electrical connections. It doesn't matter which you use for ground and which you use for your brake feed as long as you have a good electrical connection. This is a manual adjust assembly.
So when you first install it and as the shoes wear down over time, you'll need to adjust the brakes for proper tension. To do this, you'll work (to heat) the star wheel which will expand this pin and expand the shoes to fit tight inside the hub drum assembly. The way the electric assembly works as the drum and wheel rotate around the assembly and you apply brakes inside the vehicle, this magnet will become charged and will stick to the inside of the drum. As it drags along the drum, the magnet poles on this arm which in turn opens up the brake assembly and applies brake pressure. This is an electric brake assembly, so you don't want to use it on boat or marine trailer applications.
We know that this is for the right-hand side, because we have a shorter shoe up on the front, placed in the front of the trailer, and a longer shoe placed in the rear of the trailer. And that does it for the Hayes AL-KO 12" x 2" Electric Brake Assembly for the right-hand side, part number 185150.
