Grease Seal

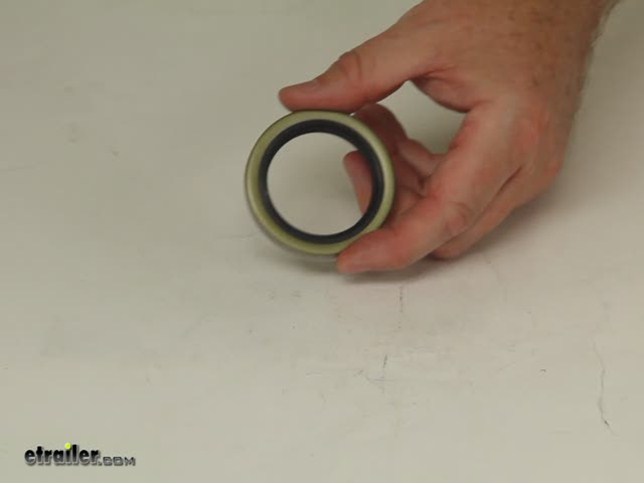

Redline Seals for Trailer Bearings - 168233

I.D.	O.D.	Use With:
1.688	2.332	Unique #84 Hubs

Seal Cross-Reference
Dexter #	Transcom #	National #	NOK #	Chicago Rawhide #
-	168233TB	473317/47140	AF7616EO/AD2527EO	16657/16659

Customers Who Purchased This Seals for Trailer Bearings Also Bought...

Ask the Experts about this Redline Seals for Trailer Bearings
Do you have a question about this Seals for Trailer Bearings?

• How to Measure to Determine the Correct Grease Seal for a Trailer Spindle

• The # 168233 Single Lip Grease Seal has an outside diameter of 2.332 inches and an inside diameter of 1.688 inches. This seal is not compatible with a AF2527E seal with a O.D 2.312, because, even though the O.D. id very close, the inner diameter of the is seal is 1.750 inches and would not be the correct fit for the spindle diameter. You will need to take an accurate measurement of the outside diameter of your existing seal, or the inside diameter of the mounting surface for the seal in the h
  view full answer...


• Replacement Seal # 10-36 Recommendation for a Hub with Bearings 25580/LM67048

• The correct grease seal that you would need is Grease Seals 10-36 pair, part # RG06-070. If you wanted a kit that had a replacement 25580 and 67048 bearings plus the 10-36 seal you would want a Bearing Kit, LM67048/25580 Bearings, 10-36 Seal, part # BK3-300. I attached a link to an FAQ article on wheel bearing backing as well as a video of how its done below for you to check out.
  view full answer...
