Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
69 reviews
Code: 13514
Retail:$279.19
Price:$167.51
Shipping Weight: 32 pounds
Shipping SpecialThis fully welded trailer hitch receiver bolts onto your vehicle's frame with no welding required. Powder coated steel is sturdy and corrosion resistant.
Features:
Specs:
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

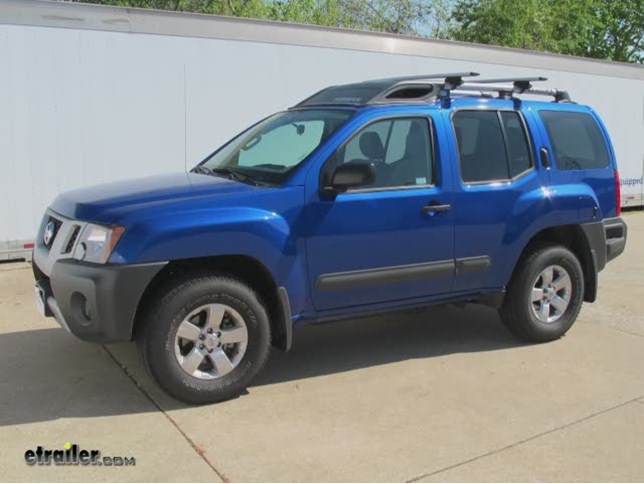

Today on our 2013 Nissan Xterra we're going to be installing the Curt Hitch, part number 13514. Here's what our hitch looks like installed on our vehicle. Now we'll go ahead and give you a few measurements to help you choose some accessories for your hitch such as a ball mount, bicycle rack or cargo carrier.From the center of the hitch pin hole to the edge of the bumper is approximately a half inch past the edge of the bumper. From the top of the opening on the hitch to the ground is approximately 19-1/2 inches. Now we'll go ahead and install our hitch. To begin with we went ahead and already removed the spare tire so we'd have a little more working room.
Next we'll go ahead and point out the attachment points.These two bolts here will need to be removed from each side and we will also use the existing weld nut in the frame. Of the three bolts at the rear that hold the bumper on do not remove the top bolt. Now we'll go ahead and show you what the hardware looks like. The two most rear holes on the hitch will get a M14 bolt and a lock washer. You'll want to make sure when you install the conical tooth washer that the teeth are facing the hitch.We'll go ahead and clean the weld nut out using our tool brush, part number 814092 and a little bit of spray lubricant.
After we've done that we'll go ahead and check it and make sure that the bolt that we're going to use actually threads into it. Now that we've got the weld nuts cleaned we're going to go ahead and install our hitch.Initially we thought we could go ahead and install the hitch without lowering the exhaust but once we attempted it we were going to have to remove the two exhaust hangers lowering it a little bit out the way. There's three bolts that hold the exhaust back at the rear-these will need to be removed. Next we went ahead and attached a safety strap and then removed the other two bolts on the next exhaust hanger at the front of the vehicle.Now that we got the exhaust hangers removed it'll give us a little more working room at the back. Now we'll go ahead and install our hitch.
It's a good idea to get an extra set of hands in helping you raise the hitch up as well as installing at least one bolt on each side. Once you have one bolt installed on each side we'll go ahead and put the other two in. Now that we have all the bolts installed finger tight we'll go ahead and tighten them down and torque them to the manufacturer's specifications.Now with all the bolts are torqued to the manufacturer's specifications we'll go ahead and reinstall the two exhaust brackets that we removed earlier. That will do it for the installation of our Curt Hitch, part number 13514 on our 2013 Nissan Xterra. .
2005 - 2013 Nissan Xterra All Models
Customers Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.8 out of 5 stars (69 Customer Reviews)
by: Stephen08/30/2011
Is this review helpful?
I installed this hitch receiver on a 2011 Nissan Xterra Pro-4X. Two people are required for sure. Also, simply removing the 3 bolts that support the exhaust per the instructions does nothing. I had to loosen the exhaust in 2 different places in the middle of the vehicle in order to get enough clearance for the hitch. After that, it was easy! Took about 45 minutes total.23166
by: Steve M01/18/2011
Is this review helpful?
Great Fit! I have purchased a couple of hitches from etrailer and have never been disappointed. You take care of your customers and keep in touch with delivery info. This hitch was a perfect fit for the xTerra, but because of time constraints, I had the hitch installed by my Nissan dealer. I would have done it myself, if only I had more free time. I will say the dealer had me in and out in minutes. Keep up your great attention to your customers!5657
by: Mike G03/08/2012
Is this review helpful?
Quick delivery. Sturdy product. Easy to install. Saved me a ton of money for the DIY guy. The wife actually put it on. Complements the Xterra as if OEM.33332
by: Ryan B01/27/2012
Is this review helpful?
Fit perfectly on my '08 Xterra. Great looking hitch and the step platform is an easy way to reach stuff on the roof. The video mentions it's helpful to have a second set of hands.... I did it by myself but it was tough getting it around the muffler and took three times as long. Etrailer shipped my part and emailed the tracking number within a few hours of my order. It showed up as scheduled, well packaged and as described. Thanks!30467
by: Mario M12/22/2011
Is this review helpful?
Product arrived all in tact and quick, especially since it was during the Holidays. It was easy and quick to install with a little bit of help from youtube including the wiring. Did it by myself and in less than an hour. Searched a lot of different sites but I felt more comfortable with them and glad I did!28528
by: Reed B.12/21/2011
Is this review helpful?
Its a great hitch and I love it. It works perfectly for what I am using it for, which is towing my dirt bike to and from the track. I also received it in the mail way faster than I thought I would, ordered it on Monday and was at my house by Thursday. But it was a little harder to put on than I expected. Other than that great product!28432
by: Gary S12/10/2011
Is this review helpful?
Great hitch. Exactly as described, installed with ease. eTrailer service is the best. Shipped my stuff early just because, free shipping, great website with training videos and everything you need to find what you want.27962
by: guts10/31/2011
Is this review helpful?
Fit very well and instructions were easy to follow.26359
by: Kevin H.10/20/2011
Is this review helpful?
Perfect fit and ease of install. Excellent shipping and fast.25851
by: John P.10/07/2011
Is this review helpful?
I've ordered two other hitches from etrailer.com . Prices are low and shipping is quick. Upon receiving the Curt hitch, I was impressed with the packaging and quality of the finish. Installation on my 2011 Xterra took a tad less than an hour. I lowered the spare but left the exhaust and had no problem with the tailpipe. Driver's side plate required a bit of bending to fit in the required space. Fit was very tight and required rubber mallet tapping to line up the bolt holes but once in place did not move making a one person installation possible. Tightening the bolts was awkward but an air ratchet made it easier. I like the step on top of the receiver that allows roof access. I will cover with a non skid surface. I'd say the toughest part was removing the original bumper bolts- they are on TIGHT! Overall the curt 13514 is a solid nice looking hitch that is easy enough for a DIY install. This one had a higher capacity than the other brands and cost far less. If you have an Xterra I'd recommend it.25241
by: Doug B.10/03/2011
Is this review helpful?
I recently purchased a receiver hitch for my 2008 Nissan Xterra from you. I was amazed how easily the receiver was to install. Instructions were easy to comprehend as well. Thanks for carrying products relevant to your customer's needs and having products that work right. I have attached some pics from the finished install. I will be ordering accessories as I need them from your company as you have always been prompt, thorough and very courteous in all of your correspondence. 25006
by: Laura G.09/23/2011
Is this review helpful?
Excellent response time and speedy delivery. I would absolutely order from here again. Great customer service and communication. 24406
by: Jim09/04/2011
Is this review helpful?
Product is well made. The hardest part of the installation is dropping the muffler down so the hitch can be installed. Once that was accomplished the installation was very easy. The item shipped very quickly and arrived in very good condition.23564
by: Bob K.09/04/2011
Is this review helpful?
It took me about two hours to install this hitch including wiring. The instructional video on the website covers everything you need to know to get the job done with a minimum of stress. (You'll need some half inch tools and a torque wrench.) I had a friend help me get the hitch into position to bolt in. Doing that alone is probably possible but I wouldn't want to do it, it's a snug fit. All in all my experience with etrailer.com was great. Shipping was quick and free and the product was top notch. 23551
by: Chuck08/29/2011
Is this review helpful?
Installation was pretty easy. Only had to bend the two mounting plates in a tiny bit to get them up onto the frame. It fit perfectly and looks good, like original equipment. Have not used it yet to pull anything. Being a steel fabricator I was impressed with the way it was constructed. It is very strong and smooth welds. I could have made it myself but preferred the powder coated finish. 23116
by: Bill C.08/26/2011
Is this review helpful?
Arrived fast. looked good. Hitch fit very tight and had a terrible time getting holes lined up. Looks like you are pretty much committed to buying a locking hitch pin because of the design. The clip for a regular hitch pin will not fit.22879
by: DT08/17/2011
Is this review helpful?
Shipping time from etrailer was excellent (ordered on a Tuesday, received on Friday) and the hitch came in looking great. Installation was very easy as there are only 3 bolts on each side of the Xterra that you have to deal with. 2 bolts are existing and one is new for the hitch. Fit is definitely snug so make sure you drop the tail pipe as stated in the instructions. Took a little over an hour to install. Finished installation looks great and I am very happy with the purchase. Installed on 2011 Xterra. 22062
by: Brian B.08/09/2011
Is this review helpful?
My order came in so much faster than I expected. was a breeze to install this all by myself, and it only took 20 minutes! I am very happy with the way the installation went with this product and it has a higher weight capacity rating than other hitch receivers I found online! Nice peice of equipment Etrailer! Great job on the speedy delivery! Thanks21474
by: Mike Bruneio07/25/2011
Is this review helpful?
Awesome product, came quickly with good instructions. Needed some umph to get between frame rails. Make sure you have a rubber mallet. Otherwise easy install.20240
by: Shon H07/13/2011
Is this review helpful?
The product was as advertised. I think that a video of putting the hitch on with out a car rack would be more realistic. Everything fit in place and it looks nice. Packaging broke through the box but all parts were still in good shape. Will be back for more of my towing needs in the future19387
by: RICHARD R. LLEWELLYN06/20/2011
Is this review helpful?
WENT ON EASY, LOOKS GREAT 17365
by: JD05/23/2011
Is this review helpful?
Hitch installed easily on 2007 xterra. Looks great. Has higher tow rating than other hitches and does not require spacers behind hitch mounting holes. Definetly recommend.15180
by: Alan04/29/2011
Is this review helpful?
The hitch receiver I purchased seems to be made very good and fits the Xterra well. The only issue was the install did take a little longer than I would have hoped, because either the spare tire must come down or the exhaust does for the hitch to fit up around the spare tire. Installed in aprox. 45 min. Also, allow up to 48 hrs. to leave etrailer. It did take a couple of days to be shipped out from etrailer. Although, if I had to do it over probably would still use etrailer.com - Thanks!!! 12585
by: Steve P.03/30/2011
Is this review helpful?
I ordered a Curt hitch, because of its looks, strength, and price. I am not disappointed. The hitch shipped as promised and was in excellent shape. The packaging was impressive. I have ordered from other companies and parts would arrive hanging out of the box. The installation instructions were easy to follow and informative. I installed the hitch with no help in no time at all. I am completely satisfied with etrailer.com and will defineitey purchase from them again. It is obvious that they do not cut corners in quality or service before or after the sale.10771
by: Syd O08/11/2010
Is this review helpful?
Good fit, looks like OEM Easy to install, easier to remove exhaust hanger bracket to complete install. Nice tight fit. No spacers need like the other hitches. Only difference between OEM and this model is that it does not have the rubber step cover. I think some skateboard grip tape would be fine.3344
by: Sammy G05/30/2013
Is this review helpful?
OUTSTANDING product, and OUTSTANDING service by e.trailer. Everything I needed to upgrade my Nissan Xterra. The hitch was installed, without a jack or lift, on the street < 60 minutes with hand tools only. They upgraded my delivery to get the hitch here sooner. Great site, I'll be back again and again!!!82636
by: C Smith05/03/2013
Is this review helpful?
One nice hitch 78917
by: Joe M04/20/2013
Is this review helpful?
pretty straight forward and simple install. 6 bolts and 20 minutes later I have a great looking hitch on my 08 Xterra.77001
by: Holly04/16/2013
Is this review helpful?
I am very impressed with my experience purchasing my hitch form your company. It was delivered quickly, came with detailed instructions and all parts, along with best pricing I could find. The installation was as easy as the instructions made it look, the hardest part was searching my Xterra for the tool to lower my spare tire. I would recommend a purchase from Etrailer to anyone. 76285
by: Jim03/31/2013
Is this review helpful?
Was an easy install even by myself. Hardest part was getting the factory bolts out that were really torqued good. Removing the 3 exhaust bolts doesn't drop the exhaust but gives you plenty of wiggle room. Product fit great.73515
by: Tom T.02/23/2013
Is this review helpful?
Installed hitch on my 2010 Nissan Xterra after watching installation video My tail pipe did not move down as far as mentioned in video I called customer service and got excellent advice and explained the hitch would not fit as shown in video He suggested pulling in the ears on hitch with a come a long which I did and hitch went in very tight with a little assist from rubber mallet The wiring harness was a piece of cake to install The Videos are the best I have seen THANKS for a great looking hitch67511
by: George02/20/2013
Is this review helpful?
The hitch arrived with several areas where the paint had been scraped. The box had not been damaged, so the scrapes probably didn't occur during shipping. On my 2012 Xterra the bolts that had to be removed were so tight that using an ordinary socket resulted in nothing but splitting the socket. I turned the job over to a shop that has an impact wrench and sockets, and the hitch was successfully installed. The mechanic reported that the hitch is slightly wider than the distance between the frame rails, which made the job very difficult. In addition, most of the exhaust system had to be lowered. The installed hitch looks good and seems sturdy.67064
by: Andrew01/23/2013
Is this review helpful?
Went on smoothly, and had all proper hardware. 63907
by: HUMPREY01/22/2013
Is this review helpful?
Shipping was fast and product was very well packaged. Installation was very straight forward. It says that the muffler was needed to be moved or removed but I did not have to in my case. I just went under and placed and aligned the hitch and bolted it in place. I was done in less than 30min. Thanks again etrailer63819
by: CHRISTOPHER01/18/2013
Is this review helpful?
Hitch built strong, easy to install. Shipping was lightning fast. Ordered on Sunday, received it and installed on Tuesday. Wiring harness was also easy install. Highly recommend this merchant! 63510
by: Paul12/05/2012
Is this review helpful?
Product was 1st rate quality, install was straight forward as described as in the instuctions, perfect fit , install took about 30 minutes, Would recommend this product to anybody, looks great, works great, completely satisfied60784
by: peter G11/26/2012
Is this review helpful?
Easy to install took about 45 minutes. Def helps if you have someone else around to help you lift it while you bolt it on.( make sure to wd40 the bolt on holes helps when impacting back to frame)60013
by: Wayne P.11/09/2012
Is this review helpful?
We ordered on Sunday night and recived a response in 5 minutes. Thats's unheard of in todays world, what's more is that we recived the hitch wensday afternoon. It took about 45 minutes to complete. .Thanks for all of your help! V/R, Wayne59132
by: Ross11/06/2012
Is this review helpful?
GREAT 58905
by: John Evans10/22/2012
Is this review helpful?
Appears to be heavy duty. Better than expected when removed from packaging which was also done very well. 57864
by: John M.10/14/2012
Is this review helpful?
Great product, always great service! Thank you for always meeting my automotive needs!57205
by: Argy, LA10/10/2012
Is this review helpful?
Customer service was excellent and the hitch was delivered promptly. Installation took me about 2 hours, but would have been quicker if not for issues with lowering the exhaust on my 2007 Xterra. Even after unbolting two of the exhaust hangers, I was not able to get enough clearance to easily fit the hitch. Eventually, with much maneuvering, I was able to get it into place. You will need a six inch socket extender (which I did not have and made tightening harder that it should have been). Aside from that, everything was a breeze. Some additional information in the instructions might have helped. Highly recommended.56888
by: Joey D.09/27/2012
Is this review helpful?
Received my order on the promised date, it took me longer than usual to install it since its my first time to do such thing, over all I like how it looks on my '12 xterra....55972
by: jose c09/01/2012
Is this review helpful?
excellent service I will definitelly order from etrailer again, and again, thank you for care about your customers53770
by: glmiller308/27/2012
Is this review helpful?
Received product quickly and in excellent shape. It was missing the installation bolts, called Customer Service and new bolts arrived within a few days. Great service. It was too much for me to install by myself so I had to have a trailer place install it for me for $41. Maybe a younger or stronger person could do it alone. Overall I recommend etrailer for product quality, pricing and excellent Customer Service.53228
by: Steve Z08/14/2012
Is this review helpful?
Excellent product. Watch the video prior to installation. Easy install if you don't forget to use WD 40 on the bolts. It truly is "plug and play" with the purchased wiring harness and receiver My 15 & 17 year old boys had the installation done inside an hour and saved me a $300 dealer installation charge.51674
by: Sam m.08/08/2012
Is this review helpful?
Great product! Mine didn't just slide in. It took some effort and help from a jack, but the bolts lined up perfect and I can assure you it's not going anywhere.51053
by: Tracy H08/01/2012
Is this review helpful?
Just what I ordered and received it fast 50174
by: Wayne S.07/26/2012
Is this review helpful?
Installed on a 2010 Nissan Xterra Sport: Need big rubber mallet and two people. 49432
by: Jeff06/25/2012
Is this review helpful?
Hitch is great! Took much longer to install, even with a experienced macanic.45575
by: Jennifer Miller06/25/2012
Is this review helpful?
Not only did the hitch come in super fast but the installation was easy as pie on our 2008 Xterra.45510
by: SBS06/14/2012
Is this review helpful?
A very tight fit. The exhaust had to be lowered much more than the instructions or videos indicate. It had to be perfectly square to fit between the frame rails. Otherwise went well. 90 minutes.44200
by: nate w06/10/2012
Is this review helpful?
Quick and simple installation. love the info on the web site to help asses what is needed. 43591
by: Hensel05/26/2012
Is this review helpful?
The hitch and wiring installed perfectly. I love when it all goes together like it is supposed to! Thanks! 41756
by: Sam05/16/2012
Is this review helpful?
Product came in expected time and was delivered in perfect shape. Love love love the free shipping. Will buy again from etrailer!40692
by: Mike from Florida05/13/2012
Is this review helpful?
Quick fast and easy...thank you. 40254
by: Jamie05/10/2012
Is this review helpful?
Went with a little work with a rubber mallet. Easy install over all and very fast shipping. 39945
by: William Healy05/03/2012
Is this review helpful?
Hitch works wonderful and intend to get a lot of use out of it. Amazing tht nissan couldn't get this part and you had it here in days39298
by: J.P.04/24/2012
Is this review helpful?
I received the trailer hitch and it was packaged very neatly and in very good condition. The trailer hitch fit like a glove and and looked great! Along with the hitch a wiring harness and receiver was ordered and those also were in good condition and installed perfectly. All these items were of great quality and I would certainly recommend e trailer"s products and service to anyone in need of their services.38240
by: Greg P04/18/2012
Is this review helpful?
The Curt trailer hitch reciever is top notch. Everything looked great, its a two man job, the fit is tight and precise and aligning everything takes patience. I ordered the 2" mount kit also with 2 different drop height hitches, they are quality as well. All in all a nice towing solution. Just what my Nissan Xterra needed.37674
by: Joe03/12/2012
Is this review helpful?
A little tight between the frame rails. 33620
by: Mark02/21/2012
Is this review helpful?
Fast, east install. Great fit. 32167
by: Jeff J02/07/2012
Is this review helpful?
Product is awsome quality!! 31258
by: Jean01/25/2012
Is this review helpful?
The item was shipped and delivered quickly. I did the installation with one helper and it went well. The fit was fine, it was just a little tricky to get it into place. It is a snug fit and all the mounting holes lined up correctly. I did not modify the hitch as some other reviewers said they did. My installation took about 2 - 3 hours. Be sure you have the proper tools and torque wrench.30301
by: Sam01/03/2012
Is this review helpful?
Product came as expected. All hardware was included and directions were easy to follow. I did have a bugger of a time trying to get the existing bolts off of the bumper on the Xterra, but after that it was a piece of cake.29015
by: Richard01/02/2012
Is this review helpful?
Videos certainly give you more confidence but not necessary for this installation. Straight forward and can be done by one person. If your bumper hasn't had any work done on it and/or was torqued correctly, it should be a breeze. Otherwise, have a breaker bar handy. The fit is very tight and the most difficult step. As previous reviewers pointed out, you'll need a rubber/wood mallet, but you can also use a regular hammer if you protect the metal with a cloth or glove. High quality product, best price available, fast shipping, and great communications from the staff! An overall great experience.28975
by: Dennis H.12/27/2011
Is this review helpful?
Excellent hitch -- easy to install (7). The video was most helpful. Will recommend these products to everyone. Thank You.28731
by: Chung N. Lee03/26/2011
Is this review helpful?
A+++++++ 10466
by: Nick04/17/2009
Is this review helpful?
Great Product-Easy to Install Great1755
Ask the Experts about this Curt Trailer Hitch
Info for this part was:
At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time.
Installation Details
