Modulite Ultra Protector Wiring Harness w/Integrated Circuit & Overload Protection

Tow Ready Custom Fit Vehicle Wiring,Wiring

Rating: ratingratingratingratingrating
1 reviews


Code:   119192

Retail:$100.68

Price:$92.95

Shipping Weight: 1 pounds

Shipping Special
Quantity:




Tow Ready Custom Fit Vehicle Wiring,Wiring - 119192

Modulite Ultra Protector Wiring Harness w/Integrated Circuit & Overload Protection

Features:

  • Re-settable short circuit & overload protection safeguards itself and the tow vehicle against harmful electrical shorts and mis-wire situations
    • Automatically self resets
  • Virtually eliminates draw on the vehicle's taillight circuit
  • Taillight circuit has been upgraded to work with vehicles using Pulse Width Modulation (PWM), allowing converter to fully turn on, giving trailer lights full brightness during activation
  • Powers the trailer's stop, turn, tail and running lights directly from the tow vehicle's battery
  • Unit prevents feedback from trailer to vehicle system
  • May be used on 2 and 3 wire systems
    • When used on 2 wire systems, brake wire on harness must be grounded
    • Adapts a 3 wire system on the towing vehicle to a 2 wire system on the trailer
  • Will work on vehicles and trailers with either LED, incandescent, or standard bulb taillights
  • Works with most vehicles multiplex wiring systems for lighting
  • 4 or 5 flat plug sold separately
  • Optional install kit available to help run wire to vehicle battery - 118151
Warning:
Overloading circuit can cause fires. Do not exceed lower of towing manufacturer rating or:
  • Max. stop/turn light: (4.2 amps)
  • Max. tail lights: (16 amps)
Read vehicle's owners manual and instruction sheet for additional information.

119192 Modulite Ultra Protector Wiring Harness w/Integrated Circuit & Overload Protection





Video of Modulite Ultra Protector Wiring Harness w/Integrated Circuit & Overload Protection


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video FAQ Modulite Testing
Testing and Troubleshooting a Modulite Vehicle Wiring Harness

Video Transcript for Testing and Troubleshooting a Modulite Vehicle Wiring Harness

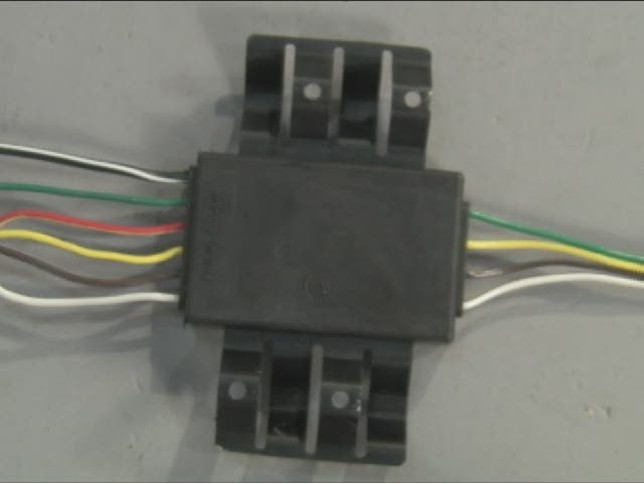

All right today we are going to go over how to check over a modulite as shown right here which converts a 5 wire to a 4 wire system. We are going to go over the basics which are really simple. Basically we are just going to test input into the modulite and test the output of the modulite. That will tell us one of two things, we have no input going into the modulite, that means there is something wrong on the car side of the connector, there is nothing wrong with the modulite. If you have power going into it, but nothing coming out then you know chances are it is the modulite or there is a problem on the trailer itself. When testing you always want to test these modulites or converter boxes without the trailer hooked up first.

So you rule out either A the trailer, B the converter box, or C the car it is hooked up to. Get yourself a good light tester, one that has an incandescent light that will withdraw enough power to give it enough load for the converter to work against. And of course this is your ground connection. All right and starting off what you want to do is take what you used for your ground wire on your wire harness you want to stick your ground clip of the tester to the same place. That will tell us if you have power going into it and will also tell us if the ground you are using is good also. We will go ahead and ground this to the same ground that we used for our wire harness here.

And so at this point we will go ahead test power. The first thing we are going to test is the black wire right here. And what that is going to do is make sure we have power going to be connected directly to the battery. So first off you want to make sure you have a good fuse going up to the battery. Check that, when that is good go ahead and make sure your have power going into the box. That way you know if you have any power interruptions or a bad connection or something like that. You are going to take your light tester and pierce the wire, and check for power. And we have power right here, so we know we have power going into it. And for the rest of the wires you probably want make sure you keep the engine on or at least the key on the on position so all the electronics are working in the vehicle. So then you will simply go through the rest of the wires and check to make sure you have power going into the box. So we will do the stop light circuit first which is going to be the red wire. Okay with the brake pedal pushed down the red wire lit up so we have power going in there, so that is good. Now the same thing, we will turn on the right-turn signal. So we have a right turn going in. So we will do the same thing for the left side. So now we know we have power going through the yellow, so that connection is good. The next thing will be our running light circuit, which is the brown wire. Okay so we have power going in there. So we have all the power going into it.

If you did not have power going into it the problem is one of two things, one it is either the physical connection to the car itself or two the ground is not good enough to begin with. So what you want to do is go ahead and find a different place to ground the wire harness at. Hopefully there is a piece of sheet metal or maybe you can find a factory wiring ground somewhere beneath the carpet somewhere in the vehicle. Or if you are not sure where to ground it one other option is to run a temporary ground from the white wire up to the negative post of the battery. That way you know you have a good ground and you can test your wires that way. That is another way you can check your input, so that is how you test your ground. So you have that car side covered, now what we are going to do is check the output to the trailer.

Again it is the same thing as before. So we left off with the running lights so we will go ahead back to the running light circuit on the brown wire on output. So that is good. Now do the same thing on the right-turn signal. What you want to do is test both sides of this because what happens inside the modulite is that it combines the brake signal coming from the red with green and yellow. So it brings it down to a four wire system. Now I have a good right-turn signal so I will do the same thing with the left-turn signal. We are good there too. Okay, you do not have to worry about the ground wire on this side because we already verified the ground on the input side. So if you have everything working as shown here that means this converter is working as it is supposed to. So the problem is probably going to be further down the road. It can be A, a dirty connection going to the trailer or B, it can be a problem within the trailer itself somewhere in the wire harness or tail light.


Customers compare 119192 to these similar products










Customer Reviews

Modulite Ultra Protector Wiring Harness w/Integrated Circuit - 119192

Average Customer Rating:  ratingratingratingratingrating4.0 out of 5 stars   (1 Customer Reviews)




- 119192

ratingratingratingratingrating by: John04/16/2013

Is this review helpful?


Regarding your adapter for trailer lights for my New 2013 Audi A-4. I like the product. It works fine and the quality seems very good. Thanks. However the directions leave a lot to be desired. 1- I wish it had a sheet saying how a car should be wired. For instance you state that some VW-GTI's and some Mercedes have a "different" system . that left me worrying that perhaps I had a different syst. because Audi has always had amber taillights in the past, I was worried I might be hooking up wrong. A list stating "2013 Audi A-4 - standard 2 wire syst." 2-I wish you would state clearly what a 2 wire syst. is and what a 3 wire is. To a non professional installer it makes no sense. A non amber 2 wire syst. has four wires including ground and a 3 wire has 5 wires inc ground. It left me wondering if the new electronic cars somehow use two or three wires. 3- The directions should have separate diagrams for 2 and 3 wire. the red wire going to ground makes no sense as this seems like a hot lead to chassis ground. Obviously it is not, but There was head scratching here. The label on the wire itself cleared this up, but I was reading the directions and did not notice the tag at first. 4- The wires should be labeled "in" and "out" It becomes obvious that the short set is to connect into the rear corner of the car, but it would be nice to confirm that. 5- The two green wires. These Must be marked better! One is about 12in. longer than the other, and the short one is the same length as the out bound wires. so I assumed that the short one was outbound and the long one goes to the right corner for right directional. This was backwards. I now had to cut both green wires and reverse them, which adds two more connectors in the system than I would like. I am an "advanced amateur" installer. I have probably installed about 30 taillight plugs on my various cars, both two and three wire. This is the first in which I needed a wire from the battery. I would have certainly appreciated a paragraph regarding why this is necessary. Not critical, but helpful to understanding. I appreciate that you make this product. The local Audi dealer has no idea regarding this. The dealer said "go to a trailer place" I now have working trailer lights on my New Audi. My business is selling and servicing German Sailplanes. It is completely necessary to have trailer towing capacity in my business for these lightweight 1400 lb trailers. A separate instruction sheet with the above areas covered would go a long way to making the installation of your very useful product much more simple.76342

comment on this review


Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring,Wiring
Expert Answers about Modulite Ultra Protector Wiring Harness w/Integrated Circuit & Overload Protection - 119192                                            Do you have a question about this Custom Fit Vehicle Wiring,Wiring?


  • Recommendation for Wiring a Camper to a 7-Way Wiring Connector
  • What I would do in your situation is take a trailer side 7-way like the # H20046 and make an adapter out of it for your camper. So when the camper is in your truck you could just plug in the adapter to the 7-way located in the truck bed. Without knowing what the wiring of your camper is like I attached a picture of a chart that shows the wiring code of the # H20046 so you would know how to wire it to your camper. This will allow your trailer to still be able to use the 7-way at the rear.
