Modulite Power Converter 5-Way Flat and Circuit Protection with Hardwire Kit and Tester

Tow Ready Custom Fit Vehicle Wiring,Wiring - 119177KIT

Modulite Protector with Integrated Circuit & Overload Protection, Hardwire Kit and Tester

• Features:
  • Standard 5-Flat Connector for backup light or surge brake lockout circuit
  • Works with 2 or 3 wire light systems
  • Works with either LED or Incandescent bulbs
  • 7.5 amps for the tail light circuit and 4.2 amps for the turn/stop & backup circuits
  • Blue wire designed to override surge coupler for backing up
  • Will also work with standard 4-flat connector
  • Has integrated re-settable short circuit and overload protection
  • The trailer brakes will override the hazard lamps when the brake is activated
  • Designed not to send feedback through vehicle circuits
  • Upgraded circuitry works with vehicles that use a pulse width modulation (PWM); this gives the trailer lights full brightness
  • Double-sided tape for mounting
  • Draws power directly from the tow vehicle battery; uses less than 5 milliamps of the vehicle circuit

Included with Hardwire Kit:

• Modulite Wiring Harness (119177)
• Modulite Install Kit (118151)
  • 20' of 12-gauge wire, ring terminals, and inline fuse for battery connection
• Circuit tester
  • To help find wires behind vehicle tail lights to gather signals
• (5) Quick splice wiring connectors
  • Makes tapping into wires quick and easy
• LED 5 Pole Cover
  • Protects 5-pole connector from the elements

119177KIT Modulite Protector w/Integrated Circuit & Overload Protection, Hardwire Kit and Tester

Video of Modulite Power Converter 5-Way Flat and Circuit Protection with Hardwire Kit and Tester

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

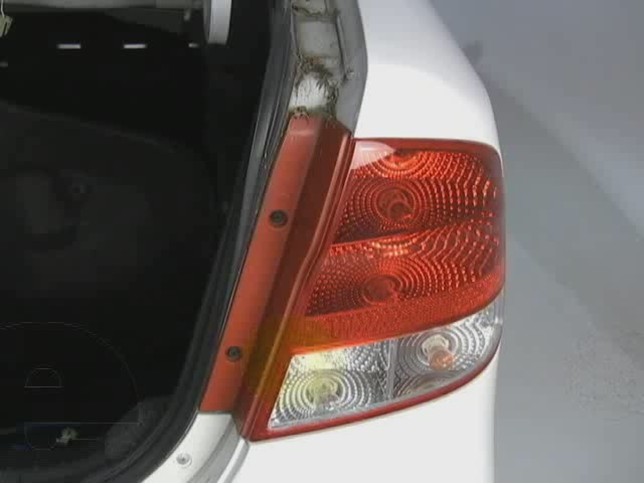

5 Wire vs 4 Wire System Demonstration

Customers compare 119177KIT to these similar products

Upgraded Circuit Protected Taillight Converter Hardwire Kit with 4 Pole End (Includes Testers)$35.44

Upgraded Heavy Duty Modulite Circuit Protected Vehicle Wiring Harness with Install Kit$78.89

Curt Circuit Protected Powered Converter w/ SMT$24.79

4-Pole Hardwire Kit Including Circuit Tester$14.97

Upgraded Heavy Duty Modulite Circuit Protected Vehicle Wiring Harness with 4 Pole Trailer Connector$56.85

Customers Who Purchased This Custom Fit Vehicle Wiring,Wiring Also Bought...

Wire - Jacketed 7-Wire - per Foot $2.07

Tekonsha Prodigy P3 Trailer Brake Controller - 1 to 4 Axles - Proportional $144.15

Customer Reviews

Modulite Power Converter 5-Way Flat and Circuit Protection with Hardwire Kit and Tester - 119177KIT

Average Customer Rating:  4.0 out of 5 stars   (1 Customer Reviews)

- 119177KIT

by: Jeff Mc09/29/2012

Is this review helpful?

Nice product. Works as intended. Only problem is the lack of a mounting bracket. The plastic case has a slot molded in for a bracket - but no bracket is included! A couple of adhesive mounting tabs and cable ties might hold it, but I wouldn't risk the consequences of dragging it down the road when it falls off. I made up the aluminum bracket that should have been included.56146

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

Click to Enlarge

Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring,Wiring

• Will the 5 pole Wiring Harness Fit on a 2004 VW Touareg V8 with No Electrical Problems

• The Universal Power Converter 5-Way Flat and Circuit Protection with Hardwire Kit and Tester, item # 119177KIT, is compatible with your Toureg. This wiring harness will install the same as the wiring harness that is recommended for your vehicle, item # 119176KIT, with the exception of the extra blue wire that is connected to the vehicle reverse light circuit for locking out surge brakes on boat trailers. The reverse light circuit is also circuit protected to protect your vehicles sensitive circu
  view full answer...


• Trailer Wiring Harness and 5-Way Flat Adapter for a 2003 Honda Odyssey Towing a Boat Trailer

• First, you will need to install Trailer Wiring Harness # 118336 on your 2003 Honda Odyssey. I have incldued a link to the installation instructions and a link to a video showing a typical installation for you to view. Since the boat trailer has a 5-Way flat connector, the 5th wire is probably for an electric reverse lockout. You will need to add 4 Pole to 5 Pole Trailer Wiring Adapter, # 20036. The additional blue wire will connect to the reverse light circuit behind one of the vehicle tail
  view full answer...


• Tail Light Converter Needed to Equip a Motorcycle with a 4-Way Flat Plug

• If the 4-Way wiring you currently have has a black converter box in the middle, then you should already have what you need to wire your motorcycle. On the side of the box that has loose wires, you should have a white wire for the ground, a green wire for the right turn signal, a yellow for the left turn signal, and a red for the brake lights. As long as you have a converter with a wiring layout like this, you would just hook up the yellow and green wires to the turn signals on the appropriat
  view full answer...


• Trailer Wiring Needed to Tow a Boat Trailer with a 2011 Land Rover

• You are not being mislead. The line of Land Rover vehicles have European wiring, sensitive circuitry and computers that require a circuit protected and converted wiring system for towing American made trailers with combined trailer lighting. Since you mentioned a 5-Way connector, you would also need to protect the circuit coming from your vehicles reverse light circuit. The only wiring harness that we stock that provides protection for the reverse light circuit is the Tow Ready 5-Way Wiring K
  view full answer...


• Wiring a 5-Way Flat Trailer Connector on a 1992 Ford F-250 and F-350

• Wiring a 5-way flat connector on your 1992 Ford Truck should be a fairly simple process. You have two options for wiring a 5-way flat connector which are hard wiring a new wiring harness or adding an adapter. To hard wire a 5-way connector you will want the 5-Flat Vehicle End Wiring Harness, # 20016. To install this wiring harness you will cut off your 4-way connector and splice the wires from the 5-way flat into the wires from the 4-way connector color for color. There will be an additional
  view full answer...


• Powered Tail Light Converter for a 2008 BMW X3 and Trailer with Separate Brake and Turn Lights

• The # 119177KIT could be used on your 2008 BMW X3. However, in addition to the 5 wire converter, you will need another converter, # 118158. The reason is the 5 wire converter will combine the brake and turn signals. Since your trailer has separate turn and brake lights, the second converter is needed. The running light circuit will bypass the second converter. Only the ground, right turn/brake and left turn/brake will going into the converter. What I would do is cut off the 5-Way connector o
  view full answer...


• Adding a 5-Way Trailer Connector to a 2012 Audi Q5 to Tow a Trailer with Electric Reverse Lockout

• The best option to add a fifth pin for the reverse light circuit on your 2012 Audi Q5 will be to install the Modulite Wiring Harness, # 119177KIT. The reverse light circuit on your vehicle likely uses pulse width modulation (PWM) like your other tail light circuits and would require a wiring harness with a powered converter box that can detect PWM. Since you already have a PWM wiring harness installed on your vehicle, you could just cut the wires from the input side of the converter box and
  view full answer...
