Rating:
89 reviews
Code: 118438
Retail:$49.69
Price:$39.95
Shipping Weight: 2 pounds
Shipping Special
Tow Ready T-One Vehicle Wiring Harness by Draw-Tite, Hidden Hitch and Reese
Can be used with 5-pole, 6-pole or 7-pole adapters.
Installation: Connection point is located in the black electric junction box in the rear cargo area on the passenger side of the vehicle. A 7.5 amp fuse is included to activate the port in the electric box. The 4-pole trailer connector will be stowed in the jack storage compartment on the driver's side.
Tech Tip: It is always a good idea to apply a small amount of grease to all electrical connections to help prevent corrosion.
Video of T-One Vehicle Wiring Harness with 4 Pole Trailer Connector - Honda Odyssey
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

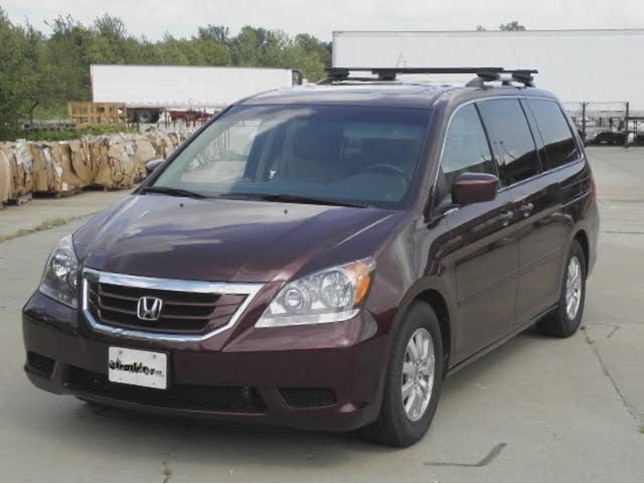

Today on this 2010 Honda Odyssey, we are going to install part number 118438 from Tow Ready. The first thing we need to do is get to the rear of the vehicle. We are going to open up the back hatch. And the first thing that we need to do is remove the rear threshold right here. We will start off by removing the tie-down anchor points right here. And they just unscrew. Alright, and there is a series of clips on the top right here. We will go ahead and undo those. And there are some on the backside here we can simply just pull out with our fingers. Alright, now we are going to do the same thing with this panel here, but we are not going to take it all of the way off. We are just going to loosen it up so we can get behind it. We have one more anchor point that we need to remover here too. We are going to take our lid off of our jack storage compartment and we are going to pop it loose too. And we just need to move just that little bit. That is all we need. 1:07
Alright, getting back to our passenger side of the vehicle, we will show you where the port is for you to plug in the t-one connector. Alright, we are looking at the junction box here. It is in the top right hand corner. We are looking at it, basically facing out the back of the vehicle. We will take our t-connector and we are just going to plug it right into the socket here. Find a nice place for the module. We are just probably going to stick it back here somewhere. Then we are going to take our white ground wire and we are going to attach it to this ground right here. Alright, we will go ahead and leave that alone now. We are going to run our 4-pole wire here, along the factory harness back over to the other side. We are going to slip it underneath the plastic and hide it inside the jack storage compartment. Alright, once we have that accomplished, we will go ahead and just zip-tie the wires to secure everything together. At this point, we can go ahead and start popping the interior panels back together. 2:18
With that, our install is basically complete. We will go ahead and show you how to use it now. First off, when you are not using it, this whole wire harness will stay inside the jack storage compartment. And everything will be hidden out of the way. And when you need to use it, just go ahead and pull out a little bit of the length, go ahead and set it down here. The door shield is plenty thick it will not hurt anything if you shut the door on it. Just make sure that you stay away from the latch though. OK, we shut the hatch. Now we can go ahead and just pull out what we need to reach down to our hitch. We are done with the wiring harness out back. Let us go up to the front of the vehicle where the fuse panel is. And it is going to be on the passenger side of the vehicle. You just want to go ahead and just pull out this lid. This slot right here is where our fuse will go. Alright, now that we have our fuse in the panel, let us go ahead back to the 4-pole and test to make sure everything works. 3:10
We will test our 4-pole by taking our ground clamp and connecting it to the white wire. Then we will test our running light first, that will be the brown wire. OK, then we will try our left turn which will be the yellow wire and then right turn, which will be green. And now test our brake signal, which will be the yellow and green wire. OK, with that it looks like our test works just fine. And that will finish our install for part number 118438 from Tow Ready on our 2010 Honda Odyssey.
2005 - 2010 Honda Odyssey
Customers Who Purchased This Custom Fit Vehicle Wiring Also Bought...
Average Customer Rating: 4.9 out of 5 stars (89 Customer Reviews)
by: Art01/03/2011
Is this review helpful?
Honda Odyssey Photos of trailer wiring installation4909
by: Matt06/20/2011
Is this review helpful?
Installed on a 2008 Honda Odyssey. Very easy and fun install. Works perfectly. Amazing fast shipping! Ordered late on Wednesday and received on Friday. A+! 17375
by: Adam01/19/2012
Is this review helpful?
Super fast shipping. I had no clue what I was doing and the install took 5 mins total. Everything works great. I would highly recommend etrailer.com for any wiring harness need!29900
by: John H.12/21/2011
Is this review helpful?
Very easy installation, easy to follow instruction I was up and running in a matter of minutes even though it was my first time installing the product.28450
by: Todd S.12/16/2011
Is this review helpful?
Arrived in a couple days and fit my Honda Odyssey perfectly. The youtube video showed me everything I needed to know for the installation which took about 30 minutes.28200
by: Kris K12/05/2011
Is this review helpful?
Simple, straightforward directions and pictures, everything fit and functioned the way they should, and there were no surprises. Good product, good price and etrailer.com made it quick and painless. 27788
by: Andy G.10/28/2011
Is this review helpful?
Works on my 2009 Honda Odyssey 26308
by: Brian P10/25/2011
Is this review helpful?
Easy, Easy, Easy. A 10mm socket and small pry bar for the plastic panel clips are the only tools needed.26083
by: Richard A.10/25/2011
Is this review helpful?
Hitch and wiring package arrived less than 72 hours after the order was replaced. The video on the installation of the hitch covered what I needed to know, and the hitch fit exactly. The video is a great resource, making it clear what is involved in the install.26079
by: Chad A.10/21/2011
Is this review helpful?
Awesome! Thanks! 25937
by: Fred R10/19/2011
Is this review helpful?
Product received promptly at a fair price. Installed trailer wire kit in about 1 hour 15 minutes without any trouble on my 2009 Odyssey. Most of the time was reinstalling the fiberglass panels as the fasteners had stayed in the metal frame. I did view the on line installation video prior to my installing. Would recommend the kit to anyone. Sorry I didn't take any jpegs of installation.25808
by: L. Murdock10/10/2011
Is this review helpful?
I was in a hurry to get the item but did not want to pay for the overnight shipping. I contacted customer via email and asked them to get it to my house before that Friday (I ordered Sunday). The customer service rep emailed me right away thanking me for contacting them and they would process the need ASAP. The next day early in the morning I breath a sign of relief when I see my tracking number and confirmation that the product was sent! That was awesome. I got it Thurdays and it took me 10 minutes to install with easy instructions. I watched the instruction video prior to getting it and it walked me right through what was needed. I didn't need any tools and everything was in the package! The materials were top rate and it was VERY convenient not to have to splice wires and try to figure the lighting specs out. This is the second time I have ordered from etrailer.com and I would recommend anyone to them. Thanks ETRAILER for making it an easy transaction and installation. Sincerely, L. Murdock 25317
by: Eammon C.10/03/2011
Is this review helpful?
Another win for the Honda engineers. With the power distribution center in the back of the van there was no need for splicing or complicated wiring, just plug it in, route and secure the wires, install the fuse and button it all back up.25004
by: dad in georgia09/19/2011
Is this review helpful?
Works perfectly. 24203
by: Mike M09/16/2011
Is this review helpful?
Wow, These guys are Fast!! and fast self install.24073
by: Brian08/31/2011
Is this review helpful?
Simple to install, worked perfect on my 2009 Honda Odyssey first try. 23242
by: Jeff F.08/25/2011
Is this review helpful?
Before I purchased this product I watched the install video. It looked pretty easy to do and was actually easier than it looked. It took about 10 minutes to complete and it worked!22815
by: Dave V.08/23/2011
Is this review helpful?
If you watch the video there is nothing I can add here, I did make the investment in a door pulling tool to pull the plastic anchors, already been put to use again. Great info, and super easy. 22545
by: Kirk G.08/22/2011
Is this review helpful?
Installed in no time just like the video guide. Very pleased. Fast shipping too!22500
by: Bob08/19/2011
Is this review helpful?
Easy to install. Read and follow the di rections.22119
by: Ben B.08/05/2011
Is this review helpful?
The T-One wiring harness installation on our 2005 Honda Odyssey was very simple and the instructions were 100% correct. It only took about 15 minutes to install and I couldn't believe it was that easy.21177
by: Eli Tabak07/25/2011
Is this review helpful?
Installation was easy. Works fine. Good instructions. 20233
by: baker .s07/23/2011
Is this review helpful?
harness was easy to install took about 10 to 15 minutes20039
by: Everett07/22/2011
Is this review helpful?
The wiring harness is awsome. Plug and Play (no splicing wires.) Comes with everything(new fuse and label). I also like the fact that the plug hides in the jack compartment (no worries of it dragging). WATCH THE VIDEOS....you'll be done it minutes.19856
by: Matt J07/16/2011
Is this review helpful?
Thought these reviews were a little slanted....I was wrong! Top quality product, great instructions, every detail accounted for. The kit came with a pre-printed label for the fuse legend...seriously! Some DIY abilities required, but you wouldn't be shopping here if you didn't have those. I will do business here again!19542
by: Duane07/15/2011
Is this review helpful?
All good. Simple. As advertised and e xpected.19464
by: Cory B.07/11/2011
Is this review helpful?
Delivered quickly and secure. Product was very easy to install thanks to the helpful videos. Thank you!19122
by: Doug C.07/08/2011
Is this review helpful?
Hooked it up after watching the video. Didn't have to read anything. The only thing is that the passenger side panel is a little tricky to pop back in place. Other than that, it was pretty painless. I ordered this July 6th and it came in the mail July 8th through standard shipping!18931
by: Larry D.07/07/2011
Is this review helpful?
Great shipping and great product. 18848
by: Paul M.07/07/2011
Is this review helpful?
Almost plug and play. Quick and simple installatio Excellent product which does the job well.18760
by: David S06/28/2011
Is this review helpful?
Instructions were perfect...installed in minutes and worked flawlessly.18134
by: Daniel C.06/27/2011
Is this review helpful?
I was very pleased with the customer service. My order shipped quicker and arrived sooner than expected. All along I was given feedback on the status of my order. Excellent! The product fit was excellent. Etrailer lived up to their end. I will recommend them and shop here again.17993
by: Bienvenido F.06/26/2011
Is this review helpful?
Very good product. thank you. Fast del ivery.17970
by: Brian P.06/25/2011
Is this review helpful?
Took me about 10 minutes to install the wiring. Very nice product and nice easy install. The directions were very clear. 17920
by: J.T.06/20/2011
Is this review helpful?
Product was easy to install and everything fit perfectly. The pictures and instructions were as the actual vehicle was.17468
by: Dave06/16/2011
Is this review helpful?
Very happy with the quality of this product and the install was very simple. Install video from the site is very helpful. Would recommend both the harness and the supplier.17121
by: Cole E.06/13/2011
Is this review helpful?
Watched instructions online and in 10 minutes had trailer lights! Product worked great.16823
by: jeff o06/07/2011
Is this review helpful?
Item was exactly as described and was installed exactly as the video showed. Item shipped faster than expected. Overall I have been extremely implress with etrailer. Unsure about what the warranty is though.16364
by: John G05/31/2011
Is this review helpful?
Outstanding. Ordered it online Wed and it came Saturday. Installation video was a great help for project. In fact the video was so good, I didn't really use the written instructions. Installation took about 1/2 hour with no problems. The video made mention of using a trim tool - I used a dandelion extractor from my gardening tools which worked fine.15792
by: Eric S.05/30/2011
Is this review helpful?
Wiring harness plugged right into the module on my 2007 Odyssey. It was very easy to install. It was supposed to come with a 7.5A fuse but I couldn't find it in the package. For what I paid for the harness I was happy to buy my own fuse,15715
by: Alan05/22/2011
Is this review helpful?
Easy to install!!! 15073
by: Greg05/19/2011
Is this review helpful?
Hi, your product was shipped fast. The instruction were perfect as well as your product.I am going to spread the word, on how everthing went. Thanks again. Greg Barton 14805
by: Frank G05/18/2011
Is this review helpful?
The trailer wiring kit was easily installed and worked properly! The cost of this wiring kit was also very economical.14732
by: Frank G05/18/2011
Is this review helpful?
The trailer wiring kit was easily installed and worked properly! The cost of this wiring kit was also very economical.14731
by: Will Chauvet05/17/2011
Is this review helpful?
Great product. All of what's needed is in the box and it's very easy to install. Thank you.14553
by: Hugh05/16/2011
Is this review helpful?
By showing how to actually remove the panels and and make the connections, it was much easier to complete the installation rather than just relying on the printed process steps, but both were helpful and complemented each other. 14241
by: KSH05/16/2011
Is this review helpful?
Great price and easy installation thanks to the online video and supplied instructions.14237
by: Ken P.05/16/2011
Is this review helpful?
Shipped right away....Excellent product.... Worked perfectly and the installation videos were very helpful!!!! Thanks!!! 14201
by: Brian W.05/16/2011
Is this review helpful?
Just as described, really easy to install! Great Product14151
by: Steve N.05/11/2011
Is this review helpful?
This product was complete and trouble free. I am not an electrician, and besides changing my own oil, not much of a mechanic. However, with the videos and the detailed instructions, I was able to install this myself in about 40 minutes! I recommend you guys to everyone who I know is purchasing a hitch, etc. I can't believe anyone would pay someone else to do the installations that you outline so easily. After I installed the hitch and wiring, I put my tools away, and felt like the Master Mechanic! 13348
by: good product, easy to install05/10/2011
Is this review helpful?
good product, easy to install, great instructions included and available on etrailer.com so it took 10 minutes to install.13208
by: Jim M05/05/2011
Is this review helpful?
Got it today...really quick! Had it installed in about 20 minutes! No problems. 12966
by: Scott K05/04/2011
Is this review helpful?
Wiring harness had very good instructions and installed easily.12890
by: Dana04/13/2011
Is this review helpful?
Wiring harness was very easy to install. 11654
by: Haddon,A04/01/2011
Is this review helpful?
Super fast shipping, upgraded by you for free !! Service well appreciated. Easy to follow installation video on your website, I love that feature. Works like a charm, thank you so much. 10923
by: Todd D.03/26/2011
Is this review helpful?
Easy to install with the help of the video on the etrailer site.10441
by: David P.03/25/2011
Is this review helpful?
Great website and online ordering. 10371
by: EricO03/24/2011
Is this review helpful?
The wiring harness was easy to install. In total it took about 15 minutes. Watching the installation video was very helpful. 10237
by: GregM03/19/2011
Is this review helpful?
This was very simple to install and works as described. The video for the honda odyssey installation was helpful. 9820
by: Jimmy M.03/03/2011
Is this review helpful?
Installed this wiring adapter on a 2010 Honda Odyssey. Installation was pretty easy. The online video was a big help in seeing how the cargo panels come off. etrailer's customer service was great as usual. 8380
by: DrZWave02/28/2011
Is this review helpful?
Easy to install myself. The video made all the difference as I could see how easy to really is and knew I couls easily do it. Took about an hour. The unit is very solid and strong. I highly recommend it!8020
by: Ted H.02/27/2011
Is this review helpful?
The wiring harness is clearly quality made, and easily installs exactly like the video shows. I like the built-in connector cover. When the harness is to be used, it is removed from the jack storage area and simply run out the back door, which is closed on the wires. I don't much like that, and would prefer some way to get the connector permanently outside the vehicle where it can be secured near the hitch, as on most vehicles, but maybe that's just not practical on the Ody.8012
by: Tom P.02/25/2011
Is this review helpful?
The wiring harness for my 2005 Honda Odyssey was easy to install and works fine. The installation vidio was very helpful. The Hidden Hitch trailer receiver was easy to install fit very well, here again the installation vidio was very helpful. Very satisfied with both products.7914
by: Paul M..01/27/2011
Is this review helpful?
Wiring kit was better than expected with all the necessary parts right down to the small label for the fuse box I D point. Very well thought out product and great communication from e-trailer staff. Installation was super easy and fast. Thanks for a great product E-trailer.com .....6196
by: kevin01/24/2011
Is this review helpful?
video on this site makes installation very fast and easy with no visible wires when not in use. Very pleasant experience buying from this site.6000
by: Tom D.01/10/2011
Is this review helpful?
Honda Trailer Lighting Simple installation and etrailer's video explains the installation so that even a novice can install it.5287
by: Joe C12/25/2010
Is this review helpful?
Installation a snap Quick order & ship. Very happy w/product. Installation on my '05 Odyssey went exactly as described in the video. The install docs were pretty clear as well. Installation took less than 20 minutes. Would definitely order again.4607
by: Finn Sailor12/18/2010
Is this review helpful?
Turnkey solution Product # was located in a minimum number of steps. Installation instructions were available in print as well as video form. More importantly, instructions were concise and unambiguous.4332
by: Curtis12/10/2010
Is this review helpful?
wiring harness for 2010 Odyssey Easy to install. I don't miss cutting and splicing into vehicle wiring harnesses! Save yourself the hassle and order the T-one.3959
by: Brent M.08/16/2010
Is this review helpful?
Easy Install Super easy to install. I am not handy and this was complete in about 20 min. I did use the Honda OEM wiring installation instructions for detail pannel removement. Very handy and I like the idea of keeping the harnes in the jack stand compartment - salt free. Haven't used it yet but I expect it to work great.3357
by: David08/05/2010
Is this review helpful?
Wiring Installation Excellent product and good directions from the video. I installed this on my 2005 Honda Odyssey, and no lie it took less than 15 minutes. (I watched the video 2-3 times so I had a good idea of what I was doing) No special tools needed, and I am not the most mechanically inclined. It also comes with the fuse, that goes in the front of the Honda, so that was a good bonus.3322
by: Dan R.08/01/2010
Is this review helpful?
Video showed exactly how! This product fits my 05 Odyssey perfectly as advertised...gently prey open the pastic panels and plug it in, attach ground and you're done. The video shows exactly how...just watch it and then do it.3308
by: Ken Mc05/20/2010
Is this review helpful?
fit like a glove Very nice set up, fuse included and label for fuse box. Wire is long enough to run across the back and curl up in the jack storage area. Took longer to get the trim back in place than put the wiring harness in place!3050
by: frankell12/14/2009
Is this review helpful?
installation quick and easy very quality product 15 to 20 minutes at most to install.2594
by: Duke09/15/2009
Is this review helpful?
Wiring was very easy. Video and instructions were great making the whole installation very simple. Very professional result, totally hidden.2404
by: Jimmy D09/01/2009
Is this review helpful?
Breeze to install DON'T pay for someone else to install this. Less than 15 minutes and ready to go. 2328
by: Gregg F.08/20/2009
Is this review helpful?
Terrific Product! Just intalled this 4-way connector on my '05 Odyssey to be used with etrailer's ETBC7 7-way plug for a pop up trailer connection. This product was very easy to install with after viewing the etrailer video. I probably saved over $200. 2283
by: David A.08/11/2009
Is this review helpful?
Fast And easy install A+++++++ Wiring Harness for a 06 Honda Odyssey. Easy install. Took only 20 min. Works great and looks great. The video on the website really made the install a breeze. Thanks guys for the lightning fast shipping. A+++++2228
by: mr.e-man06/06/2009
Is this review helpful?
Solid Product at an Easy Price I must admit, I'm a weekend mechanic and was a little hesitant to dive in to this project. I've worked with plastic parts that just "snap" together/apart before. My experience has been that they are flimsy and break easily. However, the install video from eTrailer.com gave me reassurance that I just might be able to do this. I did!! It wasn't the 20 minutes that some have reported, but it wasn't over 45 minutes AND everything went back together. Hooray!! I had a little trouble with a few of the plastic snap grommets that hold the trim pieces on. Some stayed in the body mounts when the trim panels were removed. I just used some needle nose pliers and was able to pop them out and put them back in the trim before reinstalling. I'm going out on a limb and giving this product 5 stars for Reliability and Performance, even though I just installed and haven't used it yet. But there's certainly no argument that the price was great, I saved myself the cost of paying an installer, and I got to "love" my van a little more. Thanks eTrailer for the great prices and the wonderful install videos. I'll be sure to visit again when I need something on your product list.1951
by: Anatoliy K.03/23/2009
Is this review helpful?
Perfect Satisfaction Nice kit. Well worth 40 bucks. About 5 minutes for installation. Just plug n play. 1673
by: Bill D.02/07/2009
Is this review helpful?
Very easy to install Bill D. in Alabama. This is a great product. Easy to install,and a great video. A real no brainer. Thanks1555
by: Bill C.12/02/2008
Is this review helpful?
So easy a cave man could do it This was a no brainer. It took 10 minutes to install. Great installation video!1444
by: Joe S.10/31/2008
Is this review helpful?
Easy to install Product was easy to install. Just watch the video and do the same.1400
by: Barry E08/27/2008
Is this review helpful?
Great item,Buy it Very easy to install.Just follow the instructions.Took 15 minutes,works great1233
by: 1st Time Towing06/16/2008
Is this review helpful?
Excellent Product and Video I think your videos are brilliant! (Someone deserves a raise) They really made the job of installing the wiring easy. I bought, and will soon return, a wiring harness from a national chain that did not have the T-one connector and had very vague instructions. They would have had me splicing wires…totally unnecessary when the van is pre-wired for a plug-in harness!!! Thanks to your video I did not install theirs. After trying theirs, I bought yours. It really was easy. 15-20 minutes. Also, seeing the same year and model van helped to find the hidden snaps for the interior, that saved me some time and left the van in better shape (I would have left many marks and scratches trying to get the covers off) I will recommend etrailer.com to anyone. 966
by: Gregg B.05/25/2008
Is this review helpful?
install video on youtube Quick install. Watch the video on you tube.903
by: Doug05/08/2008
Is this review helpful?
Plugged right in Plugged in and was working in about 20 minutes. No issues.835
by: Brian04/21/2008
Is this review helpful?
Easy to Install! Hi All at etrailer, The install video was great, the detailed instructions that came with the harness was icing on the cake. I had everything taken apart and put back in about 10 minutes. The dealership wanted $150 for this part and another $150 to install it!!! I will be back next time I have any towing needs and will highly recommend your web site. Thanks, Brian783
by: Kenneth S.10/11/2007
Is this review helpful?
Very easy to install. Simple and easy to install. Common household tools needed. Pluged into factory outlet so no wiring damage to factory wire harness.456
Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring
Related Products...
Installation Details
