Custom Fit Vehicle Wiring Tow Ready 118433

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Rating: rating rating rating rating rating
49 reviews

Code: 118433

Retail:$51.18

Price:$42.95

Shipping Weight: 1 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Trailer Wiring Harness Installation - 2009 Hyundai Sonata - Video
Trailer Wiring Harness Installation - 2007 Hyundai Sonota - Video
Trailer Wiring Harness Installation - 2006 Hyundai Sonata - Video
Trailer Wiring Harness Installation - 2009 Kia Optima - Video

Tow Ready Custom Fit Vehicle Wiring - 118433

Quickly and easily install a 4-way trailer connector on your vehicle with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Circuit-protected converter guards against shorts.

Features:

Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
- Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
Connects quickly and easily - no cutting or splicing of wires
- Locate connection points in trunk
- Plug in T-connector
Includes circuit-protected tail light converter to ensure that your vehicle's wiring matches that of your trailer
- Provides protection against electrical shorts and overloads
Constructed of 16-gauge bonded wire
Comes with dust cap for 4-way flat connector

Specs:

Maximum amperage:
- Stop/turn lights: 2.1 amps per circuit
- Tail lights: 5 amps per circuit
1-Year limited warranty

Installation

This custom-fit T-One connector plugs into your vehicle's wiring harness, which is located inside your trunk, behind the tail lights on both the driver's side and passenger's side. You will need to remove some interior trim or carpeting to access the harness.

Once installation is complete, the 4-way flat connector will be stowed within your trunk.

It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

Circuit-Protected Tail Light Converter

A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your vehicle's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your vehicle operate.

This converter safeguards itself and your vehicle against possible electrical shorts and overloads with integrated short circuit protection. Just install the connector as indicated and rest assured that the wiring system of your vehicle will remain feedback-free.

118433 Tow Ready T-1 T-Connector - 4 Wire

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

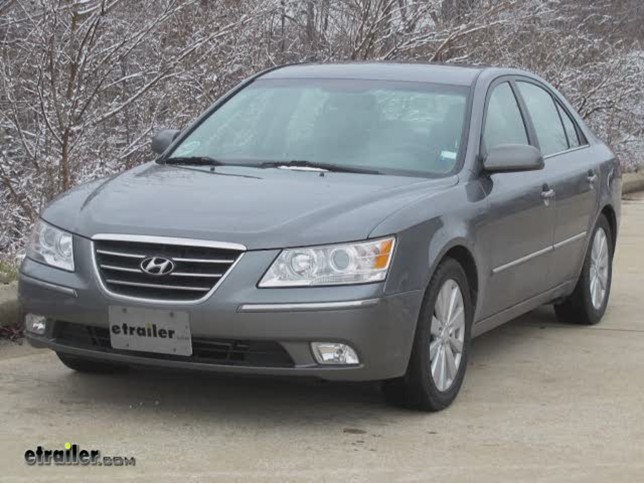

Video install trailer wiring 2009 hyundai sonata 118433

Trailer Wiring Harness Installation - 2009 Hyundai Sonata

Video wiring install 2007 hyundai sonota

Trailer Wiring Harness Installation - 2007 Hyundai Sonota

Video wiring install 2006 hyundai sonota

Trailer Wiring Harness Installation - 2006 Hyundai Sonata

Video install trailer wiring 2009 kia optima 118433

Trailer Wiring Harness Installation - 2009 Kia Optima

Video Transcript for Trailer Wiring Harness Installation - 2009 Hyundai Sonata

Today on our 2009 Hyundai Sonata, well be installing Tow Ready T1 Connector part number 118433. Well begin by opening the trunk. Now well need to remove the threshold and the fasteners for the interior to expose the wiring for our tail light. To remove the threshold molding, well simply reach under the trim with our trim tool, locate the tabs that are holding it in place and pop them free. Well now move on to the carpet covering the tail light wiring. Well need to pull the threshold molding away from the vehicle as there is a clip up here that holds the carpet in.

We can simply undo the clip then remove the pushpin clips from the vehicle which will allow us to fold the carpet down and away to expose the wiring. Now, our T1 connector will connect into the harness here at this white connector. Well simply unplug the connector. Well then take our T1 connector and plug it in line with the harness. Well also need to locate a point for our ground.

Now our vehicle has a stud and nut here located right next to the connector which will supply as a good ground for this product. And grounding the T1 connector, its always a good idea to find a non-painted surface to connect to. And with our ground secured, we can now take our converter box and find a suitable location and using the double-sided tape provided with the install kit, well expose the adhesive for the converter box and simply attach it to the vehicle. We can then tuck the wiring away and with our driver side complete, we can now move on to the passenger side. Well extend our red and green wire over towards the passenger side and well go ahead and follow the factory wiring harness routing.

There are included with the kit a few zip ties that we can use to attach it to the factory harness. Well just simply clip off the access. Now over here on our passenger side, well need to remove the carpeting cover again and with the passenger side harness exposed, well simply remove the connector and install our harness in line with the passenger side tail light. Well then pull our excess wiring back in behind the carpet giving us a nice fit when the interior carpet is reinstalled. Well now simply reinstall the carpeting and put our trunk opening molding back into place.

With the wiring installed, well go ahead and reassemble the interior components. Well now go ahead and show you how the harness works. Well simply unfold it from out of the trunk and lay it over the threshold here. We can then simply close the deck lid on the wiring harness as the molding will give enough that it will not damage the harness. You do wanna make sure that you stay away from the latch as the latch could damage the harness. And then simply bring it down to your trailer hitch and plug it in to your accessory. And that does it for the install of the Tow Ready T1 Connector part number 118433 on our 2009 Hyundai Sonata.

This Product Fits The Following Vehicles

2007 - 2008 Hyundai Elantra

2009 - 2010 Kia Optima

2006 - 2009 Hyundai Sonata

2006 - 2009 Hyundai Sonata All Models

2007 - 2010 Hyundai Elantra Sedan

2009 - 2010 Hyundai Elantra Sedan

Customers Who Purchased This Custom Fit Vehicle Wiring Also Bought...

Hitch Ball with 1-7/8" Diameter and Short Shank, 2000 lbs GTW - Chrome $6.49

Sportframe Drawbar 2-1/8" Rise or 2-3/4" Drop 2000# Kit $22.95

Hitch Ball with 2" Diameter and Short Shank, 3,500 lbs GTW - Chrome $6.49

Rubber Tube Cover 1-1/4" $4.49

Sportframe Drawbar 4" Rise 2000# Kit $21.95

Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring
Expert Answers about T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118433 Do you have a question about this Custom Fit Vehicle Wiring?

Which is the Correct T-One Wiring Harness for 2006-2009 Hyundai Sonatas
I just looked up the 2006-2009 Hyundai Sonatas, and the T-One Wiring Harness, part # 118433, is in fact the correct wiring harness for those vehicles. I want to reassure that you did, in fact, order and receive the correct part for your vehicle. Sometimes the packaging on the parts can be misleading, as the parts may be compatible with several different makes, models and years.
view full answer...

Installation Details 118433 Installation instructions
