CIPA Deluxe Door Mount Mirror
Fits most cars, trucks and vans. Installs in seconds and extends out 17" for maximum towing vision. Includes non-scratch mounting pads.
Video of CIPA Deluxe Door Mount Mirror
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

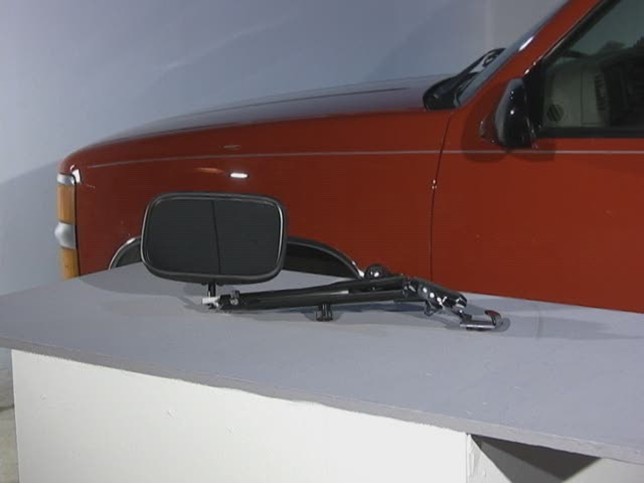

Today we are going to install and review the Cipa Deluxe door mount mirror, part number 11650. The Cipa Deluxe door mount mirror is a universal mount that will fit both the driver and passenger sides of the vehicle. The mirror is easily installed and removed and the rubber coated tips help protect your vehicle paint. The face of the mirror measures 5 inches by 8 inches and it will extend out a total of 17 inches. The top bracket will fit inside the window opening of your door with these two tabs. The hook on the end of the strap will go all of the way down to the bottom of the door and hook underneath it. There is a ratcheting strap system that you will use to tighten up that lower strap. The mirror arm is adjustable with these two set screws on the top. Once they are loosened, you can slide the arm out of the upper bracket and extend it however far you need it. Once you set the extension, go ahead and tighten down the set screws to lock the mirror in place. The arm for the lower hook is also adjustable depending on the size of your door. Again loosen the set screw. The arm will slide to accommodate a wide variety of door heights. There is also a pad on the buckle mount to protect the door. 1:11
Now we are ready to install the mirror. Make sure that the window is rolled all of the way down and open your door. Take the hook strap and place it on the underside of your door. Make sure that the tabs on the top of the frame are in between the doors outer seal and the glass. You want to make sure that your top bracket is about as level as possible and that the foot rests against the widest portion of the door. It is a little high so we are going to loosen our bolt and extend the arm just a little. Once we are level and we have our foot pad in the right spot, we can go ahead and tighten down the strap with the ratcheting system on the top of the mount. Once you have tightened the strap down, give it a couple of minutes as the nylon will stretch. After a few minutes, tighten it up again to make sure that it has not stretched too far. If the top bracket is pulled to the outside seal, we should be able to roll up our window without it interfering. Now that we have out mirror assembly adjusted and set to the vehicle, we can go ahead and start adjusting how the mirror looks. And there you have it for the Cipa Deluxe door mount mirror, part number 11650.
Customers Who Purchased This Mirrors Also Bought...
Average Customer Rating:



4.6 out of 5 stars (9 Customer Reviews)




by: Dave T06/21/2011
Is this review helpful?
It was about the only product I found that would work with my Dodge Dakota truck. I needed it to see around an enclosed snowmobile trailer. It would be nice if the ratchet mechanism was on the other side that way if you only want one on the drivers side door you would be to put the mirror assembly closer to the truck mirror.17588




by: Phil M01/21/2012
Is this review helpful?
I used my mirrors the day they came in the mail and they did everything that the product description had online. I am very pleased with the mirrors, the fit is good, simple to install, and I get a excellant rear view of my trailer.30089




by: Rick W.05/31/2011
Is this review helpful?
The mirrors were easy to install. The mirrors adjust up and down on a swivel as well and in and out. They are stable at higher speeds and on bad roads. Very good product.15740




by: ken whipple05/10/2011
Is this review helpful?
took 10 minutes to put these together and put them on my honda pilot..they work great....i can see behind me and feel a lot safer towing.13255




by: charlie04/25/2011
Is this review helpful?
worked great, fast shipping 12343




by: Doug D03/14/2011
Is this review helpful?
Mirrors went together quick. Very easy to install. Excellent product. Fit my 2010 Tacoma 4 dr perfectly.9227




by: Curt L.03/07/2011
Is this review helpful?
I was very pleased with how easy it was to get what I needed and the time it took in which to receive the merchandise.8689




by: Dan11/22/2008
Is this review helpful?
easy to install & adjust very good item, easy install, no shake or vibration and no movement, even after 4500+ miles of all kinds of weather. Only wish they had a left & a right model ( the ratchet handle was a bit hard to adjust on the drivers side as it was against the car mirror)1434




by: bob03/12/2008
Is this review helpful?
very quick thank you looks very good .I hope it holds up.667
