2005 GMC Sierra Roof Rack by Thule
Roof Rack Includes:
Thule Square Load Bars - Steel - 58" - Qty 2
Thule Traverse Roof-Rack Foot Pack
Thule Roof-Rack Fit Kit for Traverse Foot Packs - 1522
Part Numbers: THLB58, TH480, THKIT1522
Retail:$364.85
Price:$327.85
Shipping Special
Thule Traverse Roof Rack Installation - 2003 GMC Sierra - Video
Thule Traverse Roof Rack Installation - 2007 GMC Sierra - Video
Thule Traverse Roof Rack Installation - 2009 Acura MDX - Video
Thule Traverse Roof Rack Installation - 2007 Acura MDX - Video
Show all 41 videos
Thule Traverse Roof Rack Installation - 2007 GMC Sierra - Video
Thule Traverse Roof Rack Installation - 2009 Acura MDX - Video
Thule Traverse Roof Rack Installation - 2007 Acura MDX - Video
Show all 41 videos
Thule Square Load Bars - Steel - 58" - Qty 2
part number: THLB58
These steel load bars attach to Thule roof-rack feet to create a sturdy, convenient roof-mounted rack. Durable plastic coating resists corrosion and provides cushion for your load. Accomodates accessories that clamp around bars.
Features:
- Load bars work with Thule foot packs to create a roof rack for mounting various accessories
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Racks and accessories must clamp around crossbars
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Standard, square load bars are sturdy and offer extreme support
- Crossbar length can accommodate the following, depending on the types of carriers and accessories used:
- 1 - 5 Bikes
- 1 - 2 Kayaks
- 1 - 10 Pairs of skis
- 2 - 4 Surfboards
- 1 Cargo box (with enough room to fit 2 bikes beside it)
- Plastic coating helps to prevent rust and corrosion while providing non-scratch cushion for your load
- Galvanized steel is strong and durable
Specs:
- Length: 58"
- Width: 1-1/4"
- Height: 7/8"
- Fits the following Thule foot packs:
- Crossroad (TH450)
- Aero (TH400XT)
- Tracker II (TH430)
- Low gutter feet (TH300)
- High gutter feet (TH387)
- Super-high gutter feet (TH953)
- Podium (TH460)
- Weight: 10 lbs
- Weight capacity: 165 lbs per pair
- Quantity: 2 crossbars
- Lifetime warranty
LB58 Thule Standard Square Steel Cross Bars - 58" Long

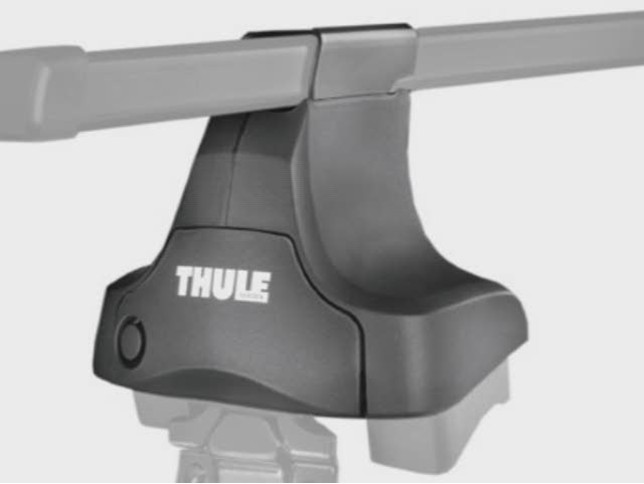

Thule Traverse Roof-Rack Foot Pack
part number: TH480
If your roof is naked, dress it up with the Thule Traverse. This revolutionary, vehicle-specific system is the ultimate base rack, boasting the strongest hold, the most accurate fit and the easiest installation of any rack on the market, bar none.
Features:
- Revolutionary, vehicle-specific roof-rack system
- Mounts to naked roof using custom Traverse fit kit (sold separately)
- Works with Thule square load bars (sold separately)
- Traverse kit includes load bar end caps
- Patented MaxClamp technology
- Holds the rack to the vehicle more securely than other systems on the market
- Integrated AcuTight tensioning tool
- Indicates when the rack is safely and properly attached to the vehicle
- Ensures safest and most consistent installation
- Stores inside the foot
- Exclusive EZAssemble design
- Uses 50 percent fewer parts than other leading brands
- Installs in half the time required for competing products
- Convenient, vehicle-specific fit kit brackets snap into place effortlessly - no tools or fasteners required
- Handy OneTouch bar lock
- Allows you to set the rack position once and never have to do it again
- Lockable outer cover with bold, contemporary styling
- Hides and protects foot interior
- Blends flawlessly with any roofline to create an integrated appearance
- Secures with Thule One Key locking system (sold separately)
- Entire system installs and removes in a snap
- Made in USA
Specs:
- Quantity: 4 feet
- Required:
- Thule square load bars
- Thule vehicle-specific Traverse fit kit
- Optional: Thule One Key system locks to secure rack to vehicle
- 4 Locking cylinders are needed
- Limited lifetime warranty
The Thule Traverse foot pack is the ultimate vehicle-specific base rack, providing the strongest hold, the most accurate fit and the easiest installation of any rack on the market.
The Traverse towers - or feet - hold the bars to the vehicle more securely than other racks by implementing Thule's patented MaxClamp technology. The towers are tightened to the vehicle using the integrated AcuTight tensioning tool. These devices indicate when the feet are safely and properly attached to the vehicle, and they store conveniently inside the towers when not in use.
The towers mount to your vehicle using vehicle-specific clips (sold separately) that snap into place on the towers in seconds with Thule's EasyClick bracket-attachment system.
The Traverse offers a handy OneTouch bar lock lever, allowing you to set the rack position once during the initial installation. The bar lock then holds your load bars in place so that you never have to position them again - even when removing and reinstalling the rack.
480 Thule Traverse Roof Rack Foot Pack (QTY 4)
Thule Roof-Rack Fit Kit for Traverse Foot Packs - 1522
part number: THKIT1522
These custom-fit mounting brackets work with Thule Traverse foot packs to ensure the safest, most secure fit. Brackets simply snap into place on the feet for quick, easy installation. Pads are included to protect your vehicle's surface.
Features:
- Custom-designed mounting brackets fit your specific vehicle
- Work in conjunction with Thule Traverse foot pack (sold separately)
- Simple to install - click into place in roof-rack feet
- Soft foot pads are included to protect vehicle surface
Specs:
- Quantity: 4 mounting brackets and 4 foot pads
- Application: Thule Traverse and Rapid Traverse foot packs (TH480R, TH480 and TH4802)
- Limited lifetime warranty
1522 Thule Roof Rack Fit Kit for Traverse Foot Packs - 1522
Video of Thule Traverse Roof Rack Installation - 2003 GMC Sierra
Video Transcript for Thule Traverse Roof Rack Installation - 2003 GMC Sierra
Today we are going to review part number TH480 from Thule. This is Thules traverse foot pack. And we will also be using fit kit part number THKIT1522. And the cross bars we will be using on this demonstration will be THLB58. Those are sold separately. And we will be taking these parts and will be installing these on a 2003 GMC Sierra extended cab pickup truck. We have our parts here laid out with just one end of the bar so you will not get confused. We will flip the whole assembly over so you can see it easier. We are going to start off with our tower here. To slide it onto the bar, what we are going to have to do is loosen this clamp up. So we pull back on this latch right here. Then we can slide our bar in. We will just leave that loose for now. We are going to pop on our little cap. We are going to need to open up this door here. It just snaps open. And while we are here, we will use this tool to tighten down this screw which actually will clamp it down to the car. Then next we will go ahead and install the fit kit itself. 1:00
It is kind of a good idea to grab this piece of metal, right here. Pull it out a little bit. Make sure the screw is sunk in all of the way. And then our fit kit actually fits in this slot right here. The rubber foot will actually get snapped onto the bottom. And all this does really is just gets pushed into place. The foot pads on the fit kits do match the contour of the vehicle roof line. And they range from about 1/2 inch to 7/8 inch in thickness. We have our cross bars assembled, let us go ahead and space them out as specified in the instructions for this particular vehicle. For our first bar, that will be 45-3/4 inches. That goes toward the front of the vehicle. And the bar that goes towards the back of the vehicle will be at 45-1/2 inches. Once you have the foot packs set, go ahead and lock them into place. 1:43
And then we will go ahead and install our first bar on the truck. It does sit over this rubber piece right here and grips the steal that is underneath of it. Let us get it started. And then next we will need a measurement from the center of the bar up to the front windshield. We want to scoot back to about 11 inches. So, let us move it back about an inch. Alright, we will go to the other side and get that even too. Once we have them set into place, we can go ahead and tighten them down. And we will use our little tool here that stores inside. And all we have to do is just tighten it down and we want to do about two or three turns on each side, alternately, to tighten them down. And when you start getting them tightened down, this little green line right here will actually line up with this line here on the gray part. And that actually gives you a torque measurement. Once they touch, you have enough torque on the bolt. And then just store it inside there. Put our cover down and now we will go ahead and move on to our next bar. 2:34
Once you put the bars in place, it is a good idea to loosen up the bolt considerably so you can slide the foot pack over the edge of the rubber. We will let it sit for now because we are going to have to find the proper spacing between the bars. From the center of the bars, we want to measure them out to 31-1/2 inches. Once again we will just tighten down the traverse foot pack evenly on both sides, until we achieve the proper torque as indicated on the handle. Now we have our load bars installed and this is a good application, in this case, for if you want to haul something and you have a camper shell on the back of your truck. And there you have it for part number TH480, the traverse foot pack, and the fit kit, part number THKIT1522 from Thule.
Ask the Experts about this Roof Rack
Do you have a question about this Roof Rack?
- Parts Needed to Install a Roof Rack System on the Roof and Camper Shell of a 2006 Toyota Tundra
- Since you are not adverse to drilling your vehicle roof and your camper shell I would recommend going with a Thule Podium Roof Mounted Foot Pack. You can use the square load bars, # THLB58, with the # TH460 Foot Pack or the Rapid Aero Load Bars, # THARB60, with the # TH460R Foot Pack.
To mount the foot packs to the sheet metal roof on your 2006 Toyota Tundra you will need the Thule direct mount system # THKIT3114, which does require drilling into the roof of your vehicle.
To mount the foot
view full answer... - What are the Dimensions of the Thule Square Bars
- I went out into our showroom and measured the dimensions of a set of Thule square bars like the part # THLB58 and found that they are 7/8 of an inch by 1-1/4 inches.
Check out the video I attached to see these measurements being taken.
view full answer... - Can I Use Thule Traverse Roof-Rack Feet on My 2008 Dodge Grand Caravan
- If your 2008 Dodge Caravan does not have a factory roof rack, you will need some additional parts to use the rack with your van. In addition to the feet, part # TH480, you will also need the mounts part # THKIT1043, and the load bars, part # THLB50. The mounts attach to the door frame where the door seals against, and the load bars run perpendicular to the vehicle and provide the attachment point. We sell these 3 parts together as a complete package and I have added a link to the whole package b
view full answer... - Thule Roof Rack and Carrier for 2 Snowboards and Skis for a 2005 Mazda 3, 5-Door
- For a rooftop carrier, you will need some sort of roof rack system. I checked on the Perrycraft roof racks and it is very difficult to tell from the images on the site if the racks we carry will fit. I spoke with my contact at Thule and she stated that they have never tested their carriers with the Perrycraft racks. She did state that the Thule racks will accommodate most factory racks, and if the cross bars Perrycraft offers are round or square and under 3 inches in diameter, then the Thule rac
view full answer... - What Roof Rack System Will Fit A 2009 Dodge Ram 1500 Quad Cab With A Naked Roof
- For your 2009 Dodge Ram 1500 Quad Cab with a naked roof, the roof rack system you would use is the Thule Roof Rack For 2009 Dodge Ram Pickup, # TH480, # THLB58, # THKIT1520.
It would include the roof rack foot pack and fit kit that attach to the rain gutter on the roof of your vehicle. Then, the crossbars will attach to the feet of the foot pack and extend across the width of the roof.
With the crossbars on the roof of your vehicle you can then attach many of the roof rack accessories that
view full answer... - Do You Carry a Set of Yakima Roof Rack Towers to Fit in Rain Gutters
- The Yakima Tower Kit we have for Rain Gutters is part # Y00101. You will also need an SKS Lock Core Kit, part # Y07204. You will also need a set of cross bars. If you write back with the width of the Jayco trailer, gutter to gutter, I can suggest an appropriate length for a cross bar.
Make sure to check the load capacity of the trailer roof before you use the roof rack.
view full answer... - What Parts are Needed to Install a Roof Rack on a 2008 Scion xB
- Which model Scion do you have, tC, xB or xD?
view full answer... - Which Roof Rack and Carrier Would Work Well for a 2007 Mazda 6 Sedan and a 14 Foot Tandem Kayak
- I should be able to put together a list of parts for a roof rack and kayak carrier for you. Just a couple of quick questions would help narrow things down.
Do you have a preference as far as Yakima or Thule for the roof rack or carrier? And second, what is the size of the kayak? Lenght, width and weight?
view full answer... - Roof Rack Recommendations for a 2007 Dodge Magnum
- If your 2007 Dodge Magnum does not have any rails or cross bars (a naked roof) then you have 2 roof rack options. First, we have the Thule Rapid Aero Roof Rack. This rack features more aerodynamic aluminum bars to resist wind noise while traveling and they have an attractive aluminum finish. For this kit, you would need the following items:
Thule Rapid Aero Roof Mounted Foot Pack (Qty 4), # TH400XTR
Thule AeroBlade Aluminum Load Bars, 53 Inches, # THARB53
Thule Roof Rack Fit Kit for Aero an
view full answer... - Will Thule Foot Pack # TH480 Fit a 2011 GMC Sierra Extended Cab With Running Lights and Antenna
- The Thule Traverse Roof-Rack Foot Pack, part # TH480, requires the use of the Thule Roof-Rack Fit Kit, part # THKIT1532, to fit your 2011 GMC Sierra 2500 Extended Cab. This fit kit is required when using any of the Thule roof racks on your vehicle. This fit kit will have certain vehicle specific measurements listed that are needed when installing the foot packs to your vehicle.
One of the measurements is the distance from the edge of the windshield, back to where the front roof rack bar needs
view full answer... - Recommend Best Way To Carry 12 Foot Jon Boat With 2011 Kia Soul
- A concern you will have when going with a roof rack system is the roof load carrying capacity of your 2011 Kia Soul and the weight limit of the roof rack. You will want to make sure not to exceed the load limit of your roof or roof rack. The roof rack, plus the weight of the boat and any other cargo will be considered weight on your roof. The roof load carrying capacity of your Kia Soul can be found in the vehicle owners manual.
The problem you will run into is the capacity of the roof rack.
view full answer... - Recommend a Roof Rack to Carry Snowboard on 2005 Mercedes Benz C320 4matic
- To carry a snowboard on the roof of your 2005 Mercedes Benz C320 4Matic, you will also need a snowboard carrier in addition to a roof rack. The item you selected, Thule Traverse Roof-Rack Foot Pack, part # TH480, would be the correct foot pack to mount a roof rack to your vehicle.
For the complete roof rack, I would recommend Thule Roof Rack, part # THLB50, # TH480, # THKIT1204.
For a snowboard carrier, I would recommend the Thule Flat Top Ski and Snowboard Carrier, part # TH92724. This ca
view full answer... - Roof Rack for Carrying a Kayak on a 2012 Toyota Prius V Station Wagon
- I spoke with Rhino-Rack, Yakima and Thule, and all of them have roof racks that are forth-coming but not yet available for a 2012 Toyota Prius V. However, there is still an option for carrying a Kayak on the roof of the new car.
You can use SportRack Premium Bar Harbor Foam-Block-Style Kayak Carrier, # ABR527, which will fit on a vehicle with no roof rack of any kind. I have included a link to the installation details for you to view.
Yakima makes a similar system that will work on a nake
view full answer... - Number of Foot Packs Included with Purchase of Thule Traverse Foot Pack Part # TH480
- To provide a roof rack for your 2011 Flex, you would order:
Load Bars, one of part # THLB58 which includes two bars
Traverse Foot Pack, one of part # TH480 which includes 4 feet
Vehicle-Specific Fit Kit, one of part # THKIT1518 which includes 4 foot pads and 4 brackets.
The foot packs each have a knock-out for installing optional keyed-alike locks, part # TH544.
A fairing, part # TH873XT is also available. The fairing would do a great job of reducing wind noise caused by the roof rack
view full answer... - Will a Thule Traverse Roof Rack Interfere with a Sunroof on a 2011 Ford Fusion
- The Thule Traverse Roof-Rack Foot Pack # TH480 that you referenced that is part of a roof rack for your 2011 Ford Fusion would work fine with you having a sunroof. Depending on what you plan on carrying on your roof rack you may not be able to open your sunroof, or if the sunroof has a tilt feature where the back of the glass comes up as a vent you may not be able to do that either.
I attached a picture for you to check out that shows this rack installed on a vehicle with a sunroof.
The re
view full answer... - Kayak Carrier and Roof Rack Recommendation for a Toyota Prius V
- I attached a link to a page that has a Thule roof rack for your Toyota Prius V that you could use for a kayak carrier.
For a rack to carry 2 kayaks I would recommend you get a Yakima BigStack Roof Mounted 2 Kayak Carrier System # Y04041. I attached installation instructions for this product for you to check out also.
Before you attempt to carry 2 kayaks on the roof of your Prius you will need to consult your owners manual to determine if you have the carrying capacity for the weight of you
view full answer... - Roof Rack Recommendation for a 2011 Land Rover Range Rover Sport
- The Thule Traverse Foot Pack, # TH480, is a great system that has performed well. The square bars it uses, # THLB58, do not look like factory type of bars which are normally elliptical but they work well.
But, if you were looking for something that has more of a factory appearance you could use # TH480R with AeroBlade Bars, # THARB60.
For either kit, you will need a roof fit kit. For the Sport model, you will need # THKIT1456. Either rack would be easy to remove if you needed to. The foot
view full answer... - Parts Needed to Install a Thule Roof Rack from a 2002 BMW 540i on a 2012 Toyota Prius V
- If the Thule rack from your 2002 BMW 540i used the Thule Traverse foot pack. # TH480, that you referenced, all you would need for your 2012 Toyota Prius is the Thule Roof-Rack Fit Kit, # THKIT1566, to mount the Traverse feet and 50 inch square load bars.
view full answer... - Ski/Snowboard Rack Recommendation for a 2012 Toyota Prius V
- The first thing you will need before you can install a ski/snowboard rack on the roof of your 2012 Toyota Prius V will be a roof rack. I attached a page that has a Yakima roof rack that will work on your vehicle.
The recommended rack for your vehicle will contain the following part numbers:
# Y00409
# Y00699
# Y00731
# Y00124
Once you have a roof rack installed, you will be able to install a ski/snowboard rack. For a rack that will carry 6 skis and 4 boards, you should check out the
view full answer... - Availability of Roof Rack to Fit on a 2004 Saturn Vue
- The roof rack that I have available for a 2004 Saturn Vue will be the Rhino Rack SXB Roof Rack, part # SXB3, and the Rhino Rack SXB Roof Rack, part # SXB3-SILV. The difference in the racks is the color of the rack. The # SXB3 roof rack is black and the # SXB3-SILV roof rack is silver. These roof racks will only fit vehicles with the black factory installed side rails that run from front to back.
The Thule Roof rack, part # TH480, will not fit on a 2004 Saturn Vue. Thule does have the Thule Cr
view full answer... - Roof Rack and Trunk Mount Bike Rack Recommendations for a 2012 Scion xD
- Since you already have some Thule accessories, I recommend the latest and greatest roof rack from Thule using the following parts:
AeroBlade load bars, # THARB47
Rapid Traverse foot pack, # TH480R
Fit kit, # THKIT1468
I have included a link to a video review and typical installation for you.
If you want to go a more economical route, use load bars # THLB50, foot pack # TH480, and fit kit # THKIT1468. I have included a video link to this system as well.
If you need a kayak carrier
view full answer... - Roof Rack Recommendation for a 2012 Toyota Prius V
- A roof rack would work well for a paddle board carrier and for a bike carrier. However, you will first need to check the owners manual of your Toyota Prius V to determine if you have the roof capacity for the weight of your paddle board and bikes.
For your 2012 Toyota Prius V I would recommend you get a Yakima Roof Rack Part Numbers # Y00409, # Y00699, # Y00731, # Y00124.
For a paddle board carrier you could get a Thule SUP Taxi Stand-Up Paddleboard Carrier # TH810. I attached a review vid
view full answer... - Roof Rack Recommendation for a 2005 GMC Sierra Pickup Truck
- The Thule Roof-Rack Fit Kit for Traverse Foot Packs, # THKIT1522, actually includes 4 mounting brackets and 4 foot pads for a complete set.
For a complete roof rack for a 2005 GMC Sierra, you would need the 4 pack Thule Traverse Roof-Rack Foot Pack, # TH480, the fit kit you referenced, and Thule Load Bars, # THLB58. I have included a link to a video showing the installation of a Thule roof rack on a similar truck.
view full answer... - Are The Brackets In The Thule Roof-Rack Fit Kit # THKIT1522 Available Individually
- The Thule Roof-Rack Fit Kit for Traverse Foot Packs, part # THKIT1522, will include 4 mounting brackets and 4 foot pads for a complete set. This part only comes as a set of 4, they do not sell the brackets individually.
view full answer...
