2000 GMC Yukon Roof Rack by Thule
Roof Rack Includes:
Thule Square Load Bars - Steel - 58" - Qty 2
Thule Crossroad Roof Mounted Roof Railing Foot Pack
Part Numbers: THLB58, TH450
Retail:$279.90
Price:$251.90
Shipping Special
Thule Crossroad Roof Rack Installation - 2012 GMC Terrain - Video
Thule Crossroad Roof Rack Installation - 2010 Chevy Suburban - Video
Thule Crossroad Roof Rack Installation - 2008 Chrysler Aspen - Video
Thule Crossroad Roof Rack Installation - 2012 Dodge Journey - Video
Show all 29 videos
Thule Crossroad Roof Rack Installation - 2010 Chevy Suburban - Video
Thule Crossroad Roof Rack Installation - 2008 Chrysler Aspen - Video
Thule Crossroad Roof Rack Installation - 2012 Dodge Journey - Video
Show all 29 videos
Thule Square Load Bars - Steel - 58" - Qty 2
part number: THLB58
These steel load bars attach to Thule roof-rack feet to create a sturdy, convenient roof-mounted rack. Durable plastic coating resists corrosion and provides cushion for your load. Accomodates accessories that clamp around bars.
Features:
- Load bars work with Thule foot packs to create a roof rack for mounting various accessories
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Racks and accessories must clamp around crossbars
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Standard, square load bars are sturdy and offer extreme support
- Crossbar length can accommodate the following, depending on the types of carriers and accessories used:
- 1 - 5 Bikes
- 1 - 2 Kayaks
- 1 - 10 Pairs of skis
- 2 - 4 Surfboards
- 1 Cargo box (with enough room to fit 2 bikes beside it)
- Plastic coating helps to prevent rust and corrosion while providing non-scratch cushion for your load
- Galvanized steel is strong and durable
Specs:
- Length: 58"
- Width: 1-1/4"
- Height: 7/8"
- Fits the following Thule foot packs:
- Crossroad (TH450)
- Aero (TH400XT)
- Tracker II (TH430)
- Low gutter feet (TH300)
- High gutter feet (TH387)
- Super-high gutter feet (TH953)
- Podium (TH460)
- Weight: 10 lbs
- Weight capacity: 165 lbs per pair
- Quantity: 2 crossbars
- Lifetime warranty
LB58 Thule Standard Square Steel Cross Bars - 58" Long
Thule Crossroad Roof Mounted Roof Railing Foot Pack
part number: TH450
Transform your vehicle's factory installed rails into flexible, multipurpose rack system with adapters. Rubber coated steel clamping straps provide maximum security and unmatched strength while protecting existing rails from surface damage.
- Features:
-
- Mounting system adjusts to clamp securely to existing raised side rails of roof rack
- Maximum rack strength and custom fit provided by rubber coated steel strap of foot
- Integrated rubber lining on bottom of foot keeps existing rails fully protected from surface damage
- Design and style of foot complement all vehicles
- Easily mount and remove feet with the integrated tool
- Optional One Key System Locks are available to secure the foot pack to the factory rails
- Requires 4 lock cylinders
- Includes 4 endcaps for load bars
- Mounting system adjusts to clamp securely to existing raised side rails of roof rack
- Specs:
-
- For use with Thule square load bars (#s THLB50, THLB58, THLB65 and THLB78).
- Also available in half pack (# TH4502).
Thule Crossroad-Roof Rack Mounting System
Turn the factory installed raised rails on your vehicle into a versatile, multipurpose rack system. The iron grip of the Crossroad, provided for by the flexible steel clamping strap, allows for unmatched strength and security when mounting carriers to the roof of your vehicle. Whether you are biking, boating, skiing, or packing up for a well-deserved weekend away, this mounting system is perfect for safely transporting whatever you need to your next destination.
Thule Crossroad adapters strap on to the factory roof rack.
The strap is tightened by turning a screw hidden behind a lockable door.

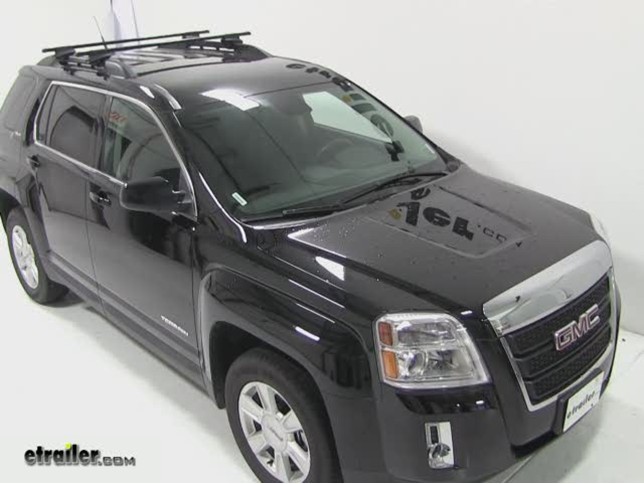

Video of Thule Crossroad Roof Rack Installation - 2012 GMC Terrain
Video Transcript for Thule Crossroad Roof Rack Installation - 2012 GMC Terrain
Today on our 2012 GMC Terrain, we'll be test fitting the Thule Crossroads Roof Rack System using part numbers THLB50 and TH450. With our vehicle with the factory side rails, this is a very simple install. Our roof rack system is set up as indicated in the instructions, so we're ready to go ahead and fit it do the vehicle. We'll begin with the front crossbar, setting it on top of the side rails. We'll need to make sure that the triangles on each of the feet are pointing directly over the top of the side rails. We can then bring the rubber coated steel strap underneath the side rail and attach it to the foot.
We'll then use the included tool within each foot to tighten it down. Now, after placing the feet with the triangles directly over the side rails, you do want to make sure that your load bar is even across the vehicle. After doing that, you can tighten it down which will secure it to the vehicle. Now that our front bar is secured, we can go ahead and move on to the rear bar. Thule recommended a maximum crossbar spread of 24 inches.
We're going to go ahead and set ours up to 20 inches. We'll measure from the center of the front crossbar to the center of the rear crossbar of 20 inches and that will be the location that will secure the rear crossbar. Once we make sure that the triangles on each of the feet are directly over the side rails and then our crossbar is even on the vehicle, we'll then simply use the same tightening procedure as we did with the front crossbar, securing it to the vehicle. And with our rear crossbar secured, our roof rack is installed and we're ready to load our accessories. And that completes our test fit of the Thule Crossroads Roof Rack System using part numbers THLB50 and TH450 on our 2012 GMC Terrain..
Ask the Experts about this Roof Rack
Do you have a question about this Roof Rack?
- Parts Needed to Install a Roof Rack System on the Roof and Camper Shell of a 2006 Toyota Tundra
- Since you are not adverse to drilling your vehicle roof and your camper shell I would recommend going with a Thule Podium Roof Mounted Foot Pack. You can use the square load bars, # THLB58, with the # TH460 Foot Pack or the Rapid Aero Load Bars, # THARB60, with the # TH460R Foot Pack.
To mount the foot packs to the sheet metal roof on your 2006 Toyota Tundra you will need the Thule direct mount system # THKIT3114, which does require drilling into the roof of your vehicle.
To mount the foot
view full answer... - What are the Dimensions of the Thule Square Bars
- I went out into our showroom and measured the dimensions of a set of Thule square bars like the part # THLB58 and found that they are 7/8 of an inch by 1-1/4 inches.
Check out the video I attached to see these measurements being taken.
view full answer... - Roof Rack Options for a 2011 Ford Flex
- If you have factory installed side rails that run front to back on your 2011 Ford Flex you would just need Thule Square Load Bars # THLB58 and you would have a complete roof rack system combined with the Thule Cross Road Foot Pack # TH450 that you currently have.
If you do not have factory raised side rails you will need the following items, Thule Square Load Bars # THLB58, Thule Traverse Roof-Rack Foot Pack # TH480, Thule Roof-Rack Fit Kit for Traverse Foot Packs # THKIT1518.
I attached i
view full answer... - Roof Rack Cross Bar Recommendation for a 2005 Pontiac Montana SV6 with Factory Raised Rails
- Yes, the Thule Crossroad Roof Mounted Roof Railing Foot Pack # TH450 would work well on your 2005 Pontiac Montana SV6, with factory raised rails that run front to back. Along with the raised rail foot pack you will need a set of 50 inch cross bars, # THLB50
I would recommend going with the Complete Crossroad Kit with 50 inch Long Bars and Locks, # TH45050, which includes locks to secure the bars to the side rails. We have a video installation for this item that should be helpful, see link.
view full answer...
