2007 Mazda 6 Roof Rack by Thule
Roof Rack Includes:
Thule Square Load Bars - Steel - 50" - Qty 2
Thule Podium Roof Mounted Foot Pack for Square Load Bars
Thule Fit Kit for Podium Style Foot Pack, # 3069
Part Numbers: THLB50, TH460, THKIT3069
Retail:$364.85
Price:$327.85
Shipping Special
Thule Podium Roof Rack Installation - 2006 Mazda 5 - Video
Thule Podium Roof Rack Installation - 2012 Mazda CX-7 - Video
Thule Podium Roof Rack Installation - 2010 Mazda CX-9 - Video
Thule Podium Roof Rack Installation - 2008 Honda CR-V - Video
Show all 7 videos
Thule Podium Roof Rack Installation - 2012 Mazda CX-7 - Video
Thule Podium Roof Rack Installation - 2010 Mazda CX-9 - Video
Thule Podium Roof Rack Installation - 2008 Honda CR-V - Video
Show all 7 videos
Thule Square Load Bars - Steel - 50" - Qty 2
part number: THLB50
These steel load bars attach to Thule roof-rack feet to create a sturdy, convenient roof-mounted rack. Durable plastic coating resists corrosion and provides cushion for your load. Accomodates accessories that clamp around bars.
Features:
- Load bars work with Thule foot packs to create a roof rack for mounting various accessories
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Racks and accessories must clamp around crossbars
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Standard, square load bars are sturdy and offer extreme support
- Crossbar length can accommodate the following, depending on the types of carriers and accessories used:
- 1 - 4 Bikes
- 1 - 2 Kayaks
- 1 - 8 Pairs of skis
- 2 - 4 Surfboards
- 1 Cargo box (with enough room to fit 1 bike beside it)
- Plastic coating helps to prevent rust and corrosion while providing non-scratch cushion for your load
- Galvanized steel is strong and durable
Specs:
- Length: 50"
- Fits the following Thule foot packs:
- Crossroad (TH450)
- Aero (TH400XT)
- Tracker II (TH430)
- Low gutter feet (TH300)
- High gutter feet (TH387)
- Super-high gutter feet (TH953)
- Podium (TH460)
- Weight: 8-1/2 lbs
- Weight capacity: 165 lbs per pair
- Quantity: 2 crossbars
- Lifetime warranty
LB50 Thule Standard Square Steel Cross Bars - 50" Long
Thule Podium Roof Mounted Foot Pack for Square Load Bars
part number: TH460
Many cars are fitted with pre-installed attachments for load carriers which are called fixpoints. Thule offers a load carrier solution with a sleek modern design, perfect fit and the flexibility that comes with a kt based system.
Features:
- Vehicle-specific roof-rack system
- Mounts to roof with pre-installed fixpoints
- Works with Thule square load bars (sold separately)
- Lockable outer cover with sleek, low profile styling
- Hides and protects foot interior
- Blends flawlessly with any roofline for an integrated appearance
- Secures with Thule One Key locking system (sold separately)
- Galvanized, stamped steel components in legs are durable and corrosion resistant
- Simple installation - no drilling required
- Easily removable
Specs:
- Quantity: 4 feet
- Required:
- Thule square load bars
- Thule vehicle-specific Podium fit kit
- Optional: Thule One Key system locks to secure rack to vehicle
- 4 Locking cylinders needed
- Limited lifetime warranty
460 Thule Podium Roof Rack Foot Pack (Qty 4)
Thule Fit Kit for Podium Style Foot Pack, # 3069
part number: THKIT3069
Thule Podium Roof Rack Foot Pack Fit Kit
This fit kit reinforces the weight distribution of the podium-style foot pack to effectively stabilize your cargo while securing the foot firmly to the vehicle's pre-installed mounting points. This kit is easy to install, and you will not need tools or a degree in rocket science to comprehend the instructions.
- Features:
- Custom designed install kit fits your vehicle
- Provides universal fit for Thule's 460 and 460R Podium foot packs
- Simple to install - no need to drill
- Easily removable when not in use
- Custom designed install kit fits your vehicle
- Specs:
- Set of 4
- Works with Thule Podium Foot Packs (#s TH460 and TH460R)
KIT3069 Thule Fit Kit for Podium Style Foot Packs

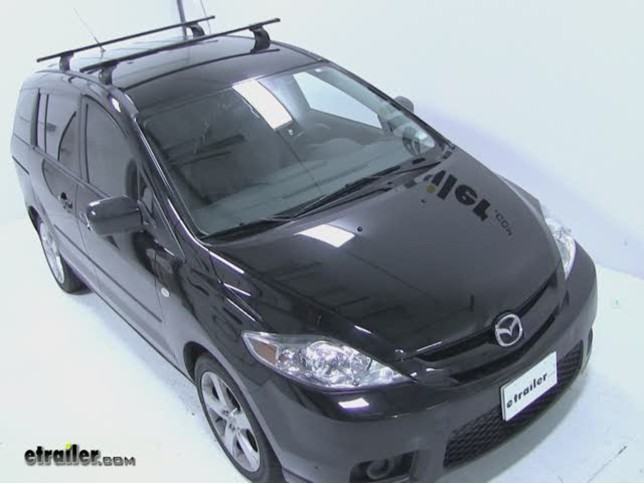

Video of Thule Podium Roof Rack Installation - 2006 Mazda 5
Video Transcript for Thule Podium Roof Rack Installation - 2006 Mazda 5
Alright, today on this 2006 Mazda 5 we're going to do a test fit of Thule Roof Rack System. We're using the Thule Podium Roof-mounted Foot Pack and Thule Square Load bars part no. THLB50, TH460, THKIT3080. Okay to start off our test fit we're going to remove the covers for the 6 points that are on the roof. They basically just slide and we pop them up out of the way. Next we'll go ahead and start the threaded rod that comes with the fit kit from Thule into to the provided threaded holes in the roof.
With a roof rack loosely assembled according to the instructions we'll go ahead and place it onto the threaded rod that we installed into the roof. Now we'll go ahead and tighted down 2 screws that are on the side at the base. Now we'll lock the cross bar to the foot pack. Okay, now we'll go ahead and install our covers. Okay, first half of the roof rack is installed, now we'll go ahead and move on to the second half repeating the same identical steps.
Okay with our roof rack fully installed, we'll go ahead and get ahead and get the measurement on how much height is added to the roof line and this measurement looks like 4 1/2 inches. With that, that will finish it for a test fit of a Thule roof rack system on a 2006 Mazda 5 with a Thule roof rack.
Ask the Experts about this Roof Rack
- Weight Capacity of Roof Rack on a 2004 Hyundai Santa Fe Carrying Two Kayaks
- My wife and I just bought a 2004 Hyundai Santa Fe that has the factory rails that run front to back. The limit of those is 75 pounds just like on yours, and I remember thinking, wow, that is not very much.
Adding cross bars will not increase the capacity of the rails even if the cross bars themselves might be able to carry more weight. Even if this is the case, you will still be limited to the 75 pounds.
If you were to add the recommended cross bars, # Y00408, and the Towers, # Y00138, or
view full answer... - Kayak Carriers for a 2008 Subaru Outback Wagon with Factory Roof Rack
- The 100 pound capacity on the 2008 Subaru Outback Wagon most likely refers to the system as a whole. In all probability they took the lowest rated component in the system, either the roof, the side rails, or the crossbars, and went by that rating for the whole system. You may be able to find the capacity of each separate component in the owners manual or by contacting a dealership.
But even if you were to add different crossbars like the Thule Load Bars, # THLB50, Thule still states that on
view full answer... - Will Thule Square Load Bars Fit a 2003 Honda Civic and Accept T-Slot Bike Rack
- The Thule load bars can fit your Civic with the correct foot pack and fit kit, but the crossbars on this roof rack do not have the T-slots that accept the T-slot accessories. This roof rack uses square crossbars that will accept most clamp on roof rack accessories.
If you are needing a roof rack that uses crossbars with T-slots I would recommend the Rhino Rack 2500 Series Roof Rack with Aero Crossbars, part # DA118B, and the Rhino Rack Custom DK Clamps, part # DK009. This roof rack will accep
view full answer... - Roof Rack Recommendations for a 2002 Saab 9-3, 5-Door Hatchback
- For a 2002 Saab 9-3, 5-Door, I have included a link to the racks that will fit. For a Thule rack, you can use the following parts:
Thule Square Load Bars, # THLB50
Thule Traverse Roof-Rack Foot Pack, # TH480
Thule Roof-Rack Fit Kit, # THKIT1003
view full answer... - Which Thule and Yakima Roof Racks Will Fit a 2011 Honda CR-V
- The 2011 Honda CR-V is going to require Thule Podium Roof Mounted Foot Pack, # TH460, and Thule Fit Kit for Podium Style Foot Pack, # THKIT3042. You can still use the same square, 50 inch cross bars, # THLB50, from the 2006 Honda Element.
The Tracker II feet will not fit the CR-V. The two separate vehicles have unique roofs and roof rack requirements and in this case, the Tracker feet cannot be used on both.
The other option for a 2011 Honda CR-V is a Yakima roof rack. I have included a l
view full answer... - What Thule Roof Rack System Will Fit A 2010 Hyundai Santa Fe And Use Thule Square Load Bars
- To install the Thule square load bars on your 2010 Hyundai Santa Fe with the flush mounted rails you will need the Thule Fit Kit for Podium Style Foot Pack, part # THKIT3024, and the Thule Podium Roof Mounted Foot Pack for Square Load Bars, part # TH460.
On the 2010 Hyundai Santa Fe it is recommended to use the Thule 50 Inch Long Load Bars, part # THLB50.
Anytime you are going to haul cargo on the roof of your 2010 Hyundai Santa Fe you will want to check the owners manual or with the Hyund
view full answer... - Roof Rack Recommendation for a 2012 Mazda 5
- The plastic covers on your 2012 Mazda 5 will just pop out and you can remove them with your hands. In the event one should be difficult, you can use a narrow tool such as a flat screwdriver to pop it off but you will want to be very careful not to scratch or dent the vehicle if you must use a tool.
The covers will not be put back on as long as the roof rack is installed on the vehicle. Make sure that you save the covers should you want to remove the rack.
The Thule rack is a good choice. T
view full answer... - Will the Thule Podium Foot Pack # TH460 Interfere With Sunroof on 2012 Mazda 5 Grand Touring
- I spoke with my contact at Thule and they did not have an answer if the sunroof would open with the Thule Podium Roof Mounted Foot Pack, part # TH460, and Thule Fit Kit, part # THKIT3080, installed on a 2012 Mazda 5 Grand Touring.
I went out in the warehouse and pulled both Thule parts and put them together to measure what the height of the cross bar would be once installed on your roof. The measurement from the bottom of the foot pack on the fit kit to the bottom of the crossbar is 3-3/4 inc
view full answer... - Availability of Roof Cargo Carriers To Fit On 2004 Mazda 3 Sedan With Thule Roof Rack
- The Thule Podium Foot Pack, part # TH460, will use square crossbars and the Thule Podium Foot Pack For Aero Bars, part # TH460R, will use aero design crossbars. Both styles of these towers will accept any of the Thule roof cargo carriers on your 2004 Mazda 3 Sedan. Many of the other brands of cargo carriers (Yakima, SportRack) are also designed to fit on square and aero design crossbars.
The Sears X Cargo Carrier is made by Thule so it should also attach to the two different Thule towers ment
view full answer... - Will Thule Roof Rack Feet from a 2010 Honda Fit Work on a 2013 Honda CR-V
- Yes, the Thule roof rack feet from your 2010 Honda Fit will fit on a 2013 Honda CR-V. The only roof rack that Thule made for the 2010 Honda Fit was the Traverse roof rack which is also compatible with the 2013 CR-V with no existing roof rails.
If your Thule roof rack feet use the square load bars, then the load bars are compatible between the two vehicles as well since they both require 50 inch square bars. If your roof rack feet use the Thule AeroBlade load bars, then you will need the 53 i
view full answer...
