2007 Kia Sportage Roof Rack by Thule
Roof Rack Includes:
Thule Square Load Bars - Steel - 50" - Qty 2
Thule Crossroad Roof Mounted Roof Railing Foot Pack
Part Numbers: THLB50, TH450
Retail:$279.90
Price:$251.90
Shipping Special
Thule Crossroad Roof Rack Installation - 2012 Kia Sedona - Video
Thule Crossroad Roof Rack Installation - 2013 Kia Sorento - Video
Thule Crossroad Roof Rack Installation - 2012 Kia Sorento - Video
Thule Crossroad Roof Rack Installation - 2012 Kia Sorento - Video
Show all 29 videos
Thule Crossroad Roof Rack Installation - 2013 Kia Sorento - Video
Thule Crossroad Roof Rack Installation - 2012 Kia Sorento - Video
Thule Crossroad Roof Rack Installation - 2012 Kia Sorento - Video
Show all 29 videos
Thule Square Load Bars - Steel - 50" - Qty 2
part number: THLB50
These steel load bars attach to Thule roof-rack feet to create a sturdy, convenient roof-mounted rack. Durable plastic coating resists corrosion and provides cushion for your load. Accomodates accessories that clamp around bars.
Features:
- Load bars work with Thule foot packs to create a roof rack for mounting various accessories
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Racks and accessories must clamp around crossbars
- Mount a cargo carrier, bike rack, kayak saddles, ski carrier and more
- Standard, square load bars are sturdy and offer extreme support
- Crossbar length can accommodate the following, depending on the types of carriers and accessories used:
- 1 - 4 Bikes
- 1 - 2 Kayaks
- 1 - 8 Pairs of skis
- 2 - 4 Surfboards
- 1 Cargo box (with enough room to fit 1 bike beside it)
- Plastic coating helps to prevent rust and corrosion while providing non-scratch cushion for your load
- Galvanized steel is strong and durable
Specs:
- Length: 50"
- Fits the following Thule foot packs:
- Crossroad (TH450)
- Aero (TH400XT)
- Tracker II (TH430)
- Low gutter feet (TH300)
- High gutter feet (TH387)
- Super-high gutter feet (TH953)
- Podium (TH460)
- Weight: 8-1/2 lbs
- Weight capacity: 165 lbs per pair
- Quantity: 2 crossbars
- Lifetime warranty
LB50 Thule Standard Square Steel Cross Bars - 50" Long
Thule Crossroad Roof Mounted Roof Railing Foot Pack
part number: TH450
Transform your vehicle's factory installed rails into flexible, multipurpose rack system with adapters. Rubber coated steel clamping straps provide maximum security and unmatched strength while protecting existing rails from surface damage.
- Features:
-
- Mounting system adjusts to clamp securely to existing raised side rails of roof rack
- Maximum rack strength and custom fit provided by rubber coated steel strap of foot
- Integrated rubber lining on bottom of foot keeps existing rails fully protected from surface damage
- Design and style of foot complement all vehicles
- Easily mount and remove feet with the integrated tool
- Optional One Key System Locks are available to secure the foot pack to the factory rails
- Requires 4 lock cylinders
- Includes 4 endcaps for load bars
- Mounting system adjusts to clamp securely to existing raised side rails of roof rack
- Specs:
-
- For use with Thule square load bars (#s THLB50, THLB58, THLB65 and THLB78).
- Also available in half pack (# TH4502).
Thule Crossroad-Roof Rack Mounting System
Turn the factory installed raised rails on your vehicle into a versatile, multipurpose rack system. The iron grip of the Crossroad, provided for by the flexible steel clamping strap, allows for unmatched strength and security when mounting carriers to the roof of your vehicle. Whether you are biking, boating, skiing, or packing up for a well-deserved weekend away, this mounting system is perfect for safely transporting whatever you need to your next destination.
Thule Crossroad adapters strap on to the factory roof rack.
The strap is tightened by turning a screw hidden behind a lockable door.

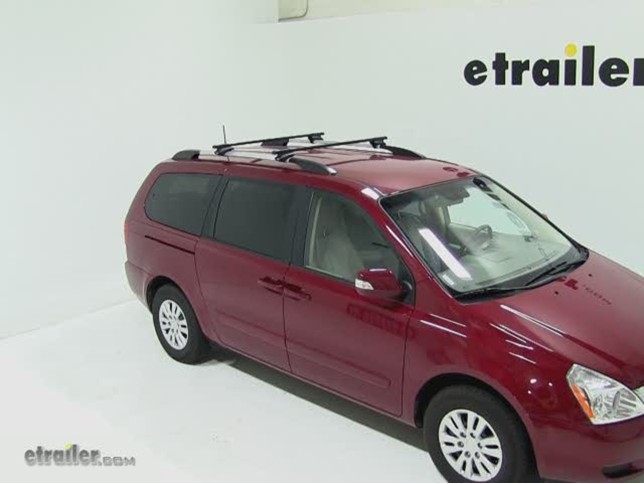

Video of Thule Crossroad Roof Rack Installation - 2012 Kia Sedona
Video Transcript for Thule Crossroad Roof Rack Installation - 2012 Kia Sedona
Today on our 2012 Kia Sedona, well be test fitting the Thule Crossroad Roof Rack using the 50 inch square bars, part number THLB50 and the Thule Crossroad Roof Mounted Rail Foot Pack, part number TH450. With our vehicle already equipped with the factory side rails and our roof rack already pre-assembled, were ready to go ahead and mount it to the vehicle. We begin by placing the front crossbar on top of the vehicle. Well need to center the crossbar from left to right. Well also need to make sure that the triangles on each to the feet are centered over the side rails. We also need to locate a fixed point on each of the side rails to do a measurement.
Well measure from the fixed point to the leading edge of the foot of the crossbar. With our crossbar, were wed like it. Well tighten it down using the included Allen key within each foot. We do need to work back and forth, from left to right, now move to the rear crossbar. Well repeat the same mounting process , only this time well measure from the center of the front load bar to the center of the rear load bar.
Now Thule has a recommended maximum length of crossbar spread at 40 inches. Were going to go ahead and set ours to 30 inches. With our rear load bar and the location, wed like it. And the triangles centered over the top of the side rails. We can go ahead and tighten it down using the included Allen key within the foot.
But the rear crossbar type our roof rack is installed and ready to be loaded. And that completes our test fit of the Thule Crossroads Roof Rack part numbers TH450 and THLB50 on our 2012 Kia Sedona.
Ask the Experts about this Roof Rack
- Weight Capacity of Roof Rack on a 2004 Hyundai Santa Fe Carrying Two Kayaks
- My wife and I just bought a 2004 Hyundai Santa Fe that has the factory rails that run front to back. The limit of those is 75 pounds just like on yours, and I remember thinking, wow, that is not very much.
Adding cross bars will not increase the capacity of the rails even if the cross bars themselves might be able to carry more weight. Even if this is the case, you will still be limited to the 75 pounds.
If you were to add the recommended cross bars, # Y00408, and the Towers, # Y00138, or
view full answer... - Kayak Carriers for a 2008 Subaru Outback Wagon with Factory Roof Rack
- The 100 pound capacity on the 2008 Subaru Outback Wagon most likely refers to the system as a whole. In all probability they took the lowest rated component in the system, either the roof, the side rails, or the crossbars, and went by that rating for the whole system. You may be able to find the capacity of each separate component in the owners manual or by contacting a dealership.
But even if you were to add different crossbars like the Thule Load Bars, # THLB50, Thule still states that on
view full answer... - Will Thule Square Load Bars Fit a 2003 Honda Civic and Accept T-Slot Bike Rack
- The Thule load bars can fit your Civic with the correct foot pack and fit kit, but the crossbars on this roof rack do not have the T-slots that accept the T-slot accessories. This roof rack uses square crossbars that will accept most clamp on roof rack accessories.
If you are needing a roof rack that uses crossbars with T-slots I would recommend the Rhino Rack 2500 Series Roof Rack with Aero Crossbars, part # DA118B, and the Rhino Rack Custom DK Clamps, part # DK009. This roof rack will accep
view full answer... - Roof Rack Recommendations for a 2002 Saab 9-3, 5-Door Hatchback
- For a 2002 Saab 9-3, 5-Door, I have included a link to the racks that will fit. For a Thule rack, you can use the following parts:
Thule Square Load Bars, # THLB50
Thule Traverse Roof-Rack Foot Pack, # TH480
Thule Roof-Rack Fit Kit, # THKIT1003
view full answer... - Roof Rack Options for a 2011 Ford Flex
- If you have factory installed side rails that run front to back on your 2011 Ford Flex you would just need Thule Square Load Bars # THLB58 and you would have a complete roof rack system combined with the Thule Cross Road Foot Pack # TH450 that you currently have.
If you do not have factory raised side rails you will need the following items, Thule Square Load Bars # THLB58, Thule Traverse Roof-Rack Foot Pack # TH480, Thule Roof-Rack Fit Kit for Traverse Foot Packs # THKIT1518.
I attached i
view full answer... - Roof Rack Cross Bar Recommendation for a 2005 Pontiac Montana SV6 with Factory Raised Rails
- Yes, the Thule Crossroad Roof Mounted Roof Railing Foot Pack # TH450 would work well on your 2005 Pontiac Montana SV6, with factory raised rails that run front to back. Along with the raised rail foot pack you will need a set of 50 inch cross bars, # THLB50
I would recommend going with the Complete Crossroad Kit with 50 inch Long Bars and Locks, # TH45050, which includes locks to secure the bars to the side rails. We have a video installation for this item that should be helpful, see link.
view full answer...
