2012 Jeep Patriot Roof Rack by Rhino Rack

Roof Rack Includes:

Rhino-Rack SXB Roof Rack for Raised, Factory Side Rails - Aero Crossbars - 45" Long - Silver


Rhino Rack

Part Numbers: SXB3-SILV

Retail:$299.00

Price:$269.10

Shipping Special





Rhino-Rack SXB Roof Rack for Raised, Factory Side Rails - Aero Crossbars - 45" Long - Silver
part number: SXB3-SILV

Quick and easy to install, this kit is great for adding an aftermarket roof-rack system to your vehicle with raised, factory side rails. Includes 4 rail-grabbing legs; 2 silver, 45" long Aero crossbars; and 4 locking endcaps.

Features:

  • Adjustable roof-rack system for your vehicle with elevated, factory side rails
    • 2 Aero silver, low-profile crossbars hold bike racks, ski and kayak carriers, and other accessories
      • Oval crossbars are more aerodynamic than standard square crossbars
        • Reduces drag and cuts down on wind noise
      • Lightweight, structural-grade, extruded aluminum construction for strength, durability and maximum carrying capability
      • Built-in C-channel on top of each bar lets you mount Rhino-Rack Sportz and Aero accessories and carriers
        • Rubber strip in the channel helps to cushion load and provide slip resistance
          • Can be cut to accommodate track-mounted accessories and carriers
      • Built-in C-channel on bottom of each bar lets you mount crossbars to roof-rack legs
      • Locking endcaps (included) secure accessories to your crossbars
    • 4 Roof-rack legs clamp directly to your vehicle's raised, OEM side rails
      • Position anywhere along the rails to accommodate different-size loads
      • Protect your roof-rack rails with rubber pads on leg clamps
      • Constructed of UV-resistant, glass-reinforced nylon
  • Versatile leg-and-crossbar system is easy to install and remove
  • Built-in security hardware deters theft - leg bolts require special tool (included) to loosen


Specs:

  • Weight capacity: 165 lbs
  • Crossbar dimensions: 45" long x 3-1/2" wide x 1-1/2" tall
  • Limited lifetime warranty


SXB3-SILV Rhino Rack SXB Roof Rack for Elevated OEM Rails - With Aero Elliptical Cross Bars - 45" Long - Silver



Video of Rhino Rack Roof Rack Installation - 2012 Jeep Patriot


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install rhino rack 2012 jeep patriot sxb3
Rhino Rack Roof Rack Installation - 2012 Jeep Patriot
Video install rhino rack sxb 2013 jeep patriot sxb3 silv
Rhino Rack SXB Roof Rack Installation - 2013 Jeep Patriot
Video install rhino rack 2008 honda odyssey
Rhino Rack Roof Rack Installation - 2008 Honda Odyssey
Video install rhino roof rack 2006 kia sedona
Rhino Rack Roof Rack Installation - 2006 Kia Sedona
Video install rhino roof rack 2006 nissan quest
Rhino Rack Roof Rack Installation - 2006 Nissan Quest
Video install rhino rack aero 2011 nissan rogue
Rhino Rack Roof Rack Installation - 2011 Nissan Rogue
Video install rhino roof rack 2010 vw jetta sportwagon sxb3
Rhino Rack SXB Roof Rack Installation - 2010 Volkswagen Jetta SportWagen
Video install rhino rack aero 2007 volvo xc90 sxb3
Rhino Rack Roof Rack Installation - 2007 Volvo XC90


Video Transcript for Rhino Rack Roof Rack Installation - 2012 Jeep Patriot

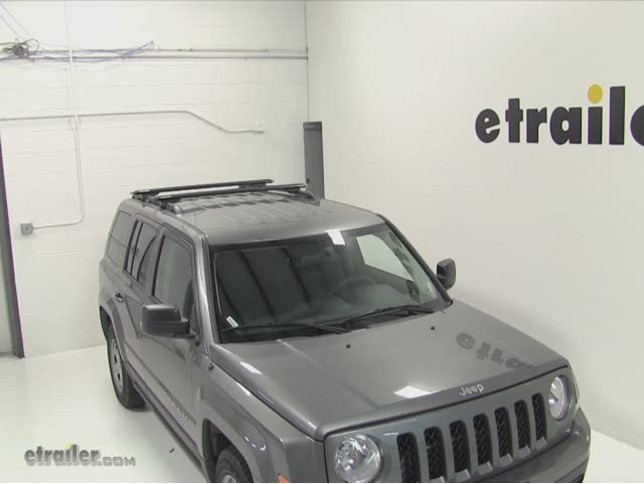

Alright, today on this 2012 Jeep Patriot we're going to do a test fit of the Rhino Rack Roof System. Product number SXB3. We'll start with our roof rack RA assemble according to the instructions. So we'll go ahead and place them onto the factory roof rack. We'll start off with the first crossbar going towards the front of the SUV. We measure off one of the edges on the factory roof rack so we know that our crossbar will be square.

Next, you want to take a second and make sure that the crossbar is equal left to right. We'll go on to the second crossbar repeating the same process. However, we'll measure from the center of the first crossbar to the center of the second crossbar. For this test fit we'll be using a measurement of 24 inches. Once we're happy where the bars are set, we'll go ahead and tie them down with the included tool.

Tighten these down evenly on both sides. We'll go ahead and install the locking end caps now. Ok, with those few steps our roof racks are in place and it's ready to go. Next we'll give you a measurement that tells you how much height is added to the vehicle. We're looking at about 1-3/4".

And with that, that will finish it for our test fit of product number SXB3 from Rhino Rack.




Ask the Experts about this Roof Rack
Expert Answers about Roof RackDo you have a question about this Roof Rack?


  • Will Installing Rhino Rack SXB3-SILV Cross Bars On 2012 VW Jetta SportWagen Interfere with Sunroof
  • I spoke with my contacts at Rhino Rack regarding your question about the crossbar system interfering with your sunroof. I was told that because the side rails on your SportWagen extend the full length of the vehicle roof, that the crossbars can be moved around so that they will not interfere. They tell me it would be safe to assume that the bars would interfere if they are placed directly over the sun roof. The bottom of the cross bars will sit about 3/4 of an inch above the top of your side
    view full answer...

Rhino Rack Carriers

Fit to this rack on your 2012 Patriot by Jeep



Customer Reviews

Roof Rack - SXB3-SILV

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (5 Customer Reviews)




- SXB3-SILV

ratingratingratingratingrating by: Brian03/05/2013

Is this review helpful?


Easy to install 69053

comment on this review


- SXB3-SILV

ratingratingratingratingrating by: Larry T10/06/2012

Is this review helpful?


This is a good solid rack that is easy to attach and remove once it is set up per the instructions. It only takes five minutes or less to clamp them on with the provided wrench and the locks hold the racks in place. My only knit is that it adds wind noise so I wouldn't leave it on unless I'm actually carrying my canoe. 56576

comment on this review


- SXB3-SILV

ratingratingratingratingrating by: Dean Mansfield02/21/2012

Is this review helpful?


Great Product looks great on my SUV 32024

comment on this review


- SXB3-SILV

ratingratingratingratingrating by: Liam Chen01/20/2012

Is this review helpful?


Fast shipping. Excellent service. 29995

comment on this review


- SXB3-SILV

ratingratingratingratingrating by: Jess R10/19/2011

Is this review helpful?


Very Nice and sturdy, color looks elegant, I liked that it has a rubber stripping on top makes it less like ly to slip through while on the highway, extra piece of mind. Only took me an hour to install everything including my hard top carrier, its a no brainer. It blends well with my roof racks. I thought of buying a factory made roof crossbars for my kia sedona, but after my third minivan, I realize i need to buy something generic that i can use on my next minivan or truck. I would definite recommend this product. 25848
