2007 Kia Sportage Roof Rack by Rhino Rack
Roof Rack Includes:
Rhino-Rack SXB Roof Rack for Raised, Factory Side Rails - Aero Crossbars - 45" Long - Black
Part Numbers: SXB3
Retail:$299.00
Price:$269.10
Shipping Special
Rhino Rack Roof Rack Installation - 2006 Kia Sedona - Video
Rhino Rack Roof Rack Installation - 2008 Honda Odyssey - Video
Rhino Rack SXB Roof Rack Installation - 2013 Jeep Patriot - Video
Rhino Rack Roof Rack Installation - 2012 Jeep Patriot - Video
Show all 8 videos
Rhino Rack Roof Rack Installation - 2008 Honda Odyssey - Video
Rhino Rack SXB Roof Rack Installation - 2013 Jeep Patriot - Video
Rhino Rack Roof Rack Installation - 2012 Jeep Patriot - Video
Show all 8 videos
Rhino-Rack SXB Roof Rack for Raised, Factory Side Rails - Aero Crossbars - 45" Long - Black
part number: SXB3
Quick and easy to install, this kit is great for adding an aftermarket roof-rack system to your vehicle with raised, factory side rails. Includes 4 rail-grabbing legs; 2 black, 45" long Aero crossbars; and 4 locking endcaps.
Features:
- Adjustable roof-rack system for your vehicle with elevated, factory side rails
- 2 Aero black, low-profile crossbars hold bike racks, ski and kayak carriers, and other accessories
- Oval crossbars are more aerodynamic than standard square crossbars
- Reduces drag and cuts down on wind noise
- Lightweight, structural-grade, extruded aluminum construction for strength, durability and maximum carrying capability
- Built-in C-channel on top of each bar lets you mount Rhino-Rack Sportz and Aero accessories and carriers
- Rubber strip in the channel helps to cushion load and provide slip resistance
- Can be cut to accommodate track-mounted accessories and carriers
- Rubber strip in the channel helps to cushion load and provide slip resistance
- Built-in C-channel on bottom of each bar lets you mount crossbars to roof-rack legs
- Locking endcaps (included) secure accessories to your crossbars
- Oval crossbars are more aerodynamic than standard square crossbars
- 4 Roof-rack legs clamp directly to your vehicle's raised, OEM side rails
- Position anywhere along the rails to accommodate different-size loads
- Protect your roof-rack rails with rubber pads on leg clamps
- Constructed of UV-resistant, glass-reinforced nylon
- 2 Aero black, low-profile crossbars hold bike racks, ski and kayak carriers, and other accessories
- Versatile leg-and-crossbar system is easy to install and remove
- Built-in security hardware deters theft - leg bolts require special tool (included) to loosen
Specs:
- Weight capacity: 165 lbs
- Crossbar dimensions: 45" long x 3-1/2" wide x 1-1/2" tall
- Limited lifetime warranty
SXB3 Rhino Rack SXB Roof Rack for Elevated OEM Rails - With Aero Elliptical Cross Bars - 45" Long - Black

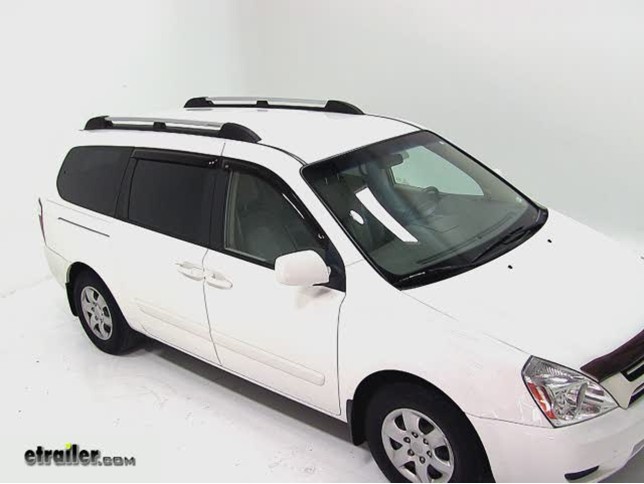

Video of Rhino Rack Roof Rack Installation - 2006 Kia Sedona
Video Transcript for Rhino Rack Roof Rack Installation - 2006 Kia Sedona
Today on this 2006 Kia Sedona with factory raised side rails we are going to be installing a Rhino roof rack part number SXB3. We already have our crossbar assemblies put together so now we are ready to mount them on our vehicle. First we will set our front crossbar assembly up on the side rails. Before we start tightening down we are going to check to make sure the crossbar is overhanging evenly on both sides. We also need to ensure that the crossbar is running perpendicular to our factory raised side rails. To check this we are going to measure from the front end of our side rail to the leading edge of our feet on our Rhino Rack roof rack. We will make sure it is the same on both sides so that we know the crossbar is perpendicular to the side rails. Once we have checked all of our measurements and ensured the crossbar is into position we can go ahead and tighten it down. We will take the included allen key and move back and forth from the passenger side to the driver side tightening down the roof rack systen evenly. This will help ensure that we do not lose our positioning and that we do not have too much tension on one side or the other. As we tighten the allen head bolt our rack base will clamp onto the side rails and it will also lock onto our crossbars. Once we have the front crossbar tightened down we are ready to move to the rear of the vehicle.
We will go ahead and lay our rear crossbar assembly over our side rails like we did up front. To position this bar we need to make sure that it is running parallel with the front crossbar assembly. To do that we will measure our crossbar spread from the center of the front bar to the center of the rear bar. We will make sure this measurement is even on both sides. Becauase this roof rack system is designed to attach to our factory side rails there is no required crossbar spread. You might want to check with the instructions of whatever accessories you will be using to see if they have a required crossbar spread. Again we are going to use the same tightening procedure moving from one side of the vehicle to the other to tighten down the system evenly. With both of our crossbar assemblies tightened down the last step will be to install our locking endcaps. We will slide the endcap into position at the end of our crossbar and turn the lock to secure it in place. They help seal the end of the crossbar keeping moisture out and also keeping windnoise down and they also help to protect the allen head bolt on the inside. Without easy access to this allen head bolt it will be more difficult for a potential thief to loosen the clamp and remove your roof rack system. And that does it for our Rhino Rack roof rack on our 2006 Kia Sedona with factory raised side rails part number SXB3. This roof rack system is also available with silver crossbars.That is part number SXB3-SILV.
Ask the Experts about this Roof Rack
Do you have a question about this Roof Rack?
- Will Rhino-Rack Crossbars # SXB3 Work With Rola Roof Cargo Carrier # 59504 On 2005 Pontiac Montana
- I do have a solution to mount the Rola Roof Cargo Carrier # 59504 to your 2005 Pontiac Montana, but the item you selected, Rhino-Rack Crossbars, part # SXB3 will not work with the Rola Cargo Carrier.
I would recommend the Yakima Roof Rack , part # Y00408, Y00138, which will attach to the factory side rails on your 2005 Pontiac Montana.
The reason the Rhino-Rack crossbars will not work is because the Rola Cargo Carrier only works with crossbars up to 3-1/4 inches wide, the Rhino-Rack bars
view full answer... - Will a Yakima RocketBox Pro 12 Fit a Rhino-Rack SXB Roof Rack on a 2011 Volkswagen Jetta Sportwagen
- The crossbars in the Rhino-Rack SXB Roof Rack, # SXB3, are 3-1/2 inches wide. The Yakima RocketBox Pro 12, # Y07191, uses a clamp style mounting systems and it will fit the Rhino-Rack bars. I have included a link to the installation details for the roof rack and cargo box for you.
view full answer... - Roof Rack Recommendation for a 2012 Hyundai Santa Fe with Flush Side Rails that Run Front to Back
- It sounds like your 2012 Hyundai Santa Fe has the flush rails and not raised rails that run front to back. If this is the case, the Rhino-Rack # SXB3 system will not fit. Instead, you would need to use the Rhino-Rack 2500 Series Roof Rack with Aero Crossbars, # DA1375B, and Custom DK Clamps and Pads, # DK041.
The SXB3 kit that you referenced would be if the rails were raised so that there is a gap beneath them.
view full answer... - Can a Cargo Basket be Mounted Directly to Flush Roof Rails on 2008 Hyundai Santa Fe
- I am not aware of any cargo basket that would directly attach to the flush-mounted cargo tracks on your Santa Fe.
The most economical option would be a Yakima Rack System that you could construct by using Yakima load bars part # Y00409, end caps part # Y8007026 and RailGrab Towers, part # Y00138. This system would provide a platform for the cargo basket.
The Rola Roof Mounted Cargo Basket, part # 59504 is our best selling roof basket, and would be a great choice for your Santa Fe.
I hav
view full answer... - Will the Rhino Rack SXB Roof Rack Work on a 2005 Cadillac SRX with a Sunroof
- As long as you have rails that run from front to back on your 2005 Cadillac SRX, and it is not a Sport model, the Rhino-Rack XB Roof Rack # SXB3 would work for you. The fact that you have a sunroof should not be an issue either as long as your sunroof does not angle up and out when it is opened.
I attached a link to an installation video for this product that shows it being installed on a similar vehicle with a large sunroof as well as installation instructions for this product for you to che
view full answer... - Can 53 inch Long Rhino-Rack Aero Crossbars be Used on a 2012 Volkswagen Jetta SportWagen
- We do have a roof rack for the 2012 Volkswagen Jetta SportWagen that has 56 inch bars. Take a look at the SportRack system, # A21009N. In addition to having the longest bars available out of the systems for your vehicle, it is also more economically priced.
For 53 inch Rhino-Rack bars, you would use # SXB7. This system and SXB3 have a 165 pound capacity. The SportRack system has a 30 pound capacity. You are also going to want to check the capacity of the factory rails and the roof of your ve
view full answer... - Will the X Cargo Sport 20 Fit on the Rhino-Rack SXB3 Roof Rack on a 2012 Volkswagen Jetta SportWagen
- I did some research on the X Cargo Sport 20 and based on the dimensions of the cargo box, it will fit on the Rhino-Rack SXB Roof Rack, # SXB3. This cargo box uses a u bolt mounting system that will attach to most factory and aftermarket roof racks.
We offer a similar cargo box which is the SportRack Explorer Cargo Box, # A90095, that is made by the same manufacturer that will fit on this roof rack and also uses the u bolt mounting kit. I have attached a review video of this cargo box for you
view full answer... - Roof Rack and Cargo Basket Recommendation for a 2010 Volvo XC90
- The first item that you will need to start carrying a cargo basket on your 2010 Volvo XC90 is a set of crossbars. For your vehicle, I would recommend taking a look at the Rhino-Rack SXB Roof Rack, # SXB3. This roof rack includes 2 aerodynamic crossbars that reduce drag and cut down on wind noise better than square crossbars.
This roof rack is also very easy to install. You simply place the clamps on your side rails and tighten them down using the provided tool. This roof rack also has a buil
view full answer... - Compatibility of Yamima FrontLoader With Rhino Rack SXB Crossbars on 2012 VW Jetta Sportwagen
- The Rhino Rack Crossbars measure 3-1/2 inches wide by 1-1/2 inches tall. Yakima tells me that their FrontLoader roof mounted bike rack will accommodate a crossbar with those dimensions.
You will also need to make sure that there is at least 1-1/2 inches of clearance under the crossbar in order for the attachment hardware of the FrontLoader to clear the roof of your Jetta SportWagen.
I have linked you to the instructions for the FrontLoader Bike Rack as well as an install video and instruct
view full answer... - Will the Thule Criterium Roof Mount Bike Rack Fit Rhino-Rack Aero Crossbars
- You can use the Thule Criterium bike rack # TH598 with Rhino-Rack roof rack # SXB3 but you will need to use an adpater, # Xadapt8, which will allow you to install the rack using the channels that are in the crossbars. I have included a link to the instructions and a video for the bike rack for you.
view full answer... - Will a X Cargo 20 Cargo Box Fit on a 2012 Ford Expedition
- The X Cargo Thule Box is designed to be used on most factory and aftermarket cross bars. The u-bolt that comes with the X-cargo is 4 inches wide so it should fit around a wide variety of cross bars.
If you do not have a roof rack with cross bars that run from one side to the other you will need to check out the link I attached that will take you to the Thule roof racks that are available for your vehicle.
view full answer... - Roof Rack for a 2013 Volkswagen Jetta SportWagen with Panoramic Sun Roof
- The Rhino-Rack roof rack # SXB3 does fit the 2013 Volkswagen Jetta SportWagen as long as it has factory side rails that run front to back. I do not recommend opening the panoramic sun roof as there could be interference. It may be possible to move the bars to places along the rails that will allow you to open it but you will need to determine that with the bars on the actual vehicle.
We have installed this system on a 2010, see video link, but not on a 2013 so we have not determined clearanc
view full answer...
