2013 Toyota RAV4 Roof Rack by Rhino Rack

Roof Rack Includes:

Custom DK Clamps and Pads for Rhino-Rack 2500 Series Roof Rack System


Rhino Rack

Part Numbers: DK043

Retail:$89.00

Price:$80.10

Shipping Special





Custom DK Clamps and Pads for Rhino-Rack 2500 Series Roof Rack System
part number: DK043

These custom-fit clamps and pads let you mount Rhino-Rack 2500 legs to your vehicle to create an aftermarket roof-rack system. Clamps mount to legs with bolts. Kit includes 4 clamps and 4 pads.

Features:

  • Custom-fit mounting pads and clamps work with Rhino-Rack 2500 Series roof-rack legs
    • Let you install an aftermarket roof rack on your naked-roof vehicle
  • Clamps are designed specifically to fit the curves of your door jambs
    • Mount to roof-rack legs with bolts
  • Molded pads are custom designed to fit the contours of your roof
    • Protect your roof surface from scratches and abrasions
    • Press onto the bottoms of your roof-rack legs


Specs:

  • Quantity: 4 clamps and 4 pads
  • Limited lifetime warranty


DK043 Rhino Rack DK Clamp Kit for 2500 Series Roof Racks





Video of install-rhino-rack-2500-roof-rack-2013-toyota-rav4-da126


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install rhino rack 2500 roof rack 2013 toyota rav4 da126

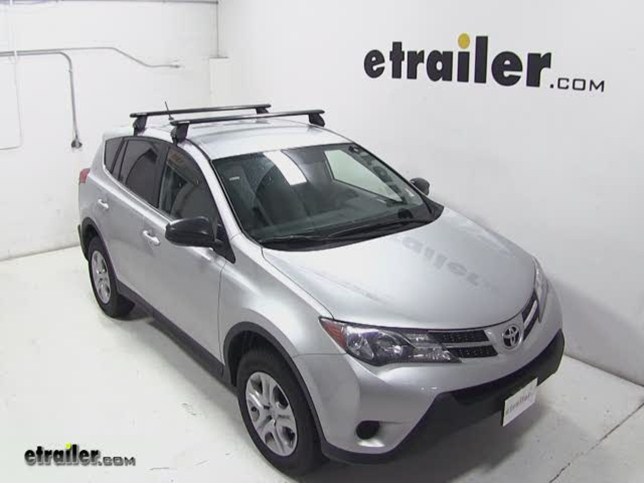

Rhino-Rack Aero Roof Rack Installation - 2013 Toyota RAV4
Video install rhino rack 2500 roof rack 2013 toyota rav4 da126b
Rhino-Rack Aero Roof Rack Installation - 2013 Toyota RAV4
Video install rhino rack aero 2012 toyota rav4 da126
Rhino-Rack Aero Roof Rack Installation - 2012 Toyota RAV4
Video install rhino rack aero 2013 dodge ram da1500b
Rhino-Rack 2500 Series Aero Roof Rack Installation - 2013 Dodge Ram Pickup


Video Transcript for Rhino-Rack Aero Roof Rack Installation - 2013 Toyota RAV4

Today on our 2013 Toyota Rav4 well be test fitting the Rhino Rack 2500 Series Roof Rack System using part numbers DA126 and DK043. With our roof rack system assembled according to the instructions, well begin our test fit by opening both front doors. Well place our front bar onto the front part of our roof. To ensure that we have it in the correct location, we need to measure 150 mm from the center of the door jam to the center of our leg footplate. Well do this measurement on both sides to ensure that our feet are in line with each other. Once we have it set in the correct location, we can then use the included tool to tighten our clamps to our roofline.

Well make our way from passengers side to the drivers side, tightening a little bit at a time to ensure that we do not lose our location. With the front bar set, well grab our rear bar and place it onto the rear part of our roof. To ensure that we have this bar in the correct spot we need to measure 750 mm from the center of the front leg footplate to the center of the rear leg foot plate. Well do this measurement on both sides to make sure that our feet are in line with each other and then our bars are parallel. Once we have that set, we can then repeat the same tightening process that we did with the front.

Well reinstall our lock pin covers and were ready to go. That completes todays test fit of the Rhino Rack 2500 Series Roof Rack System using part numbers DA126 and DK043 on our 2013 Toyota Rav4.




Ask the Experts about this Roof Rack
Do you have a question about this Roof Rack?


  • Rhino-Rack Roof Rack for 2013 Toyota RAV4 With Factory Raised Side Rails
  • Rhino-Rack offers two versions of their Vortex Aero Crossbar rack system that fit non-EV versions of the RAV4 that have raised factory rails. Parts # RRVA126B-2 and # RRSX021 make up a system with 49-inch black crossbars; for a silver-color rack you will use parts # RRVA126S-2 and # RRSX021. Both can be seen on the link provided. If you had the EV version instead you could choose from one of the Whispbar rack systems shown on the other link.
    view full answer...


Customer Reviews

Custom DK Clamps and Pads for Rhino-Rack 2500 Series Roof Rack System - DK043

Average Customer Rating:  4.7 out of 5 stars   (182 Customer Reviews)

These custom-fit clamps and pads let you mount Rhino-Rack 2500 legs to your vehicle to create an aftermarket roof-rack system. Clamps mount to legs with bolts. Kit includes 4 clamps and 4 pads.


- DK043

by: sigbert all02/27/2015


Was easy to put together have not put on vehicle yet but it was missing stickers that marked which end was where 176328






- DK043

by: IB08/25/2014


Otstanding product! 148364






- DK357

by: Michael G.01/30/2014

Review from a similar Roof Rack DK in Roof Rack


Fits my 2013 Ford C-Max Energi perfectly and seems quite sturdy and durable. Installation was a bit confusing because some of the markings on the parts were extremely faint and difficult to see. But once I figured out what each part was, the process was pretty straightforward. All in all this is an exceptional deal for a product that more than adequately replaces what the big name brands (T***e or Y****a) have to offer and and a much more affordable price. Also, etrailer.com was a great company to do business with. The price was right, the shipping was extremely fast, and the customer service was absolutely the best. 115264


Comments

I have had the rack for a year now and to be perfectly honest, my original review is still dead on. I have absolutely zero complaint about this rack. I dont leave the rack on all the time, so Im attaching and removing it on a regular basis. Its easy to use and rock solid for carrying bikes. Ive used it with no issues with 3 bikes, even fairly heavy mountain bikes.

Michael G - 01/30/2015

9114



- DK341

by: Art S.03/07/2014

Review from a similar Roof Rack DK in Roof Rack


I have every Yakima roof rack and accessory for all my past and present cars. I have been using them since 1991. We recently bought a Lincoln MKT and to my surprise, Yakima nor Thule make a roof rack solution. The only one I found online is this one. Etrailer had it for less than the manufacturer website. At first, I was apprehensive since there were no reviews about this rack on my car and etrailer called me to tell me that they needed to wait for the clamps, since it was not in stock (must be because of the rarity of this car). The installation instructions was initially daunting, but after watching some videos online from the manufacturer website and figuring out the assembly, everything went smooth. After installation, I was amazed at the quality of this rack. Fit was ok, but for some reason the rear door feet are not split level like the front door feet, since the rear pad sits across a gap on the roof (hopefully this does not impact carrying capacity). Regardless, the rack appears solid and does not scratch or dent the car in anyway, nor impede the function of the large panoramic roof. I'll report back if I have any issues after I load it up with some standup paddleboards. Overall, pretty happy with purchase. 119866



- DK289

by: SheriM.03/12/2014

Review from a similar Roof Rack DK in Roof Rack


I received THREE different sets of instructions for the 2500, plus the PDF I was prompted to download...REALLY confusing. I have put together all kinds of furniture, including a 3' x 6' armoire (I am a 5' tall woman), installed paneling and flooring, including carpet in my van, installed bathroom tiles, built closet storage 'out of my head' and from plans, pulled and installed a car radiator/brake and clutch pedals assembly/starter assembly during the course of my 56 years on this earth...but I have never, never, never had such a difficult time making sense of 'too much information'...please go over the instructions and combine what needs to be combined and separate the info for the different vehicles!!! I am pleased with the outcome as far as the overall sturdiness of the product and I look forward to making use of this system. Besides the assembly instruction difficulties, I am disappointed in the fact that I bought the lock sets for each crossbar, only to see that the insides of each of the legs is exposed... ??? Please consider that in future design 'tweaks'. 120419



- DK004

by: Bill S07/23/2013

Review from a similar Roof Rack DK in Roof Rack


The pads have held very well.. I was somewhat skeptical at first, simply due to the amount of fishing poles I was going to be mounting on top of the entire system.(up to 7 poles, ranging from 7 up to 13 foot surf rods, with reels) However, I was very impressed and still am. Great holding power with no damage to paint at all!! 91146


Comments

The whole system, after a year has held up great . I have never needed to retighten or readjust the cross pieces or the rack which attaches on top.. All my poles have done fantastic, plus a recently added 9 foot Chritmas Tree.Great Product! Thank you

Bill S - 01/21/2015

8801



- DK250

by: Geza S.02/09/2015

Review from a similar Roof Rack DK in Roof Rack


The package was delivered in time and contained all the components needed. However, the assembly instruction was not up to date. It was claimed that it could be installed on Hyundai Sonata 4dr sedan “2010 on”. But when I followed the instructions precisely I ended up with assembled racks, which could not be fitted to the roof of my 2014 Hyundai Sonata. First, I wanted to send it back, but because I was moving and the racks were badly needed within short time, I decided to fit it to my car myself. It took 4 disassembling & reassembling, modifying the bar lengths and their positions on the roof each time, while finally they were OK. It took about 4 hours total time, although I am a technical guy. They are only OK because they do not fit perfectly to the roof. It is because the rubber pads have only 1-dimensional rotation, while a perfect fit would need at least 2-dimensional rotation. It holds strong now, nevertheless, I would not recommend it to my friends because of all this hassle. 173004



- DK146

by: Joe T.07/12/2012

Review from a similar Roof Rack DK in Roof Rack


I want to let you know that I really appreciate the help, speed and quality of service you provided to me. Actually you saved the day for me, I was struggling with other web suppliers to order the roof rack, they were either not knowledgeable to know the correct configuration for my car or they did not have the part in stock and needed a long lead time. My time was very short as I am moving in a few days, I called Rhino roof rack manufacturer and asked them who is their top dealer and they referred me to you. I am very grateful for your help and the shipping the roof rack the same day I called! 47676



- DK381

by: Ruth06/19/2015

Review from a similar Roof Rack DK in Roof Rack


I purchased the Rhino Rack Series for my 2014 Nissan Altima. I needed it rather quickly for a bike trip I was taking so I ordered expedited shipping. Almost immediately the staff advised me via phone call and email that the product could not be expedited due to it not being readily available in the distribution center. Although I was disappointed, I appreciated the emails and phone calls and began to think up options for transporting my bike. The staff indicated they would keep me updated as they looked for a solution. And then, the next day, I got an email to say my product shipped and would be here on time! I was so excited! The team at etrailer was amazing from start to finish. They figured out how to make it happen! They were excellent at communicating and the product arrived in good shape and had everything I needed, including the Spec Sheet for my car. I would definitely order from them again. Now we'll see how the rack does on the trip! 204582



- DK226

by: Robert Dames07/26/2013

Review from a similar Roof Rack DK in Roof Rack


When I first opened the box there were two screws and bolts that are critical to the fastnening of the feet assembly that were simply rolling around in the box. Had these components rolled out of the box, I would have been pretty well stuck. Also the "DK" measuring chart was NOT included with the directions. I would have been unable to properly place the rack on the roof without it. However, I called E-Trailer and explained my circumstance. Nicki quickly resolved this dillemma by e-mailing me the needed info. I then completed the assembly and mounted the Rhino rack on the car roof. I am pleased with the rack; it assembled relatively easily and fits the car well. However, E=Trailer should contact the vendor and make Rhino Rack aware of the faults I noted. Thanks E-trailer for the superior customer support. I will return for future purchases as needed. Sincerely, Bob Dames 7-26-13 91669



- DK154

by: Frank K08/20/2014

Review from a similar Roof Rack DK in Roof Rack


The Rhino Rack fits my 2009 Honda Fit perfectly and I am impressed with the construction and apparent durability. I am able to attach my L-shaped kayak brackets and travel safely to my destination. I recommend this product to others looking for a reliable rack but scared off by the high prices at Thule and Yakima. The only problem I had was with the crossbar endcaps. A key is required to lock them safely in place. The plastic key was delivered in the runner space in the crossbar and no mention was made of this in the instructions. Subsequently I did not identify them as the required keys and had to contact the manufacturer for clarification.The pictures of the crossbars on the product packaging and in the installation instructions were different than the endcaps I received. Once this was resolved all proceeded smoothly. I recommend this rack to all. 147704



- DK061

by: AAK10/01/2014

Review from a similar Roof Rack DK in Roof Rack


Quick shipping and great product! Have only been using it for a week or so, but it fits well on my car, is very quiet and has worked well to haul our 2 kayaks (when paired with our kayak attachment sold separately). The instructions were helpful, however, it skipped explaining the step where you need to measure your car width and cut the plastic guides on the bottom of the cross bars to the correct length in order for the feet to attach properly to the car. That was an easy and obvious quick fix, but would have been a nice to have it in the instructions before we got it together and realized it didnt fit on the car. 154010



- DK323

by: Chris B.05/28/2014

Review from a similar Roof Rack DK in Roof Rack


Products were a perfect fit for my 2014 Passat! The instructions were easy to follow. I used the racks to transport a nine foot longboard over to the beach for a week. They worked great! 133207


Comments

The racks are great. I used them this past weekend to haul my longboard over to the beach.Thanks for the follow up!

Chris B - 05/28/2015

12165



- DK301

by: Paul06/19/2014

Review from a similar Roof Rack DK in Roof Rack


Love it. Better than I could have ever hoped. 136684


Comments

Youre welcome! I actually just sold the car WITH the roof rack after a year. I used it about once a week for the previous few months leading up to selling. I have no complaints and it did its just admirably.

Paul - 06/19/2015

12650



- DK338

by: Hoffers03/22/2014

Review from a similar Roof Rack DK in Roof Rack


Rack feels very sturdy and was easy to assemble and install. Since I've just installed this rack, time and usage will determine my overall satisfaction. 121728


Comments

Terrific rack - sturdy and solid - at a good price.

Hoffers - 03/22/2015

10218



- DK061

by: Janet05/05/2013

Review from a similar Roof Rack DK in Roof Rack


Great service from etrailer, quick, free delivery. Rack was easy to install...very good instructions. 79078


Comments

Everything has been fine using the rack.

Janet - 06/05/2014

4683

- DK284

by: Manuel11/12/2014

Review from a similar Roof Rack DK in Roof Rack


The clamps fit well on my 2014 Honda CRV. I took my time reading the instructions and attaching the cross rails to ensure proper attachment, and found the fit to work great. The clamps work well on the contour of the CRV. I took a test drive, and did not encounter any problem. Aloha from Hawaii! 160515


Comments

Manuel,I have a 2014 CRV and I am not very mechanically inclined, how long did it take you? Are the instructions clear?

comment by: John - 06/30/2015


12939



- DK361

by: Frank B.11/15/2014

Review from a similar Roof Rack DK in Roof Rack


Although I have not yet put the aero Rhino rack on my car and taken a trip (coming up) I have assembled the entire rack. I do appreciate the quality of construction and design. The product is better than I expected. I did watch the video on how to mount the rack on your vehicle, but I did not see a video on how to assemble the legs to the bar. I found it difficult to insert the clamps into the rubber pads. More documentation would be helpful, maybe there is a trick to it. Instructions on the best way to cut the measurement sticks would also be helpful. All and all, it looks like a great product for the price. 161077



- DK307

by: Paul H07/27/2013

Review from a similar Roof Rack DK in Roof Rack


I received the rack in an efficient manner. When I went to finally assemble it, I was missing a crucial part. Fear not, their customer service was good. Tamara got the part shipped to me. Then, myself and a surgeon (practically) tirelessly figured out how to assemble it. Terrible directions... Literally 2 hours later, it was done! Like magic... but not ;-) Proud to of got it done. Pixs included 91910



- DK220

by: Steve L.06/25/2015

Review from a similar Roof Rack DK in Roof Rack


Just realize that this is not your OEM roof rack install. It doesn't use the mounting system provided on the car - simply "clamps on". I kinda wish I had known this before. I installed on a Mazda-CX-9. The brackets slightly get in the way of the door seal... and it adds some noticeable noise at high speeds. Overall I give it a good rating. It works, and seems durable and well built. The instructions could be improved a bit... I struggled there, but ultimately got it on and working, and it should fit my needs. I'll probably take it off the car when I'm not using it. Next time, I'll do OEM! 207153



- DK055

by: Richard03/26/2013

Review from a similar Roof Rack DK in Roof Rack


The Rhino Rack is excellent: high quality and fits perfectly. About eTrailer: If you want personal service even when you don't need it, clear guides so you know you are getting the *right* gear for your vehicle, and prompt shipment and reliable delivery then eTrailer seems to be the place. I came here because they spent the time building a site that didn't leave me wondering. Excellent! 72689



- DK319

by: Tim H.08/09/2014

Review from a similar Roof Rack DK in Roof Rack


Recently switched vehicles from an 05 nissan frontier nismo to a 14 Honda Civic SI sedan. I was very excited that all I needed was this pad and clamp kit to transfer my rhino rack from the truck to the car. The parts came quickly and service was great. I will continue my patronage with etrailer as long as I need rack related products. Attached is a pic of my rack in use on my new SI. 145493



- DK360

by: Marissa06/04/2015

Review from a similar Roof Rack DK in Roof Rack


I have to say that I was hesitant ordering from a company that of which we had never heard, but we did anyway. Fabulous decision! Shipping was fast. Company to consumer communication was right on the money. These took no time to install in addition to the crossbars we ordered. They fit on my SantaFe sport 2013 with panoramic sunroof fabulously. Looks just like the video vehicle. Bought them for a couple of ten foot kayaks. No slipping or shifting. Went up to 60mph. If you are hesitant, don't be. My husband and I are thrilled with our purchase! We have even been return customers! 200598



- DK170

by: AJ05/13/2012

Review from a similar Roof Rack DK in Roof Rack


I recently purchased the Rhino Rack 2500 multi-fit rack w/DK170 kit. The system came complete and well made. etrailer processed my purchase promptly and I received it within a matter of days. only problem I had was when it came down to fitting the rack for my vehicles spec's .. the manual suggested I use my owners manual or the DK spec list...I went to youtube and found an installation video there ( which was very helpful) and found out the DK spec sheet was shipped in the DK170 kit box... I assembled the rack.... fitted it to my vehicle and everything is great and looks sharp.. 40230



- DK154

by: TMJamison05/21/2013

Review from a similar Roof Rack DK in Roof Rack


I ordered this package along with the Rhino Roof Rack with Aero Crossbars; the specs provided by eTrailer made assembly completely trouble-free. Mounting the rack on my particular vehicle (Honda FIT) for the first time took precision; but future mounting will be completely effortless with the markings. What's more, delivery of my purchase was FAST and FREE. I placed my order on a Wednesday; it was shipped on Thursday and I had my order by Monday (particularly important in my case - since I was going camping that following weekend). Very happy with purchase. 81351



- DK008

by: Chase T08/27/2014

Review from a similar Roof Rack DK in Roof Rack


I am very pleased with the service from etrailer. Finding the correct rack for by car was a breeze. I ordered with standard free shipping and the same day I was notified that my product had been upgraded to 3-5 day shipping at no extra charge. My rack arrived in 5 business days, which coincided with the expected delivery date listed on their website. I purchased the Rhino-Rack 2500 series with euro square bars and custom DK008 clamps and pads for my 2004 Acura TSX. The instructions were clear and the rack fit easily. I could not ask for better service. 148873



- DK108

by: Tom Y.03/18/2015

Review from a similar Roof Rack DK in Roof Rack


I got this along with the Rhino Rack 2500 series Roof Rack with the Euro Square Crossbars in a kit. They fit perfectly and were easy to install. 179614



- DK079

by: Kevin S.12/17/2014

Review from a similar Roof Rack DK in Roof Rack


Planned to get the Thule racks, but they were back ordered and could not be delivered before a planned trip that I needed the racks for. I called eTrailer to see if they had another recommendation and Cole could not have been more helpful. She walked me through the options and ultimately I bought the Rhino-Rack and could not be happier with the simplicity, the sturdiness and the overall quality. I've no doubt that the Thule's would have also been a great choice, but I saved around $100 and am completely satisfied. 165890



- DK300

by: Mickey H.03/16/2015

Review from a similar Roof Rack DK in Roof Rack


I can't say enough good things about etrailer.com. Their web-site is easy to navigate. All I did was put in my car make and model and they told me which car rack I needed to carry my kayak. I received my rack within a few days, the quality was great and it fits my car perfectly. I also had a few questions I sent via e-mail and they replied promptly and courteously. And lastly - I priced the same roof rack from several other companies and etrailer.com was by far the least expensive. Highly recommended! 178548



- DK395

by: Dave F.05/29/2015

Review from a similar Roof Rack DK in Roof Rack


Just installed the Vortex Aero Cross bars using the 2500 series legs and DK 395 clamps and pads on my 2015 Toyota Highlander (LE plus). It went very smoothly after watching installation video and following the instructions carefully. I chose this product because it provides a better base for a lot of items like building supplies, ladders, etc. Have not used it to actually haul anything yet, but did drive on the freeway and could not hear any wind noise. It seemed rock solid. I'm very pleased. 198595



- DK396

by: Sean H04/25/2015

Review from a similar Roof Rack DK in Roof Rack


Very easy to put together. Once together it was even easier to install on top of my car. Wasn't sure what to expect, but I am thrilled that I got this roof rack. Now I don't have to rely on other people and their cars to move stuff. Now I just have to wait till next ski season before they get full use 188172



- DK284

by: Bob H06/02/2015

Review from a similar Roof Rack DK in Roof Rack


E-trailer takes the guesswork out of ordering a roof rack especially for a naked roof. All the parts arrived in one box. You must follow the instructions very close and confirm the spec sheet for your vehicle. By doing this the process was pretty easy but took a little time. This is a project you want to take your time with and you can still do it in 90 min to two hours. E-trailer is always my go to store for vehicle related items. Their products and support are excellent. 199965



- DK195

by: Crispinf04/17/2015

Review from a similar Roof Rack DK in Roof Rack


The Rhino rack packages are really logically set up. they arrived in two boxes- the racks in one, and the car specific material in the other. The setup and assembly is great- better than the other "Big" guys we are so familiar with. The only issue was the locks that came with the racks- took me quite a while and lots of silicone spray to get them working smoothly. The total package fits great and indicates they really think about the specific vehicle they set it up on. 185797



- DK150

by: Larry E. McCoy04/18/2015

Review from a similar Roof Rack DK in Roof Rack


My order arrived sooner than I expected, which was great. The assembly was easy. The installation was trial and error as the crossbar instructions did not list my 2014 F-150 so I had to make some adjustments to the leg position for the racks to sit right. There were only three rubber buffer strips for each 59 inch bar which left gaps in the top which produce a whistle even at low speeds. The whistle is very ennying as I can here it even with the windows rooled up. 186145



- DK062

by: Mary C.03/24/2015

Review from a similar Roof Rack DK in Roof Rack


I am so happy with the Rhino Rack 2500 I bought. I had returned a rack system from another vendor that did not work on my 2004 Matrix, even though they said it would on the phone. My hatchback did not come with a factory installed way to attach a rack. This one simply clamps on and locks very securely. I just took a couple hundred mile drive with it and it makes no wind noise I can hear. It was easy to install and I'm sure ads resale value to my car. Good value! 180635



- DK321

by: Aaron10/23/2014

Review from a similar Roof Rack DK in Roof Rack


Got it for Toyota Camry SE Was not that easy to install but got thru it. Nice and sturdy! VERY IMPORTANT thing to know: if both grooves top and bottom in the tracks are not filled in it will make a very annoying whistling sound anytime you drive over 20 miles per hour. SO- to fill in top use the supplied rubber inserts. To fill in the under grooves use the number strips that come with the rack. Trim to fit all exposed grooves. DO NOT THROW AWAY NUMBER STRIPS. 157699



- DK062

by: Roger H.03/17/2015

Review from a similar Roof Rack DK in Roof Rack


Product was delivered fast and exceeded my expectations in quality. 179314



- DK307

by: Alaska09/03/2013

Review from a similar Roof Rack DK in Roof Rack


Fit was excellent and quality of components were tops too. A tad complex to install but not difficult - you just need to take your time and read everything several times. For example, there's actually 4 different rubber pads - each corner is different! Makes for a more difficult install but there's no denying that it's a custom fit! Also, all measurements were metric, so make sure you have a metric tape measure. Delivery was in two short days. Amazing! 97948



- DK099

by: Phil K.06/21/2014

Review from a similar Roof Rack DK in Roof Rack


I ordered these racks for my 2011 Mazda Tribute w/ a naked roof. The quality and ease of assembly was remarkable. I use the racks for loading surfboards (longboards 9 ft to 10 ft.) and they are exactly what I needed!!! I would highly recommend this product. The helpful folks at etrailer.com were great. The product arrived on time with no hassles and the price was less than the factory system which was far less robust. Cheers. 136891



- DK323

by: Mirray07/31/2014

Review from a similar Roof Rack DK in Roof Rack


Rack fit perfectly on our 2012 passat tdi. The rear and front mount clips were the same part number but were of different lengths. The longer clips are for the rear rack and the shorter ones are for the front rack. This wasn't specified in the directions but was easy to figure out. Overall the product is excellent for carrying our Thule cargo box. No real noticeable noise or howling from the rack while at hwy speed. 143821



- DK152

by: Jen W11/17/2014

Review from a similar Roof Rack DK in Roof Rack


I am stuck on part 7 of the setup. The instructions do not clearly state the measurement for cutting the bar strip pieces. It says to refer to the DK Specification sheet, but there's nothing clearly labeled as such within my package. Can you please tell me the exact measurements in cm needed to cut the bar strip pieces for the rhino rack 2500 series euro style roof rack on a 2009 toyota corolla.Thank you for the help. 161424


Comments

With the Euro Square Bars you also ordered, the strips for the front bar should be cut to 146mm or 14.6cm and the strips for the rear bar should be cut to 140mm or 14cm. These mesurements are specific to the 2009-2013 Toyota Corolla sedan. The strip measurements are found on page 1 of the instructions that come with the DK152 fitting kit. Find the row that matches your vehicle and the column that matches your bar type to find the correct lenghts.

Patrick B - 11/19/2014

7750

- DK047

by: Mark B.12/30/2014

Review from a similar Roof Rack DK in Roof Rack


The product itself is great. The instructions to put it together could be better. They need to put the instructions in front of any common idiot with the parts laid out and they would see that the pictures and instructions could be better presented. However, we figured it out and after putting it together the actual installation on the car is very easy. Also very easy to remove if it is for temporary usage. 167253



- DK149

by: Joe C.12/24/2014

Review from a similar Roof Rack DK in Roof Rack


The product was easy to install and fits great on the vehicle. The instructions were easy to follow though generic in nature. The vehicle specific directions and specifications were not included. I had to contact etrailer via email. They responded immediately and provided me with the necessary information. Their customer service is outstanding. I will use etrailer again for my automotive accessory needs. 166791



- DK229

by: Jean V06/14/2015

Review from a similar Roof Rack DK in Roof Rack


I ordered the rack system over the phone. The customer service rep (Kathy) was helpful, knowledgeable, and friendly. The rack arrived as stated in the shipping, and arrived in perfect condition. The instructions were printed for my specific vehicle. I put the rack together, and installed it on the vehicle myself. The rack fit perfectly, I carried my kayak on the racks, worked great. 203224



- DK360

by: Lindsey N.07/21/2014

Review from a similar Roof Rack DK in Roof Rack


We installed our Vortex Aero rack on a 2013 Santa Fe Sport. The instructions were easy to understand, and it took me and my husband about an hour to install. The rack looks great on our car. The etrailer customer service has been a great help. There is never any wait when calling them, and they are always helpful. We are very happy with the roof rack and with the etrailer team. 142490



- DK172

by: Joseph Mitchell06/15/2013

Review from a similar Roof Rack DK in Roof Rack


Great product. Everything was nearly placed in box with nothing missing. Very fast shipping thanks to etrailer.com. The product looks great on my car and I couldn't be happier! Thanks! 84811



- DK078

by: Jay D.06/10/2015

Review from a similar Roof Rack DK in Roof Rack


Rhino racks are really made very well. I was fortunate to read ahead of time a review from someone who spent 30 minutes trying to figure out how to assemble parts that were already assembled...maybe the manufacturer should edit the assembly directions. But as for the product and the rest of the assembly directions, it was a great purchase and product to put together. 202181



- DK188

by: Gary M04/17/2015

Review from a similar Roof Rack DK in Roof Rack


First I really like the rack.Very nice for the money. But the directions I feel stink. I felt they weren't clear, too much room for interpretation. I put them down and figured it out without the papers. Much faster.I followed where to position the rack on the auto , but that's about it. Very solid and secure. The money saved over other brands will buy you accessories. 185962



- DK327

by: Robert G.07/30/2014

Review from a similar Roof Rack DK in Roof Rack


All expectations were met for the rack quality, clarity of assembly instructions, and ease of installation. The rack will be used primarily to carry a variety of kayaks. 143353



- DK201

by: Tracy H.04/20/2015

Review from a similar Roof Rack DK in Roof Rack


Easy to install. We've only used the rack once so far, but it's strong and secure. Best part was the shipping for etrailer. We received the roof rack in 2 days!! 186791
