Draw-Tite Activator II Trailer Brake Controller - 1 to 4 Axles - Time Delayed
Replacement Brake Control Plug-In Harness for Tekonsha and Draw-Tite Brake Controller 12" Long
Part Numbers: 5500, 20127
Retail:$129.89
Price:$85.94
Shipping Special
Trailer Brake Controller Installation - 2001 Chevrolet Express Van - Video
Trailer Brake Controller Installation - 2011 Chevrolet Tahoe - Video
Trailer Brake Controller Installation - 1991 Ford F-150 - Video
Trailer Brake Controller Installation - 2005 Ford Freestar - Video
Show all 5 videos
Trailer Brake Controller Installation - 2011 Chevrolet Tahoe - Video
Trailer Brake Controller Installation - 1991 Ford F-150 - Video
Trailer Brake Controller Installation - 2005 Ford Freestar - Video
Show all 5 videos
Draw-Tite Activator II Trailer Brake Controller - 1 to 4 Axles - Time Delayed
part number: 5500
Electronic controller activates electric trailer brakes with a preset intensity when you apply the brakes in your vehicle. Digital display is simple to read. Power output and braking aggressiveness are easily adjustable. Includes manual override.
Features:
- Brake controller activates trailer brakes with preset intensity
- Signal is sent to trailer brakes when tow vehicle's brakes are activated
- Adjustable output control lets you determine the amount of braking force
- Set to maximum when you travel through hilly terrain with a fully loaded trailer
- Back off the power output when you tow a lightweight trailer
- Sync setting lets you adjust the aggressiveness with which the brakes are activated
- Get full power output faster by moving switch forward to increase activation speed
- Achieve smoother braking by moving switch in opposite direction to supply power gradually
- Digital display is easy to read
- Built-in, slide-bar manual override
- Quick and easy installation
- No need to mount level like proportional brake controllers
- Mounting bracket, wiring harness and hardware included
- Plug-in, vehicle-specific brake-control adapter can be used for certain applications to reduce installation time
Specs:
- Application: trailers with up to 4 axles (8 brake assemblies)
- Designed for use with electric brakes only
- Dimensions: 3-3/16" wide x 6-1/8" long x 1-1/4" tall
- Limited lifetime warranty
Time-Delayed Braking
The Activator II applies your trailer's brakes when the brake pedal in your tow vehicle is engaged. Every time you apply the brakes in your vehicle, a signal is sent - via the brake switch - to the Activator. The controller then sends power out to your trailer brakes to activate them with an intensity set by you, at a rate determined by you. Both the amount of braking power (output) and rate of application (sync) can be adjusted to suit your preference, the road conditions, type of trailer and size of the load. To determine which levels are best for your application, you must test out your towing setup and choose what feels best.
A time-delay controller is so named because there is a delay between the time that you initially apply the brakes in your tow vehicle and the time that the controller reaches maximum power output. Unlike a proportional brake controller, which activates your trailer's brakes based on the deceleration of your tow vehicle, the Activator sends power out in the same way, with the same gradual delay, no matter the braking situation. Although this delay always exists, it can be adjusted by changing the sync setting.
Sync Settings
To adjust the aggressiveness of your trailer's braking action, use the slide control on the side of the Activator II to change the sync setting. If you want to reach maximum power output faster, move the switch forward. To get smoother braking action, move the switch backward, thus supplying power to the trailer brakes more gradually. You can alter the sync setting to suit your driving preferences or to improve handling based on changing road conditions or varied trailer loads.
Quick, Simple Installation
Because inertia plays no role in the functioning of this controller, you do not have to mount the unit at any particular angle. As a result, mounting options are limitless, so long as you can still easily access the controller.
Installation of the Activator II requires that you either purchase a custom wiring adapter designed to plug into the controller or that you hardwire the controller directly into your vehicle. To hardwire the Activator, you must remove the plug at the end of the integrated wiring harness.
Installation Accessories
For easier installation, a vehicle-specific wiring adapter is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.
Note: If a custom brake-control wiring adapter is not available for your vehicle, one of the following will be required:
20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications
30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications
See also etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.
5500 Draw-Tite Act II Time-Delay Trailer Brake Control
Same as Reese Brakeman Digital - 83500
Replacement Brake Control Plug-In Harness for Tekonsha and Draw-Tite Brake Controller 12" Long
part number: 20127
Tow Ready Replacement Plugin Harness for the Tekonsha P3, Voyager, Prodigy, and Primus Brake Controllers. Also works with Draw-Tite Intella-stop Xtreme, Intella-stop Ultra, Intella-stop Digital and Activator III (5520) brake controllers.
- Wire leads measure approximately 12" long

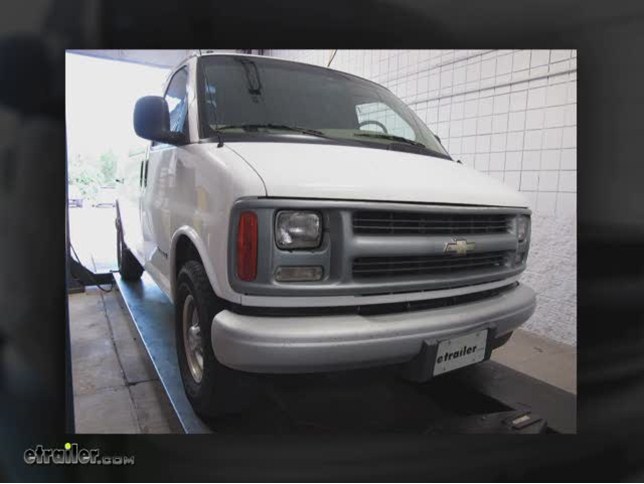

Video of Trailer Brake Controller Installation - 2001 Chevrolet Express Van
Video Transcript for Trailer Brake Controller Installation - 2001 Chevrolet Express Van
All right, today on this 2001 Chevrolet Express Van were going to install part #: 39523, this is the Tekonsha Power Track brake controller. Now to install this were also going to use part #: ETBC7, the brake controller install kit. Were going to start with that part first. Were going to start off of our wiring harness and start from the rear of the vehicle and work our way up. All right, next well go ahead and take our 7 pole bracket and were going to attach it directly to the bumper. All right, now well go ahead and take our seven to four pole adaptor, well attach it to the bracket, then well take the four pole and connect it to the preexisting four poles on the van.
Well use some dielectric grease to seal the connection up, connect the two four poles together and make a permanent connection out of it. All right, then well continue on with our gray wire and well run that to the front of the vehicle. Now, when we do well make sure stay away from anything moving like the suspension components or anything hot like the exhaust. Now well also take the white wire thats with the gray cable with the ring terminal and well attach that to the frame. Now to attach our ground were going to use a number 14 self-tapping screw.
Now, to run a wire up to the front were actually going to run all the way through the frame. Now, were using a piece of airline tubing to help run the wire through. This also can be a piece of stiff wire or something you can work with. Okay, well pull all the way up to the frame and then well run up through the engine compartment. Again, we want to make sure we stay away from anything moving or that gets hot like the exhaust.
Well run it up along the firewall and pull it out the top and then well use a zip tie to help secure the wire and take up the tension. Next well go ahead and install our circuit breakers. Were going to mount them to the inside of the fender well next to the battery. Now well take our duplex cable and well peel away the gray sheath. Our black wire will go on across the front of the vehicle to the 40 amp circuit breaker for a hot lead.
Then our wire well pull back and leave it out of the way for now. After we have our initial hook up to the circuit breaker well go ahead and take our white wire and then well pull it from the inside out. Now, on this vehicle theres a grommet thats missing in the firewall, so were going to use that hole to run our wires through. If there was a grommet there we would make a hole in the grommet and then run our wires through it. Now, since that weve ran out of cable on our install due to the way how we ran the wire from to rear and the lengths were going to add another piece of cable to it. Well use a ten foot length of wire, were using part #: 10-2-1. Well take this new length of wire and well run it from our 20 amp circuit breaker to the inside of the cabin to where were going to install our brake controller. Now, our black wire will be connected to the 20 amp circuit breaker and our white wire in this bundle will be attached to the factory ground. Okay, now that weve run our wires inside well go ahead and cut them to the length that we need. Then we can go ahead installing the wire harness for the brake controller. Now the wire harness were going to use is universal brake controller plug part #: 20127. Now, we hook up our wires, were going to start with our single white wire. Well connect that to the blue wire on our brake controller harness, then next well go to the gray cable with the black and white wires, well connect those color for color from the brake controller harness and our red wire well run up to the coal side of the brake switch. All right, at this point we can go ahead and start installing the brake controller. Well take our bracket and mount it to the bottom of the dash. Then well go ahead and take the brake controller and well get ready to install it to the bracket. Well go ahead and take one of the attachment screws and make some threads before we attach the brake controller to the bracket. Okay, well go ahead and attach it to the bracket. Well connect our wire plugs together and well zip tie the wires out of the way and well go back underneath the hood and make our final connection. Now, well run two wires to our power supply, one for the brake controller and one for the 40 amp circuit breaker for the 12 volt power supply out back. Normally you want to make your connections straight to the battery. However, due to the lack of room inside the engine compartment, with the battery, we cant really use battery extenders or post extenders. Okay, with our power hooked up well go ahead and attach the trailer to the vehicle and test the brake controller. Now, you can see we have a little green light on the LED. If we move the manual override over you can see how it turns to the green, to orange, to red and it also, since its a time delay brake controller, itll do the same thing when we hit the brake pedal. Okay, and with that, thatll finish it for our install of part #: 39523 from Tekonsha on our 2001 Chevrolet Express Van.
Ask the Experts about this Brake Controller
- Draw Tite Activator 2 Displays Decimal or Dot and Does Nothing When Manual Switch is Activated
- According to the instructions, when you have a decimal or dot displayed, it signals that there is no trailer connected. Without a trailer connected, there is no complete brake circuit so pressing the manual switch will do nothing.
Try connecting a trailer first and following the setup portion of the instructions. In case you do not have your instructions, I have included a link to them below.
I attached an FAQ page on brake controllers that you might find informative to the right.
view full answer... - Malfunctioning Draw-Tite Activator II Brake Controller on a 1997 Ford F-150
- Here is the typical brake controller connection method. Red wire to cold terminal of brake switch(cold terminal gets 12v only when brake pedal is pressed). Blue connects to trailer brakes. White is ground, and Black goes to a 12v power source. We offer a wiring adapter, part # 20260 that would plug into the OEM socket under the dash, and the bare leads on the adapter would wire directly to your controller.
view full answer... - Parts Needed for Brake System to Flat Tow a 2006 Jeep Unlimited Behind a 2005 GMC Sierra 2500HD
- We have just the system you need. The RoadMaster Even Brake Portable Braking System, part # RM-9400, can quickly be attached to the brake pedal and does all of the braking for your towed car proportionately to the motorhome.
view full answer... - What Does The 8.0 Display Code Mean on # 5500 Activator Brake Controller by Draw-Tite
- When this brake controller shows an output when there is no trailer attached it usually means there is a wiring problem that needs to be addressed. If the output code is not showing without the trailer hooked up and then appears when the trailer is hooked up, the trailer is mis-wired and you will need to make sure the trailer brake wiring is connected to the proper terminal and that there are no problems with the wiring or magnets in the trailer brakes.
The terminal inside your 7-way trailer
view full answer... - What Does the SC Error Code Mean on the Activator II Trailer Brake Controller
- On the 2-8 Electric Brake Controller, item # 5500, the code SC indicates that the brake controller output circuit is short circuited at some point between the point where the blue wire exits the rear of the controller and where it ultimately ends at each brake assembly at the brake magnet.
The most common situation that causes this is a damaged or corroded trailer connector, either the socket on the vehicle or the plug on the trailer. Carefully examine the metal pins on the plug and socket fo
view full answer... - How to Install Brake Controller Wiring on a 2004 Nissan Armada
- You are looking for a 6 pin connector located near the emergency brake pedal. It is usually taped to another wiring harness. You will need a wiring adapter, part # 20266 to complete the connection.
view full answer... - Recommended Hitch, Brake Controller and Towing Accessories for 2006 Chevy Express Van
- For a hitch, I would recommend the Draw-Tite Class III receiver hitch, part # 75189. This hitch offers a 5000 lb towing/ 500 lb tongue weight capacity. For greater capacity, a Curt Class IV is available, part # 14090. The Class IV offers a 12,000 lb towing/ 1200 lb tongue capacity. The hitch capacity could be higher than the actual capacity of the vehicle itself, please check the owners manual for the stated capacity of the vehicle.
I would recommend a proportional brake controller like the T
view full answer... - Why is my Brake Controller Reading Overload and How Can I Find Where the Problem is?
- If your controller, item # 5500, is reading overload without the trailer connected then that means there is a short in the blue trailer feed wire on the vehicle.
If the controller is reading overload only when the trailer is connected then there is a short or overload in the trailer wiring or breaks.
Use a circuit tester, item # 3808 if you need one, to test the wiring to find out where the short is. If it is on the trailer end and you cannot find a wiring problem then the problem may be
view full answer... - Wiring # 5500 Draw-Tite Activator II Brake Controller On 2009 Ford F-250 and F-350
- If you are hard wiring the Activator II electronic brake controller, item # 5500,on your 2009 Ford Super Duty, then you will need to use a 30 amp circuit breaker, item # PK54530, to wire the black wire on the brake controller to the battery.
If you are using the factory wiring harness you will need to use the Brake Controller Wiring Adapter for Pre-Wired 2008 Ford Super Duty Vehicles, item # 20270, (also works on 2009). Vehicles not equipped with factory trailer tow package, may require fuse
view full answer... - Will The Activator II Brake Controller, Part # 5500 Work on a 2010 Toyota Tundra
- Brake controllers are not vehicle specific, they can be used on virtually any vehicle. The Activator II Electronic Brake Controller, part # 5500 would work just fine on your Tundra.
If your factory installed tow package includes the 7-way trailer connector on the rear bumper, the controller can be plugged into the connector under the dash using a Brake Controller Wiring Adapter, part # 3040-P.
If the factory tow package consists of the 4-pole connector that supports the lighting functions
view full answer... - Trailer Brakes Not Working When Moving Activator II from a 2000 to a 2008 Toyota Tundra
- Since you have the factory 7-Way and brake controller wiring, I would imagine everything is correct on the truck. Additionally, using the custom fit brake control harness, part # 20265, eliminates concern of the brake controller being wired incorrectly unless the harness is faulty which is very unlikely. I would use the instructions for 20265 to make sure that the pins are in the proper location. I have linked to these instructions below.
The single decimal point, as you may already know, ind
view full answer... - Brake Controller not Functioning When the Brake Pedal is Pressed on a 2004 Chevy Suburban
- Based on what you have described, it sounds like that there is a problem with the internal circuitry of the brake controller, or a fuse in the power distribution box on your 2004 Chevy Suburban.
In the power distribution box, there is a separate fuse for the brake controller stoplight switch wire. This is to protect your vehicles brake light circuitry. If this fuse has blown, then it could also cause the problem. I have included a link below that shows the fuses and their locations in the po
view full answer... - Brake Controller Puts Out Voltage Through Blue Wire with No Brake Applied but Brakes Do Not Engage
- You will need to test the brake controller wiring using a multimeter (something that can measure a minimal amount of volts). Check the red wire connection. It should be attached to the wire on the stop light switch that only has voltage when the brake pedal is pressed. If your red wire is connected to a wire that carries even a few volts when the brake pedal is not pressed, it is not the correct wire.
Make sure that the white ground wire is attached to a clean metal surface and that it is fre
view full answer... - Troubleshooting Poor Brakes on a Triple Axle Trailer with One Wheel Locking Up
- Wire size, brake shoes, hubs or magnets could be the problem here. You will need to inspect the trailer brakes to see what is causing your situation. We have a video (see link) that will help you to determine the problem and I will outline how to check things for you.
If the brakes on one or more axles are worn significantly more than on other axles you may need to replace the brakes. In this situation I would replace all of the brake shoes at the same time to ensure even braking (see link).
view full answer... - Wiring a Brake Controller on a 1995 Chevrolet Silverado 2500 LS
- Yes, you will be able to install the Draw-Tite Activator II Brake Controller, item # 5500, on your 1995 Chevrolet 2500 Silverado LS. You will not need the Universal Brake Control Wiring Adapter 1999-02 Chevrolet, GMC, Cadillac, item # 20263, on the 1995 model because there is no factory port under the dash to plug the adapter in to. Chevrolet did not start putting the brake controller wiring port under the dash until 1999 so you will need to hard wire the brake controller on your 1995 model truc
view full answer... - Wiring the # 5500 Draw-Tite Activator on a 2007 Chevrolet Suburban
- Wiring a brake controller no the 2007 Chevrolet Suburban should not pose that big of an obstacle. The wires for the brake controller are under the dash and fairly easy to find (see link) and there is a plug, located above the spare tire, which is used to install the 7-Way Trailer Wiring Harness, item # 30955, at the rear of the vehicle.
If your vehicle does not have the factory wiring already connected you will also have to make two connections under the hood to complete the brake controller
view full answer... - Installing Activator II Brake Controller Part # 5100 on 2007 Chevy Silverado
- In the 2007 model year, GM offered two Silverado models. The Silverado Classic used the older body style from the previous model year. To install a brake controller on this vehicle, a wiring adapter like part # 20264 is used. If you have the factory supplied wiring adapter, the wire colors are different as you have found. The red wire on the factory adapter connects to the black brake controller wire, the light blue wire on the harness attaches to the red controller wire, the black harness wire
view full answer... - Troubleshooting Activator II Brake Controller Only Shows Dot when Trailer Connect to 2002 Dodge Ram
- For the Activator II, # 5500, when the unit only displays the dot when the brakes are pressed and when the manual override is used means that there is no connection between the brake controller and the electric trailer brakes. On the brake controller, make sure the output is not at the lowest setting as this could cause this problem.
Next, check the blue wire coming out of the brake controller. Using a circuit tester like the Quickee # 3808, probe the blue wire and then step on the brake. If
view full answer... - Reese Pilot Brake Controller on 2000 Ford F250 Not Reading Trailer
- You did a great job troubleshooting here. Trying a different trailer as well as a different controller did a pretty good job of ruling the trailer or the controller out as being the problem.
The newer controller that you tried sent a small amount of voltage along the brake output circuit looking for the trailer connection, and did not find it. The most likely culprit is a corroded or damaged trailer connector on your truck. Take a look at the pins in the connector. If you can see any green co
view full answer... - Brakes Lock Up On Horse Trailer When Connected To 2005 Ford F250 With Valley Brake Controller
- It sounds like you are going to need to check the wiring on your whole towing setup. You will need to use a circuit tester like the Quickee Circuit Tester, # 3808, and want to start by checking the brake controller wires to make sure they are connected properly.
You should have power in to the controller on the black wire and power leaving the controller on the blue wire when the brake pedal is pressed or the manual slide knob is activated. The red wire should have power on it only when the
view full answer... - What Do I Need to Wire a Basic 4-Way Trailer Connector on a 1996 Toyota Tacoma Pickup
- Since the 1996 Toyota Tacoma has separate turn and brake signals, a converter is necessary. Fortunately, there is a plug-and-play harness, part # 118379, available for your Tacoma that makes installing very easy. It simply plugs in-line with the tail light connectors behind the tail light housings. Then you connect the ground wire to a good ground point on the truck frame and you are done.
I have added a link to the part and a video of it being installed on a 2000 Tacoma. I have also included
view full answer... - Do the Tow Ready and Tekonsha Brake Controller Harnesses use the Same Guage Wire
- The Tow-Ready part, part # 20127, and the Tekonsha part, part # 7894, use the same size wires. The blue and black wires are 12 gauge and the red and white are 16 gauge. They are the same part other than wire length.
view full answer... - Which Brake Switch Wire is Used When Installing Brake Controller on 2008 Dodge Ram 1500
- A brake controller has four wires exiting the rear of the controller, they attach as follows: the red wire attaches to the brake stoplight switch located at the top of the brake pedal. The color of the correct wire on the brake switch is usually a white wire with a tan stripe, but it could vary so it is best to find the correct wire you will need by testing the wires for function. The stoplight switch can have several wires exiting it, you will need a circuit tester like Quickee Tester, part # 3
view full answer... - Electric Trailer Brake Controller Recommendation for a 2009 Volkswagen Touareg TDI
- I recommend the Tekonsha P2, # 90885. It is one of our highest rated and most popular brake controller models. If your Touareg has a factory tow package, then you will just need to connect the wires from the brake controller to the tow package wires under the dash.
The tow package wiring may be located behind the lower appearance panel beneath the dash and to the right of the emergency brake pedal. It may be on the left, wrapped in grey foam. I have included a link to an FAQ article that mig
view full answer... - Installing a Trailer Brake Controller on a 2012 Dodge Caravan with Tow Package
- I spoke with a colleague who worked at Chrysler and he stated that they do not put the trailer hitch and 7-Way wiring on the Grand Caravan at the factory. That is something that the dealer installs. In any event here is what you will need to do. The brake controller will need to be hardwired into the vehicle.
The white wire on the brake controller will need to get connected directly to the negative terminal on the vehicle battery. The black wire will need to connect to a 30 amp circuit breake
view full answer... - Does the Tow Package Wiring on a 2008 Chevy Colorado Match a Brake Controller Color for Color
- On the 2008 Chevy Colorado with a factory tow package, the wiring for a brake controller is located under the dash, to the left of the brake pedal. The wire bundle should have a white tag on it that also lists the functions of each wire. You will need to match the wires to the brake controller by function, not by color.
On the brake controller, white is ground, black is 12 volt power, blue goes out to the trailer connector, and red is in from the stop light circuit on the brake switch.
It
view full answer... - Hardwire Trailer Brake Controller Installation on a 2001 Dodge Van 1500
- Installing a brake controller on your 2001 Dodge 1500 Van is a hardwire installation. In addition to the brake controller and the wiring harness like # 20127, you may also need a 4 and 7 Way Installation kit, # ETBC7 depending on what type of trailer connector is on the van.
If the van already has a 7-Way trailer connector, you will need to add a brake controller installation kit, # 5506. On the back of the 7-Way connector, find the wire that is coming out of the 7:00 position. Cut the wire s
view full answer... - Tow Package Wiring Colors and Functions for a 2007 GMC Sierra 1500 New Body Style
- the wire bundle you are looking for looks like the one in the FAQ article I have linked for you. It is located under the left side of the instrument panel to the left of the steering column. The wiring colors should be as follows:
Red/black wire = 12 volt power
White = ground
Light blue/white = input from brake switch
Dark blue = output to trailer brakes
Orange = not used
There also may be some connections that you will need to make under the hood to make everything fully functional.
view full answer... - Voyager Brake Controller Does Not Show Voltage with Manual Override Applied
- The way a brake controller works is sort of like you described. In many proportion controllers, you actually have to be moving to get voltage when applying the brake but will see voltage when applying the manual override. The controller actually senses how much the vehicle is decelerating using an internal sensor. It does not monitor how hard you press the pedal but it does sense when you are pressing the brake. Of course usually how hard you press the brake does effect the rate of deceleration.
view full answer... - Adding a 6-Way Trailer Connector and Brake Controller to a 2007 Ford Explorer with Factory 4-Way
- In order to install a brake controller and a 6-Way connector on a 2007 Ford Explorer that has a factory 4-Way you will need 2 items. First you will need the brake controller itself. I recommend the Tekonsha P2, # 90885, because it is one of our best selling controllers because it is easy to use and set up.
Then you will need installation kit # ETBC6. This kit is needed because all of the wiring is not ran to the back of an Explorer that has the 4-Way. I have included some links that will help
view full answer... - Installing a Brake Controller on a 1988 GMC K 1500 Pickup Truck
- GM did not install a brake controller adapter port in the C/K series pick up trucks, so there are no plug-in adapters that will allow you to install a brake controller without having to run wires.
If you already have 7-way connector at the rear of your truck, then you could use wiring kit # 5505 if your trailer has 2 or 4 brake assemblies or wiring kit # 5506 if your trailer has 6 or 8 brake assemblies. These kits include a duplex wire to run a brake output circuit from the brake controller t
view full answer... - Parts Needed to Install a Brake Controller in a 2013 Ford Edge
- You will need to hardwire in a brake controller on your 2013 Ford Edge.
First you will need to convert the 4-way to a 7-way. For that you will need an Brake Controller Installation Kit # ETBC7. This comes with everything you will need to install a fully functional 7-way and brake controller in your vehicle. I attached installation instructions and an install video for this product for you to check out.
If you do not have a brake controller picked out yet check out the Prodigy P2 Brake Con
view full answer... - How to Find the Brake Switch Wire to Install a Brake Controller in a 2013 Ford Edge
- Traditionally (at least from 2004 to 2007) Ford has used a green wire on the brake switch to attach to the red wire on a brake controller. However, the only way to know for sure is to test the wires using a circuit tester like # 3808. Manufacturers can use any wire they want and if they run out of the normal color they use, they grab whatever is available to keep the assembly line moving.
To test the wire use the circuit tester to probe the wires. You need the one that only shows power when
view full answer... - Installing Brake Controller on 2013 Dodge Grand Caravan with OEM Tow Package
- It sounds like your Gran Caravan is wired like the Jeep Grand Cherokee. I have confirmed this by speaking with my contact at Tekonsha. He tells me that the wire you located is indeed the brake control output circuit. This wire would be ran through the firewall and would connect to the blue wire on the brake controller.
To complete the installation, you will connect the white wire of the controller pigtail # 20127 to the negative battery terminal, the black controller wire to the positive batt
view full answer... - Parts Needed to Install a Trailer Brake Controller In a 1995 Chevy K Series Z71 Pickup
- The replacement brake controller cable # 20127 plugs into the back of a Tekonsha brake controller. The blunt cut wire ends get hardwired to a vehicle, so it would work with your 1995 Chevy K Series pickup truck. To install a brake controller you will need 3 items.
First you will need a 4-Way trailer wiring harness unless the truck already has a 4-Way. You can use # 118315 to add a 4-Way. I have linked the installation instructions for you.
Next you will need a 4 and 7 way installation kit
view full answer...
