Tekonsha PowerTrac Electronic Brake Controller - 1 to 2 Axles - Time Delayed
Replacement Brake Control Plug-In Harness for Tekonsha and Draw-Tite Brake Controller 12" Long
Part Numbers: 39523, 20127
Retail:$72.77
Price:$65.94
Shipping Special
Trailer Brake Controller Installation - 1991 Ford F-150 - Video
Trailer Brake Controller Installation - 2005 Ford Freestar - Video
Trailer Brake Controller Installation - 2001 Chevrolet Express Van - Video
Trailer Brake Controller Installation - 2011 Chevrolet Tahoe - Video
Show all 6 videos
Trailer Brake Controller Installation - 2005 Ford Freestar - Video
Trailer Brake Controller Installation - 2001 Chevrolet Express Van - Video
Trailer Brake Controller Installation - 2011 Chevrolet Tahoe - Video
Show all 6 videos
Tekonsha PowerTrac Electronic Brake Controller - 1 to 2 Axles - Time Delayed
part number: 39523
Easy-to-use brake controller activates your trailer brakes electronically when you engage the brakes in your tow vehicle. Set braking intensity to your preference and towing application.
Features:
- Brake controller activates electric trailer brakes (sold separately)
- Signal is sent to trailer brakes when tow-vehicle brakes are activated
- Adjustable output control lets you determine the amount of braking force
- Set to maximum when you travel through hilly terrain with your fully loaded trailer
- Back off the power output when you tow a lightweight trailer
- LED indicator on front of unit
- Green light indicates that brakes are connected
- Color changes to orange and then to red as the power output increases
- Built-in manual override
- PowerTrac can be used with trailers that have up to 2 axles (4 brake assemblies total)
- Mounting bracket and hardware included
- No need to mount level
- Additional pigtail harness (sold separately) or plug-in, vehicle-specific brake-control adapter (sold separately) can be used for certain applications to further reduce installation time
Specs:
- Dimensions: 3" wide x 5" long x 1-1/4" tall
- Limited 5-year warranty
Unlike pendulum-style controllers, which react to the inertia that is created by your tow vehicle slowing down, the PowerTrac applies your trailer's brakes when the brake pedal in your tow vehicle is engaged. The trailer brakes will be activated with an intensity set by you. This output (amount of braking power) is adjustable to suit your preference, as well as road conditions, type of trailer and load. You can also apply the brakes manually with the integrated override.
Because inertia plays no role in the functioning of this controller, you do not have to mount the unit at any particular angle. As a result, mounting options are nearly limitless. After mounting the unit, hardwire the end of the included pigtail harness directly into your vehicle. For even easier installation, a vehicle-specific wiring adapter (sold separately) is available for certain vehicles. One end of the custom adapter plugs into your vehicle, and the other end plugs into your controller - no hardwiring required. To transfer the PowerTrac to another vehicle or to remove it for storage, just unplug the unit and remove it from the mount.
Note: For vehicles without brake-control wiring adapters, a 20-amp circuit breaker (9506P - sold separately) is required.
See also etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) that includes all the parts necessary to install the PowerTrac brake controller.
80500 Tekonsha PowerTrac Electric Brake Control
Replacement Brake Control Plug-In Harness for Tekonsha and Draw-Tite Brake Controller 12" Long
part number: 20127
Tow Ready Replacement Plugin Harness for the Tekonsha P3, Voyager, Prodigy, and Primus Brake Controllers. Also works with Draw-Tite Intella-stop Xtreme, Intella-stop Ultra, Intella-stop Digital and Activator III (5520) brake controllers.
- Wire leads measure approximately 12" long
Video of Trailer Brake Controller Installation - 1991 Ford F-150
Video Transcript for Trailer Brake Controller Installation - 1991 Ford F-150

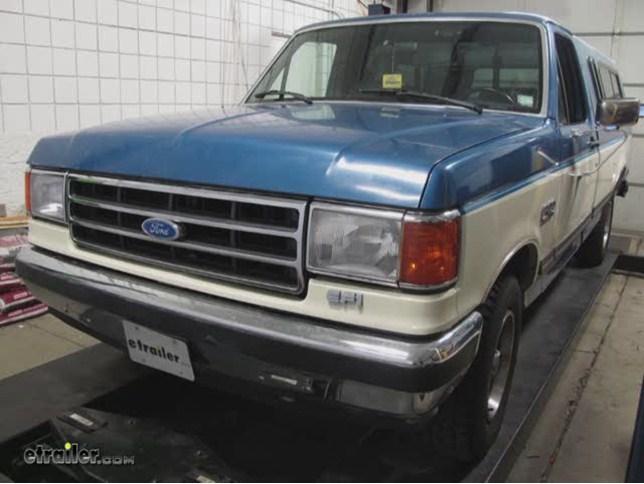

Today on our 1991 Ford F150, we will be installing the Tekonsha PowerTrac electric brake controller, part number 39523 in conjunction with the ETBC7 Brake Controller wiring as well as the replacement brake control plug in harness for Tekonsha and Draw-Tite type brake controllers, part number 20127. We will begin our installation here at the rear bumper. We will need to install the bracket to the rear bumper that will hold our 7 pole connector. We will take the bracket and the hardware, put the bracket in place here in the redrilled holes. Slide the bolt through, put the washers on the other side and lock it down with the nut. With both bolts in, we can go ahead and tighten it down securing it to the rear bumper. We are now ready to put the 7 pole into the bracket. We will take our 7 pole connector and the hardware here, put the connector into place making sure that the wires pass through the bracket and with our connector in place, we will pass the bolts through the connector, through the bracket, put the nut on the other side and tighten them down.
With all four bolts in and tight, our 7 pole is secured to the vehicle and we are ready to wire it up. To wire it up, you will notice that the 7 pole has a 4 pole on the other side. This vehicle already has a 4 pole so we will simply plug it in to our new connector and lock it down with a zip tie. This will ensure that it never comes apart where we can then wrap it in electrical tape further securing it and keeping the elements out. With that connection made, we will go ahead and secure it back to our hitch here using a couple of zip ties. We will now move on to our ground and reverse light lead. The white wire here with the ringed eyelet our ground and the purple wire with the yellow butt connector on it is our reverse light lead.
We will not be hooking this up so we are going to go ahead and attach the purple wire to our white wire just to keep it out of the way. With that done, we will find a good grounding location and using a self starting screw, we will attach it here to the frame of the truck giving us a good ground. We will again make sure that all our wires are neatly tucked away and secured with some zip ties. We are now ready to work on our brake control wiring. We will take our duplex wire, remove the sheathing and attach the white wire to the blue wire here on our 7 pole. We will take the black wire and attach it to the black wire of our 7 pole.
With that done, we will go ahead and wrap it in electrical tape just to keep it out of the elements. We can then secure it to the hitch and begin running our wire up to the front of the truck. As we run it up to the front of the truck, we are going to try to stay away from anything hot such as the exhaust or any moving components such as the vehicles suspension or steering as we route the wire. Before we move back to the top side of the truck, we are going to take the included corrugated loom and wrap it around our 7 pole wiring just to give it a good look.Now that we are done underneath the truck here, we move up to the top side. Here in the engine compartment of the truck, we will route our duplex wire up where we can now cut the majority of the sheathing left off of the wiring.
Our white wire, we will route through the firewall of the truck and into the cab. The black wire will continue up the firewall and around to our battery. Here at our battery, we will need about an extra 8 feet of our duplex wire. This will be our power and ground for the brake controller. We will start here at the battery and work in the same way that we ran the black wire back to the firewall where we can then pass it through the same hole that we ran the white wire through. With that done, we will move into the cab where we will mount our brake controller.We will find a suitable location and using the self starting screws, we will attach the brake controller mounting bracket to the dash of the truck. With that done, we can now attach our brake controller to the bracket using the included screws coming with the brake controller. Now that we have our brake controller mounted, we will move over back to our wiring. We will take our replacement brake control plug in harness and the wires that we ran into the truck from the firewall. We will connect the white wire from the duplex wire to the white wire on the harness. We will connect the black wire on the duplex wire to the black wire on the harness. We will take the white wire that was by itself coming through the firewall and connect it to the blue wire of our wire harness. The red wire will need to make a connection at our brake light switch. We are going to go ahead and extend our red wire just to make sure we can route it without getting in the way of any steering components or other electric accessories.We will now locate our brake signal. Heres our brake switch where we will back probe our connector. We will want to connect to the wire that energizes when you press on the brake. Now that weve located it, we will now take the wire tap included with hour ETBC7 and connect the red wire to the solid green wire on our brake light switch. You may need to peel the sheathing from the brake light switch wiring in order to get enough wire to tap it. We will now go ahead and plug the harness we just assembled into the brake control harness and secure it up underneath the dash. With that done, we will just make sure that our wiring is all secured underneath the dash where we can reinstall the cover that we removed previously.With everything done there, we will move back out to the engine compartment. We will take our 20 amp fused breaker and attach it to the firewall here. We will have three wires, two black wires as well as one white wire. The black wire that is within the duplex wiring sheathing will cut off, strip it back, and attach our small ringed eyelet included with the ETBC7 kit. We can then take the ringed eyelet and put it over the silver side of the breaker. We will take the excess that we cut from the black wire and attach another one of the small ringed eyelets and we will put it on the copper side of our breaker. This wire will run to our positive terminal on our battery. We will take the 40 amp breaker included with the ETBC7 and attach it to the side of the truck here. We will now take the black wire thats by itself and attach a small ringed eyelet to it. With that done, we will take the small ringed eyelet and attach it to the silver side of our breaker. We will then take another piece of black wire, attach our small ringed eyelet and attach it to the copper side of the breaker. With both breakers in and all of our nuts tight, we will attach the large ringed eyelets to the other side of both black wires where we can now make our connections to the positive side of our battery. We will take the white wire and connect it to the negative side of our battery and with that done, our brake controller is in and we are ready to pull a trailer with brake.That completes our installation of the Tekonsha PowerTrac electric brake controller, part number 39523 in conjunction with the ETBC7 Trailer Brake Wiring Harness as well as the replacement brake control plug in harness for Tekonsha and Draw-Tite brake controllers, part number 20127 on our 1991 Ford F150. .
Ask the Experts about this Brake Controller
Do you have a question about this Brake Controller?
- Tekonsha Powertrac 2-4 Electric Brake Controller on a 2007 Chevy Tahoe
- Yes, your brake controller can be installed on your 2007 Chevy Tahoe. As long as the controller is functioning properly, it will wire the same as any other brake controller. There is no plug present under the dash, but the wires are already there. You only need to splice the brake control wires together with those already present under the dash. These wires are tied up with white tape to the left of the brake pedal. You need to connect 4 wires to the controller, as follows; red (12v power feed)
view full answer... - Availability of Brake Controller Harness for 2001 Toyota Tundra
- If you are looking for a brake controller harness, there are none available for the 2001 Toyota Tundra. The 2001 Tundra did not have factory tow packages as an option, so a brake controller will have to be hard wired into the vehicle.
You will need part # ETBC7 to create a 7 way plug at the rear of the truck. I will include a video on this kit. You will also need to install a 4 way connector. Toyota put the provision in for this so you will need part # 118378.
Once you have these parts in
view full answer... - Will a Brake Controller Draw Enough Power When Not in Use To Drain a Car Battery
- The brake controllers available now either are only on when they are activated, or a have a timed shut-off or idle state after a certain time period. Some of the older brake controllers never shut-off, but they did not drain battery power as the only component that would be on is a low amperage LED indicating that the controller has power or whether or not it was connected to a trailer.
As long as you have a healthy battery, you should not have a problem. Since your car is only 2 maybe 3 year
view full answer... - Adjusting Prodigy Brake Controller For Maximum Braking On a 1500 Pound Camper with a 1999 Ford F-150
- There are a number of factors to address if you feel that the trailer brakes on your camper are not performing to expectations. The first thing I would check is the mounting and leveling of the brake controller. The Prodigy must be mounted from 0 degrees to 70 degrees nose up but cannot be mounted canted to the right or left. Once mounted correctly the Prodigy, item # 90185, will acquire the level setting and you will need to adjust the power. If you have the power set to full and the trailer br
view full answer... - Trouble Shooting Tekonsha AccuTrac Brake Controller Not Recognizing Trailer on a 1999 Ford F-150
- I spoke with my co-worker, Bob, about this for some time this morning. We are both thinking you have a ground issue somewhere or possibly a short. Between the trailer brakes and the brake controller there are several grounds that need to be checked. I will start at the top and work down one by one till we can find the source of the problem. Some of this may be redundant so bear with me.
I assume you mean that the green light does not come on when the truck is on and the trailer is connected.
view full answer... - Brake Controller Not Functioning Properly On a 2004 Chevrolet Pickup When Brake Pedal is Pressed
- It sounds as if you may have the incorrect brake controller wiring harness. The correct wiring harness for the 2004 Silverado 2500 HD is the Universal Brake Control Wiring Adapter 2003 - 06 Chevrolet, GMC, Cadillac, item # 20264. Unplug the harness and check the wire locations in the connector.
When holding the connector with the locking tab in the down position the red wire should be in the bottom right position closest to the locking tab. If the red wire is in the top left position, farthes
view full answer... - Looking to Upgrade the Brake Controller On a 2004 Silverado 1500 for Towing a 2010 Outback Trailer
- The Prodigy P-3, item # 90195, is definitely an upgrade from the Hayes-Lemmerz Energize III Electric Trailer Brake Controller, item # 81741B. You would definitely see an improvement in the braking performance and a reduction in the delay you are experiencing with the Energizer controller.
The P-3 uses an accelerometer to detect how fast the vehicle is slowing and apply the correct amount of power, based on user settings, to the trailer brake magnets. This system is almost seamless with the ve
view full answer... - Can You Give Detailed Step By Step Instructions For Brake Controller Install On 2001 Toyota Tundra
- To install a brake controller on your vehicle you will need Brake Controller 7 & 4 Way Installation Kit, part # ETBC7 and the Tow Ready Custom Fit Vehicle Wiring, part # 118378 on your 2001 Toyota Tundra.
If your 2001 Toyota Tundra has an existing 4-way connector, you will not need to install part # 118378.
For installation of part # 118378, start by disconnecting the negative terminal on the battery and remove the battery hold down bracket and slide the battery towards the motor. Next,
view full answer... - How to Adjust the Power Trac Brake Controller on a 2004 Grand Cherokee Overland with AccuTrac
- It sounds as if you will need to adjust the power settings on your brake controller. There is only one adjustment on the Tekonsha Power Trac Brake Controller, item # 39523. It is the power gain setting and should be adjusted so the trailer brakes are close to but do not lock up, with each different load on the trailer.
The Power setting is turned up and down to increase or decrease the amount of power sent to the trailer brakes. If you have the power setting set too high on a time delayed con
view full answer... - Can the Tekonsha Powertrac Trailer Brake Controller # 39523 be Installed on a 2010 Toyota Tundra
- Yes, you can install the Tekonsha Powertrac, # 39523, in your 2010 Toyota Tundra. There are 2 ways you can wire in the brake controller. If the harness that came with the truck has blunt cut wires at the end that connects to a brake controller, you will need to match the wires on the brake controller to the functions on the harness as follows:
White on brake controller ground
Black on controller = 12 volt power
Blue on controller = out put to trailer brakes
Red on controller = in from sto
view full answer... - Troubleshooting a Tekonsha Powertrac Brake Controller # 39523
- There should not be 12 volts coming out of your ground terminal (7:00) on your vehicle connector. That sounds like where your problem is located. It sounds as if the 12 volt accessory that should be in the 2:00 position of your connector has been mistakenly wired to your ground circuit.
I attached a picture of how the connector on your tow vehicle should be wired by function for you to check out. I also attached an FAQ page on trailer wiring that you might find helpful.
view full answer... - Troubleshooting Fading Brake Output with Tekonsha Powertrac Trailer Brake Controller # 39523
- I spoke with my contact at Tekonsha about the Powertrac Brake Controller, # 39523. She stated that if the testing you are doing is with the vehicle and trailer parked, when you step on the brake or use the manual override, the output will go to the preset limit, but then, since the voltage is not needed, it will fade out. When moving the voltage will stay applied.
She also suggested testing the blue output wire using a test light like # 3808 while stepping on the brake. Having the testing lig
view full answer... - Using Wire for Bed Cap 3rd Brake Light Instead of Brake Stoplight Switch to Install Brake Controller
- As long as you have verified that the wire in question only goes hot when the brake pedal is applied, there is no reason why you cannot use the wire intended for the bed cap third brake light. If you do not have a circuit tester, we offer one, part # 3808.
Certain vehicles (like GM trucks produced in the late 1990s) had brake switch wiring that was very difficult to access. In those instances, we typically recommend doing exactly what you propose.
view full answer... - Finding Correct Brake Stoplight Switch Circuit to Install Brake Controller on 2004 Toyota Highlander
- I do not have any specific information about the color of the wire you are looking for, but I can describe how to find it.
Use a circuit tester like part # 40376, and probe each wire coming off of the brake stoplight switch. As you probe each wire, press the brake pedal. Once you find the circuit that only shows current when the brake pedal is pushed, tap the red controller wire into it.
view full answer... - Tekonsha Power Trac Brake Controller # 39523 No Longer Applying Brakes When Brake Pedal Pushed
- It sounds as if you might try to adjust the power settings on your brake controller. There is only one adjustment on the Tekonsha Power Trac Brake Controller, part # 39523. It is the power gain setting and should be adjusted so the trailer brakes are close to but do not lock up, with each different load on the trailer.
The Power setting is turned up and down to increase or decrease the amount of power sent to the trailer brakes. If you have the power setting set too low on a time delayed cont
view full answer... - Light Does Not Come On when Tekonsha Pod Trailer Brake Controller is Installed on a 2010 Ford F-150
- The first thing I reocmmend is to connect a trailer to the vehicle. The light will not come on if a trailer is not connected. If you do connect a trailer and the light does not come on it could indicate a few different issues.
First, check the black wire behind the controller for voltage. If there is no voltage going to the controller it will not turn on. You will need to check the fuses associated with the tow package to determine if something is blown or missing.
You may also have an op
view full answer... - Is a Brake Controller Plug and Play Wiring Harness Available for a 2003 Mercedes ML 350
- There is not an aftermarket plug and play brake controller wiring connector available for the 2003 Mercedes ML 350. You may be able to purchase one from the vehicle dealer though.
I spoke with my contact at Tekonsha and his advice is that you should take your Mercedes M Class vehicle to the dealer to have a brake controller installed. The Mercedes vehicles have very sensitive wiring and splicing into the brake circuit or power on the vehicle can cause issues.
If you have wiring experience
view full answer... - Brake Controller Power and 12 Volt Hot Lead Fuse Locations on a 2011 Chevy Tahoe
- Most vehicles are already equipped with the fuses mentioned in the video, which is what we have come across. If your vehicle does not have one or both fuses, you will need to insert your own fuses. To find the correct locations, you can look at the legend on the inside cover of the power distribution box.
Sometimes, the locations are the ones closest to the terminals. In this case they are slightly off to the right (driver side) as you can see in the video I have linked at about the 5:25 mar
view full answer... - Replacing the Manual Slide Knob on a Pod Brake Controller and Troubleshooting No Green Light
- I made you a short video that shows how to replace the knob provided that the little tabs on the back of the knob or where they mount are not damaged.
When you do not get a green light, that means that the trailer is not connected, there is a short to the brake output wire, or there is a bad ground connection. It could also mean that there is no power going to the controller black wire. Use a circuit tester like # 3808 if needed to determine if power is on the black wire.
Then, sever the
view full answer... - Will the Pod Trailer Brake Controller Fit a 2005 Dodge Ram 1500
- The Pod brake controller, # 39523, does come up for a 2005 Dodge Ram. Depending on how the truck is equipped, you will also need 1 of 2 harnesses. If the truck came with a factory 4 or 7-Way trailer connector, you will also need wiring harness # 3020-P. If the truck did not come with a trailer connector, you will need # 20127. I have included links to a couple of videos that should help.
view full answer... - What Do I Need to Wire a Basic 4-Way Trailer Connector on a 1996 Toyota Tacoma Pickup
- Since the 1996 Toyota Tacoma has separate turn and brake signals, a converter is necessary. Fortunately, there is a plug-and-play harness, part # 118379, available for your Tacoma that makes installing very easy. It simply plugs in-line with the tail light connectors behind the tail light housings. Then you connect the ground wire to a good ground point on the truck frame and you are done.
I have added a link to the part and a video of it being installed on a 2000 Tacoma. I have also included
view full answer... - Do the Tow Ready and Tekonsha Brake Controller Harnesses use the Same Guage Wire
- The Tow-Ready part, part # 20127, and the Tekonsha part, part # 7894, use the same size wires. The blue and black wires are 12 gauge and the red and white are 16 gauge. They are the same part other than wire length.
view full answer... - Which Brake Switch Wire is Used When Installing Brake Controller on 2008 Dodge Ram 1500
- A brake controller has four wires exiting the rear of the controller, they attach as follows: the red wire attaches to the brake stoplight switch located at the top of the brake pedal. The color of the correct wire on the brake switch is usually a white wire with a tan stripe, but it could vary so it is best to find the correct wire you will need by testing the wires for function. The stoplight switch can have several wires exiting it, you will need a circuit tester like Quickee Tester, part # 3
view full answer... - Electric Trailer Brake Controller Recommendation for a 2009 Volkswagen Touareg TDI
- I recommend the Tekonsha P2, # 90885. It is one of our highest rated and most popular brake controller models. If your Touareg has a factory tow package, then you will just need to connect the wires from the brake controller to the tow package wires under the dash.
The tow package wiring may be located behind the lower appearance panel beneath the dash and to the right of the emergency brake pedal. It may be on the left, wrapped in grey foam. I have included a link to an FAQ article that mig
view full answer... - Installing a Trailer Brake Controller on a 2012 Dodge Caravan with Tow Package
- I spoke with a colleague who worked at Chrysler and he stated that they do not put the trailer hitch and 7-Way wiring on the Grand Caravan at the factory. That is something that the dealer installs. In any event here is what you will need to do. The brake controller will need to be hardwired into the vehicle.
The white wire on the brake controller will need to get connected directly to the negative terminal on the vehicle battery. The black wire will need to connect to a 30 amp circuit breake
view full answer... - Does the Tow Package Wiring on a 2008 Chevy Colorado Match a Brake Controller Color for Color
- On the 2008 Chevy Colorado with a factory tow package, the wiring for a brake controller is located under the dash, to the left of the brake pedal. The wire bundle should have a white tag on it that also lists the functions of each wire. You will need to match the wires to the brake controller by function, not by color.
On the brake controller, white is ground, black is 12 volt power, blue goes out to the trailer connector, and red is in from the stop light circuit on the brake switch.
It
view full answer... - Hardwire Trailer Brake Controller Installation on a 2001 Dodge Van 1500
- Installing a brake controller on your 2001 Dodge 1500 Van is a hardwire installation. In addition to the brake controller and the wiring harness like # 20127, you may also need a 4 and 7 Way Installation kit, # ETBC7 depending on what type of trailer connector is on the van.
If the van already has a 7-Way trailer connector, you will need to add a brake controller installation kit, # 5506. On the back of the 7-Way connector, find the wire that is coming out of the 7:00 position. Cut the wire s
view full answer... - Tow Package Wiring Colors and Functions for a 2007 GMC Sierra 1500 New Body Style
- the wire bundle you are looking for looks like the one in the FAQ article I have linked for you. It is located under the left side of the instrument panel to the left of the steering column. The wiring colors should be as follows:
Red/black wire = 12 volt power
White = ground
Light blue/white = input from brake switch
Dark blue = output to trailer brakes
Orange = not used
There also may be some connections that you will need to make under the hood to make everything fully functional.
view full answer... - Voyager Brake Controller Does Not Show Voltage with Manual Override Applied
- The way a brake controller works is sort of like you described. In many proportion controllers, you actually have to be moving to get voltage when applying the brake but will see voltage when applying the manual override. The controller actually senses how much the vehicle is decelerating using an internal sensor. It does not monitor how hard you press the pedal but it does sense when you are pressing the brake. Of course usually how hard you press the brake does effect the rate of deceleration.
view full answer... - Adding a 6-Way Trailer Connector and Brake Controller to a 2007 Ford Explorer with Factory 4-Way
- In order to install a brake controller and a 6-Way connector on a 2007 Ford Explorer that has a factory 4-Way you will need 2 items. First you will need the brake controller itself. I recommend the Tekonsha P2, # 90885, because it is one of our best selling controllers because it is easy to use and set up.
Then you will need installation kit # ETBC6. This kit is needed because all of the wiring is not ran to the back of an Explorer that has the 4-Way. I have included some links that will help
view full answer... - Installing a Brake Controller on a 1988 GMC K 1500 Pickup Truck
- GM did not install a brake controller adapter port in the C/K series pick up trucks, so there are no plug-in adapters that will allow you to install a brake controller without having to run wires.
If you already have 7-way connector at the rear of your truck, then you could use wiring kit # 5505 if your trailer has 2 or 4 brake assemblies or wiring kit # 5506 if your trailer has 6 or 8 brake assemblies. These kits include a duplex wire to run a brake output circuit from the brake controller t
view full answer... - Parts Needed to Install a Brake Controller in a 2013 Ford Edge
- You will need to hardwire in a brake controller on your 2013 Ford Edge.
First you will need to convert the 4-way to a 7-way. For that you will need an Brake Controller Installation Kit # ETBC7. This comes with everything you will need to install a fully functional 7-way and brake controller in your vehicle. I attached installation instructions and an install video for this product for you to check out.
If you do not have a brake controller picked out yet check out the Prodigy P2 Brake Con
view full answer... - How to Find the Brake Switch Wire to Install a Brake Controller in a 2013 Ford Edge
- Traditionally (at least from 2004 to 2007) Ford has used a green wire on the brake switch to attach to the red wire on a brake controller. However, the only way to know for sure is to test the wires using a circuit tester like # 3808. Manufacturers can use any wire they want and if they run out of the normal color they use, they grab whatever is available to keep the assembly line moving.
To test the wire use the circuit tester to probe the wires. You need the one that only shows power when
view full answer...
