Derale Series 8000 Plate-Fin Transmission Cooler Kit w/Barb Inlets - Class IV - Efficient

Code: D13504

13 reviews

Retail:$116.52

Price:$67.95

Product Summary

11" Wide x 12" tall x 7/8" deep, efficient heat exchanger will prolong the life of your transmission and improve its overall performance. Specifically designed for vehicles with late-model, electronic overdrive transmissions.

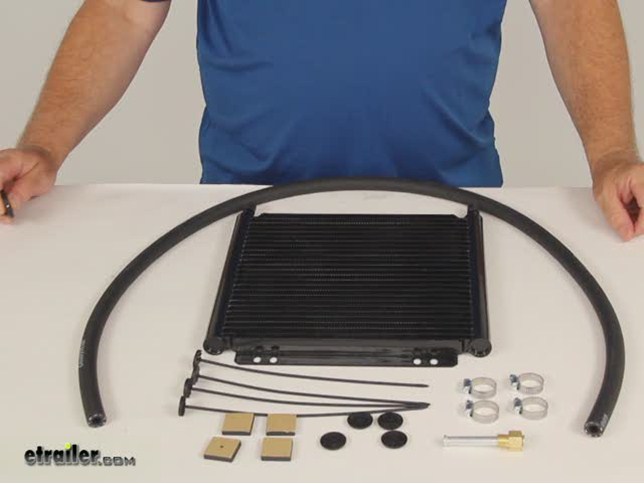

Video of Derale Series 8000 Plate-Fin Transmission Cooler Kit w/Barb Inlets - Class IV - Efficient

Customers compare D13504 to these similar products

Derale Series 8000 Plate-Fin Transmission Cooler Kit w/Barb Inlets - Class III - Efficient$55.95

Derale Series 8000 Plate-Fin Transmission Cooler Kit w/Barb Inlets - Class III - Efficient$50.95

Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class I -Extra Efficient$70.95

Ask the Experts about this Derale Transmission Coolers
Do you have a question about this Transmission Coolers?

• Comparison of Plate and Fin Style Transmission Coolers and Tube and Fin Style Transmission Coolers

• The difference between the plate and fin style, # D13504, and the tube and fin style cooler, # D12904, is that the plate and fin models can cool better than the tube and fin models. You will notice that plate and fin coolers with the same rating as tube and fin coolers are smaller in size. Basically, the plate and fin cooler provides more surface area to extract heat from the transmission oil and also has internal turbulator technology to help the oil to cool faster and prevent pressure loss.
  view full answer...


• Transmission Cooler Recommendation for 2008 Chevy Silverado with 6.0 Liter Engine

• There are a couple of differences between the 8000 series Derale transmission coolers like # D13504, and the 9000 series like # D13613. First, the 8000 Series features furnace-brazed aluminum construction, integrated high flow 3/4 inch turbulators for cooling efficiency, and 11/32 inch hose barb inlets. The 9000 series also features a furnace-brazed aluminum construction, but it has integrated high flow 1-1/4 inch turbulators for even more efficiency. It also uses 1/2 inch NPT female coole
  view full answer...
