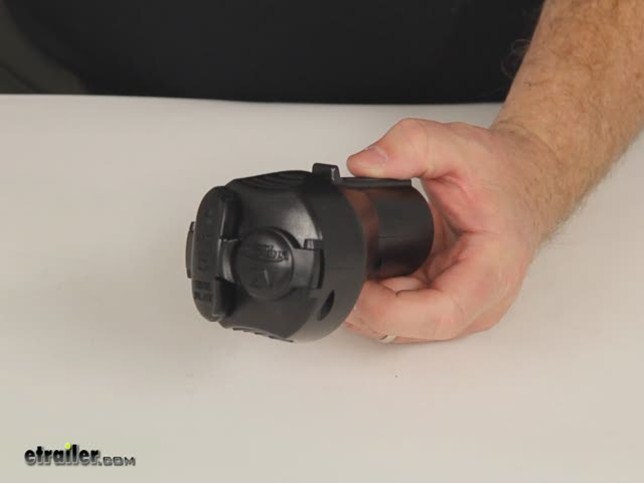

Hopkins Multi-Tow Trailer Connector Adapter - 7-Way to 5-Wire Flat/4-Wire Flat and 12-V Power Socket

Hopkins Wiring - HM47675

Adapt the 7-way trailer socket on your vehicle to work with a 4-way or 5-way flat connector on the trailer. Adapter also provides a 12 volt power source outlet. Great for tailgating.

Features:

• Versatile adapter and power socket
• Adapts from a 7 RV blade trailer connector on the vehicle
• Provides a 5-wire flat, 4-wire flat and a 12-volt power socket
• Covers included to protect terminals from the elements

Turn your 7-Way into a 12-Volt power socket! This adapter allows for multiple towing options and has a weatherproof dust cover.

47675 Hopkins Trailer Adapter 7-Way to 5-Wire Flat with 12-Volt

Customers compare HM47675 to these similar products

Hopkins Endurance Multi-Tow Trailer Connector Adapter - 7-Way to 6-Way, 5-Way or 4-Way$21.95

Adapter 7 Pole to 4 Pole and 5 Pole$18.95

Pollak 7 Pole to 4 Pole Connector Adapter$8.99

Adapter 4 Pole to 7 Pole Vehicle End Trailer Connector$17.45

Adapter 4 Pole to 7 Pole and 4 Pole$22.95

Customers Who Purchased This Wiring Also Bought...

Replacement Road Bike Adapter for Thule Echelon or Big Mouth Roof Mounted Bike Carrier $2.25

Jacketed 2 Wire, 10 Gauge, Brake Wire - per Foot $1.21

Primary Wire - 16-Gauge - White - per Foot $0.13

Bonded 4 Wire - per foot $0.57

3M SCOTCHLOK Quick Splice Wire Connector - Blue Gel - 14-18 AWG (Qty 1) $0.65

Ask the Experts about this Hopkins Wiring
Do you have a question about this Wiring?

• Can the 12 Volt Outlet on Trailer Connector Adapter, # HM47675 Charge or Maintain a Trailer Battery

• The 12 volt outlet on the Hopkins Multi-Tow Trailer Connector Adapter, # HM47675, can be used to maintain a trailer battery but it will not be able to charge it. The gauge wire used to provide power to the 7-Way is too small to effectively charge a battery, but it will provide enough power to keep it from draining.
  view full answer...


• Which Post On My 7-Way is the 12 Volt Power Source

• The 12v lead should be connected to the first prong clockwise from the top of your 7-way plug, but you will need to double check your existing application to confirm that it is wired this way. The color of this wire is typically black. I would recommend you use a Quickee Circuit Tester, part # 3808, to determine if you have power at this post. If not you should check the wiring on the back of the 7-way connector and then follow it back looking for any cuts, or corrosion that might be shorting
  view full answer...


• Is the Red or Black Wire the Ground on the Wiring Harness of my 2007 Dodge Ram 3500

• Chances are the red wire is the power source and the black wire is the ground wire. However, I would recommend that you use a Quickee Circuit Tester, part # 3808, to test all of the functions of your harness while a friend applies the different brake/tail light functions of your 2007 Dodge Ram 3500. Once you have found a power source, you could use that to test the black or red wire for being a ground. I attached an FAQ on trailer wiring and wiring Dodge Rams for brake controllers below fo
  view full answer...


• Can the Hopkins Multi-Tow Trailer Connector Adapter, # HM47675 Be Used with a 5-Way Flat

• I went out to the warehouse and pulled a Hopkins Multi-Tow Trailer Connector Adapter, # HM47675. There is a small rubber plug in the top pin that, once removed, will allow you to plug in a 5-Way flat trailer connector. I have included a link to the installation details for you to view. I have also taken a close up picture of the connector with the rubber cover removed so you can see all 5 pins.
  view full answer...


• Is Hopkins Multi-Tow Trailer Connector Adapter Compatible with a 2007 Chevy Silverado New Body Style

• As long as your 2007 Chevy Silverado has a factory installed 7-Way trailer connector, the Hopkins Multi-Tow Trailer Connector Adapter, # HM47675, is compatible. I have included a link to the installation details for you to view. If the truck did not come with a 7-Way and you want to add one, you can use # PK11916, or, for a multi-tow with 7-Way and 4-Way functions, use # HM40975. Once a 7-Way is installed you will be able to use the adapter.
  view full answer...


• 12 Volt Circuit on 7-Way Trailer Connector Does Not Work on a 2008 Chevy Silverado

• There are some connections that need to be made under the hood of your 2008 Chevy Silverado to make the towing package, including the 12 volt hot lead, working. I have included a link to an FAQ article that explains what you will need to do. You will need the section about half way down the page titled Finalizing Connections for the Brake Controller. The fuses may already be there (if not you will need to add them) but without the wires connected to the terminals the tow package will not be
  view full answer...


• Will the Hopkins Trailer Connector Adapter # HM47675 Fit a 2009 Chevy Silverado 2500HD

• You should not have a problem installing the Trailer Connector Adapter, # HM47675, on your 20089 Chevy Silverado 2500HD. If you look at a few of the other images on the product page you will see that it is actually fairly compact for all of the features it has.
  view full answer...


• Providing Power to Trailer Mounted Winch from 7-Way Trailer Connector

• The wiring that feeds the 12-volt accessory circuit on the 7-way trailer connector is of insufficient gauge to allow enough power to pass through to run a trailer mounted winch. The main function of that circuit would be for lighter-duty applications, such as providing power for interior trailer lights or to maintain a trailer mounted battery. To provide power for your trailer mounted winch, you can either install a battery on the trailer to power it, or use a quick disconnect like part # SW
  view full answer...


• Will the Hopkins Multi-Tow Trailer Connector Adapter Fit a 2012 GMC Acadia with Factory Tow Package

• Yes, the 7-Way provided in the tow package on your 2012 GMC Acadia will accept the Hopkins multi-tow adapter, # HM47675. I have included a link to the installation details for you. It is pretty self-explanatory. Just plug the 7-Way end into the vehicle and you will have a 5-Way flat, 4-Way flat, and 12 volt oulet.
  view full answer...


• Will the Hopkins 7-Way to 4- and 5-Way Trailer Connector Adapter Work on a 2006 GMC Envoy

• Provided that the 7-Way on your 2006 GMC Envoy is fully functional, then all of the pins on the Hopkins adapter, # HM47675, will work. On the harness, the pin for using this unit with a 5-Way flat requires that the reverse light circuit on the 7-Way is attached and functions. This is the center pin on a 7-Way. If it is not working on the Envoy, you will need to run a wire from the back center pin on the 7-Way to a reverse light and tap into the wire there. The 12 volt power socket on the 7
  view full answer...


• Will Hopkins Multi-Tow Trailer Connector Adapter # HM47675 Fit a 2010 Toyota Tacoma

• The Hopkins Multi-Tow Trailer Connector Adapter, part # HM47675, will install into a standard 7-Way RV blade trailer connector like the Pollak 7-Way, part # PK12707. I am including a picture of the 7-Way RV blade style connector. The factory 7-Way on your 2010 Toyota Tacoma should be a standard 7-Way RV blade connector which will allow you to use the Hopkins # HM47675 adapter. This adapter will provide a 5-Way flat, 4-Way flat, and a 12-volt power socket at the rear of your vehicle.
  view full answer...
