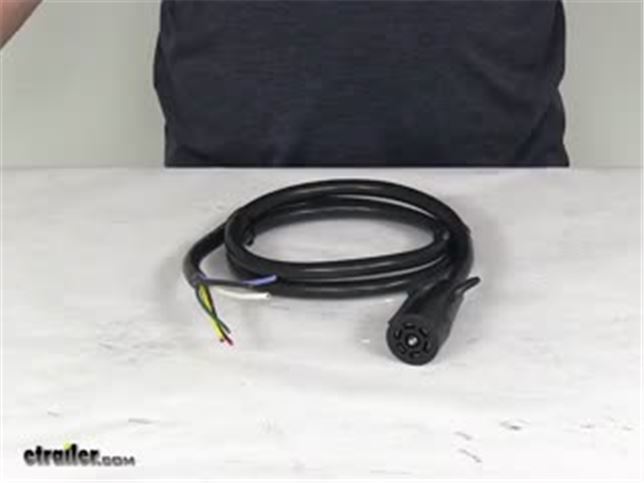

7-Way Molded Trailer Wire Connector, 8' Long

Hopkins Wiring

(298 reviews)

Code:   H20046


Shipping Special

Shipping Weight: 2.69 pounds


Hopkins Wiring - H20046

Trailer Connector RV Style 7-Way Blade with 8' lead

  • Pre-wired 7-Way Trailer Connector
  • Measures 8 feet long including connector
  • Wire gauges:
    • 14 Gauge - red, brown, green, and yellow
    • 12 Gauge - Blue
    • 10 Gauge - White and Black

Wiring Code
Molded Connector Function Usual Trailer Wire
White Wire Ground White Wire
Red Wire Left Turn and Brake Yellow Wire
Brown Wire Right Turn and Brake Green Wire
Green Wire Tail Lights Brown Wire
Blue Wire Brake Power Blue Wire
Black Wire 12 volt (hot lead) Black Wire
Yellow Wire Aux. -

20047 7-Way Molded Trailer Wire Connector, 8' Long

Video of 7-Way Molded Trailer Wire Connector, 8' Long

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Hopkins Wiring H20046 Review

Today we're going to review part number H20046. This is the Hopkins Seven Way Molded Trailer Wire Connector. This trailer connector is an RV style seven way blade in with an eight foot long lead and the pigtail wires at the end.It is a pre-wired seven way trailer connector so this is all molded and pre-wired in the connector. The overall length of this including the connector is eight feet. Now the wire gauges on these-the blue right here is a 12 gauge. The white and the black are a bigger ten gauge and then the red, brown, green and yellow are all 14 gauge.Now one tip on this-what you want to do-there is a standard wiring color in the industry but not all manufacturers will go by that standard colors so what you do want to do-what you want to make sure is too when you install this to your trailer make sure to test the wires by function instead of matching color to color because the coloring in this will probably be different than is what on your trailer.What will also help you if you go to the product page for this part number there is a chart listed- a wiring code chart that'll show you what the functions are for each of these wires and what they compare to the standard trailer color wires.

That should do it for the review on part number H20046 the Hopkins Seven Way Molded Trailer Wire Connector.
