Wiring > Wiring Adapters > Single-Function Adapter > 4 Flat > 5 Flat > Plug and Lead > Hopkins


Adapter 4-Pole to 5-Pole Trailer Wiring Adapter - Shorter

Hopkins Wiring

ratingratingratingratingrating (58 reviews)


Code:   47515

Price:$7.99


Shipping Special

Shipping Weight: 0.17 pounds

Quantity:






Hopkins Wiring - 47515

Trailer wiring adapter that changes the 4-pole flat on your vehicle into a 5-pole flat.

The blue wire gets spliced into the reverse light wire on the vehicle which is easily done with the included quick splice wire connector.

Hopkins # 47515, TAP # 37515

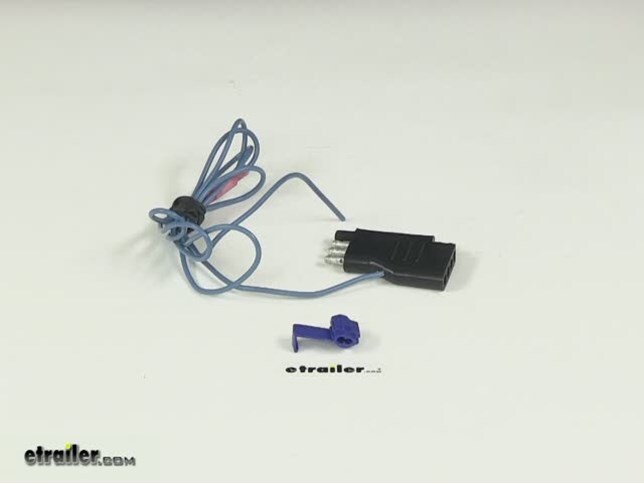

47515 Adapter 4-Pole to 5-Pole Trailer Wiring Adapter - Shorter







Video of Adapter 4-Pole to 5-Pole Trailer Wiring Adapter - Shorter


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video hopkins wiring install
Hopkins 4-Pole to 5-Pole Trailer Wiring Adapter Installation

Video Transcript for Hopkins 4-Pole to 5-Pole Trailer Wiring Adapter Installation

Today we are going to show you how to install the 4-wire flat to 5-wire flat adapter, part number 47515 from Hopkins Towing Solutions. This adapter piece allows us to plug in to the vehicles existing 4-pole plug and adapt to a 5-pole plug that you find commonly on boat trailers with hydraulic brakes that offer a reverse lockout. The adapter piece itself is very simple to install. Again, you have the one side that is going to plug into the vehicles existing 4-pole and the other end will come out with the new 5-pole plug that you will need for your trailer. What we do need to do for this adapter, however, the fifth wire is the reverse lead. So we will need to find the reverse wire on the tow vehicle and manually tap this in. So we are going to start by just plugging the 4-pole in, into the vehicle harness. And then we need to figure out a way to get up to the reverse wire on the vehicle. 0:53

Another nice feature of this adapter is that right in the middle of our reverse wire is a disconnect point. So what we can do is I can actually go ahead and disconnect that wire that is in behind the taillight and it through. But once it is installed, it will allow you to leave this end connected to the vehicle at all times. And if you want to remove the adapter from the vehicle you can just disconnect it at the quick disconnect point. Now the easiest place to wire in the reverse lead is actually behind the taillight itself. We want to go ahead and figure out how we can get behind the taillight assembly. Now on this particular vehicle, if we follow over to the driver side, underneath where the taillight is mounted, there is a hole there that we can easily route the wire up and get behind the taillight. So we are next going to go ahead and take off the driver side taillight and figure out which wire is the reverse wire. Ok, so I am up to the driver side taillight now and we need to figure out obviously how to remove it so we can get to the wires. On this particular vehicle, the mounting screws are on the inboard side. There are two of them here. Take those out so we can get to the wires. 2:09

Ok, with the taillight pulled off, we can see the wires here. And again we are looking for the wire that is activating our reverse lead. The reverse light on the vehicle is always behind the clear lens. So if we go behind the taillight, the two wires going into the clear lens. This one is the ground and this one is going to be our reverse light. And again, on this vehicle it is a red wire with blue stripe. So I am going to cut back a little bit of the tape to hook in my quick splice. From there we will take the provided quick splice, mount it over top of the red wire here and then we will take our other half of our reverse lead wire from our adapter and go ahead and slide it into the other groove on the quick splice. Just take a pair of plyers and we are going to crimp down on the metal tab on the top. And out connection is made. From there we want to go ahead and take the other end of the wire and just feed it down through the opening that we had found earlier. And you want to just feed the full lead down. And then we can go ahead and put our taillight back on. And then back underneath the vehicle, we just need to route the reverse lead wire back over to our adapter. Plug the two pieces together and our installation is complete on it. From there you just want to take your blue wire and go ahead and secure it up out of the way, with some zip-ties if need be. Now I do want to note that this is essentially an adapter piece but it actually does not need to be ever removed from the 4-pole because a trailer 4-pole will actually plug into this new adapter piece just fine, just like it did on a common 4-pole. And that will conclude the installation of the Hopkins 4 to 5-pole adapter, part number 47515.




Customer Reviews

Adapter 4-Pole to 5-Pole Trailer Wiring Adapter - Shorter - 47515

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (58 Customer Reviews)



- 47515

ratingratingratingratingrating by: Al S10/06/2014


Great product! I have a Jeep Wrangler Unlimited that only has a four pole flat connector. I have a boat thats needs a five pole because it has surge brakes. This was the perfect solution. I just had the fifth wire connected to the back up light and plugged this five to four pole adapter that was already on the vehicle. Problem solved. It came quickly. I accidently ordered two and I got a call from Etrailer questioning my order. I thanked them and said I only needed one. They saved me the cost of the second adapter when most companys would have just sent them both- and charged me for two. 154766






- 47515

ratingratingratingratingrating by: Jim T07/03/2013


Watch the video! This product connects so easy I was up and running in 20 minutes. 87430





Comments

still in use

Jim T - 07/09/2014

5462



- 47515

ratingratingratingratingrating by: Mark L06/20/2012


Put this on an '05 Ford F150. Simple install and took only 5 minutes. Drivers side reverse tail light has two screws on the tailgte side. The hot wire for backup light was brown w/ a red stripe. Unfotunately, my package didn't have the wire splice connector inside as it was suppose to so I used stuff I had at home. Works like a charm. Very clean looking with no extra wires dangling. Should get 5 stars but the lack of connector bummed me out and I didn't have time to return it. Cheers 44918






- 47515

ratingratingratingratingrating by: BSM09/26/2014


This product is very well made. Instructions are a bit brief, but plenty of info online to get it installed. The reverse wire on my car was too small to work with the splice, but I connected them directly w/ a "T". Worked flawlessly with my trailer. The length of the wire on the adapter allows you to make the connection INSIDE the car which will surely extend the life of the connection. Overall great and simple design. 153312






- 47515

ratingratingratingratingrating by: Jason B.09/29/2014


This product was everything that is says that it is. Suggestion for hatchback owners, though. See if your reverse lights are in the hatchback or on the fender panels before purchasing this product. If they are in the hatchback, as in the 2014 Escape, then you will need to purchase a longer adapter or additional wiring as the routing of the wires to the closest reverse wire is substantial. 153594






- 47515

ratingratingratingratingrating by: Arthur L.07/22/2014


Excellent product. Connected it in about 10 minutes. Had to remove the taillight and splice to back-up light (splicer included). Easy install (pug and play) and works great. Thanks for having this online at your store. Could not find one locally in Houston area (can you imagine). Excellent pricing and free shipping! Doesn't get any better. 142512






- 47515

ratingratingratingratingrating by: Tom F06/07/2011


I Have been looking for this product for a long time. I did not know the part number or even that it existed, I just had a need. At etrailer.com I not only forund this product. I found a couple versions of the same solution. Plus etrailer showed me a video on how to install it. Great site 16301






- 47515

ratingratingratingratingrating by: Chris03/11/2009


Great Product! It was a very easy install. The blue wire is only long enough to go to a reverse light that is on the rear corner. I had to buy additional wire from the auto parts store to continue the connection up the side of my vehicle and through the back hatch. But it works great. 1639






- 47515

ratingratingratingratingrating by: Mike E.03/02/2014


This is an excellent adapter; however, I didn't give it the highest rating possible because the wire is not as long as I needed. While it was easy for me to add a section of wire, I don't understand why it's not about a foot longer so that it would work easier on any vehicle. 118185






- 47515

ratingratingratingratingrating by: Dave S10/19/2014


Product is exactly what I want, but should include a dust cover. Also, wire that leads from plug is too long, and the tail light wire is too short. Where they connect should be closer to the plug, because the way it is you can't really unplug it from underneath the vehicle. 156751






- 47515

ratingratingratingratingrating by: Todd01/22/2014


Part arrived in time and everything's cool. The #1 thing I like about etrailer.com is that I can simply email them my questions and they reply back with all my options. Will be doing that again in a month for the next trailer item I'll be needing soon. Thanks. Todd 114450






- 47515

ratingratingratingratingrating by: Albert Anable04/03/2011


The adapter works great. The installation on a 2005 Subaru Outback is a bit more difficult because the backup lights are located on the liftgate. Still only took about 1/2 hour. Now I just need to find a cover for the 5-Pole! Al 11001






- 47515

ratingratingratingratingrating by: Steve02/18/2013


Ordering was easy; shipment was quick; the part arrived as expected and worked great. It was very easy to install. Took all of 10 minutes at most! Thanks! 66804





Comments

Thanks! It has worked great. I have been very pleased with the product.

comment by: Steve - 02/18/2014


2856



- 47515

ratingratingratingratingrating by: Duane B12/05/2014


The 4 to 5 pole adapter was exactly what I needed to pull my new boat with hydraulic brakes. I installed it myself in less than 10 minutes saving me the time and cost of going to an RV or trailer store. 163414






- 47515

ratingratingratingratingrating by: Keith V.04/29/2014


I purchase the 4 to 5 pin trailer plug adapter for my boat trailer. The product was just as described and installation was super easy. Fast shipping and packaged well. Keith 128114






- 47515

ratingratingratingratingrating by: John G11/03/2014


I got the adapter fast and it was exactly what i wanted. I installed it quickly and it works perfectly. I will use Etrailer anytime i need trailer parts. Thanks John G 158943






- 47515

ratingratingratingratingrating by: Bob Wrobel10/02/2014


Product is perfect. It works as advertised. I am able to hook up my motorcycle cargo trailer and motorcycle camper, if I need to pull them behind my 2013 Ford Edge. 154146






- 47515

ratingratingratingratingrating by: Kevin06/07/2011


I received this part in a timely manner and it matches my needs perfectly. I've purchased several parts from etrailer.com and will definitely be a returning customer. 16274






- 47515

ratingratingratingratingrating by: Monty S02/28/2013


Received the adapter very quickly. The on-line tutorial was great and was able to install the adapter on my Ford 150 in less than 5 minutes. Works like a champ. 68147






- 47515

ratingratingratingratingrating by: Tim P.04/27/2013


Exactly what I ordered and timely shipped. I love the tutorial videos really made trailer wiring easy to understand......I will definetly use etrailer again. 78144






- 47515

ratingratingratingratingrating by: John S.11/03/2014


Product was exactly what was advertised and just what I needed to to adapt to a five pin harness on my sons boat trailer. Great, FAST delivery. 159022






- 47515

ratingratingratingratingrating by: Mr Larson05/05/2014


The adapter fits perfectly. Thanks for the follow up. We need to test to make sure it works, but if it is a standard setup, it should work 128889






- 47515

ratingratingratingratingrating by: Patrick01/20/2013


Works fine. I'm not concerned with the reverse light so I didn't even hook up the blue wire, working great as a plug and play adapter. 63582






- 47515

ratingratingratingratingrating by: Wayne B05/07/2013


The trailer hitch bolted in place easily. Instructions were ideal. Firing kit and additional five flat adapter Were easy as well. 79238






- 47515

ratingratingratingratingrating by: Andrew07/01/2014


I am extremely happy with this product. Easy to install and etrailer was the only location that I could find this item at 138480






- 47515

ratingratingratingratingrating by: Dan E.04/18/2012


Needed a reverse light. Simple installation. Works great. Wish it came with a rubber cover to keep the muck out... 37638






- 47515

ratingratingratingratingrating by: Greg L04/04/2012


Awesome service. The order, delivery, and confirmation process is outstanding...and priced very well. 36140






- 47515

ratingratingratingratingrating by: John L.07/27/2014


Well made and simple to install with good instructions and all the parts necessary to do the install. 143093






- 47515

ratingratingratingratingrating by: Sensei07/28/2014


Works as advertised. Wiring is too short - had to extend 18" to reach closest reverse wiring. 143165






- 47515

ratingratingratingratingrating by: Jim R05/21/2014


Product arrived in a short time. Easy to install. Worked great. Great customer service. 131610






- 47515

ratingratingratingratingrating by: PapaG08/15/2014


Great tech support. Product arrived ahead of schedule. Worked as expected. You guys rock! 146836






- 47515

ratingratingratingratingrating by: Robert R07/10/2014


Great product and quick delivery. Video was very helpful and made installation easy. 140684






- 47515

ratingratingratingratingrating by: Tony S.06/12/2013


This was very easy to add to the existing trailer wiring. Very good quality product. 84276






- 47515

ratingratingratingratingrating by: Tim B.09/02/2014


Exactly what I needed and the installation video was extremely helpful. 149658






- 47515

ratingratingratingratingrating by: Rob Bantly04/12/2014


Very easy instalation. Good Quality. The vidio also made it very easy. 124785






- 47515

ratingratingratingratingrating by: Jeffrey02/22/2013


Great price, quick service and delivery. Exceeded my expectations. 67360






- 47515

ratingratingratingratingrating by: Jeff K12/23/2013


Exactly as advertised. Installation was simple. Works perfectly. 110889






- 47515

ratingratingratingratingrating by: 4751509/25/2012


Excellent. Easy to install instructons. Fixed my problem easily. 55739






- 47515

ratingratingratingratingrating by: Dave C.04/28/2014


Very prompt shipping, well packaged. An excellent experience!! 127819






- 47515

ratingratingratingratingrating by: Larry DeSantis05/19/2014


great product and easy to install and best of all works great 131287






- 47515

ratingratingratingratingrating by: Jon B.07/03/2013


Very easy installation. Perfect solution for boat trailers. 87399






- 47515

ratingratingratingratingrating by: Brad S.06/11/2013


Exactly what I was looking for my boat trailer. Thank You! 84133






- 47515

ratingratingratingratingrating by: Alex06/18/2014


Received what expected and on time. Great job, etrailer! 136366






- 47515

ratingratingratingratingrating by: Ubaldo E.11/11/2014


Easy to install and a terrific price for the adapter. 160391






- 47515

ratingratingratingratingrating by: Michael01/21/2013


Product arrived in a very timely manner, thank you. 63759






- 47515

ratingratingratingratingrating by: Al06/28/2013


I've used these adapters before. they work good. 86640






- 47515

ratingratingratingratingrating by: Curtis P03/31/2014


Easy to install and works as advertised. 122901






- 47515

ratingratingratingratingrating by: jason k09/08/2014


fast delivery and product as described. 150399






- 47515

ratingratingratingratingrating by: Danny06/15/2014


Thank you for fast delivery , good job 135613






- 47515

ratingratingratingratingrating by: TD11/18/2013


quick service, worked great. 107685




50
58
Show More Reviews

Ask the Experts about this Hopkins Wiring
Expert Answers about Adapter 4-Pole to 5-Pole Trailer Wiring Adapter - Shorter - 47515Do you have a question about this Wiring?


  • Trailer Wiring for a Motorcycle Towing a Motorcycle Trailer
  • Normally, the 5 wire flat connector will accept a 4 wire flat connector and work properly. The extra circuit on the 5 wire connector is normally wired to power a reverse lockout or electric trailer brakes not the brake lights. If your motorcycle has the brake light circuit connected to the extra circuit you will need to do some re wiring or install a converter, item # 119178KIT, on the motorcycle. Your trailer should be wired as follows. White wire = ground, brown = tail light, yellow...
    view full answer...

  • What Wire Size Is Needed For 12 Volt Power On Truck To Operate Interior Lights On Camper
  • The wire gauge of the blue wire on the Hopkins Adapter 4 Pole to 5 Pole Trailer Wiring Adapter, part # 47515, will be too small to be able to use as a 12 volt power source. You will need to use a 10 gauge wire on your truck to run a 12 volt power wire to your trailer connector, along with a 40-amp circuit breaker. I would recommend to install the Hopkins Adapter 4 Pole to 7 Pole and 4 Pole, part # 37185, on your truck. This Hopkins adapter will plug into your 4-flat connector on your...
    view full answer...

  • How to Wire the Reverse Lockout Solenoid On a Titan Hydraulic Brake Actuator with Electric Lockout
  • The solenoid in the Titan Zinc-Plated, Leverlock Brake Actuator w/ Electric Lockout, item # T4715420, is wired to the reverse light circuit on the truck through the trailer connector on the vehicle and trailer. If you have a factory 7-Way connector on your vehicle the center connection in the 7-Way should be the reverse light circuit and one of the yellow wires should be attached to the center connector in the trailer side connector. If you are towing with 5-Way connectors, item...
    view full answer...

  • Trailer Hitch, Drawbar, Hitch Ball, and Trailer Wiring Recommendations for a 2008 Jeep Commander
  • I can certainly point out everything you will need to tow the boat with your 2008 Jeep Commander. First, you will need a hitch. There are several available but I recommend going with a Class III hitch rated for weight distribution because you never know what you might be towing in the future. I would go with Hidden Hitch Trailer Hitch, # 87752. This is a Class III, 2 inch trailer hitch, capable of 500 pounds tongue weight capacity and 5,000 pounds gross trailer weight. When used with...
    view full answer...

  • 5-Way Trailer Wiring and Hitch Recommendation for a 2012 Ford Explorer
  • If you do not have a 4-way present at the rear of your 2012 Ford Explorer I would recommend you get a Tow Ready Custom Fit Vehicle Wiring Harness # 118540. This is a very simple install, I attached installation instructions and a installation video for you to check out as well. Once you have a 4-way you will be able to install a Adapter 4 Pole to 5 Pole Wiring Adapter # 47515. This will basically just plug right in to your 4-way and then will give you the fifth circuit that you could...
    view full answer...

  • Replacing 4-pin Plug with a 5-Way Plug So I Can Back My Trailer
  • If you have a working 4 pin trailer connector and a boat trailer with surge brakes then you will not need a 4 pin wiring harness. If your trailers 5-pin connector is the flat style you can use the 4 Pole to 5 Pole Trailer Wiring Adapter, part number 47515, and splice it into the reverse light circuit behind one of the taillights with the quick splice that is included with the adapter. If you need an extension for your trailer connection to mount the five pole connector to a bracket, part...
    view full answer...

  • Wiring The Blue wire on 4-pole to 5-pole Adapter
  • The blue wire on the Trailer Wiring Adapter 4-pole to 5-pole is normally used for boat trailer connections where the trailer surge brakes need to be locked out. The blue wire is connected to the vehicles backup light circuit so that when the vehicle is shifted into reverse the surge brake coupler will not activate the trailer brakes when backing up. This adapter, blue wire included, is meant to be connected at all times when towing the trailer. The blue wire could be connected to another...
    view full answer...

  • Adding Trailer Wiring to a 2009 Suzuki Boulevard C90T Motorcycle to Tow a Trailer
  • First, you are going to want to determine the functions of the 5-Way connector on the trailer in order to find a wiring solution that will be compatible. Motorcycles have separate turn signals and brake lights. If the trailer also has separate turn signals and brake lights, making a wiring harness will be easy. You can just use a 5-Way harness like # 20016. You will have to wire it to the bike by function to match the function on the trailer 5-Way. Use a circuit tester like # 3808 to...
    view full answer...

  • Can a 4-Way Flat on a Truck Be Used with a Trailer 5-Way Flat without Connecting Extra Wires
  • I recommend using the Adapter # 47515 or # 20036 and not connecting the extra blue wire to anything on the truck. On a 5-Way flat connector, the extra blue wire is normally for an electric reverse lockout which you find on a lot of boat trailers. The brakes on the trailer are probably hydraulic with a reverse lockout on the coupler. The blue wire sends power from a reverse light circuit to a solenoid on the coupler that does not allow fluid to pass through to the brakes when the vehicle...
    view full answer...

  • Hopkins Wiring Harness # 43475 and 5-Way Adapter Recommendation 2000 Toyota Sienna
  • Yes, there is a way to get a 5-way at the back of your 2000 Toyota Sienna, but you would first need to install the Plug-N-Tow Vehicle Wiring Harness, part # 43475, that you referenced. I attached installation instructions for this product below. The next thing you would need is a Adapter 4 Pole to 5 Pole Trailer Wiring Adapter, part # 47515. This will give you a 5-way at the rear of your vehicle and would also give you the option to decide what you want the fifth pole to be. Some people...
    view full answer...

  • Can a 4-Way to 5-Way Trailer Connector Adapter be Safely Used on a 2013 Ford Edge
  • The 4-Way to 5-Way adapter, # 47515, will work well on a 2013 Ford Edge and will not short out the vehicle electrical system if installed correctly. Installation is straight forward. The 4-Way on the vehicle plugs into the adapter. The blue wire then will connect to a reverse light wire on the vehicle using the included quick splice connector. This adapter is not circuit protected so if there are shorts on the trailer they could back feed to the vehicle. Make sure the trailer wiring...
    view full answer...

  • Parts Needed to Backup Without Putting on the Surge Brakes When Parking or Launching a Boat Trailer
  • Yes, there is a way to back up your boat trailer and keep the surge brake actuator, # T4332900, from applying pressure to the trailer brakes. You will need an electric lockout solenoid, # T4748800, which will close when you shift the vehicle into reverse, allowing the trailer to be backed. Along with the solenoid, you will need a solenoid cover, # T4835800183, if your actuator is the model 60 actuator that you referenced. The cover will keep the solenoid from getting stepped on and damaged...
    view full answer...

  • Can the 5th Wire of the Adapter 4 Pole to 5 Pole Trailer Wiring Adapter Be Cut Off if Not Needed
  • Usually, on a boat trailer with a 5-Way trailer connector, the 5th wire goes to an electric reverse lock out on a surge coupler. This is so when you put the vehicle in reverse to back up, it will not allow the trailer brakes to engage so the trailer can move. If you do not need the blue wire on the Adapter 4 Pole to 5 Pole Trailer Wiring Adapter, # 47515, you can just tape it up and and stow it out of the way. I would not cut it off because you may need it in the future. If you do...
    view full answer...

  • Will The Titan Leverlock Brake Actuator, # T4715420, Fit A 2008 Shorelander Trailer
  • For the Titan Leverlock Brake Actuator, # T4715420, to fit your 2008 Shorelander Trailer it needs to have disc brakes and a 3 inch wide channel tongue. The trailer needs to be 6,000 lbs. weight capacity and 600 lbs. tongue weight or less. This actuator has a solenoid for the electric lockout which needs to be wired to the reverse light circuit on the truck through the trailer connector on the vehicle and trailer. If you have a factory 7-Way connector on your vehicle the center connection...
    view full answer...

  • How to Connect to Reverse Light Circuit for 4 to 5-Way Adapter 47515 on a 2013 Hyundai Santa Fe
  • You have a couple options for locating the reverse light circuit for the 4 to 5-Way adapter # 47515 on your 2013 Hyundai Santa Fe. The first, which would require some time and probably trim removal, would be to inspect the door area and see if you can locate where the factory harness runs out of the door and toward the front of the vehicle. If the wiring runs out in a way that you will not have enough space to tap into it, you would need to remove trim pieces or even the headliner to...
    view full answer...

  • Can an Electric Back Up Lockout Solenoid be Added to a Titan Aero 7500 Brake Actuator
  • The Titan Aero 7500 Brake Actuator with Manual Lockout, item # T4606500, has a manual lever, on the side of the coupler, that requires getting out of the vehicle and activating to back the trailer without the brakes activating, see page 7 of instructions link. An electric lockout solenoid can be added to the Titan Aero 7500 Brake Actuator, which will use the reverse light function from your vehicle to lockout the trailer brakes whenever the vehicle is shifted into reverse. The Replacement...
    view full answer...

  • Where to Find the Reverse Light Wire at the Back of a 2013 Ford Escape
  • On the 2013 Ford Escape, testing the wires to find the right one is the only way to know for sure if you have the correct wire since going by color is not always reliable. Use a circuit tester such as # 3808 if you do not already have one to test and find the correct wire. It looks like the reverse light wiring will go through the rear hatch. If you were to open the hatch you may be able to find the harness at the top that goes from the hatch into the vehicle. That is likely the easiest...
    view full answer...

  • Can a USA 4-Way Trailer Connector be Used with an Australian Trailer Configuration
  • The Australian 7-pole is like the European 7-pole in that it has separate turn signals and brake lights (and a few other functions not used in the states). A US 4-Way and trailer will have the turn signals combined with the brake lights on each side of the trailer. So you would have a ground (earth), running lights, left turn and brake lights, right turn and brake lights. In order to separate out the turn signals from the brake lights you would need a converter, # 118158. You would wire...
    view full answer...

  • Locating the Reverse Light Wire on a 2013 Lexus RX350 for a 4 to 5-Way Adapter
  • The easiest place to locate a reverse light wire on any vehicle is directly behind the reverse light itself. If that is not easily accessible then there will be a wiring harness that leads to the tail lights that may also contain the reverse light wire. You will need a circuit tester like # 3808 if you do not have one. Test the wires in the harness leading to the tail lights to determine if any of them are the reverse light and tap in there. Another option is to find the reverse light...
    view full answer...

  • Adapting 2010 Ford E-350 With 4-Pole Wiring Harness to Tow Boat Trailer With 5-Pole Flat Connector
  • There are several ways to adapt your different tow vehicle and trailer connectors. The most cost-effective method to put a 5-pole flat connector on your vehicle is to use Hopkins 4 Pole to 5 Pole Trailer Wiring Adapter, part # 47515. Installation is simple and consists of connecting your existing 4-pole and making one single splice connection to the reverse light circuit at the back of the van. You can use a circuit tester such as # 40376 to confirm which wire carries the reverse light...
    view full answer...

  • Tapping Into the Reverse Light Circuit on a 2010 Hyundai Santa Fe to Install a 4 to 5-Way Adpater
  • Vehicles that have the reverse lights in the hatch can make tapping into the reverse light a little more difficult than most people would like. What I recommend doing is checking for the wiring harness leading to the lights UNDER the vehicle. Then use a circuit tester like # 3808 if needed to test the wires to find if the reverse light circuit is there. If you cannot find it then there is another thing you can do. Use the vehicle owners manual and/or the legend on the power distribution...
    view full answer...

  • How to Wire in an Adapter 4 Pole to 5 Pole Adapter # 47515 For a Reverse Lockout
  • The wire you are going to be looking for to activate the reverse lockout feature for your surge brakes will be the wire that powers the reverse light bulbs. I would recommend you use a circuit tester # 3808 to determine which wire has power when the reverse lights are illuminated and no voltage when the lights are not activated and then use a quick splice Connector # 804C to tap into this circuit and run wire from the quick splice to the 5-way. I attached a review video for a Adapter...
    view full answer...

  • How to Find the Reverse Light Wire on a 2004 Lexus RX330
  • First, located the tail light wiring behind one of the tail lights on the 2004 Lexus RX330. Then, use a circuit tester, like # 3808, to probe each of the wires until you find the one that carries a signal when the vehicle is placed in reverse. You will need to have someone sit in the vehicle cab and put it in reverse. It is a good idea to apply the emergency brake, regular brakes, and even chock the wheels to prevent the vehicle from moving while in reverse. Once you have found the...
    view full answer...

  • Wiring 4 to 5-Pole Trailer Connector Adapter onto 2005 Jeep Grand Cherokee
  • The blue wire on the 4-Pole to 5-Pole Trailer Connector Adapter would need to be lengthened and tapped into the circuit that feeds the reverse lights on your Grand Cherokee. Simply locate the reverse lamp assembly, and find the wire feeding the bulb. This is where you would tap in the blue wire. You can use a Scotchlok connector, like part # 804C. To view an install video, click on the provided link.The video shows the adapter being installed on a different vehicle, but the video will...
    view full answer...

  • Comparing 4-Way to 5-Way Trailer Connector Adapters # 20036 and # 47515
  • 4-Way to 5-Way adapters # 47515 and # 20036 are essentially the same. The difference is that # 20036 has longer wiring with it than # 47515. For that reason we normally recommend # 20036. The 4-Way to 5-Way portion is 18 inches long. The blue wire though is 60 inches long from end to end. Additional light gauge wire, such as # 16-1-1, sold in 1 foot increments could be spliced in if a longer connection is needed.
    view full answer...

  • Wiring a 2007 Lexus RX350 to a 5 Pole Boat Trailer
  • Because of the LED taillights, you would need a # 56146KIT powered converter to power the trailer lighting circuits. You would also need, item # 47515, 4 to 5 pole adapter. The adapter has the additional wire that would connect to the vehicle back up lights.
    view full answer...

  • Troubleshooting Trailer Lights Working Erratically on a Trailer Towed by a 2000 Jeep Grand Cherokee
  • There are several things you can check. First, check the functions on the vehicle side with no trailer connected. Make sure the wires are receiving the proper signals at the connector on the Jeep. You will need a circuit tester like the Quickee # 3808. If you find a problem at this point, something may not be wired correctly and you will need to start from scratch. Wire color and functions are usually: white = ground, green = right turn and brake, yellow = left turn and brake, brown = running...
    view full answer...

  • How to Install Adapter 4 Pole to 5 Pole Trailer Wiring Adapter # 20036 on a 2007 Toyota FJ Cruiser
  • What you will need to go from the 4-Way flat on your Toyota FJ Cruiser to the 5-Way flat on the boat trailer is a 4-Way to 5- Way adapter. You can either use # 20036, or # 47515 (shorter). The 5-Way end of the adapter would plug into the 5-Way on the boat trailer. The other end would plug into the 4-Way on the vehicle. The extra blue wire would need to be connected to the reverse light circuit behind one of the tail lights. This circuit is used by the trailer side to engage the electric...
    view full answer...

  • Installation Instructions for Custom Trailer Wiring for a 2009 and 2010 Volkswagen Routan
  • In order to use the reverse lights on your trailer, you will need to add a 4-Way to 5-Way adapter like # 47515. Using a circuit tester, like the Quickee # 3808, find the wire behind your taillight assembly that carries the reverse light signal. It will have a signal when the vehicle is in reverse. Make sure you have someone in the vehicle to help you and put the emergency brake on for added safety. After you have found the reverse light wire, you can connect it to the Adapter 4 Pole to...
    view full answer...

  • Wiring Trailer Lights for 2009 Pontiac Vibe Without Using Converter
  • Probably the easiest way to handle this situation would be to use a 5-way connector, part # 20017 for the trailer and part # 20016 for the vehicle end. Use the extra wire for the brake light lead. If the trailer needs to be towed by another vehicle, simply use the 4 to 5 Way Adapter, part # 47515.
    view full answer...


Expert Answers about Adapter 4-Pole to 5-Pole Trailer Wiring Adapter - Shorter - 47515Do you have a question about this Wiring?



Info for this part was:


Expert Research:
Michael L

Expert Research:
Robert G

Expert Research:
Patrick B

Expert Research:
Michael H

Expert Research:
Jameson C

Video Edited:
Joshua S

Expert Research:
John H

Photos by:
Sam P

Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.










Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email






etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
