Fulton Single Speed Winch - 8" Long Handle - 1,300 lbs

Fulton Winches - FT13000301

For your toughest pulling demands, Fulton single-speed winches are long-lasting, corrosion resistant and designed to be used with either rope or strap.

Features:

• Single-speed winch has convenient 2-way ratchet system
• Carbon steel construction offers superior strength and durability for better functioning and increased lifespan
• Oil-impregnated shaft bushings and full-length drum bearings make for smooth and efficient operation
• Z-Max 600 finish provides increased corrosion resistance
• Comfort-grip handle makes cranking easy
• Convenient design is for use with either rope or strap

Specs:

• Handle length: 8"
• Gear ratio: 4.1:1
• Drum storage:
  • 30' x 5/16" Rope
  • 20' x 2" Strap
• Capacity: 1,300 lbs
• Limited 3-year warranty

Fulton single-speed winches feature efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and "Comfort Grip" handles. High-carbon steel gears are strong and long-lasting, and stamped carbon steel frames ensure rigidity for gear alignment and a long cycle life. Strap not included.

T13000301 Fulton Standard Series Single Speed Trailer Winch with 8" Handle, 1,300 lbs

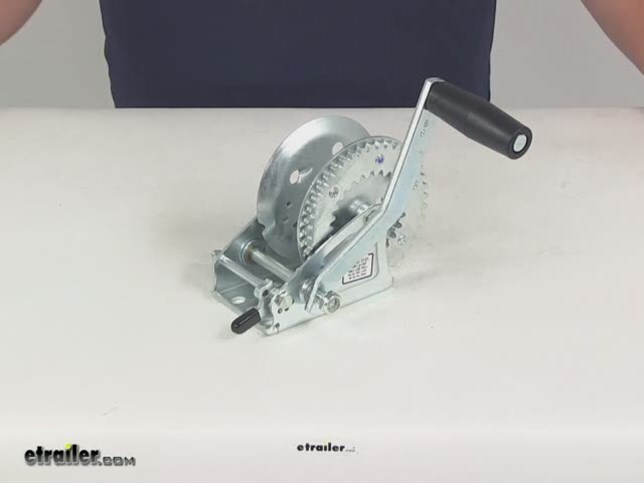

Video of Fulton Single Speed Winch - 8" Long Handle - 1,300 lbs

Customers compare FT13000301 to these similar products

Customers Who Purchased This Winches Also Bought...

Ask the Experts about this Fulton Winches

• Recommendation for a Hand Winch to Lift For Deer Feeder Poles To Raise 320 Pounds

• I spoke with another member of our content team who uses a similar winch for deer feeder poles. He informed me that the item you selected, Fulton Single Speed Winch - 8 Long Handle - 1,300 lbs, part # FT13000301, will work fine. Another winch that will work for your application is Dutton-Lainson Hand Winch with TUFFPLATE Finish, Single Speed - 900 lbs, part # DL15002. When using either winch, for safety, you will want to make sure that nobody is standing under the barrels when they are be
  view full answer...


• Replacement Spring and Winch Repair Kit for a Fulton T1300 Series Trailer Winch

• I spoke with my contact at Fulton and the spring by itself for the Fulton Single Speed Winch, # FT13000301, is not available but it does come with a repair kit. The correct repair kit is # F0133306S01. The benefit of getting the repair kit is that you will have other replacement parts should any of them need changing out in the future.
  view full answer...


• Easy Winch to Crank to Lift the Roof on Bunny Cages

• Using a winch like # FT13000301 will provide more mechanical advantage than just a straight pull a person can do with their hands. To make it easier still, you will need to make sure that the cable is going straight from pulley to pulley and straight out of the winch. The longer the handle on a winch, the easier it will be to crank and a winch with 2 speeds will be easier than that. A winch like # DL15502, would make it very easy. It can be used with a strap # DL24249 or cable # DL24045.
  view full answer...


• Bolt Hole Spacing and Size for the Fulton Single Speed Winch # FT13000301

• I was able to get the bolt hole dimensions for the Fulton Single Speed Winch, # FT13000301, from my contact at Fulton and I made a diagram for you to check out. The base of this winch has three small bolt holes toward the front and one elongated bolt hole in the back. The bolt holes require 3/8 inch diameter bolts and the three small bolt holes are 7/8 inches apart on center. The larger, elongated bolt hole is 1 inch long from center bolt position to center bolt position. The three small
  view full answer...
