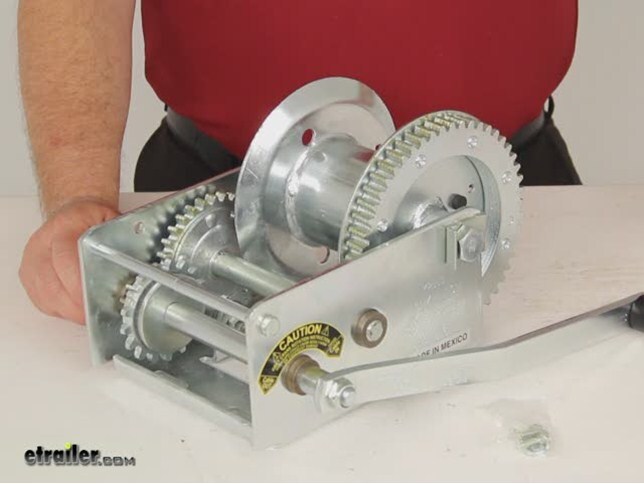

Fulton High-Performance Brake Winch - Cable Only - 2,500 lbs

Fulton Winches - FK25500301

This self-activating, automatic brake winch securely holds your load whenever the handle is released - no minimum load required for activation. Great for boat lifts, manual forklifts, hoists, grain augers and more.

Features:

• Brake winch is perfect for boat lifts, grain augers, manual forklifts, hoists and more
• Load remains securely held whenever handle is released
  • No freewheeling option is available
• No minimum load is required for either activation or payout
• Oversize drum hubs help to maximize cable life
  • Designed for use with aircraft-grade cable
• Z-Max 600 zinc finish provides superior corrosion resistance
  • 600-Hour salt spray rating

Specs:

• Handle length: 11"
• Gear ratio: 15.8:1
• Drum diameter: 3-1/8"
• Drum storage: 70'
  • For use with cable only
• Maximum cable diameter: 5/16"
• Cable test strength: 9,800 lbs
• Capacity:
  • First layer: 2,500 lbs
  • Full drum: 1,500 lbs
• Limited 5-year warranty

K25500301 Fulton High-Performance Brake Winch - 1,500 lbs

Customers compare FK25500301 to these similar products

Fulton High-Performance Brake Winch - Cable Only - 1,500 lbs$126.95

Dutton-Lainson Brake Winch with TUFFPLATE Finish, Self-Locking - 2,500 lbs.$109.95

Fulton High-Performance 2-Speed Trailer Winch - Cable Only - 3,200 lbs$130.95

Dutton-Lainson Hand Winch with TUFFPLATE Finish, Two Speed with Direct Drive - 3,200 lbs.$105.95

Fulton High-Performance 2-Speed Trailer Winch w/ Handbrake - Cable Only - 3,700 lbs$209.95

Customers Who Purchased This Winches Also Bought...

Fulton High-Performance Brake Winch - Cable Only - 1,500 lbs $126.95

Replacement parts available for this product

Replacement Friction Brake Pads for Fulton Brake Winch $12.99

Replacement Pinion Shaft/Gear Service Kit for Fulton Winch $48.95

Ask the Experts about this Fulton Winches
Do you have a question about this Winches?

• Is there a Repair Kit Available for Fulton High-Performance Brake Winch, # FK25500301

• We do have a replacement parts kit for the Fulton High-Performance Brake Winch, # FK25500301. Take a look at the Pinion Shaft Repair Kit, # F1563S01. This kit includes the parts that make up the handle assembly so it will have the parts you need to repair your winch.
  view full answer...


• Single Speed Hand Winch, # FK25500301, and Strap, # DL24242, Recommendation for Boat Trailer

• I would recommend the Dutton-Lainson Hand Winch, TUFFPLATE Finish, Two Speed with Direct Drive - Hand Brake - 2,500 lbs, part # DL14830. It has two speeds and has a higher capacity than the current winch you have on your trailer. You will also need a strap. I recommend the Hand Winch Strap with Safety Hook, 2 inch Wide x 25 feet Long - 4,000 lbs, part # DL24249. The # DL14830 and the # DL24249 together should provide you with a winch setup that will perform well for you. I have attached
  view full answer...


• Does the Fulton Hitch Performance Brake Winch Come with a Cable

• The Fulton brake winch, # FK25500301, does not include a cable. The maximum size cable that can be used with this winch is a 5/16 inch diameter cable. You could use # FWC3250100, which has a 3/16 inch diameter and 4,200 pound capacity.
  view full answer...


• Does the Brake On Fulton Trailer Winch # FK25500301 Work in Both Directions

• Yes, when you release the handle on winch # FK25500301 the brake will engage no matter which direction you are turning it. This winch can use a cable up to 5/16 inches in diameter like # DL24102. Another option that does not require a minimum load to brake is a worm gear winch like # DL10970 and cable # DL24104. There are also split reel worm gear winches like # DL10972 and cable # DL24045 so when you turn the handle one line goes in and the other line goes out. I have included a link to o
  view full answer...
