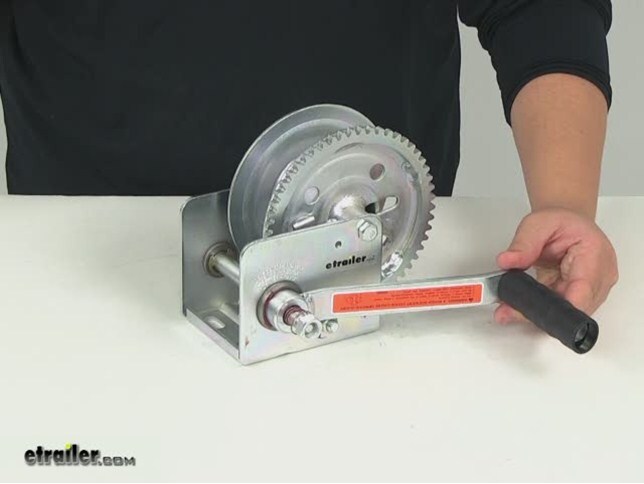

Dutton-Lainson Brake Winch with TUFFPLATE Finish, Self-Locking - 1,200 lbs.

Rating: rating rating rating rating rating
4 reviews

Code: DL14934

Retail:$89.99

Price:$68.95

Shipping Weight: 10 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Dutton-Lainson Winches - DL14934

Brake Winches, DLB Series - 1,200 lb

D-L brake winches are suitable for many lifting and lowering applications. Self-locking brake winches provide additional safety and control for many lifting and pulling jobs. The automatic friction brake supplies constant, positive holding action and prevents a runaway load. Brake is fully automatic and the load remains in position any time the handle is released. A load is required to pull line from the winch drum. All D-L brake winches are built for multipurpose hauling and lifting operations.

Capacity: 1,200 lbs.
2-1/2" drum hub diameter
Rugged construction
Economical price
Raise and lower loads with minimal effort, with load locked in place, even when handle is released
Zinc TUFFPLATE finish
- Zinc plated yellow chromate TUFFPLATE finish has three times the corrosion resistance of standard zinc plated trivalent chrome process and 30 percent greater corrosion resistance when compared to powder coated finish. Results of lab test using 5 percent neutral salt spray confirms our TUFFPLATE finish provides in excess of 500 hours against First Red Rust and in excess of 100 hours of First White Corrosion.
50 lb minimum load required for winch to operate properly
Handle included
5 year limited warranty
Made in the USA

Brake Winch Specifications
Model	Rated Capacity	Min. Operating Load Required	Drum Hub Diameter	Gear Ratio	Handle Length	Max. Mechanical Advantage	Max. Drum Capacity - Cable (3)	Max. Drum Capacity - Strap
DL14934	1,200 lb.(2)	50 lb.	2-1/2"	5.4:1	7"	27.8	7/32" x 69'	31'
(2) Capacity is based on direct pull on the first layer of line on the drum. Capacity is reduced as the line builds up on the drum.(3) Drum capacity based on cable size listed. (Cable is not included.) B Series winches will only work with cables. They are not strap adaptable.

14934 Brake Winches, DLB Series - 1,200 lb by Dutton-Lainson Model DLB1200A

Winches are not to be used as hoists for lifting, supporting or transporting people, or for loads over areas where people can be present.

Customers compare DL14934 to these similar products

Dutton-Lainson Worm Gear Hand Winch - 1,500 lbs $64.95

Dutton-Lainson Brake Winch with TUFFPLATE Finish, Self-Locking - 2,500 lbs.$109.95

Pro Series Standard Brake Winch - Cable Only - 1,000 lbs $65.95

Fulton High-Performance Brake Winch - Cable Only - 1,000 lbs $91.95

Dutton-Lainson Freewheeling Brake Winch with TUFFPLATE Finish, Self-Locking - 1,200 lbs.$69.95

Customers Who Purchased This Winches Also Bought...

Curt Hook with Spring Loaded Safety Latch for Safety Chains and Cables - 3/8" - 2,000 lbs $1.80

Hand Winch Strap with Safety Hook, 2" Wide x 15' Long - 4,000 lbs. $12.99

Hand Winch Strap with Safety Hook, 2" Wide x 25' Long - 4,000 lbs. $15.95

Sealed, Uni-Lite Mini LED Side Marker and Clearance Light, 2 wire, Grommet Mount, 2 Diode - Red $5.50

Pro Series Adjustable-Channel Coupler w/ Low Latch - 2" Ball - 8,000 lbs $30.95

Customer Reviews

Dutton-Lainson Brake Winch with TUFFPLATE Finish, Self-Locking - 1,200 lbs. - DL14934

Average Customer Rating: rating rating rating rating rating 5.0 out of 5 stars (4 Customer Reviews)

- DL14934

rating rating rating rating rating by: BillG09/19/2011

Is this review helpful?

I previously had a Dutton-Lainson Model B1200 braking winch, which served me well for 20 years. This unit appeared to be as good as previously one I owned. This will replace previous unit that was worn out.24249
