Winches > Standard Hand Winch > Two Speed Winch > 2500 lbs > Single Reel Drum > Standard Crank > Dutton-Lainson

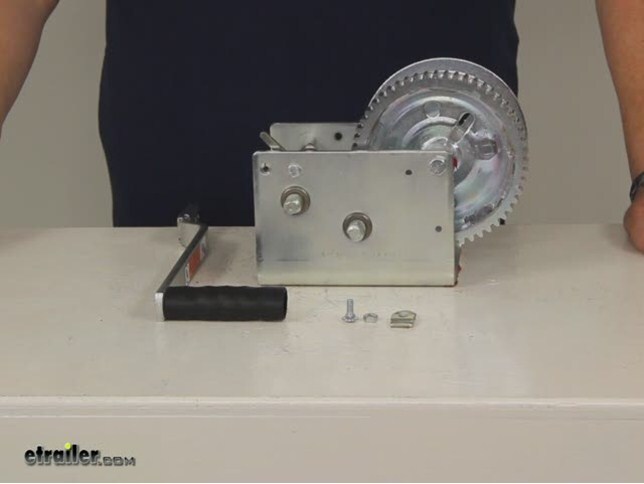

Dutton-Lainson Hand Winch with TUFFPLATE Finish, Two Speed with Direct Drive - 2,500 lbs.

Rating: rating rating rating rating rating
3 reviews

Code: DL14825

Retail:$99.99

Price:$89.95

Shipping Weight: 16 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Dutton-Lainson Winches - DL14825

Pulling Winch - 2 Speed Heavy Duty - 2,500 lb

All D-L winches are built for multipurpose hauling and lifting operations

Capacity: 2,500 lbs
2-speed winch for horizontal pulling applications
1-1/8" drum hub diameter
High carbon steel heat-treated gears
Permanently lubricated bearings
Reversible ratchet
Ergonomic handle grip
Quick-attach handle allows easy change from high speed to low gear, for heavier loads
Zinc TUFFPLATE finish
- Zinc plated yellow chromate TUFFPLATE finish has three times the corrosion resistance of standard zinc plated trivalent chrome process and 30 percent greater corrosion resistance when compared to powder coated finish. Results of lab test using 5 percent neutral salt spray confirms our TUFFPLATE finish provides in excess of 500 hours against First Red Rust and in excess of 100 hours of First White Corrosion.
Handle included
5 year limited warranty
Made in the USA

Double Speed Pulling Winch Specifications
Model	Rated Capacity (2)	Drum Hub Diameter	Gear Ratio	Handle Length	Max. Mechanical Advantage	Reversible Ratchet	2-Speed Operation	Max. Drum Capacity - Cable (3)	Max. Drum Capacity - Strap
DL14825	2,500 lb.	1-1/8"	17.3:1 / 5.4:1	9-1/2"	229	yes	yes	5/16" x 47'	38'
(2) Capacity is based in direct pull on the third layer of line on the drum. Capacity is reduced as the line builds up on the drum.(3) Drum capacity based on cable size listed. (Cable is not included.)

14825 Pulling Winch - 2 Speed Heavy Duty - 2,500 lb by Dutton-Lainson Model DL2500A

Winches are not to be used as hoists for lifting, supporting or transporting people, or for loads over areas where people can be present.

Customers compare DL14825 to these similar products

Dutton-Lainson Hand Winch with TUFFPLATE Finish, Two Speed with Direct Drive - 3,200 lbs.$105.95

Fulton High-Performance 2-Speed Trailer Winch w/ Strap - 2,600 lbs $124.95

Dutton-Lainson Brake Winch with TUFFPLATE Finish, Self-Locking - 2,500 lbs.$109.95

Fulton High-Performance 2-Speed Trailer Winch - Cable Only - 3,200 lbs $130.95

Dutton-Lainson Hand Winch,TUFFPLATE Finish, Two Speed with Direct Drive - Hand Brake - 2,500 lbs.$98.95

Customers Who Purchased This Winches Also Bought...

Wire Frame Clip $0.17

Hand Winch Strap with Safety Hook, 2" Wide x 25' Long - 4,000 lbs. $15.95

Black Mounting Bracket for A91 and AL91 Series Trailer Clearance, Side Marker Lights -Self Grounding $1.40

Pal Nut for Steel Roller Shaft (Qty 1) $0.55

Hand Winch Cable with Safety Hook 1/4" Diameter x 25'Long - 2,500 lbs. $31.95

Customer Reviews

Dutton-Lainson Hand Winch with TUFFPLATE Finish, Two Speed with Direct Drive - 2,500 lbs. - DL14825

Average Customer Rating: rating rating rating rating rating 5.0 out of 5 stars (3 Customer Reviews)

- DL14825

rating rating rating rating rating by: Darryl8n05/03/2013

Is this review helpful?

quality product, fast shipping, great business as always!78827

comment on this review

- DL14825

rating rating rating rating rating by: Andrew Z.07/08/2012

Is this review helpful?

Kwick delivery of the item,easy install ation!47110

comment on this review

- DL14825

rating rating rating rating rating by: B. Hawk02/06/2012

Is this review helpful?

Nice H/D winch. Replacing my 12 year old D/L winch. Spring catch not engaging consistantly anymore and after the stitching in the strap pulling out and launching my 25' rig on the concrete boat ramp it is time for new stuff. This winch with new 5/16" s.s. wire rope cable and forged s.s. hook should eliminate that nightmare from happening again. USA made! Etrailer has the best commun. and service PERIOD. Thanks K.31192

comment on this review
