Winches > Brake Winch > Worm Gear Winch > 2000 lbs > Single Reel Drum > Standard Crank > Dutton-Lainson


Dutton-Lainson Worm Gear Hand Winch - 2,000 lbs

Dutton-Lainson Winches

ratingratingratingratingrating (19 reviews)


Code:   DL10970

Retail:$84.99

Price:$73.95


Shipping Special

Shipping Weight: 10.56 pounds

Quantity:






Dutton-Lainson Winches - DL10970

Worm Gear, Regular Drum Handle Drive - 2,000 lb

Applications requiring safe, controlled movement of loads need the D-L worm gear winch. The reel automatically stops turning whenever cranking is stopped. There is no free wheel mode, no special mechanism required to stop gear movement and they do not require a minimum load for operation.

  • Capacity: 2,000 lbs.
    • Capacity is based on direct line pull on the first layer of line on the drum. Capacity is reduced as line builds up on the drum
  • Laminated high carbon steel gears are heat treated for longer life
  • Heavy gauge embossed steel base for extra strength
  • Permanently lubricated bearings on drive shaft are maintenance free
  • Handle drive
  • Heavy duty 1/2" variable speed drill may speed up operation
  • Powder coated copper bronze finish
  • 5 year limited warranty
  • Made in the USA

All D-L winches are built for multipurpose hauling and lifting operations. They are not to be used as hoists for lifting, supporting or transporting people, or for loads over areas where people can be present.

Worm Gear Specifications
ModelWinch DescriptionRated Capacity (1)Drum Hub DiameterGear RatioHandle LengthMax. Mechanical AdvantageMax. Drum Capacity - Cable (2)
DL10970Reg. Drum Handle Drive2,000 lb.1-1/2"40:17"3149/32" x 49'

(1) Capacity is based on direct line pull on the first layer of line on the drum. Capacity is reduced as line builds up on the drum. (2) Drum capacity shown is based on cable size listed. (Cable not included.)


10970 Worm Gear, Regular Drum Handle Drive - 2,000 lb by Dutton-Lainson Model WG2000





Video of Dutton-Lainson Worm Gear Hand Winch - 2,000 lbs


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

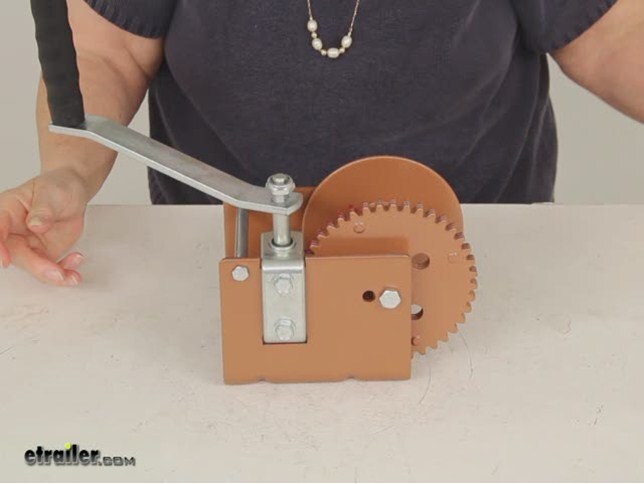

Video Demo Dutton Lainson Winches DL10970
Dutton-Lainson Winches DL10970 Review

Video Transcript for Dutton-Lainson Winches DL10970 Review

Today were reviewing part number DL10970 from Dutton Lainson. This is a worm gear hand winch with a capacity of 2000 pounds. The gears are made of laminated high-carbon steel. They are heat treated for long life. The base is heavy gauge embossed steel. Thats this part right here.

So, its extra strong. The bearings are permanently lubricated. I dont know if you can see. Theyre permanently lubricated on the drive shaft. So, theyre maintenance free.Now, this handle drive will obviously bring your rope up or down, and it stops when you stop.

Now, the gear ratio on this winch is 40:1. What that means is you would have to turn this handle 40 times in order to make one full revolution of this gear. This part right here. So, if you want to speed up the operation you can attach a half-inch heavy duty, variable speed drill right here and use that operate the winch rather than your hand on the handle.The handle by the way measures seven inches from the center of this screw here to the center of the handle right here, if you can see that. The drum, right here, is one and a half inch diameter, and the capacity is a 50-foot-one-quarter-inch-wide winch cable.

Thats what you should be using. This winch comes with a five-year limited warranty, and it is made in the USA.Note that you can, if you wish, install it kind of upside down like that with this part on a beam or a heavy ceiling. For example, in your garage if you want to use the winch to help you take off the top of your Jeep which can be kind of a cumbersome job without the winch. Its a good tool to have, and there you have it for part number DL10970 from Dutton Lainson. The worm gear hand winch with a capacity of 2000 pounds.

.




Customer Reviews

Dutton-Lainson Worm Gear Hand Winch - 2,000 lbs - DL10970

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (19 Customer Reviews)



- DL10970

ratingratingratingratingrating by: Clay S.05/24/2011


Installation of DL winch. Worm gear necessary due to tight fit behind fairing. Also junction box done right. Not everyone carries these items. I found etrailer through an Internet search for the junction box. 15256





Comments

HI,I LIKE THE DL10970 WINCH,BUT WANT ONE THAT I CAN USE A STRAP, DO YOU HAVE ANY ONE LIKE THIS THAT USES A STRAP ?

comment by: marshall - 08/07/2013


1861

There sure is, check out part DL11002. It is a Dutton-Lainson 2K Worm Gear winch designed for use with 2 inch straps. The strap for it is part DL24242, and is sold separately.

Patrick B - 8/7/2013




- DL10970

ratingratingratingratingrating by: Paul R03/14/2011


I used this winch to move some large machinery. It worked very well and securely managed the loads. The hand crank is easy to turn, but it takes a lot of turns to move the load a significant distance. I ended up removing the handle and driving the gear with a cordless drill to speed it up. If I were to buy this again, I would get the one designed to be used with a hand drill. The cable is a bit hard to tie on to the spool since it is not easy to flex a 1/4-inch cable to a tight radius. Eventually I got it on though, and am pleased with the result. etrailer was quick with shipment, so I'm pleased with their service. 9303






- DL10970

ratingratingratingratingrating by: D.Appleton07/14/2012


Great product -well built - decent price. Now taking the top off my Jeep is a 1 man 10 minute job , way better than other units that I looked at that cost more. Excellent work on E-Trailers end also 47971






- DL10970

ratingratingratingratingrating by: Phil02/24/2013


I did some research on finding the right winch for use in our garage. While some were cheaper I was afraid of the reviews that said they were flimsy. This winch did not disappoint. It is solid, installs easily, and lifts loads as advertised. Kudos to etrailer on the delivery ... I picked standard delivery and they upgraded my shipping. Not sure why ... but is showed up 2 days later. Thanks! 67626






- DL10970

ratingratingratingratingrating by: Gray W05/16/2013


Excellent product and delivery time was very good. I have ordered many items from E-Trailer and they have all arived in a good time and are as depicted. I have confidence in my business with them:) 80594






- DL10970

ratingratingratingratingrating by: Matt D.11/10/2014


I bought the winch to replace one with a hand crank and a much less forgiving gear ratio. I was able to operate this one with my cordless drill and a socket. Works great. 160193






- DL10970

ratingratingratingratingrating by: Dan S01/28/2011


Great Transaction! 6316






- DL10970

ratingratingratingratingrating by: Ronald M.08/20/2013


great winch 96111






- DL10950

ratingratingratingratingrating by: Jim R01/20/2014

Review from a similar Dutton-Lainson Worm Gear Hand Winch


Well, between getting the old fixture down from 22 feet high and getting this one up, this was quite a project. However, with a little ingenuity and the help of a wench from etrailer.com (model DL10950), we now have an amazing chandelier. We could not be happier with this purchase and the quick shipment. I enclosed a few pictures of assembly and final installation. 114208



- DL10950

ratingratingratingratingrating by: Rich L02/09/2012

Review from a similar Dutton-Lainson Worm Gear Hand Winch


Even though it is more winch than I really needed, I can highly recommend this unit. In the application I am using them, they needed to be mounted to a wall to raise and lower some heavy lighting units so the worm gear really makes that convenient. As over-built as this is they should last for many years. I can also highly recommend the people at etrailer.com. The product was shipped the next day (I placed the order late at night) and they have been very helpful in keeping me informed on the arrival of the units that were backordered. Thanks guys! 31370



- DL10950

ratingratingratingratingrating by: BC05/16/2014

Review from a similar Dutton-Lainson Worm Gear Hand Winch


Picked up this winch to use primarily for camper shell storage in the garage. Maybe lift other lighter items as needed. I went for the worm drive for its controlled release and hold ability. The winch fit the bill perfectly. My only minor gripe is that the site doesn't mention that a cable fastener isn't needed (such as DL 24361) and if I remember correctly there aren't instructions in the box on how to affix the cable. There is a handy how to vid on this site but took a few minutes of digging to find. 131026



- DL10950

ratingratingratingratingrating by: Keith L.08/21/2013

Review from a similar Dutton-Lainson Worm Gear Hand Winch


The application for the winch is one that required the handle on the top of the winch to keep from having interferrence with the cranking handle. The gear ratio is quite different in that it takes more cranks of the handle to make a full revolution of the spool but with a tip from the manufacturer to use a 1/2" drill instead of the handle it makes set up time much faster and easier. 96253



- DL10950

ratingratingratingratingrating by: John L.07/30/2010

Review from a similar Dutton-Lainson Worm Gear Hand Winch


excellent product I bought this worm gear winch to use on a ham radio crank-up tower. It works great using only two fingers. I would reccommend this winch to anyone . It is well built and works great under a load with only two fingers!Well worth the money. 3298



- DL10950

ratingratingratingratingrating by: Arne V.11/13/2014

Review from a similar Dutton-Lainson Worm Gear Hand Winch


The product is in great condition and etrailer.com sent it faster at no cost. Great service and thank you for a great product. 160725



- DL10950

ratingratingratingratingrating by: Marcus R.12/15/2011

Review from a similar Dutton-Lainson Worm Gear Hand Winch


Went online, ordered product, got confirming and shipping emails and received the winch. Went as smooth as I would hope for. 28176



- DL10950

ratingratingratingratingrating by: mario jason07/03/2013

Review from a similar Dutton-Lainson Worm Gear Hand Winch


I got the hand winch today and it looks great. It will do the job perfectly Thanks again "etrailer" Mario 87272



- DL10950

ratingratingratingratingrating by: Stephanie11/19/2013

Review from a similar Dutton-Lainson Worm Gear Hand Winch


Perfect winch for replacing the keel winch on our small sailboat. Excellent service from etrailer. 107829



- DL10950

ratingratingratingratingrating by: me01/12/2012

Review from a similar Dutton-Lainson Worm Gear Hand Winch


The product was exactly what I expected! The shipped was very fast and the tracking ability helped. 29586



- DL10950

ratingratingratingratingrating by: Mike N09/20/2013

Review from a similar Dutton-Lainson Worm Gear Hand Winch


Great Winch... Just as described. Quick shipping and great communication. Thanks! 100828

25
25


Ask the Experts about this Dutton-Lainson Winches
Expert Answers about Dutton-Lainson Worm Gear Hand Winch - 2,000 lbs - DL10970Do you have a question about this Winches?


  • Can the Dutton-Lainson Worm Gear Hand Winch, # DL10970 be Used with a Strap
  • The Dutton-Lainson Worm Gear Hand Winch, # DL10970, is designed for a cable no wider than 9/32 inches. If you had a strap that narrow, it could work, but the winch is not really designed for that application. A comparable winch that is rated for use with a strap is the Dutton-Lainson Trailer Winch, # DL14725. This winch has a drum capacity that can handle a strap 38 feet in length.
    view full answer...

  • Recommendation for a Worm Gear, Brake or Trailer Winch for a Mushroom Harvesting Trolley
  • There are a few things to determine before we can make a recommendation that will work well for your Mushroom Harvesting Trolley. First, how do you want to control the load that you are using the winch for? A trailer winch controls the load as it is being pulled in, but free spools out. A hand brake winch, like the one you referenced, controls the load coming in and when in free spool the load can be controlled by manipulating the hand brake. A brake winch, or worm gear winch controls...
    view full answer...

  • Does the Brake On Fulton Trailer Winch # FK25500301 Work in Both Directions
  • Yes, when you release the handle on winch # FK25500301 the brake will engage no matter which direction you are turning it. This winch can use a cable up to 5/16 inches in diameter like # DL24102. Another option that does not require a minimum load to brake is a worm gear winch like # DL10970 and cable # DL24104. There are also split reel worm gear winches like # DL10972 and cable # DL24045 so when you turn the handle one line goes in and the other line goes out. I have included a...
    view full answer...

  • Is the Dutton-Lainson Worm Gear Hand Winch, # DL10970 Salt Water Resistant for Marine Applications
  • The Dutton-Lainson Worm Gear Hand Winch, # DL10970, is made of laminated steel gears and a steel base, which is powder coated for some protection, but it is susceptible to the elements and corrosion. Instead, a better option would be the Dutton-Lainson Hand Winch, # DL14730. This winch has a Zinc plated yellow chromate TUFFPLATE finish has three times the corrosion resistance of standard zinc plated trivalent chrome process and 30 percent greater corrosion resistance when compared to...
    view full answer...

  • Can The DL10970 Hand Winch be Used to Secure the Load to the Trailer
  • The Dutton-Lainson Worm Gear winch is designed to only turn when the handle is turned. That being said, it is NOT designed to hold a load on a trailer. If you use the winch to pull a car on a trailer, the car should then be strapped to the trailer before transporting it. I would also disconnect the winch as to not keep tension on the cable when the car may bounce on the trailer as it is transported.
    view full answer...

  • Secondary Brake Winch For Worm Gear Winch Operation
  • A secondary brake winch that uses a planetary gear system would include a self-locking brake that would help secure a load and not rely solely on the worm gear winch. However, it is not suggested that a winch be used to hold any loads for extended periods of time. The best method would be to use cables or chains to secure the load once the winch has been used to lift the load. There is not an attachment that can be used on the Fulton worm gear winch, part # FKW30000103, that can be used...
    view full answer...

  • Worm Gear Winch Recommendation for Hoisting 1,300 lbs
  • After each layer of cable on the spool of a winch the capacity for the winch is reduced by 10 percent. Because of that and the fact that you have a high winching distance at 35 feet a better choice for a winch would be the # FKW30000103 as it has a 3,000 lb capacity on the first layer. This capacity is for a vertical load, since you said its a rolling load up an incline the capacity in your situation would actually be higher for this winch. For a cable you would want the part # DL24044,...
    view full answer...
