Dutton-Lainson Worm Gear Hand Winch with Split Reel for 2 Cables - 1,500 lbs.

Dutton-Lainson Winches

ratingratingratingratingrating (3 reviews)


Code:   DL10952

Retail:$84.99

Price:$73.95


Shipping Special

Shipping Weight: 10 pounds

Quantity:






Dutton-Lainson Winches - DL10952

Worm Gear, Split Drum Handle Drive - 1,500 lb

Applications requiring safe, controlled movement of loads need the D-L worm gear winch. The reel automatically stops turning whenever cranking is stopped. There is no free wheel mode, no special mechanism required to stop gear movement and they do not require a minimum load for operation. The split drum will allow cable to pull from opposite directions.

  • Capacity: 1,500 lbs.
  • Capacity is based on direct line pull on the first layer of line on the drum. Capacity is reduced as line builds up on the drum
  • Laminated high carbon steel gears are heat treated for longer life
  • Heavy gauge embossed steel base for extra strength
  • Permanently lubricated bearing on drive shaft are maintenance free
  • Handle drive
  • Heavy duty variable speed drill 1/2" shaft, using 5/8" socket, may speed up operation
  • Split reel allows operation of 2 lines for greater versatility
  • Powder coated copper bronze finish
  • 5 year limited warranty
  • Made in the USA

All D-L winches are built for multipurpose hauling and lifting operations. They are not to be used as hoists for lifting, supporting or transporting people, or for loads over areas where people can be present.

Worm Gear Specifications
ModelWinch DescriptionRated Capacity (1)Drum Hub DiameterGear RatioHandle LengthMax. Mechanical AdvantageMax. Drum Capacity - Cable (2)
DL10952Split Reel Handle Drive1,500 lb.1-1/2"30:17"2401/4" x 43' (21-1/2' per side)

(1) Capacity is based on direct line pull on the first layer of line on the drum. Capacity is reduced as line builds up on the drum. (2) Drum capacity shown is based on cable size listed. (Cable not included.)


10952 Worm Gear, Split Drum Handle Drive - 1,500 lb by Dutton-Lainson Model WG1500SR





Video of Dutton-Lainson Worm Gear Hand Winch with Split Reel for 2 Cables - 1,500 lbs.


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

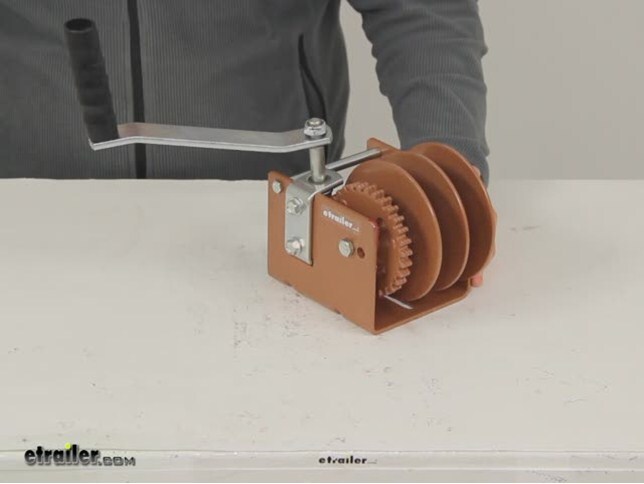

Video Demo Dutton Lainson Winches DL10952
Dutton-Lainson Winches DL10952 Review

Video Transcript for Dutton-Lainson Winches DL10952 Review

Today we'll be reviewing part number DL10952. This is the Dutton-Lainson Worm Gear Hand Winch, with split reel for 2 cables, rated at 1500 pounds. That capacity is based on direct line pull on the first layer of line of the drum. The capacity will reduce as the line builds up. Our gears are made from a laminated high-carbon steel gear and they're also heat-treated for longer life. Here on the base we do have a heavy gauge, embossed steel base for extra strength.

You can see the different lubricants that we have. We have some on our worm gear. We also have some on the bushings and the drive shaft that goes through the spindles. All those elements are permanently lubricated. So, what that does is it allows the system to be maintenance-free.

This is a handle drive system. You just place the handle over top of the bolt and then thread on a lock nut. I don't have that on all the way because I don't want to break that locked seal. You can also use a heavy duty, variable speed drill with a 1/2" shaft using 5/8" socket. It's a help to speed up your operation.

Otherwise, this has a 30 to 1 gear ration, so it's going to take 30 full turns of the handle to rotate our hub 1 full rotation. So you can see that we can turn either way to bring in a load or to extend our line. The great convenience about have the worm gear winch, is that as soon as you let go of the handle, it's going to hold your load in place, so there's no free wheel option available with this winch. Also, the split reel allows for operation of 2 lines for greater versatility. It does have a powder coated, bronze, copper finish so it's going to stand up well against rust and corrosion. If we take a measurement of our handle, measuring from the center of where it mounts out to the end, it's going to give us a measurement of about 7 3/4".

Here on the underside, it does have the pre-drilled bolt holes for an easy bolt-on installation. Our mounting plate's going to measure 5 1/2" by 4 1/2". The elongated hole is going to measure 1 5/8" by 3/8". These 2 holes are identical and they're going to give us a diameter of 3/8". These 2 holes are the same and they're going to measure 3/8" by 7/8". Now, our drum hub is going to accommodate a cable up to 43' in length, so that's 21 1/2' per side and that cable needs to be 1/4" in thickness. We'll go over a few more measurements. If we go over the entire width of the handle, or the entire width of our system with the handle fully extended, it's going to give us a measurement of about 12 1/2". Without the handle, our width is going to be about 6" wide. If we do the heighth, with the handle, it's going to measure about 10 1/4" tall. Without the handle, so measuring to this point here, it's going to be about 7" tall. If we go ahead and measure the depth, so measuring from the end of the wheel to this point over here, it's going to be about 7" in depth. That's going to do it for our review of part number DL10952. This is the Dutton-Lainson Worm Gear Hand Winch with a split reel for 2 cables, rated at 1500 pounds. .
